Description

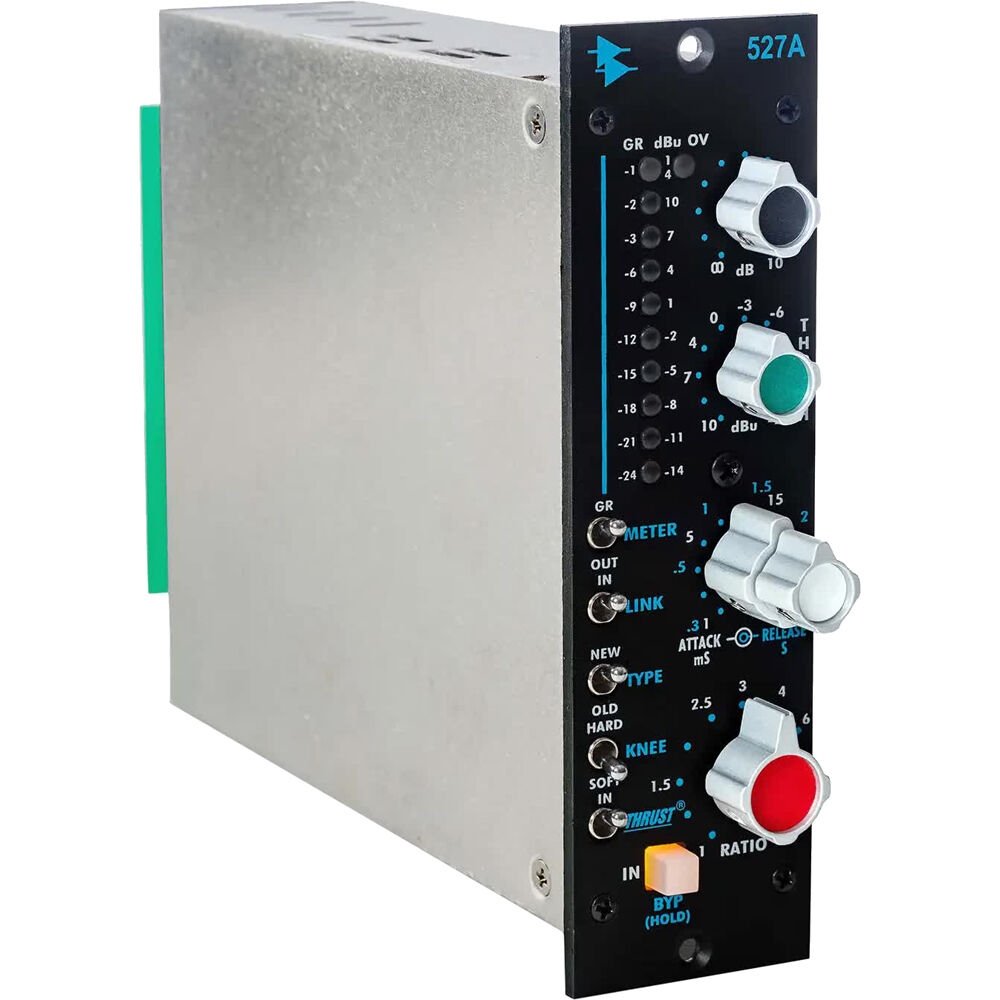

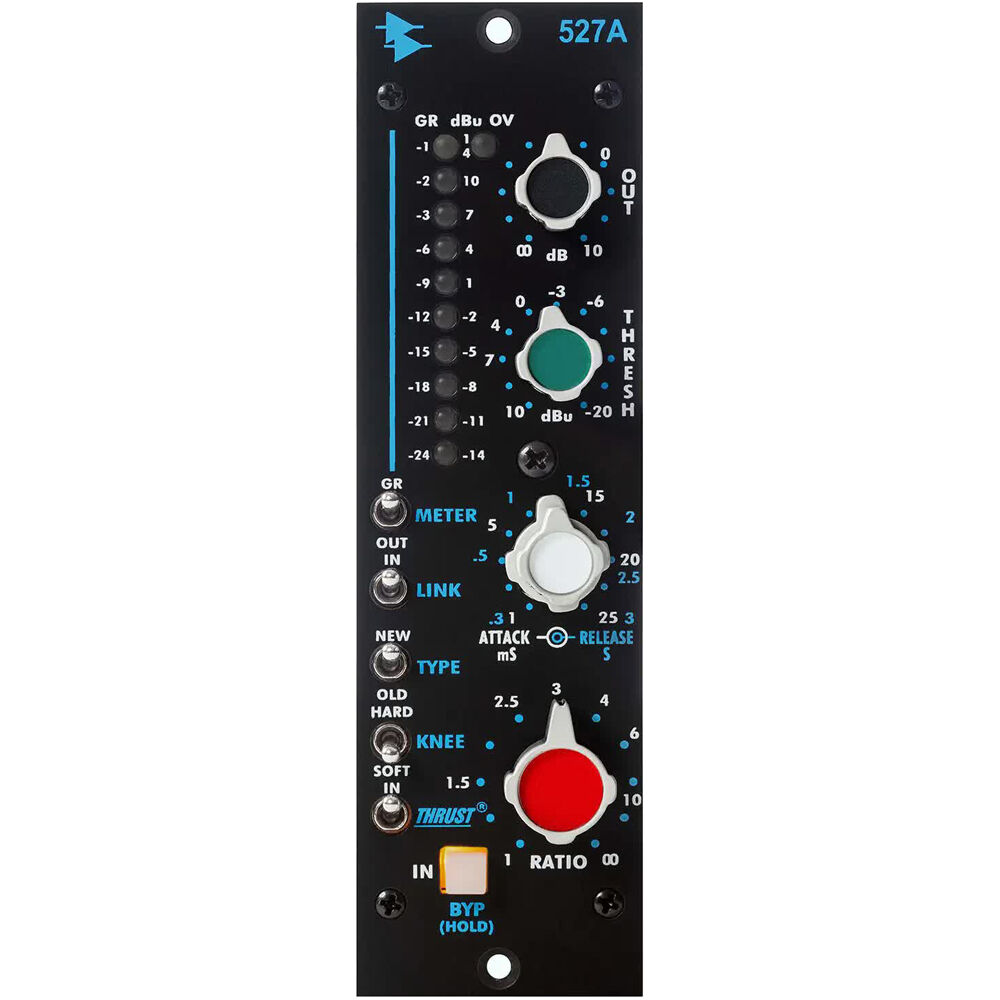

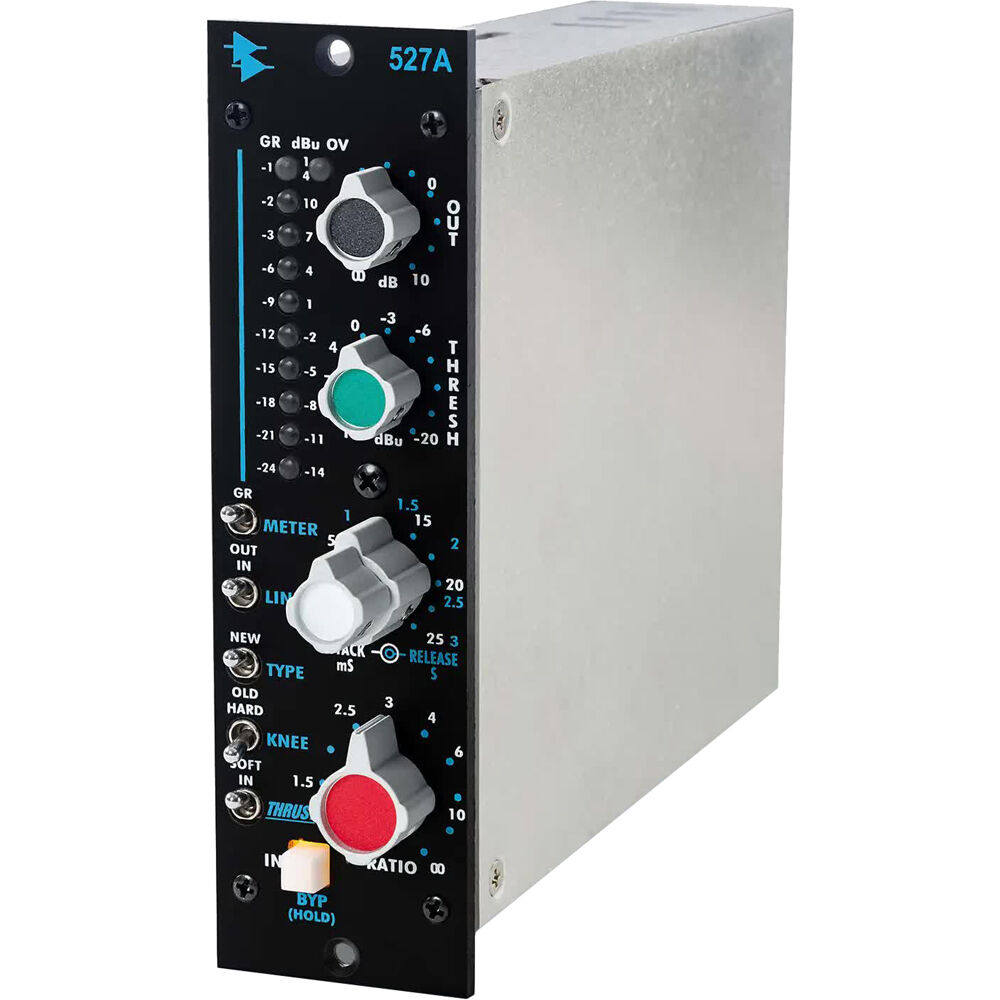

Taking its place alongside the API Audio family of VCA-based compressors, the 527A is a 500-series compressor/limiter module sporting selectable feedforward (New) and feedback (Old) compression modes. Along with selectable hard- or soft-knee compression and the patented THRUST circuit for extra punch in the low frequencies, the 527A is a versatile studio compressor.
Onboard controls include Threshold (+10 to -20 dBu), Ratio (1:1 to Infinity:1), Attack (1 to 25 ms), Release (0.3 to 3 seconds), and Output Level, all on continuously variable, center-detented knobs for easy reset. You also get two-way switches for selecting meter in/out, stereo link, New or Old compression modes, hard or soft knee, and the Thrust circuit. The In button lets you select between soft and hard mechanical relay bypass. Discrete 2510 and 2520 op-amps ensure the smooth and consistent sound signature of the API analog tone. Finally, the onboard 10-segment LED meter measures both gain reduction and output level, and you can read a single LED overload indicator to see when signals exceed +21 dBu.
| Input Impedance | 120 Kilohms (Balanced) |
| Output Impedance | 75 Ohms (Transformer Balanced) |
| Maximum Input Level | +26 dBu |
| Maximum Output Level | +30 dBu |
| Frequency Response | 20 Hz to 40 kHz (±0.5 dB) |
| Signal-to-Noise Ratio | 110 dB |
| Power Source | Proprietary Interface |
| Power Consumption | 3.5 W |
| Mounting | Front: 2x 500-Series Rack Screw |
| Color | Black |
| Material of Construction | Metal |
| Dimensions | 7 x 5.25 x 1.5" / 17.8 x 13.34 x 3.8 cm |
| Weight | 1.8 lb / 0.8 kg |
| Package Weight | 2.15 lb |
| Box Dimensions (LxWxH) | 10.2 x 6.2 x 4.6" |
