Description

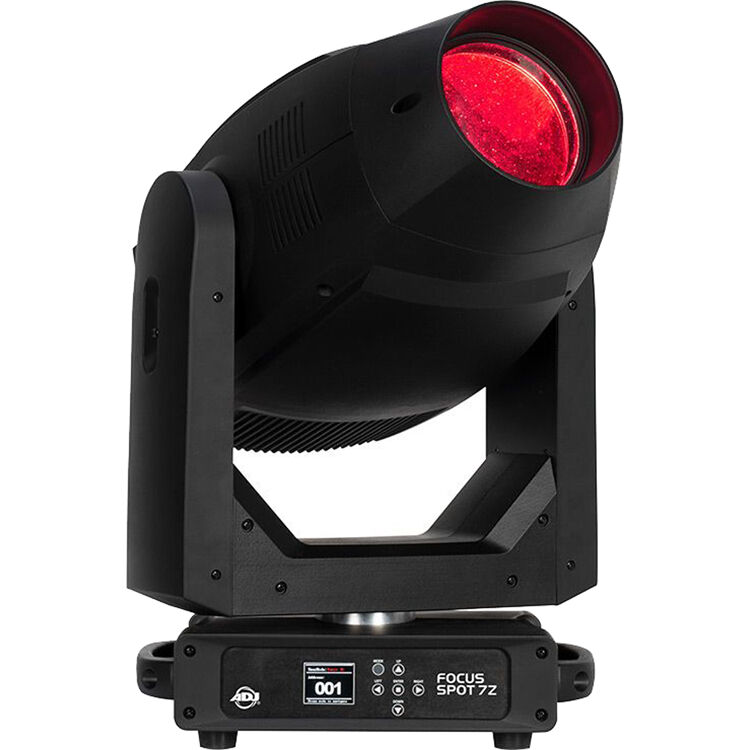

Lighting designers in search of a fixture capable of producing beam, spot, and wash effects should look no further than the American DJ Focus Spot 7Z, a powerful and feature-packed moving head spot luminaire well suited for film and TV, event production, and rental houses as well as permanent installations in concert halls, theaters, nightclubs, and churches.
The Focus Spot 7Z is powered by a 420W white LED engine and features variable CMY and CTO color mixing with a color wheel that features 7 dichroic slots. The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6 ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters. The Focus Spot 7Z includes two Omega brackets and a powerCON power cable.
| Item Type | 1x Moving Head |
| Light Source | LED Light Engine • 1x White (420 W) |
| Control Protocols | DMX512, Art-Net, sACN |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power / Current Consumption | 524 W (Max) |
| Mounting | Floor Base, Omega Bracket |
| Item Type | 1x Moving Head |
| Light Source | LED Light Engine • 1x White (420 W) Color Wheel • Blue, CTB (Color Temperature Blue), Dark Blue, Green, HCRI (High CRI), Orange, Red |
| Expected Lamp Life | 20,000 Hours |
| Photometrics | 6°: 5250 fc / 56,513 Lux at 16.4' / 5 m 48°: 147 fc / 1585 Lux at 16.4' / 5 m |
| Color Temperature | 7700 to 8000K |
| Lumen Output | 20,000 Lumens |
| Beam Angle | 6 to 48° |
| Shutter / Strobe | Electronic |
| Iris | Yes: Mechanical |
| Focus | Motorized |
| Zoom Adjustment | Motorized, 6 to 48° |
| Dimming | Electronic, 0 to 100% with 6 Dimmer Modes |
| Prism | 4-Facet Circular (Rotating) 6-Facet Linear (Rotating) |
| Operating Modes | Automatic, DMX, Program, Standalone |
| Strobe Rate | 1 to 20 Hz |
| Gobos | 6x Removable Glass Gobo 1x Spot/Open 6x Removable Glass Gobo 1x Spot/Open 1x Animation Wheel |
| Gobo Size | Outer Diameter: 0.9" / 23 mm Max Image Size: 0.7" / 19 mm Max Thickness: 0.04" / 1.1 mm |
| Color Accuracy Standard | CRI 73 at 7000K |
| Refresh Rate | 900 Hz to 25,000 Hz |
| Tilt Ranges | 270° |
| Pan Ranges | 540° |
| Pan/Tilt Inversion | Yes |
| Movement Resolution | 8-Bit |
| Control Protocols | DMX512, Art-Net, sACN |
| DMX Channel Modes | 3 Mode(s): 30 / 34 / 45-Channel |
| Display / Controls | LCD / 6-Button |
| Remote Control | No |
| Mobile App Compatible | No |
| Inputs/Outputs | 1 x RJ45 Network Input 1 x RJ45 Network Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless | No |
| AC Power Connector | Input: 1x powerCON Output: 1x powerCON |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power / Current Consumption | 524 W (Max) |
| Power Linking | No |
| Environmental Resistance | Dust-Resistant (IP20) |
| Mounting | Floor Base, Omega Bracket |
| Included Accessories | 1x Power Cable |
| Duty Cycle | No |
| Exterior Color | Black |
| Cooling | Fan (Variable Speed) |
| Certifications | CE, ETL |
| Dimensions | 24.81 x 14.7 x 9.2" / 63.02 x 37.3 x 23.4 cm |
| Weight | 51.7 lb / 23.5 kg |
| Package Weight | 66.5 lb |
| Box Dimensions (LxWxH) | 32.25 x 21 x 17.25" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 779359.7 |
| 3-5 | ₹ 771407.05 |
| 5-10 | ₹ 755501.75 |
| 10+ | ₹ 739596.45 |
Bulk discount will be automatically applied during checkout based on quantity.
