| ₹ 99999999.0 includes GST and import duties. | |
| B2B customers can avail ₹ 15249999.85 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

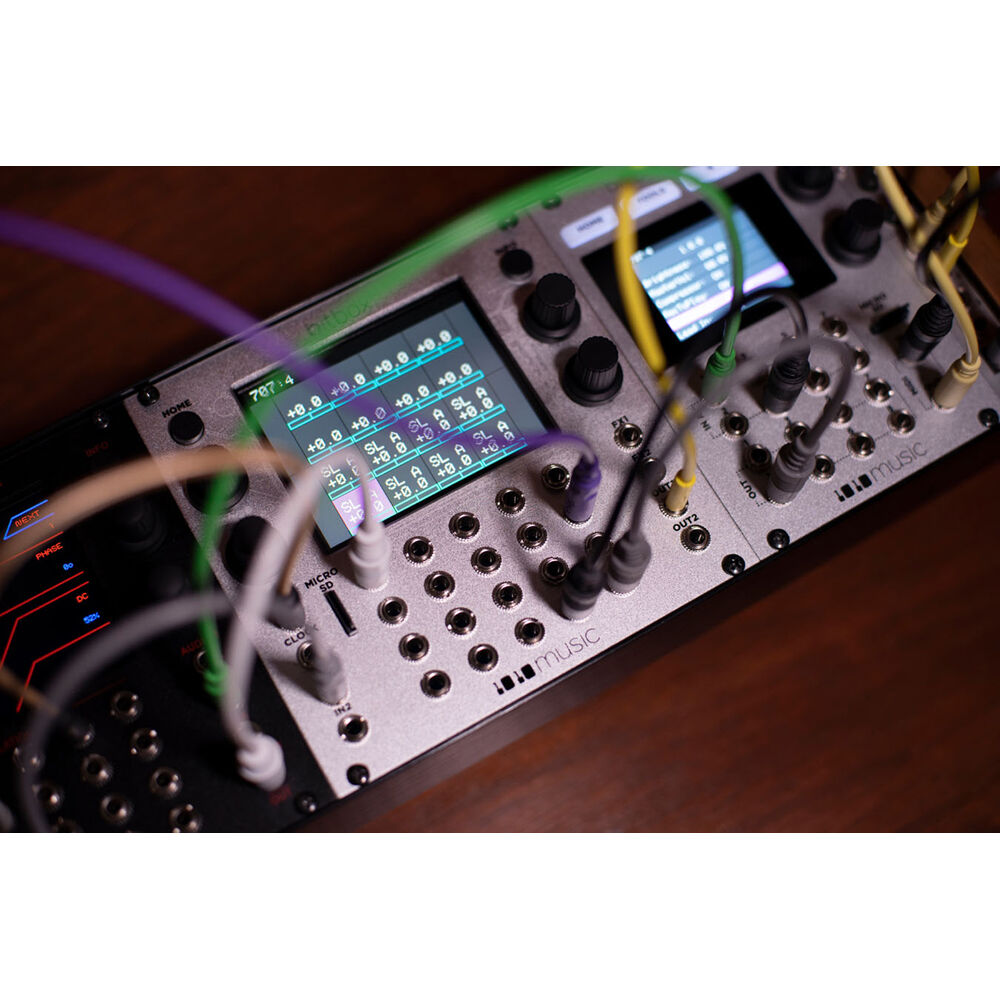

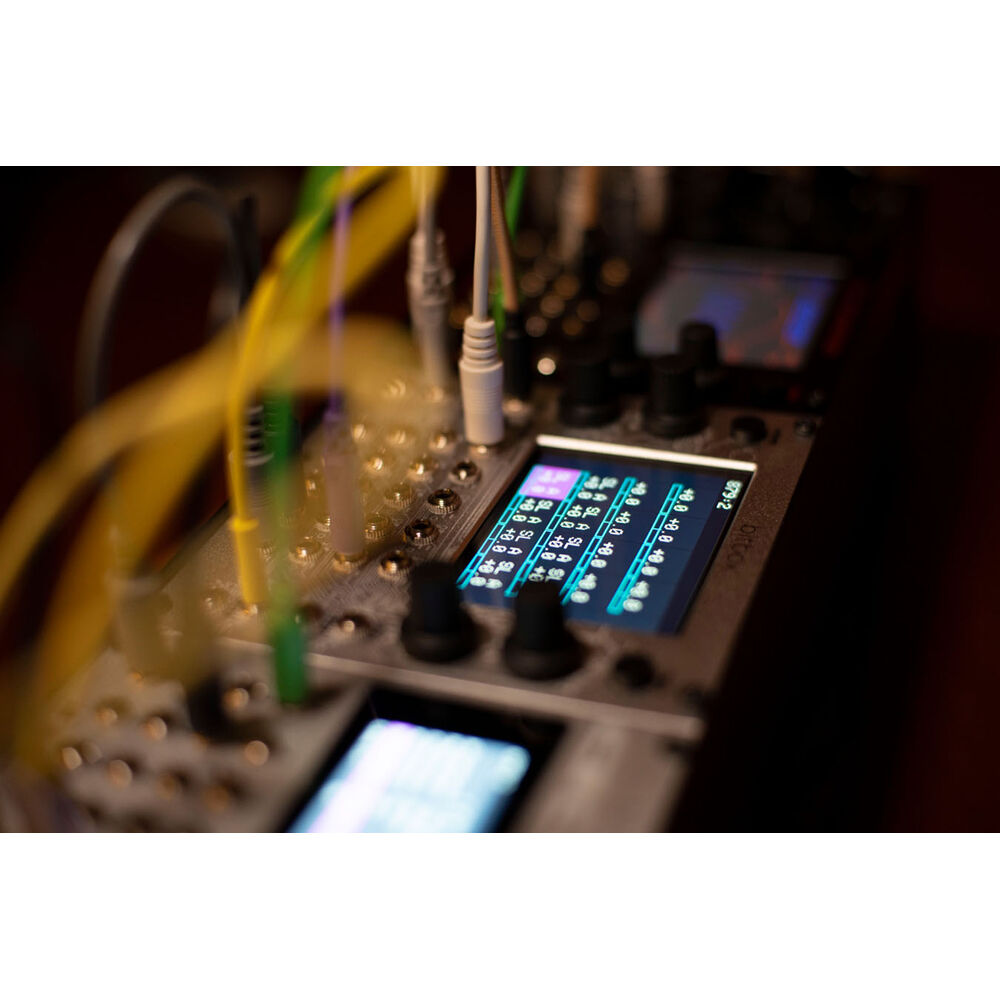

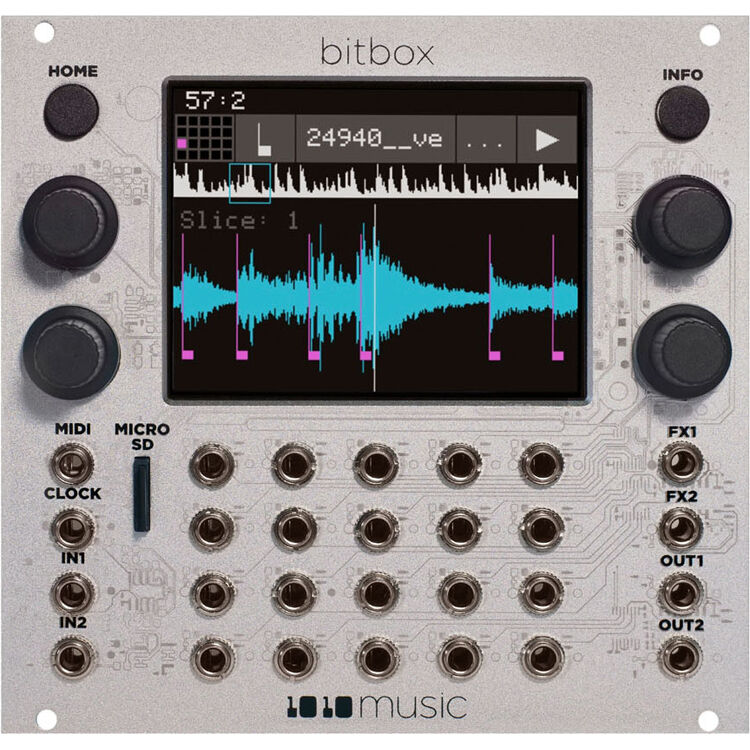

Deliver powerful sampling and audio mangling for Eurorack with the 1010 Music bitbox mk2, an intuitive sampler that adds recording, sample playback, clip launching, slicing, granular sounds, and musically intelligent looping capabilities to your Eurorack rig. With its integrated 3.5" touchscreen that's designed to simplify selecting, editing, and tweaking your samples, the bitbox mk2 allows you to tweak and save your configurations for future use.
You can stream large samples of up to 4GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. You can also download fxbox and synthbox firmware from the 1010 Music forum and install it on your bitbox mk2 to get three modules in one. Swap to the fxbox firmware to get effects processing, or the synthbox firmware to play with wavetable synthesis. The bitbox mk2 includes a 3.5mm to DIN MIDI adapter and a ribbon cable.
| Sound Generation | Digital |
| Audio I/O | 1/8" (3.5 mm) |
| MIDI I/O | 1x 1/8" / 3.5 mm TRS Type-B Input or Output |
| CV/Gate I/O | 8x 1/8" / 3.5 mm TS CV Input 16x 1/8" / 3.5 mm TS Gate Input |
| Patch Points | No |
| Eurorack Current Consumption | 400 mA on +12 V Rail 0 mA on -12 V Rail 0 mA on +5 V Rail |
| Horizontal Pitch | 30 HP |
| Synth Type | Eurorack Module |
| Sound Generation | Digital |
| Expression Controls | No |
| Number of Pads | No |
| AD/DA Conversion | 24-Bit / 48 kHz |
| Built-In Effects | Delay Reverb |
| Built-In Speaker | No |
| Oscillators | 16x Fixed (Sample) |
| Mixer | No |
| Amplifiers | No |
| Envelopes | 16x Assignable Envelope Generator: Attack, Decay, Sustain, Release |
| Filters | Number of Filters: 1 per Voice Characteristic: Digital Type: Low-Pass, High-Pass |
| LFOs | Number of LFOs: 1 per Voice Waveforms: Sine, Sawtooth, Reverse Sawtooth, Square, Triangle, Random, Noise |
| Sequencer | No |
| Arpeggiator | No |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC |
| Audio I/O | 2x 1/8" / 3.5 mm TRS Line/Modular/Eurorack Input 4x 1/8" / 3.5 mm TRS Main/Modular/Eurorack Output |
| MIDI I/O | 1x 1/8" / 3.5 mm TRS Type-B Input or Output |
| CV/Gate I/O | 8x 1/8" / 3.5 mm TS CV Input 16x 1/8" / 3.5 mm TS Gate Input |
| Patch Points | No |
| Sync I/O | 1x 1/8" / 3.5 mm TS Clock Input or Output |
| Power Requirements | Eurorack Power |
| Eurorack Current Consumption | 400 mA on +12 V Rail 0 mA on -12 V Rail 0 mA on +5 V Rail |
| Horizontal Pitch | 30 HP |
| Included Accessories | microSD Card, USB Cable |
| Dimensions | 5.3 x 5 x 1.8" / 13.5 x 12.7 x 4.6 cm |
| Package Weight | 0.755 lb |
| Box Dimensions (LxWxH) | 6.5 x 5.65 x 1.95" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 97999999.02 |
| 3-5 | ₹ 96999999.03 |
| 5-10 | ₹ 94999999.05 |
| 10+ | ₹ 92999999.07 |
Bulk discount will be automatically applied during checkout based on quantity.
