Description

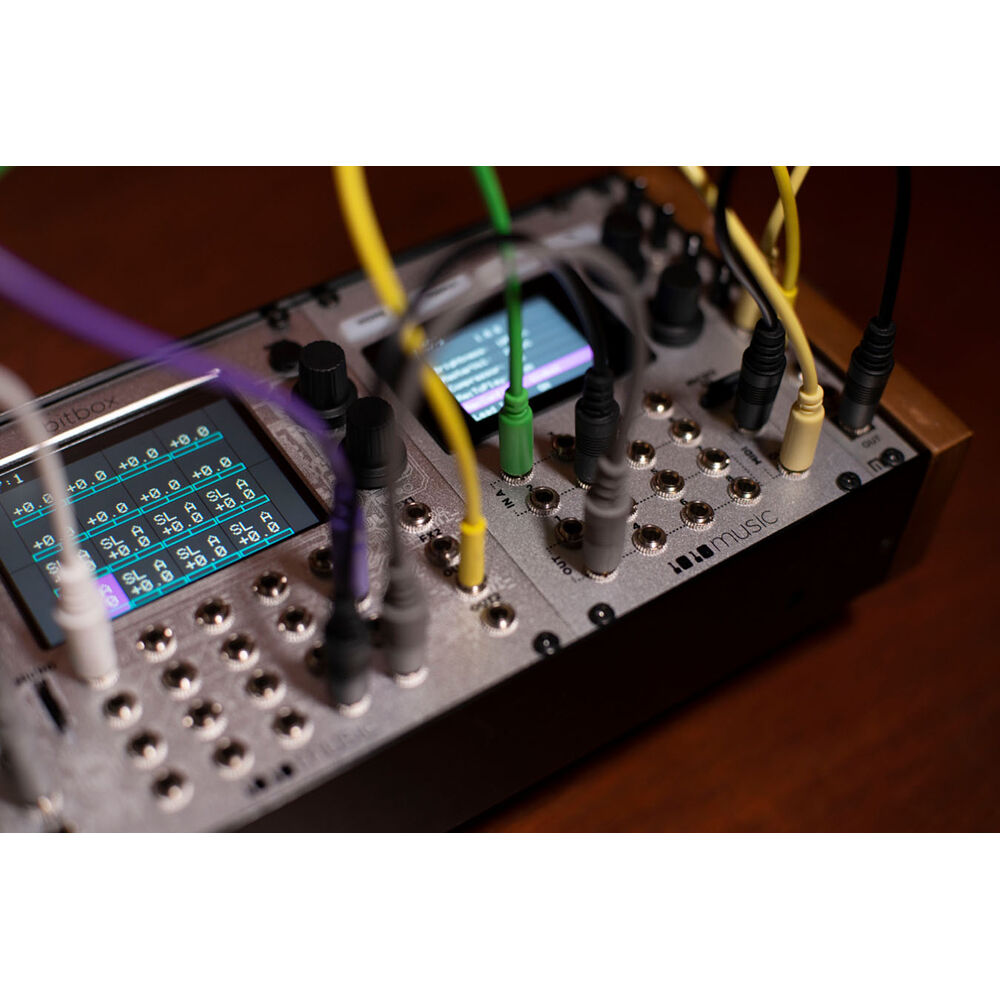

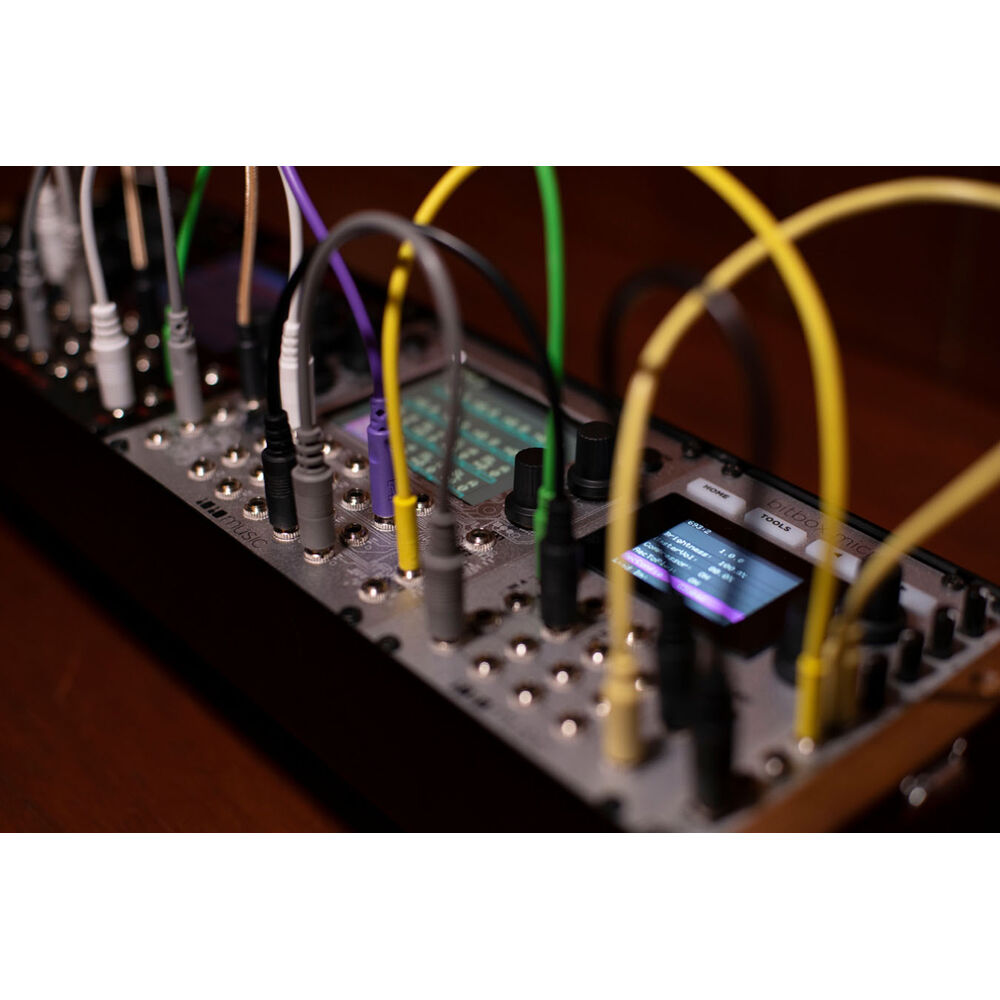

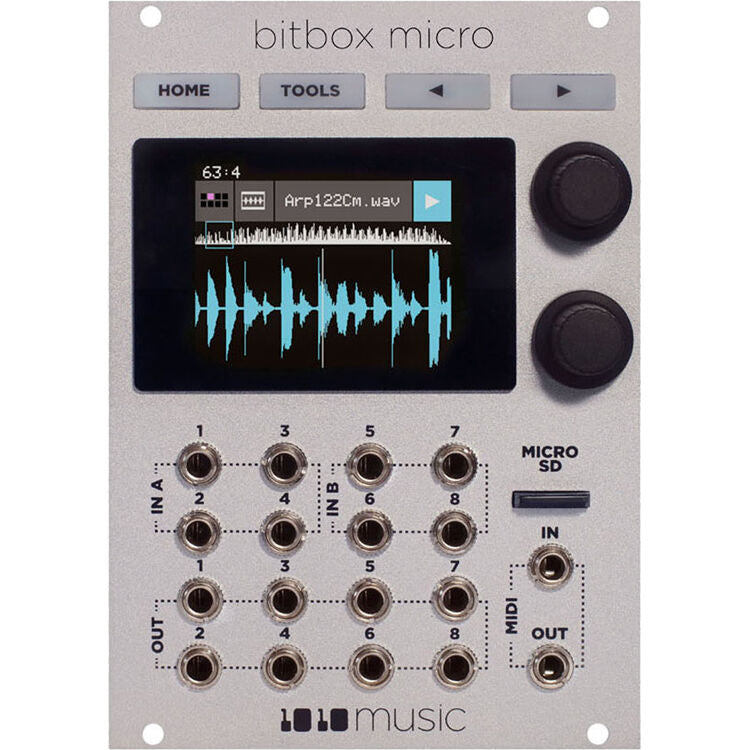

Deliver powerful sampling and audio mangling for Eurorack with the 1010 Music Bitbox Micro, a compact and intuitive sampler that adds recording, sample playback, clip launching, slicing, granular sounds, and musically intelligent looping capabilities to your Eurorack rig. With its integrated 2" touchscreen that's designed to simplify selecting, editing, and tweaking your samples, the Bitbox Micro allows you to adjust and save your configurations for future use.
You can stream large samples of up to 4GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. Trigger one shots, play time synched loops, or record live looping. Bitbox Micro is equally at home in your studio or as a component of your live performance.
| Sound Generation | Digital |
| Audio I/O | 1/8" (3.5 mm) |
| MIDI I/O | 1x 1/8" / 3.5 mm TRS Type-B Input 1x 1/8" / 3.5 mm TRS Type-B Output |
| CV/Gate I/O | 8x 1/8" / 3.5 mm TS CV/Gate Input |
| Patch Points | No |
| Eurorack Current Consumption | 400 mA on +12 V Rail |
| Horizontal Pitch | 18 HP |
| Synth Type | Eurorack Module |
| Sound Generation | Digital |
| Expression Controls | No |
| Number of Pads | No |
| AD/DA Conversion | 24-Bit / 48 kHz (D/A) |
| Built-In Effects | Delay Reverb |
| Built-In Speaker | No |
| Oscillators | 8x Fixed (Sample) |
| Mixer | No |
| Amplifiers | No |
| Envelopes | 8x Assignable Envelope Generator: Attack, Decay, Sustain, Release |
| Filters | Number of Filters: 1 per Voice Characteristic: Digital Type: Low-Pass, High-Pass |
| LFOs | Number of LFOs: 1 per Voice Waveforms: Sine, Sawtooth, Reverse Sawtooth, Square, Triangle, Random, Noise |
| Sequencer | No |
| Arpeggiator | No |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC |
| Audio I/O | 2x 1/8" / 3.5 mm TRS Line/Modular/Eurorack Input 8x 1/8" / 3.5 mm TRS Main/Modular/Eurorack Output |
| MIDI I/O | 1x 1/8" / 3.5 mm TRS Type-B Input 1x 1/8" / 3.5 mm TRS Type-B Output |
| CV/Gate I/O | 8x 1/8" / 3.5 mm TS CV/Gate Input |
| Patch Points | No |
| Sync I/O | 8x 1/8" / 3.5 mm TS Clock Input |
| Power Requirements | Eurorack Power |
| Eurorack Current Consumption | 400 mA on +12 V Rail |
| Horizontal Pitch | 18 HP |
| Included Accessories | microSD Card, USB Cable |
| Dimensions | 5 x 3.5 x 1.8" / 12.7 x 8.9 x 4.6 cm |
| Package Weight | 0.665 lb |
| Box Dimensions (LxWxH) | 6.9 x 6.8 x 2.3" |
