Description

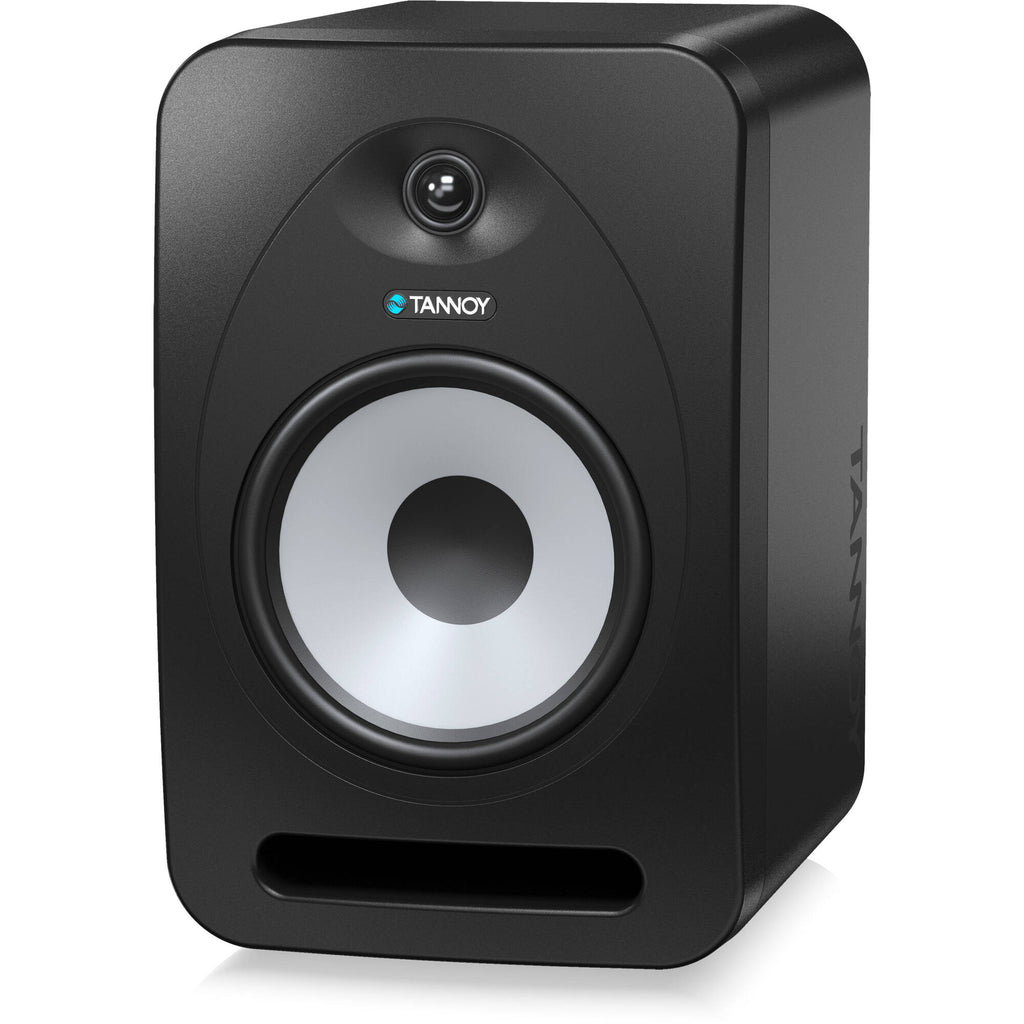

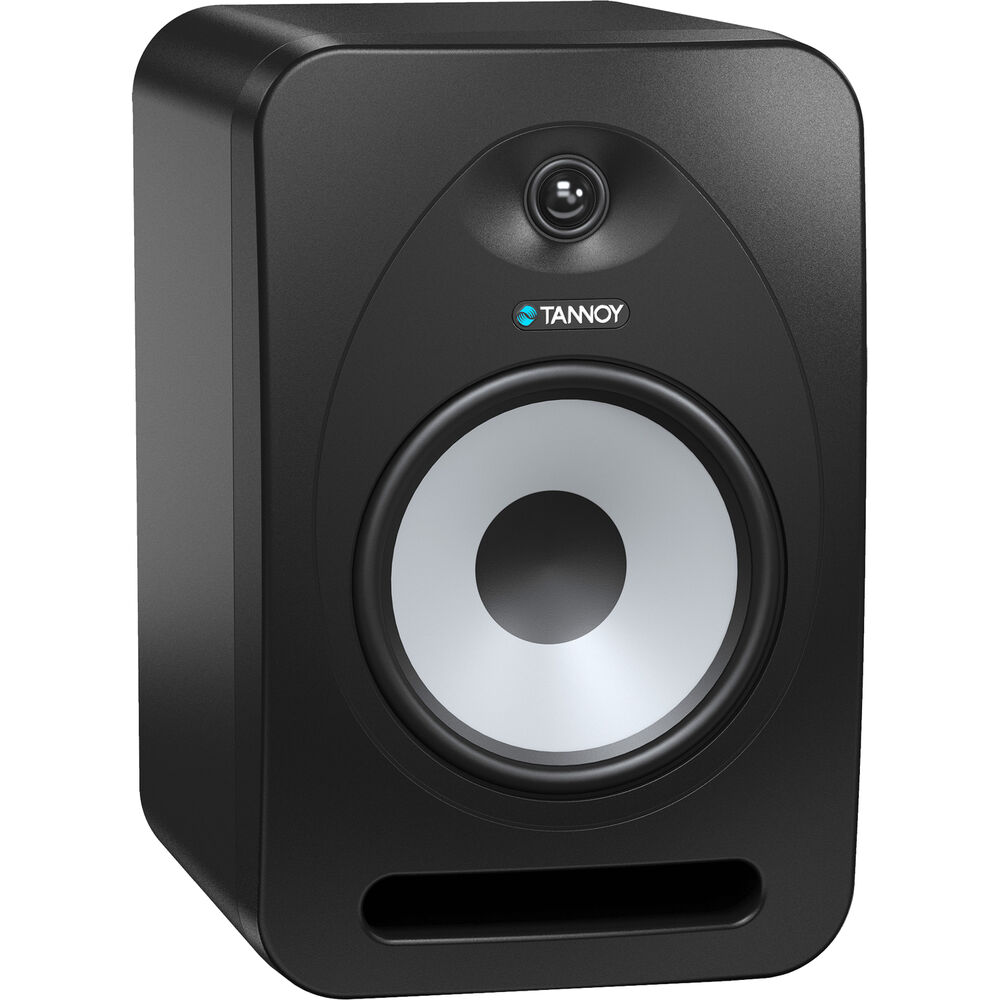

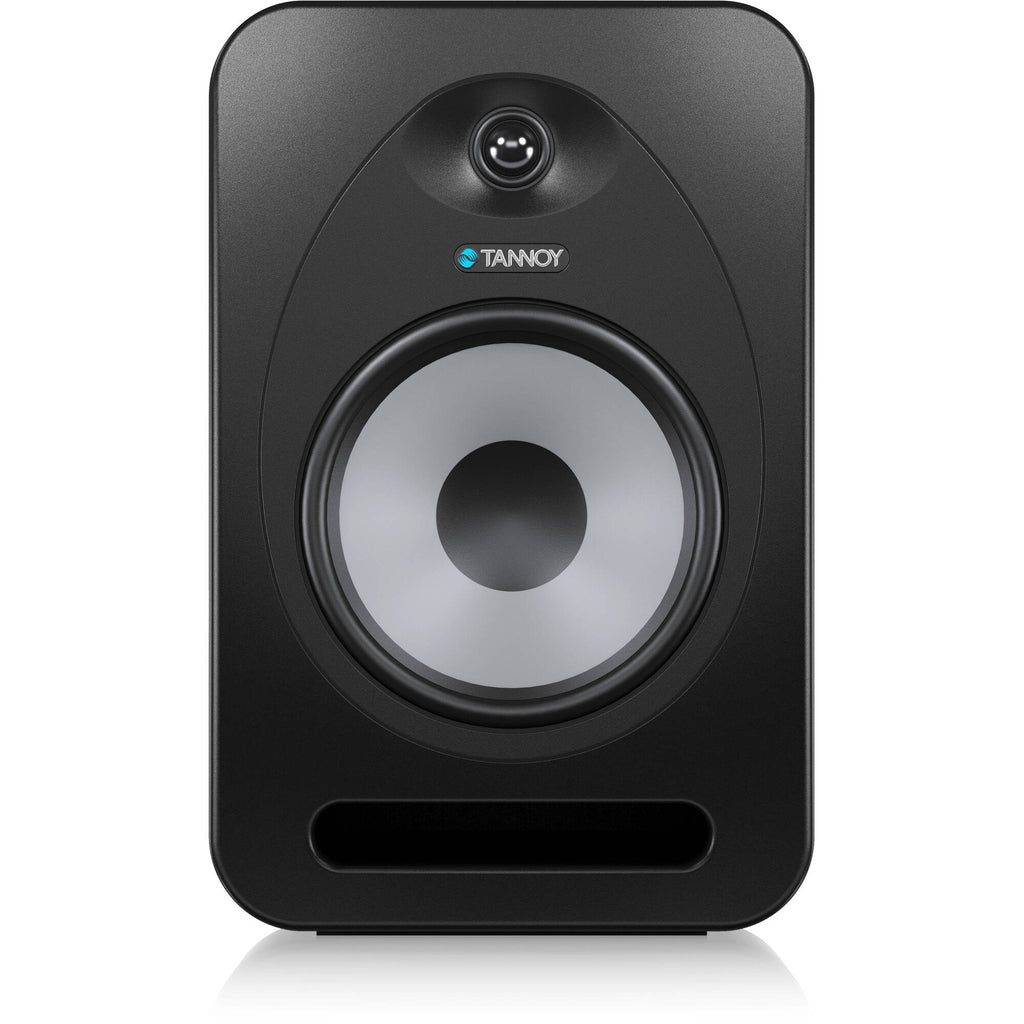

Tannoy REVEAL 802 Overview
Move around in your workspace without losing the stereo imaging of your mix with the highly accurate Tannoy Reveal 802, a powered 2-way reference monitor that's designed for mixing and monitoring at home or in the studio. It features an active crossover filter that aims to improve timing for a wide sweet spot, plus an accurately tuned, front-firing bass port to help ensure optimal low-frequency performance.
Equipped with a bi-amped, 140W amplifier that powers an 8" woofer and a 1" soft-dome tweeter, the Reveal 802 is designed to ensure maximum power, tonal clarity, and low-frequency response. It also features adjustable volume and EQ settings to customize the tuning of the speaker to compensate for acoustical deficiencies that may be present in your monitoring environment. A 16.4' 3.5mm monitor-link cable is included, allowing you to daisy-chain a stereo signal from the stereo aux input. A power cord is also included.
- Reference monitor ideal for personal studio monitoring
- 140W custom bi-amped design delivers rock-solid bass and premium tonal clarity at any volume
- 8" custom high-efficiency low-frequency driver for maximum bass response
- 1" soft-dome poke-resistant tweeter for detailed high frequency reproduction
- Accurately tuned front-firing bass port allows near wall placement and ensures optimal low-frequency performance
- Ultrawide sweet spot allows you to move around in your workspace without losing the stereo imaging of your mix
- Rubberized foam base provides acoustic isolation
- Adjustable equalization to match your listening environment

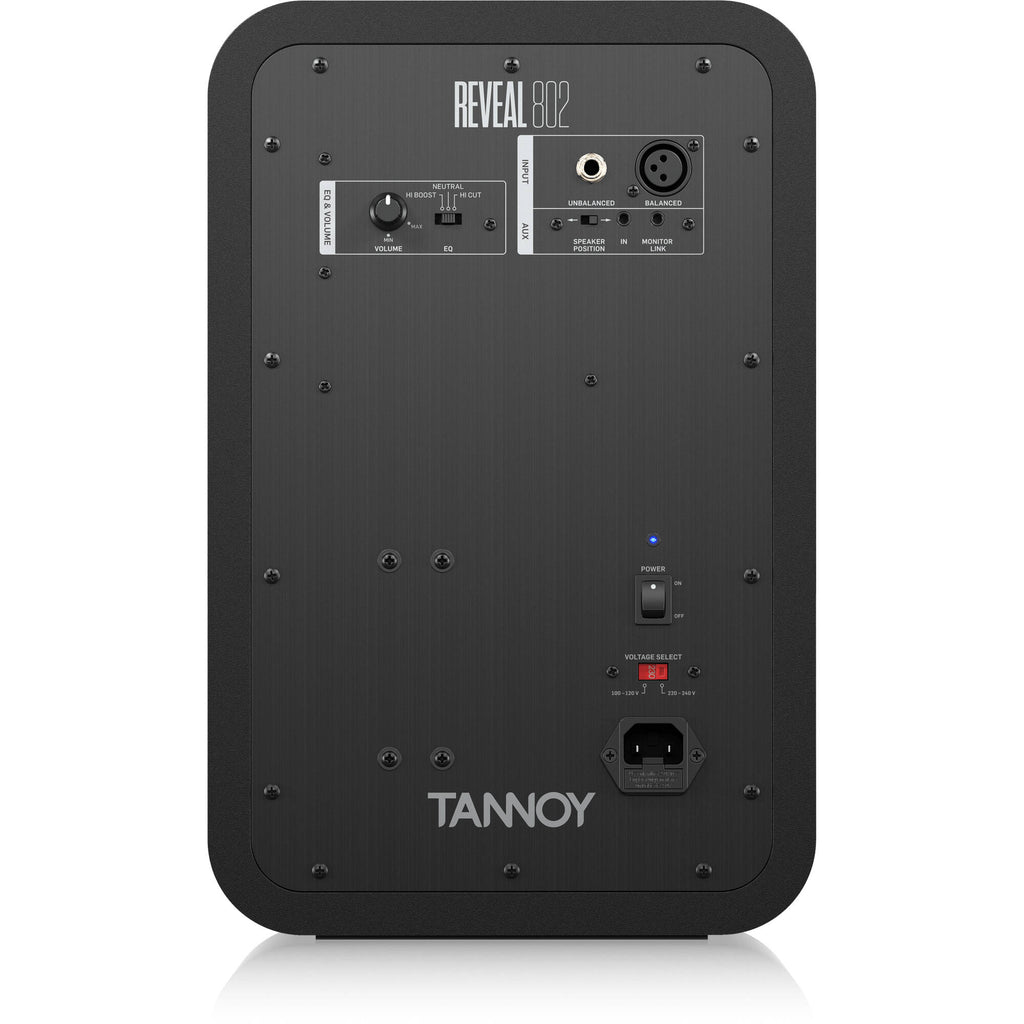

- Balanced XLR input and unbalanced 1/4" TS input for maximum flexibility
- 3.5mm stereo input with monitor link facility for connection of mobile devices (cable included)
Items Included
- Tannoy REVEAL 802 140W 8" Bi-Amplified Studio Reference Monitor (Single)
- 3.5mm Monitor Link Cable (16.4')
- Power Cord
-
Limited 1-Year Manufacturer Warranty (Register within 90 Days for Extension)
Registration Extension: 2-Year
Additional Resources
Tannoy REVEAL 802 Specs
| Monitor Type & Configuration |
Active 2-Way
|
| Total Power Output |
100 W RMS
|
| Tweeter |
1x 1" / 25.4 mm Soft Dome
|
| Woofer |
1x 8" / 20.3 cm Cone
|
| Audio I/O |
1x XLR 3-Pin Balanced Line Input (20 Kilohms)
1x 1/4" TS Unbalanced Line Input (10 Kilohms) 1x 1/8" / 3.5 mm TRS Unbalanced Line/Aux Input (10 Kilohms) 1x 1/8" / 3.5 mm TRS Unbalanced Speaker Output |
| Digital Audio I/O |
No
|
| Network I/O |
No
|
| Wireless |
No
|
| Number of Included Monitors |
Single Monitor
|
| Enclosure |
Bass-Reflex/Ported
|
| Total Power Output |
100 W RMS
|
| Tweeter |
1x 1" / 25.4 mm Soft Dome
|
| Woofer |
1x 8" / 20.3 cm Cone
|
| Frequency Response |
42 Hz to 43 kHz
|
| Maximum Sound Pressure Level (SPL) |
114 dB
|
| Total Harmonic Distortion (THD) |
<0.4%
|
| Crossover Frequency |
1.8 kHz
|
| Audio I/O |
1x XLR 3-Pin Balanced Line Input (20 Kilohms)
1x 1/4" TS Unbalanced Line Input (10 Kilohms) 1x 1/8" / 3.5 mm TRS Unbalanced Line/Aux Input (10 Kilohms) 1x 1/8" / 3.5 mm TRS Unbalanced Speaker Output |
| Digital Audio I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| AC Input Power |
100 to 120 VAC, 50/60 Hz
200 to 240 VAC, 50/60 Hz |
| Power Consumption |
240 W (Maximum)
|
| Color |
Black
|
| Monitor Orientation |
Vertical
|
| Enclosure Material |
MDF
|
| Dimensions (W x H x D) |
10 x 15.3 x 11.8" / 25.4 x 38.9 x 30 cm
|
| Package Weight |
31.56 lb
|
| Box Dimensions (LxWxH) |
21.2 x 16.6 x 15.4"
|
