Description
Tannoy CMS503 Overview

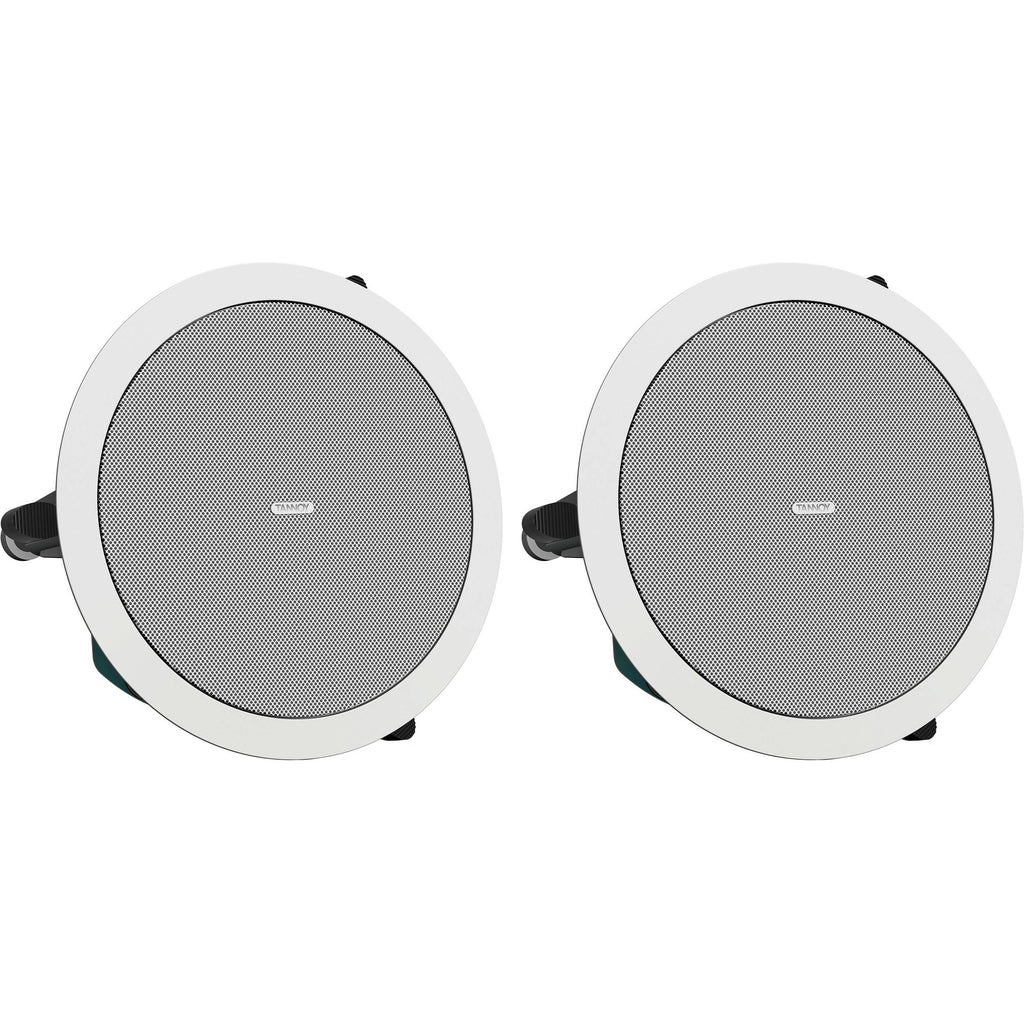

This pair of 5" Full-Range Ceiling Loudspeakers from Tannoy includes two full-bandwidth, high-power handling, and high-sensitivity loudspeakers built around Tannoy's CMS 3.0 Ceiling Monitor System technology. Based on a dual-concentric point-source driver, the speaker delivers wide and consistent broadband directivity, intelligibility, and an accurate and linear response and are designed for installation applications.

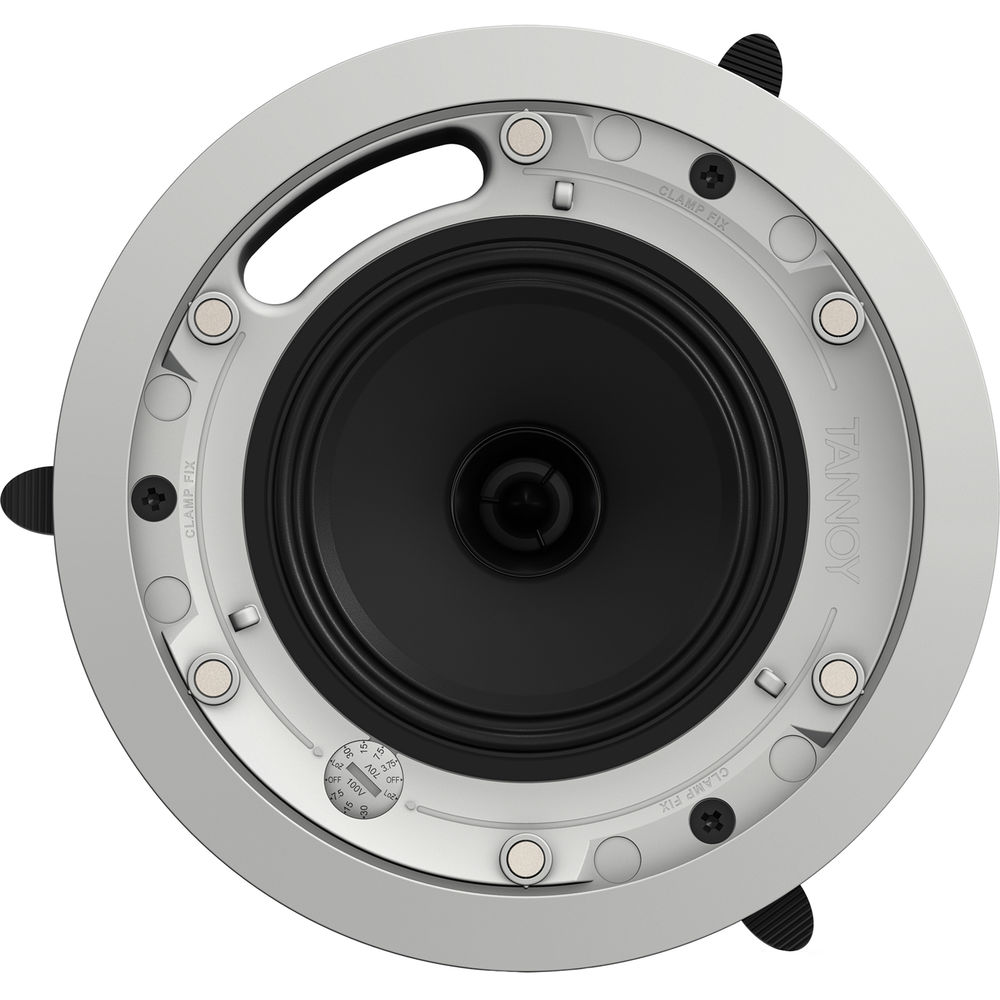

The dual-concentric driver design features Omnimagnet technology and the Torus Ogive Waveguide device, together providing consistent and controlled directivity along with improved high-frequency response. Time alignment and coherence between low and high frequencies enhances performance both on- and off-axis. The baffle provides a subtle extension to the wave-guide effect for additional sonic benefits.

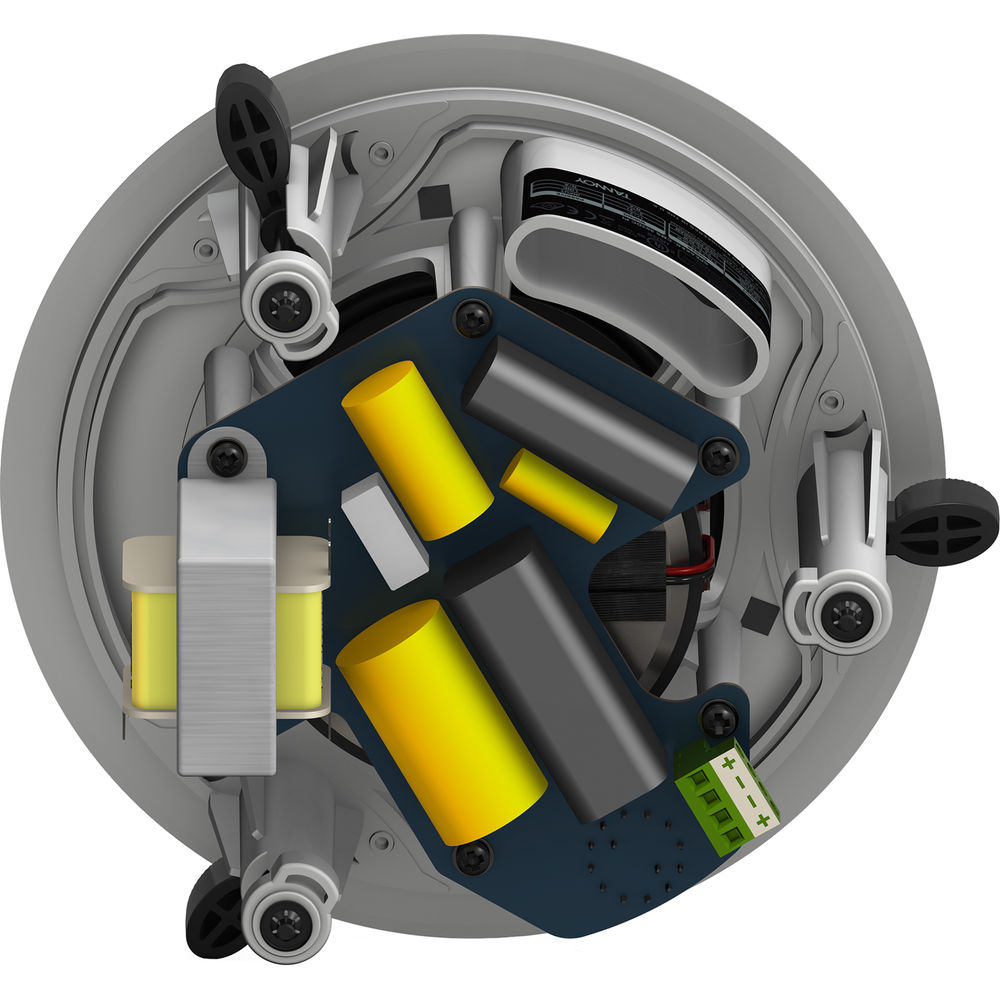

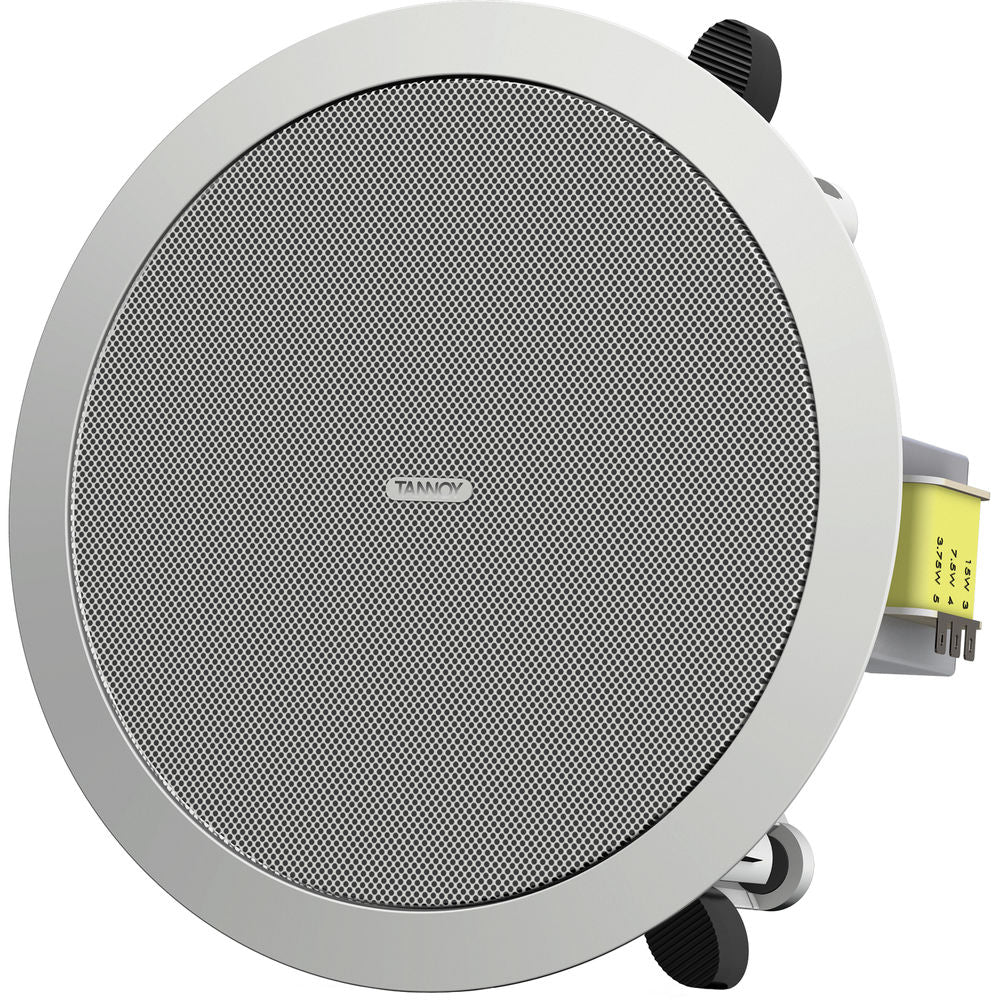

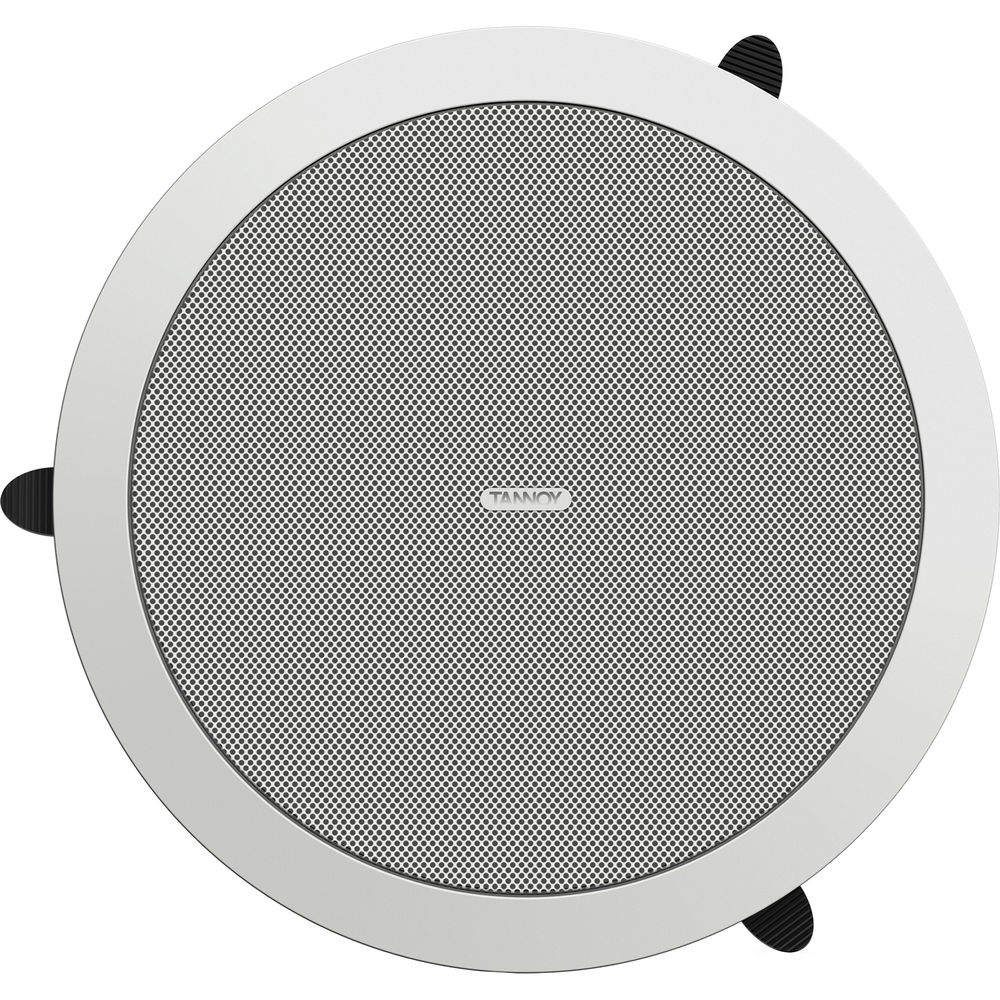

The loudspeaker features extra clamp extension to accommodate thicker ceiling panels, and a locking design that prevents inadvertent over-screwing. The magnetic grille attachment enables easy removal and fitting for custom painting. It utilizes a 16-Ohm driver, making it ideal for use in high-performance, low-impedance systems. A low insertion-loss 30W transformer is included, with convenient front switching for taps at 30W, 15W, and 7.5W, with an additional 3.75W tap for traditional constant voltage systems.
Each speaker includes a grille, two tile support rails, and a C-ring. This pre-install model is supplied without a back can.
In the Box
- Tannoy 5" Full-Range Ceiling Loudspeaker with Dual Concentric Driver (Pre-Install, Pair)
- 2 x C-Rings
- 2 x Tile-Bridge Kits
- 2 x Paint Masks
- 2 x Cut-Out Templates
- 2 x Grilles
Tannoy CMS503 Specs
| Driver | 5" / 130 mm Dual Concentric Omnimagnet driver |
| Low Frequency Driver | 1.38" / 35 mm voice coil, treated multi-fiber paper pulp cone |
| High Frequency Driver | 0.79" / 20 mm PEI dome |
| Frequency Range | 70 Hz to 54 kHz at -10 dB |
| System Sensitivity | 89 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90° |
| Power Handling | Average: 60 W Program: 120 W Peak: 240 W |
| Recommended Amplifier Power | 120 W @ 16 Ohms |
| Nominal Impedance | 16 Ohms |
| Maximum SPL | Average: 107 dB Peak: 113 dB |
| Transformer Taps | 70 V: 30 W (165 Ohms) / 15 W (330 Ohms) / 7.5 W (660 Ohms) / 3.75 W (1320 Ohms) / OFF & low impedance operation 100 V: 30 W (330 Ohms) / 15 W (660 Ohms) / 7.5 W (1320 Ohms) / OFF & low impedance |
| Enclosure | Baffle: Reflex loaded UL 94V-0 rated ABS Grille: Steel, with weather resistant coating |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Clamping Characteristics | Security toggle clamp Clamping Range: 0.37 - 2.36" / 1 - 6 cm Recommended Clamp Torque: 1.5 Nm |
| Mount | Separate backcan for pre-installation |
| Cable Entry | Cable clamp & squeeze connector for conduit up to 0.9" / 22 mm |
| Conduit | Conduit Knockouts on PI Back Can: Three sets of horizontal positions, 0.75" / 19 mm, 0.87" / 22 mm, and 1.10" / 28 mm |
| Connectors | Removable locking screw terminals with "loop thru" |
| Compliance | UL-1480, UL-2043, CE |
| Dimensions | Bezel Diameter: 8.11" / 20.6 cm Front of Ceiling to Rear of Speaker Unit: 5.3" / 13.3 cm Front of Accessory Backcan Bezel to Top of Safety Loop: 6.0" / 15.4 cm Hole Cutout Diameter: 7.5" / 19 cm |
| Weight | 6.8 lb / 3.1 kg |
