Description
- 77 Hz - 22 kHz Frequency Range at -10 dB
- 40W Continuous, 160W Peak Power Handling
- 4" Mid/Bass Driver
- 0.75" High-Frequency Section
- Vented, Paintable Front Baffle
- Mineral-Loaded Polypropylene Cone
- Zinc-Plated Steel Back Can
- Recessed Termination Box
- Security Toggle Clamps
- Two Tile Support Rails & One C-Ring

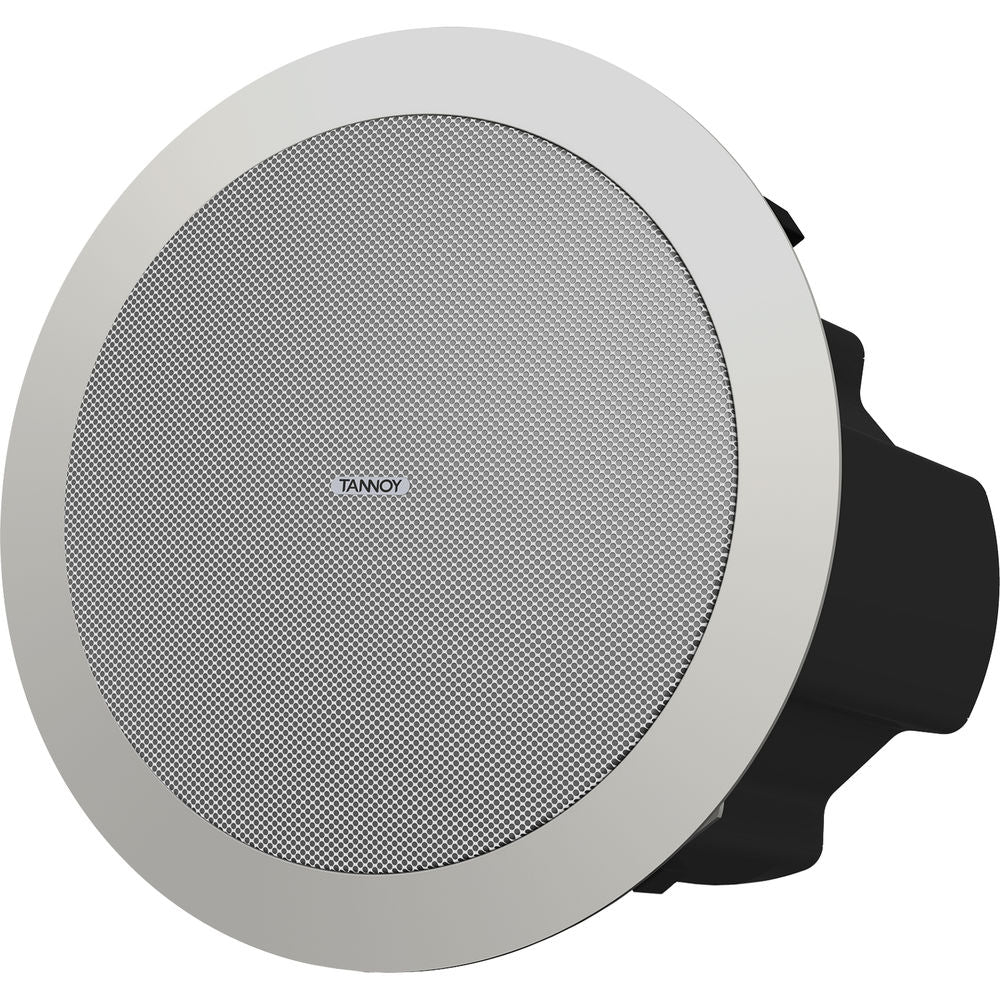

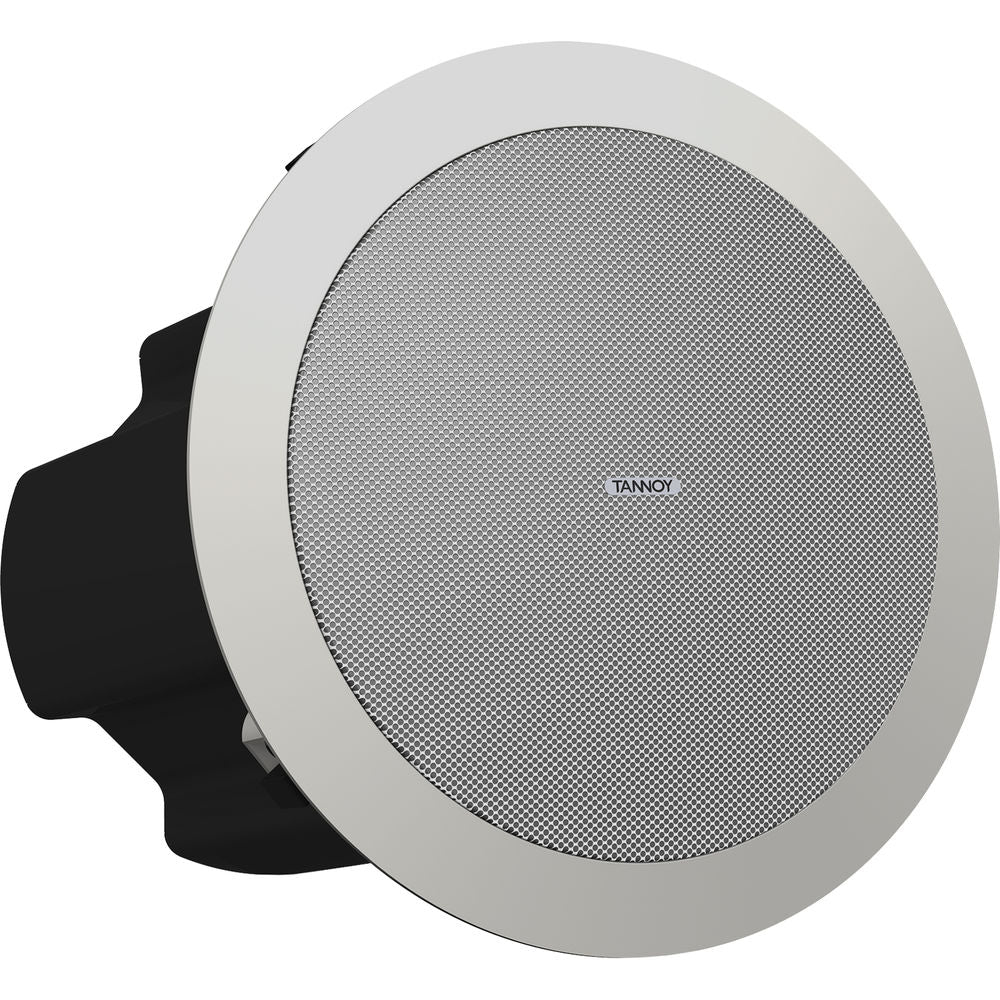

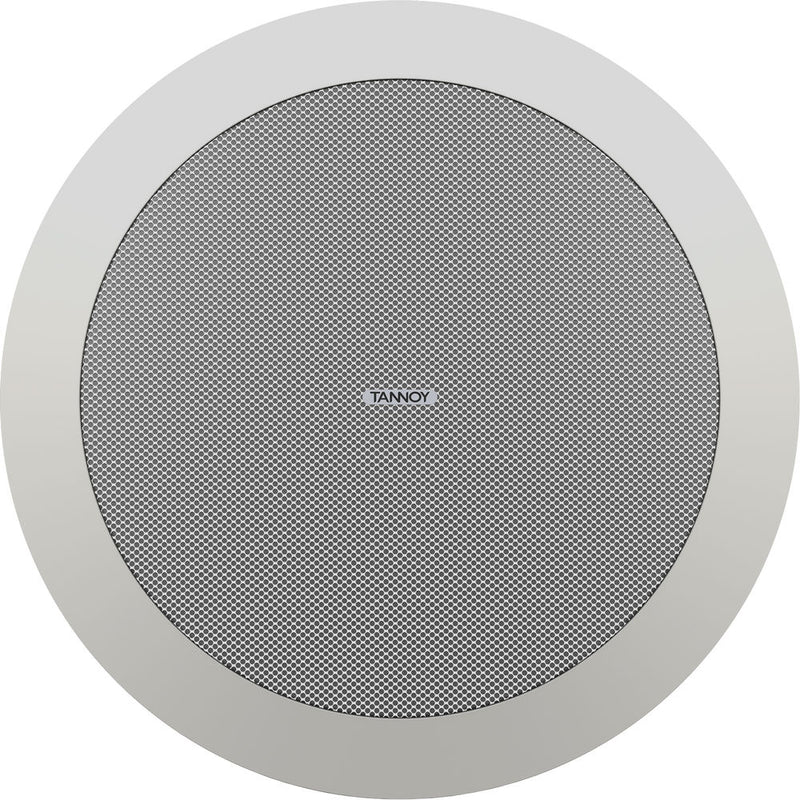

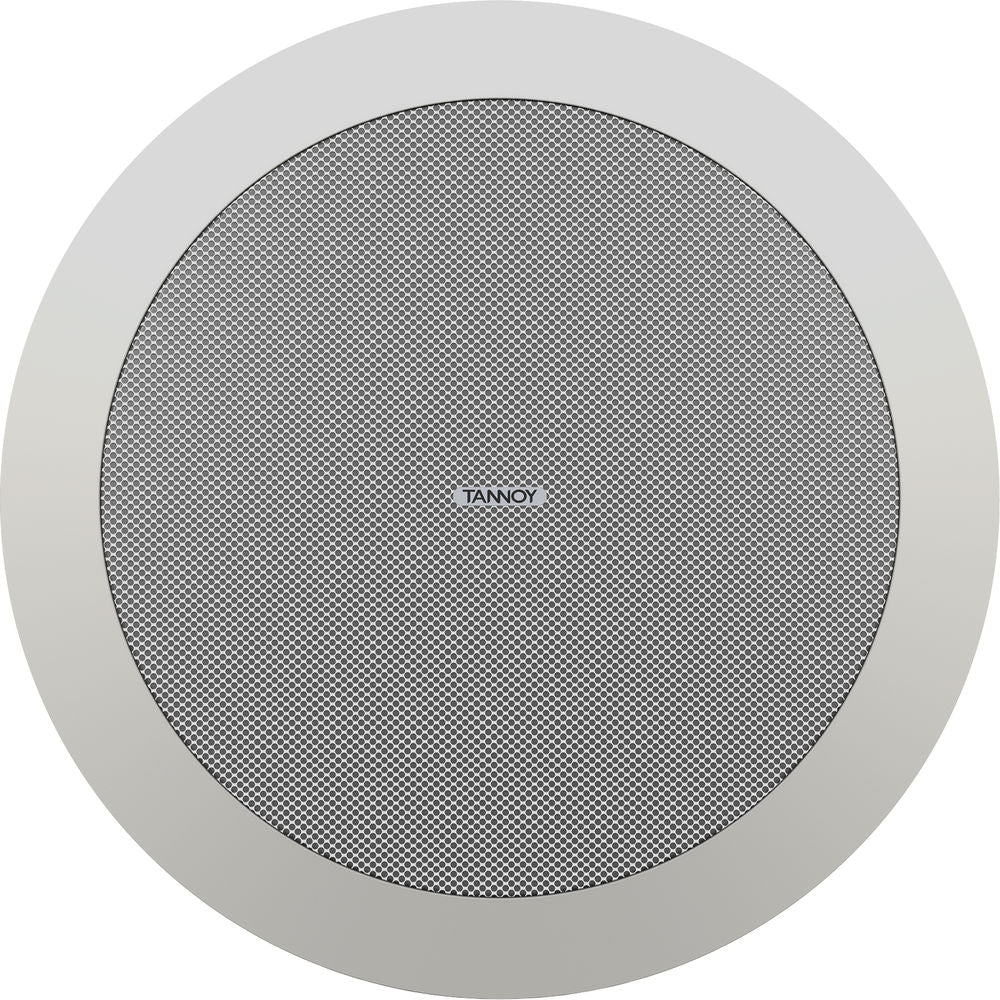

Enjoy quality sound without cluttering your space with this pair of 4" 160W CVS 4 Coaxial In-Ceiling Loudspeakers from Tannoy . Designed for use in background and foreground music sound systems, the CVS 4 speaker pair offers a wide frequency response of 77 Hz to 22 kHz at -10 dB, a peak power handling capacity of 160W, and a continuous capacity of 40W. It is suited for deployment in a wide variety of venues including restaurants, hotels, and businesses.

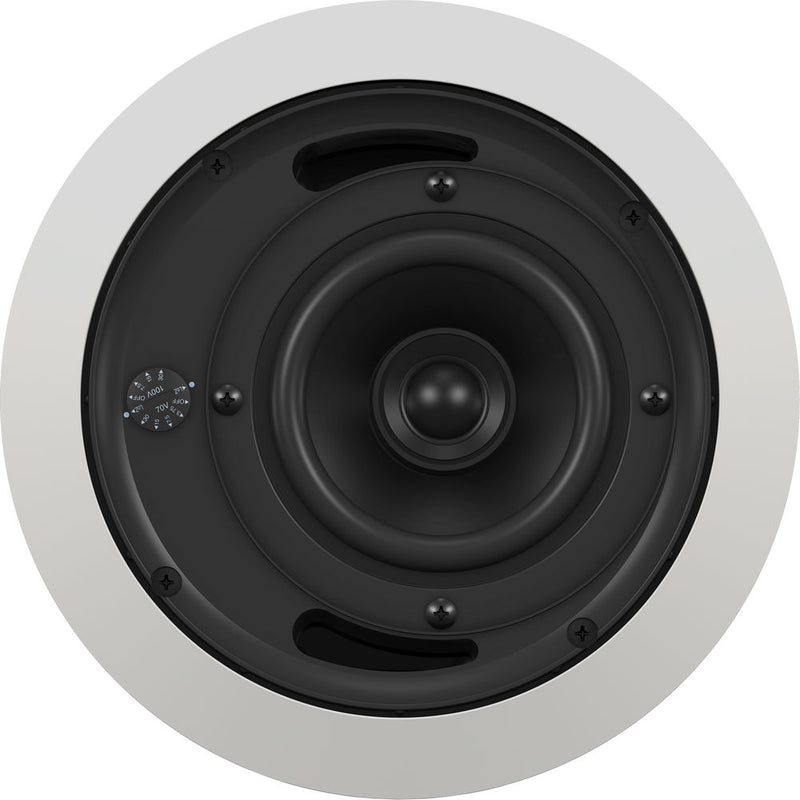

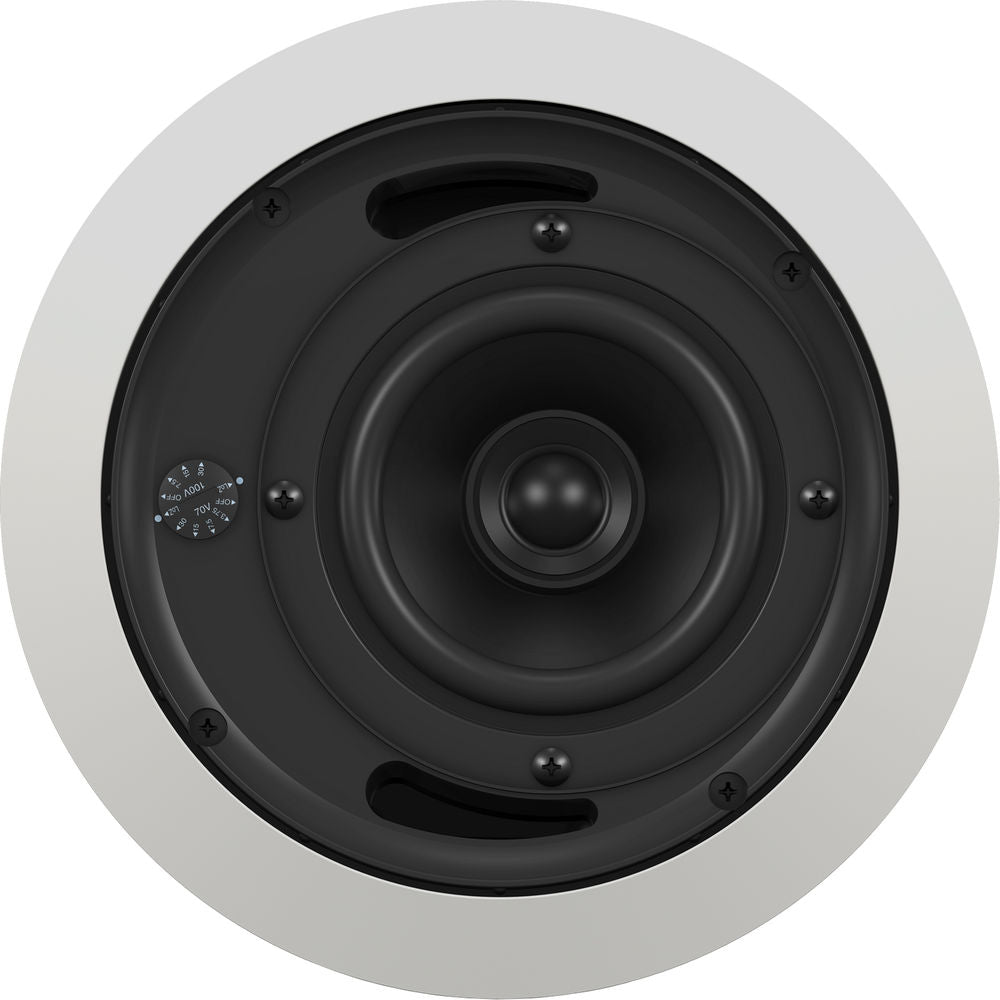

The speakers' design comprises a 4" mid/bass driver with a coaxially mounted 0.75" high-frequency section. A vented, injection-molded, paintable front baffle manufactured from UV- and weather-resistant UL94V-0 ABS material holds the speaker components in place. The mineral-loaded polypropylene cone material and nitrile rubber surround enhance durability.

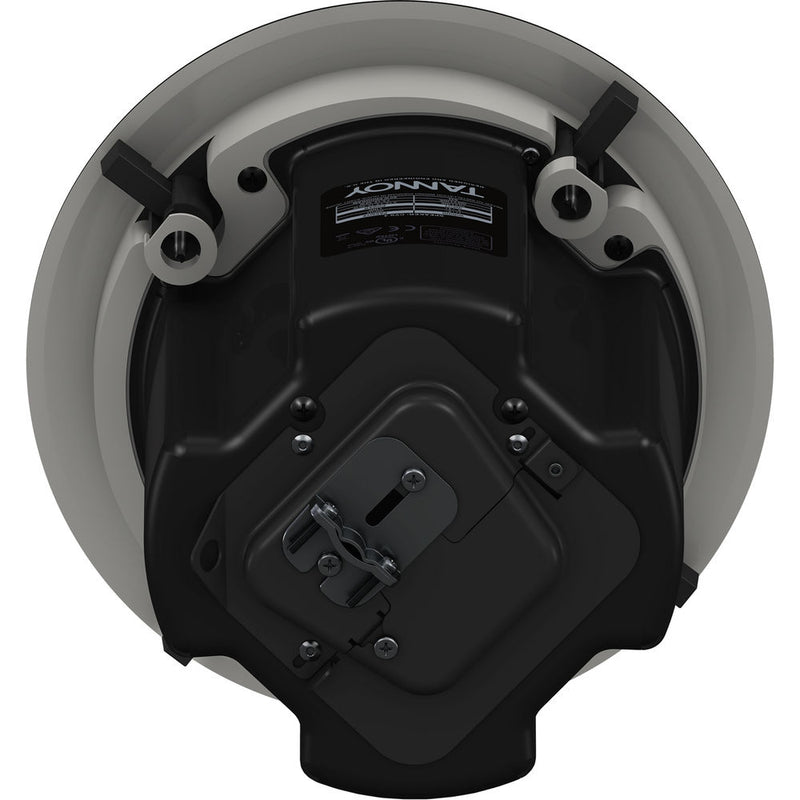

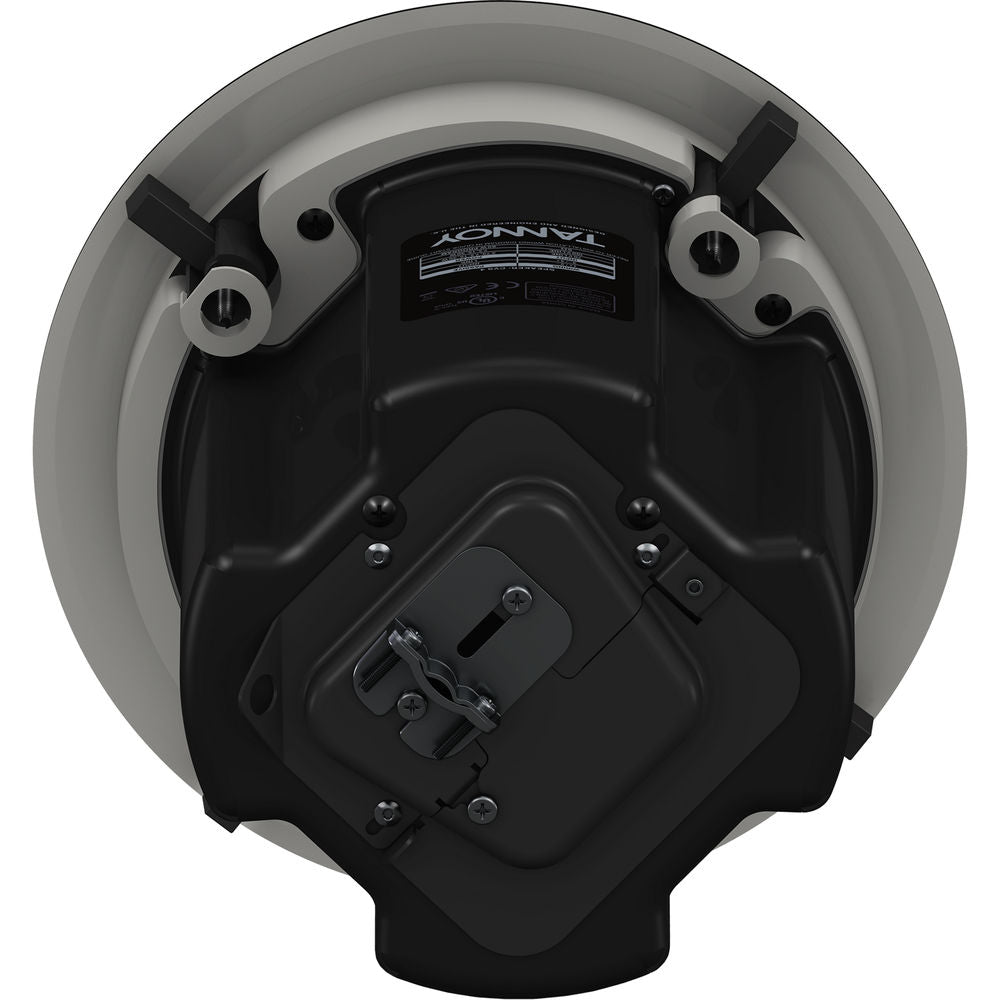

The CVS 4 speakers come with an integrated zinc-plated steel back can and a recessed termination box. The removable locking connector has screw terminals for secure wire termination and loop-through. A clamping mechanism for use with plenum-rated cable or conduit provides strain relief, while security toggle clamps make for quick and easy installation. Also included in the package are a tile bridge kit and a C-ring for each speaker.
- Pair of coaxial full-range ceiling loudspeakers for installation applications
- 40W continuous, 160W peak power
- 4" mineral-loaded polypropylene driver with nitrile rubber surround for long-term reliability
- 0.75" ferrofluid cooled soft dome neodymium high-frequency driver
- Wide constant directivity dispersion for optimum coverage
- UL 1480 certified for fire-protected signalling systems
- UL 2043 certified for air-handling spaces
- UV- and weather-resistant UL 94 V-0 ABS front with plated steel fire can enclosure
- Multiple transformer taps for 70V and 100V line systems or 6-Ohm direct input
- Low insertion loss 30W line transformer with easily accessible tapping switch
- Semi-matt white finish fits unobtrusively in most environments
- Powder coated perforated steel mesh grille with dust protection
- Mounting C-rings and ceiling tile rails included
- Phoenix connector with steel cover and strain-relief clamping mechanism for fire-rated cable
- Plaster (mud) rings available separately
- Designed and engineered in the U.K.
| System | |
|---|---|
| Frequency Response (-3 dB) | 85 Hz - 19 kHz |
| Frequency Response (-10 dB) | 77 Hz - 22 kHz |
| System Sensitivity | 87 dB (1 W = 2.45 V for 6 Ohms) |
| Nominal Coverage Angle | 90° conical |
| Coverage Angle | 102° |
| Directivity Factor | 5.6 averaged, 1 - 6 kHz |
| Directivity Index | 7.1 averaged, 1 - 6 kHz |
| Maximum SPL | Average: 103 dB Peak: 109 dB |
| Power Handling | Average: 40 W Program: 80 W Peak: 160 W |
| Recommended Amplifier Power | 80 W at 6 Ohms |
| Nominal Impedance | 6 Ohms |
| Transformer Taps | Via front rotary switch 70 V: 30 W / 15 W / 7.5 W / 3.75 W / off & low-impedance operation 100 V: 30 W / 15 W / 7.5 W / off & low-impedance operation |
| Transducers | Low Frequency: 4" / 10 cm mineral-loaded cone material High Frequency: 0.75" / 1.9 cm |
| Physical | |
|---|---|
| Back Can Material | Zinc-plated steel / painted steel |
| Baffle Material | Reflex-loaded UL 94 V-0 rated ABS |
| Grille Material | Steel with weather-resistant coating |
| Safety Features | Safety ring at rear of enclosure for load bearing safety bond |
| Clamping | Security toggle clamp |
| Cable Entry | Cable clamp & squeeze connector for conduit up to 0.87" / 2.2 cm |
| Connectors | Removable locking connector with screw terminals with loop-through facility |
| Safety Agency Approval | UL-1480, UL-2043, and CE |
| Dimensions | Hole Cutout Diameter: 7.08" / 18 cm Bezel Diameter: 8.39" / 21.3 cm Front of Ceiling to Rear of Back Can: 3.87" / 9.8 cm Front of Ceiling to Top of Safety Loop: 8.46" / 21.5 cm |
| Weight | 5.7 lb / 2.4 kg |
- 2 x C-Ring
- 2 x Tile Bridge Kit
- 2 x Paint Mask
- 2 x Cutout Template
- 2 x Grille
- Limited 10-Year Warranty
