Description
- Supports 1/1.8",1/2"&1/3" Image Formats
- Focal Length - 8mm
- For FA / Machine Vision Applications
- Minimum Focus - 0.1m
- Aperture - f/1.4-16
- Minimized Distortion < -0.2%
- Anti-vibration Construction
- C-type Lens Mount

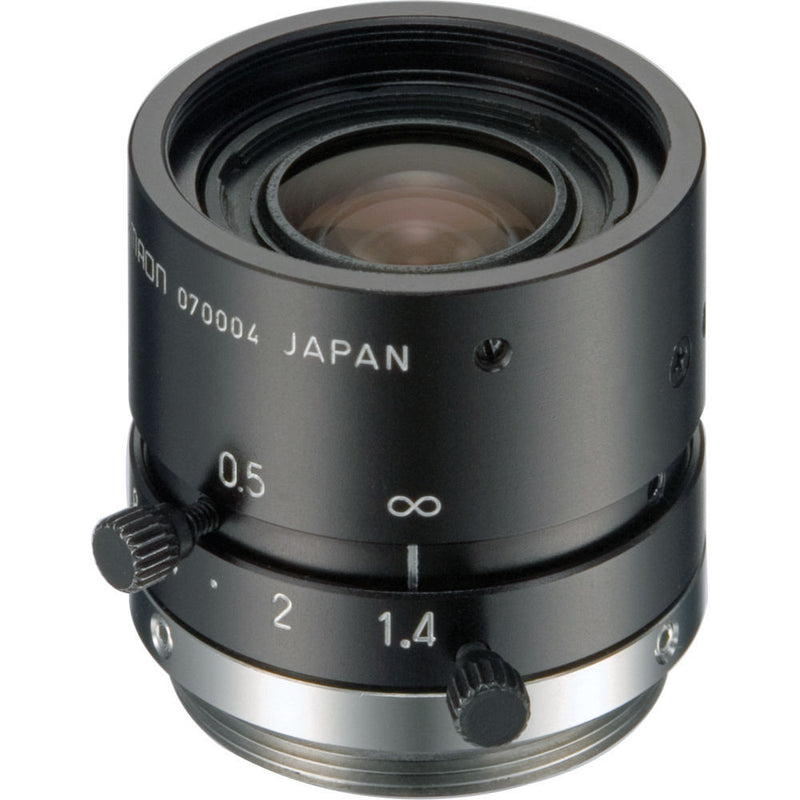

The Tamron M118FM08 Mega-Pixel Fixed-Focal Industrial Lens (8mm) supports 1/1.8" , 1/2" and 1/3" image processing cameras, and is suitable for FA (Factory Automation) and Machine Vision applications. It offers a wide viewing angle of 50.8 x 38.6° for 1/1.8" megapixel cameras.
The M118FM08 Mega-Pixel Fixed-Focal Industrial Lens (8mm) has an aperture of f/1.4-16 and minimized distortion of less than -0.2%. Manual iris and focus with lock make for correct exposures.
The 8mm lens delivers optimum performance in the center as well as in the edges, hence is compatible with megapixel cameras. Equipped with a C-type lens mount, the megapixel lens has a compact design and an anti-vibration construction that maintains the initial performance level for a long period of time.
- Compatible with 1/1.8" , 1/2" and 1/3" image formats
- 8mm lens
- For use with Factory Automation and Machine Vision applications
- Wide viewing angle of 50.8 x 38.6° for 1/1.8" megapixel cameras
- Aperture range - f/1.4-16
- Minimum Focus - 0.1m
- Minimized distortion of less than -0.2%
- Manual iris and focus with lock for correct exposures
- Delivers optimum performance in the center and in the edges
- Equipped with a C-type lens mount
- Anti-vibration construction
| Imager Size | 1/1.8" |
| Mount Type | C |
| Focal Length | 8mm |
| Aperture | 1.4-16 |
| Angle of View | (HxV) 1/1.8": 50.8 x 38.6° 1/2": 45 x 34° 1/3": 34 x 25.6° |
| Distortion | TV Distortion: Less than -2% |
| Minimum Object Distance (M.O.D.) | 0.1m ~ ? |
| Focus Operation | Manual with lock |
| Iris Operation | Manual with lock |
| Filter Size | M25.5 P=0.5mm |
| Back Focus | (in air) 11.726mm |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Dimensions (Diam. x L) | 1.1 x 1.1" (29 x 27mm) |
| Weight | 1.6 oz (44g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.18 lb |
| Box Dimensions (LxWxH) | 2.7 x 2.6 x 1.6" |
- 2 Year Parts & Labor Warranty
