Description
Built for factory automation and machine vision applications, Tamron's 23FM35-L features a screw mechanism to lock-in the focus and iris rings and is ideal for use in an environment experiencing long periods of frequent vibrations. Utilizing a compact body with superior optics, this high resolution lens is designed to fit today's machinery dimensions and needs only a minumum focusing range of 0.3m to achieve outstanding quality.
- Lock Mechanism
- Features a screw type mechanism to lock-in the iris and focus ring enabling installation in conditions with frequent vibrations.
- Solid Mechanism
- Specifically designed for use with factory automation and machine vision apparatus, this solid mechanism lens is built to endure long periods of factory operation.
- Compact
- Features a compact design to fit the dimensional requirements of today's machinery.
- Closer MOD
- Uses superior optics and an advanced mechanical construction to achieve a Minimum Object Distance of less than 0.3m.
- Uniform Filter Size
- With a uniform filter size of M25.5 PO.5, this lens readily accepts UV, polarizer, red, green and blue filters.
UPC: 725211917137
| Focal Length | 35mm |
| Mount Type | C |
| Iris Range | F/2.1 to 22 |
| Iris Operation | Manual with lock |
| Focus Operation | Manual with lock |
| Angle of View | 1/3": 7.8° x 5.9° 1/2": 10.4° x 7.8° 2/3": 14.3° x 10.8° |
| Effective Diameter | 16.0mm/10.3mm |
| Minimum Object Distance (M.O.D.) | 11.8" (0.3mm) |
| Back Focus | 15.53mm (in air) |
| Filter Size | M25.5 P=0.5 |
| Maximum Diameter | 1.2" (30.5mm) |
| Overall Length | 1..25" (32.0mm) |
| Weight | 1.55 oz (44 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 2.913 x 2.913 x 1.811" |
In the Box

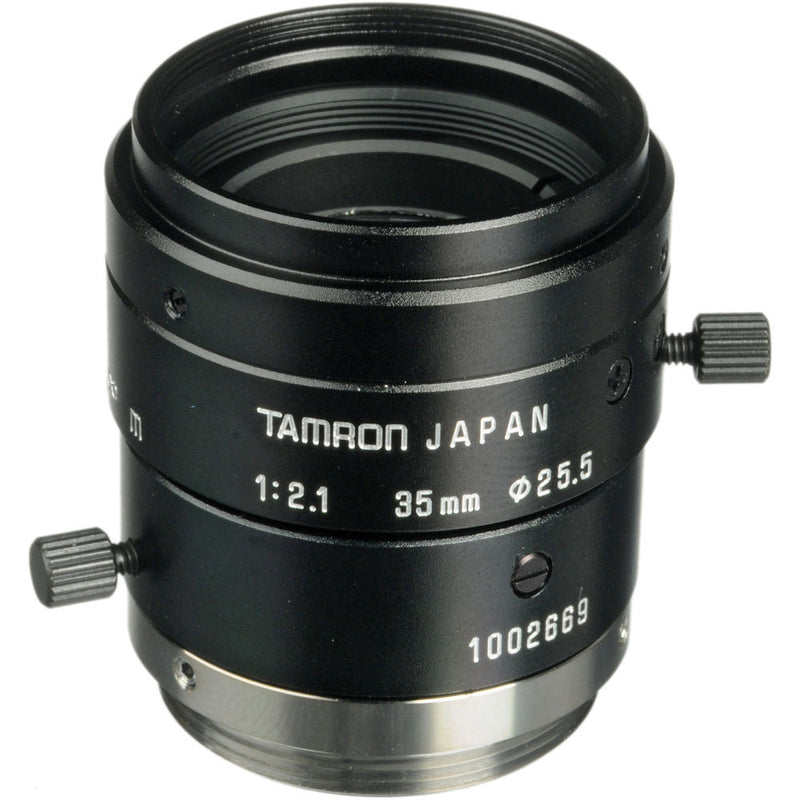

Tamron 23FM35-L 2/3 35mm F/2.1 High Resolution C-Mount Lens with Lock
- 2 Years parts & labor warranty
