Description

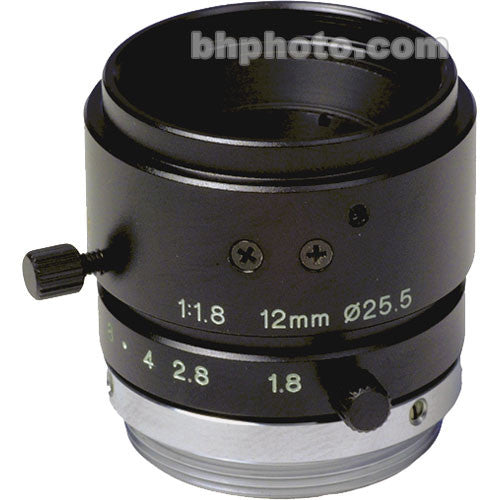

Specifically designed for factory automation and machine vision applications Tamron's 23FM12LL 2/3 12mm F/1.8 lens features a screw mechanism to lock-in the iris and focus rings and is ideal for use in conditions prone to significant vibrations. Compact in size with a solid built mechanism, this high resolution lens achieves superior clarity even at minimum focusing distances and maintains maximum performance under long periods of use.
- Lock Mechanism
- Uses a screw mechanism to lock-in the iris and focus rings and is ideal for use in conditions prone to significant vibrations.
- Solid Mechanism
- Designed to endure the rigors of factory automation apparatus, this solidly built lens maintains maximum performance even after long periods of use.
- Closer MOD
- Uses superior optics to achieve sharp clarity with Minimum Object Distance requirements less than 0.3m.
- Compact
- A compact size ensures compatibility with today's machinery dimensional requirements.
UPC: 725211917106
| Focal Length | 12mm |
| Mount Type | C |
| Iris Range | F1.8 - 16 |
| Iris Operation | Manual with lock |
| Focus Operation | Manual with lock |
| Angle of View | 1/3": 22.4° x 16.6° 1/2": 30.0° x 22.4° 2/3": 40.9° x 30.9° |
| Effective Diameter | 11.7mm/8.0mm |
| Minimum Object Distance (M.O.D.) | 10.2" (0.26m) |
| Back Focus | 11.03mm (in air) |
| Filter Size | M25.5 P=0.5 |
| Maximum Diameter | 1.1" (29mm) |
| Overall Length | 1.1" (27mm) |
| Weight | 1.4 oz (40 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.35 lb |
| Box Dimensions (LxWxH) | 2.9 x 2.8 x 1.8" |
In the Box
Tamron 23FM12LL 2/3 12mm F/1.8 High Resolution C-Mount Lens with Lock
- 2 Years parts & labor warranty
