Description
Tamron 23FM Overview
- 1Description
- 2Solid Mechanism
- 3Closer MOD
- 4Compact
- 5Filter Compatibility

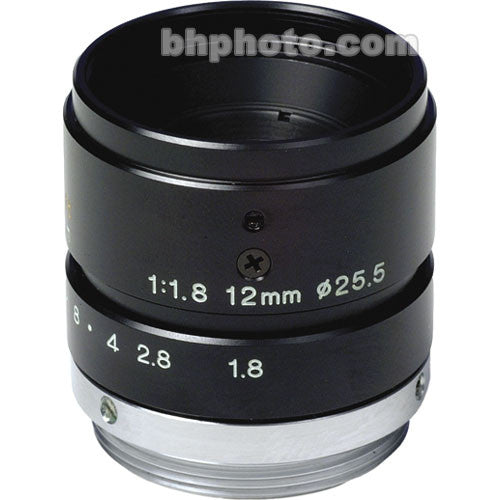

Specifically designed for factory automation and machine vision applications, Tamron's 23FM12 2/3 12mm F/1.8 lens features a solid construction to endure long periods of use in vibrating conditions encountered in a factory automation environment. Compact in size, this high resolution lens is designed to fit today's machinery dimensions and uses superior optics to maintain sharp clarity in a focusing range of less than 0.3m.
Solid Mechanism
Designed to endure the rigors of factory automation apparatus, this solid built lens maintains maximum performance even after long periods of use.
Closer MOD
Uses superior optics to achieve a Minimum Object Distance requirement of less than 0.3m.
Compact
A compact size ensures compatibility with today's machinery dimensional requirements.
Filter Compatibility
With a filter size of M25.5 Po.5, this lens readily accepts UV, polarizer, red, green, and blue filters.
UPC: 725211917083
In the Box
- Tamron 23FM12 2/3 12mm F/1.8 Standard High Resolution C-Mount Lens
- Limited 2-Year Manufacturer Warranty (Parts and Labor)
Table of Contents
- Description
- Solid Mechanism
- Closer MOD
- Compact
- Filter Compatibility
Tamron 23FM Specs
| Focal Length | 12mm |
| Mount Type | C |
| Iris Range | F1.8 - 16 |
| Iris Operation | Manual |
| Focus Operation | Manual |
| Angle of View | 1/3": 22.4° x 16.6° 1/2": 30.0° x 22.4° 2/3": 40.9° x 30.9° |
| Effective Diameter | 11.7mm/8.0mm |
| Minimum Object Distance (M.O.D.) | 10.2" (0.26m) |
| Back Focus | 11.03mm (in air) |
| Filter Size | M25.5 P=0.5 |
| Maximum Diameter | 1.1" (29mm) |
| Overall Length | 1.1" (27mm) |
| Weight | 1.4 oz (40 g) |
Packaging Info
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 2.9 x 2.8 x 1.8" |
