Description
- 1/3" Image Format
- CS Mount
- 4.3x Zoom
- DC Auto Iris
- Iris Range f/1.4 to Close
- Manual Zoom and Focus
- Locking Mechanism on Each Control Ring
- Multi-Layer Coatings
- Slip-Mount Mechanism
- Min. Focusing Distance: 11.8"

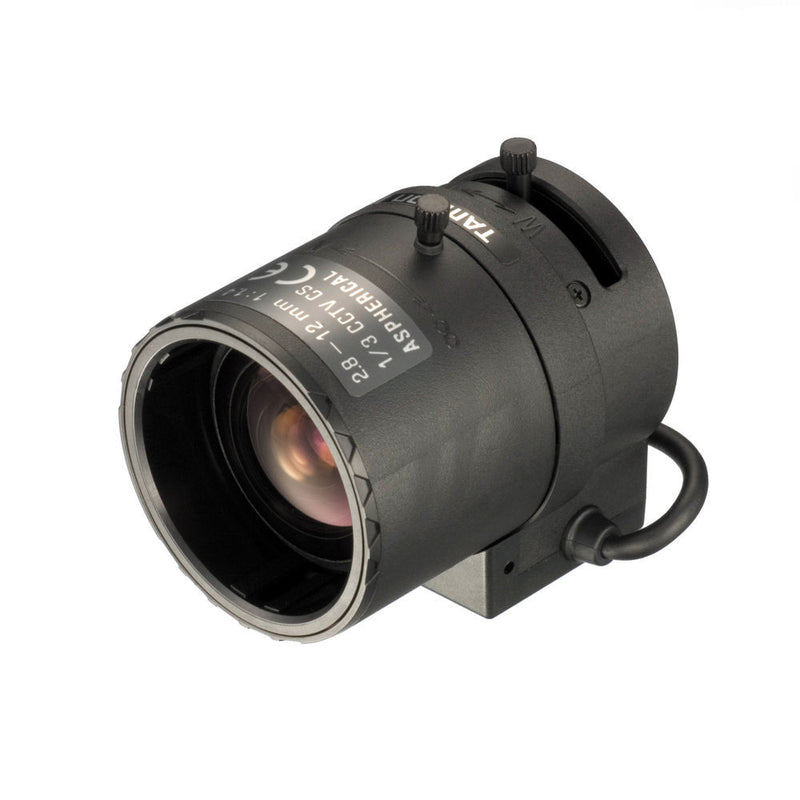

The Tamron 1/3" 2.8-12mm f/1.4 Vari-Focal Lens with Connector is a high-resolution CCTV lens with a CS mount suitable for use with 1/3" image sensors with a resolution up to 720p. It features a 4.3x zoom range for short to medium-range surveillance applications, and a wide maximum aperture of f/1.4 for clearer images in low light conditions. Multi-layer coatings on the lens surface lessens ghosting and flare to produce sharper images with more contrast.
The lens is equipped with a slip-mount mechanism that allows rotational adjustment of the lens after it is mounted on the camera. This allows optimal positioning of the auto-iris actuator and cable during installation. With an independent lock for each control ring (zoom, focus, and manual iris), you can avoid setting changes after installation.
-
- CS mount; ideal for mini domes
- Suitable for cameras having an image size of 1/3"
- Focal length: 2.8 to 12mm
- Aperture range: f/1.4 to 360 (closed)
- Manual zoom and focus with lock
- DC auto iris
- Back focus adjustment
- 11.8" minimum focusing distance
- Multi-layer coatings for less ghosting and flare
- Lock for each control ring (zoom, manual and iris-control) to avoid setting displacement after installation
- Slip-mount mechanism for fine-tuning the position after mounting the camera to set the auto-iris meter to a proper position around the lens
| Imager Size | 1/3" |
| Mount Type | CS |
| Focal Length | 2.8 to 12 mm |
| Aperture Range | f/1.4 to 360 (closed) |
| Angle of View | 1/3" Wide: 97.4° x 72.5° 1/3" Tele: 24.1° x 18.1° 1/4" Wide: 72.5° x 54.1° 1/4" Tele: 18.1° x 13.6° |
| Focusing Range | 11.8" (30 cm) to infinity |
| Operation | Focus: Manual with Lock Zoom: Manual with Lock Iris: Auto-Iris (DC) |
| Back Focus (in air) | Wide 8.61 to 19.90 mm |
| Operating Voltage | Open 4.0 VDC Close 0.7 VDC |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions (Diam. x L) | 1.6 x 2.5" (41.0 x 63.5 mm) |
| Weight | 2.5 oz (71 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 3.05 x 3.0 x 2.0" |
- Limited 6-Year Warranty
