Description
The TS3480CX33 RF is a low quiescent current low-dropout linear Voltage Regulator. TS3480 series is an integrated linear voltage regulator. It can be provided the operation from an input as high as 30V and a guaranteed maximum dropout of 1.2V at the full 100mA load. The 1.2V quasi low dropout of TS3480 series is able to makes them a nice fit in many applications where the 2 to 2.5V dropout of TS78LXX series devices precludes their use. The TS3480 series features a 5 and 3.3V member. The SOT packaging and quasi low dropout features of the TS3480 series converge in this device to provide a very nice, very tiny 5 and 3.3V, 100mA bias supply that regulates directly off the system power supply.
- 2V Guaranteed maximum dropout over full load and temperature ranges
- ±5% Guaranteed output voltage tolerance over full load and temperature ranges
Applications
Power Management, Industrial
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Input Voltage Max | 30V |
| Fixed Output Voltage Nom. | 3.3V |
| Operating Temperature Min | -40°C |
| Output Current | 100mA |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 125°C |
| No. of Pins | 3Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | - |
| Product Range | 3.3V 100mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |

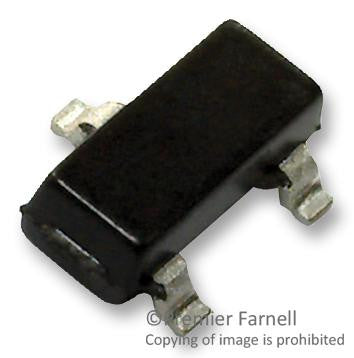

| LDO Regulator Case Style | SOT-23 |
| Packaging | Cut Tape |
| Dropout Voltage Vdo | 950mV |
| MSL | - |
Other details
| Brand | TAIWAN SEMICONDUCTOR |
| Part Number | TS3480CX33 RFG |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
