| ₹ 219.3 includes GST and import duties. | |
| B2B customers can avail ₹ 33.44 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The TS2940CP-3.3 C5 is a 1A ultra low dropout Voltage Regulator with internally limited power dissipation. The TS2940 series of fixed-voltage monolithic micro-power voltage regulators is designed for a wide range of applications. This device excellent choice of use in battery-power application. Furthermore, the quiescent current increases on slightly at dropout, which prolongs battery life. This series of fixed-voltage regulators features low drop output voltage (typical 60mV at light load and 600mV at 800mA). This includes a tight initial tolerance of 2%, extremely good line regulation of 0.05% typ. and very low output temperature coefficient.
- Dropout voltage typically 0.6V at Io = 800mA
- Output current up to 1A
- Output voltage trimmed before assembly
- -18V Reverse peak voltage
- +30V Input over voltage protection
- +60V Transient peak voltage
- Internal current limit
- Thermal shutdown protection
Applications
Power Management, Industrial, Sensing & Instrumentation
Product details
| Input Voltage Max | 26V |
| Fixed Output Voltage Nom. | 3.3V |
| Operating Temperature Min | -40�C |
| Output Current | 1A |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 125�C |
| No. of Pins | 3Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 0V |
| Product Range | 3.3V 1A LDO Voltage Regulators |
| Automotive Qualification Standard | - |

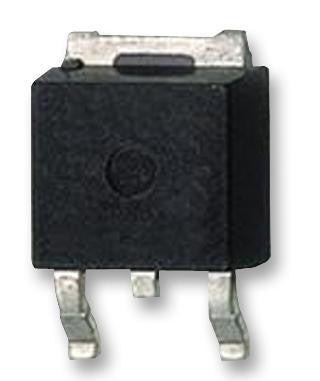

| LDO Regulator Case Style | TO-252 |
| Packaging | Cut Tape |
| Dropout Voltage Vdo | 600mV |
| MSL | - |
Other details
| Brand | TAIWAN SEMICONDUCTOR |
| Part Number | TS2940CP-3.3 C5 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 214.91 |
| 3-5 | ₹ 212.72 |
| 5-10 | ₹ 208.34 |
| 10+ | ₹ 203.95 |
Bulk discount will be automatically applied during checkout based on quantity.
