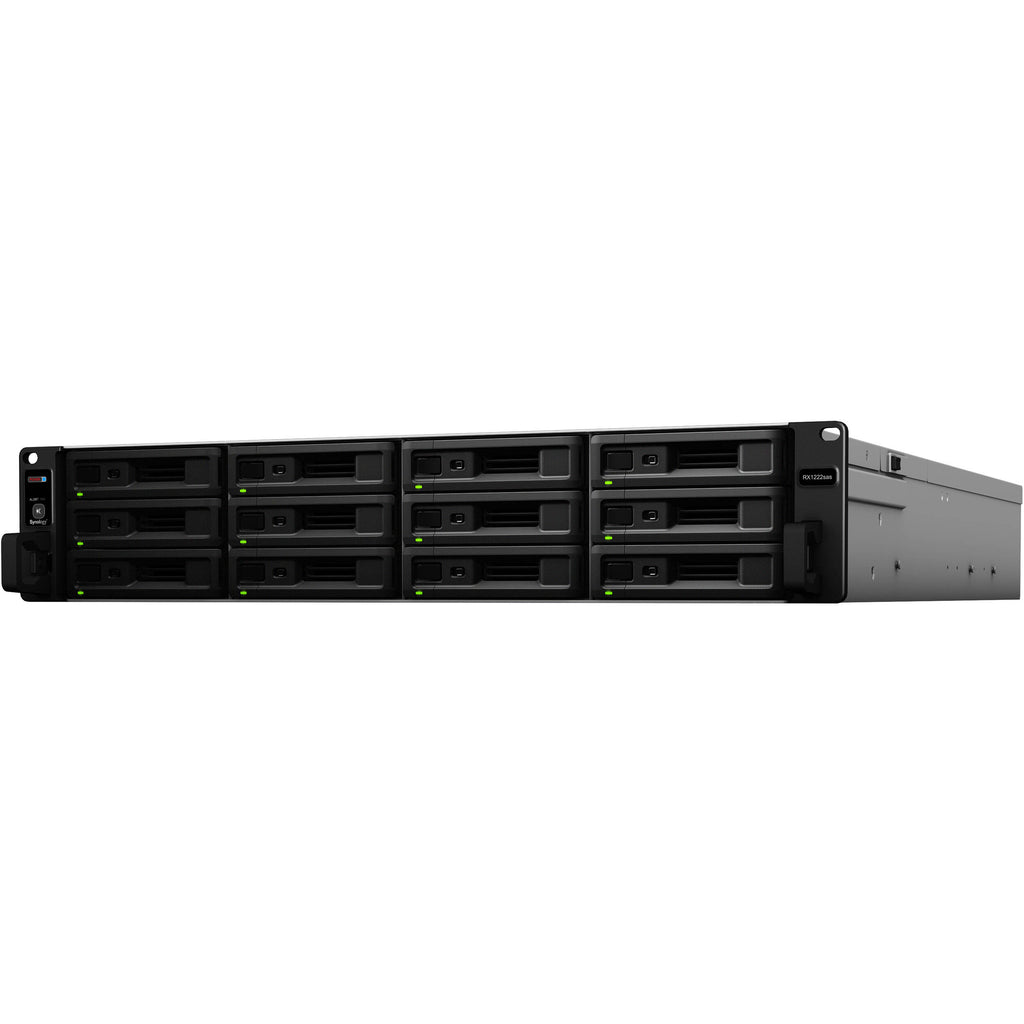

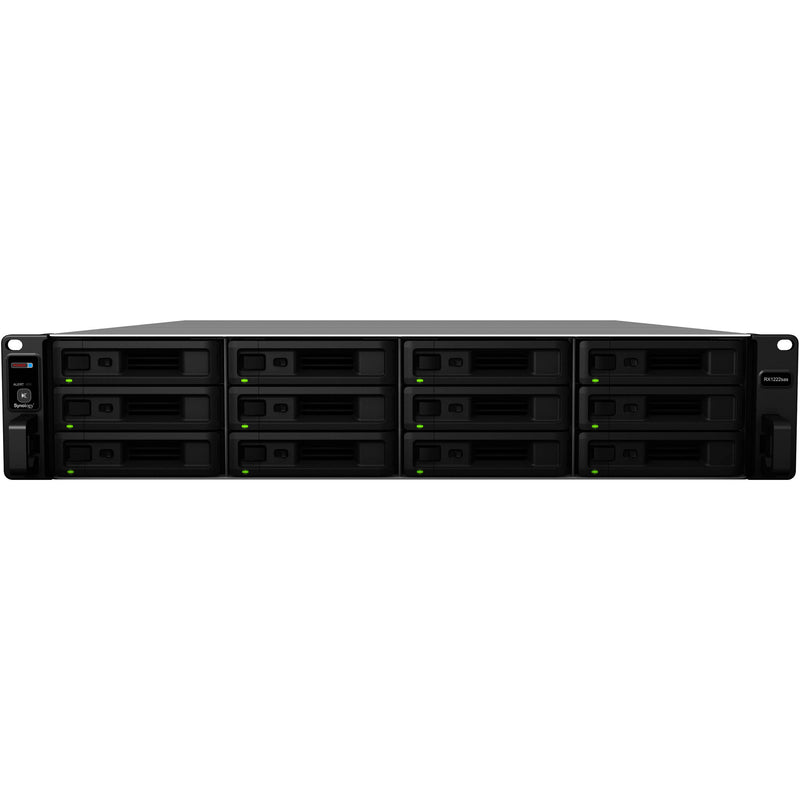

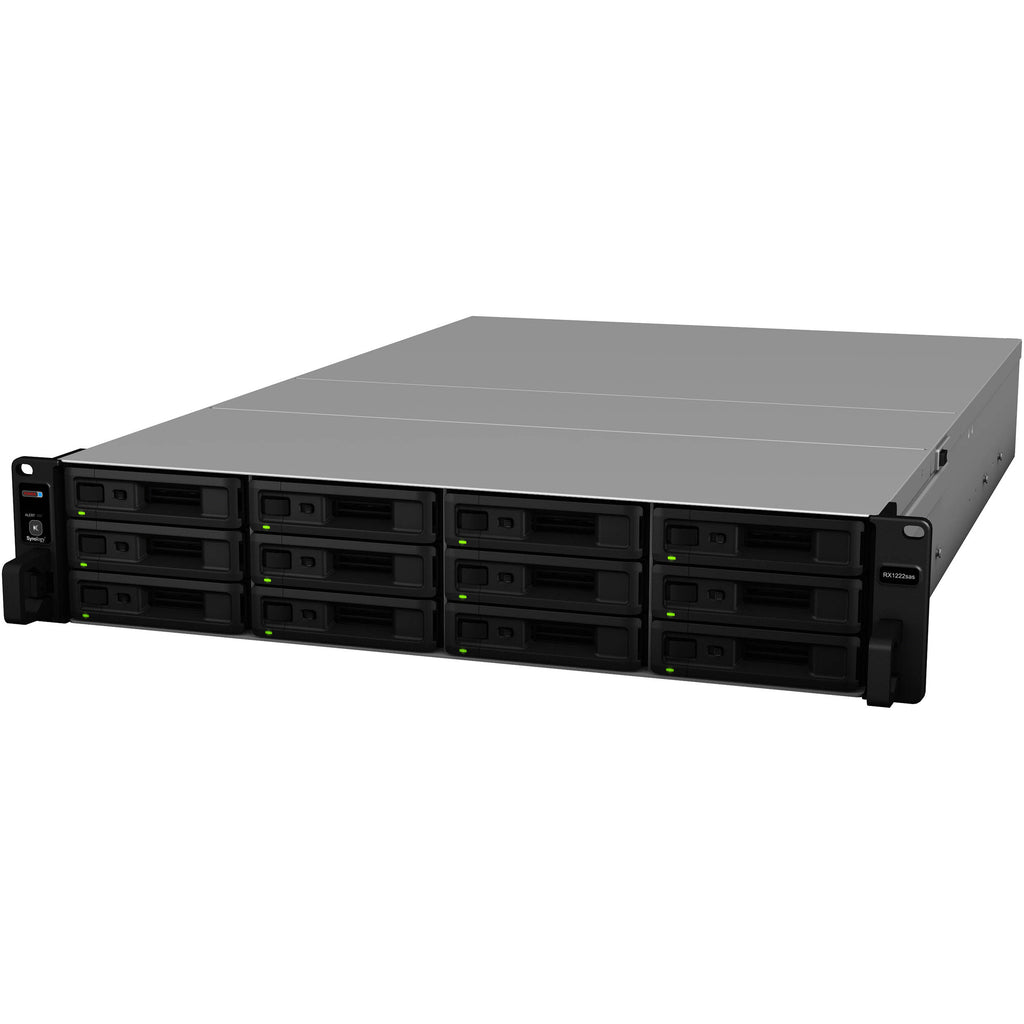

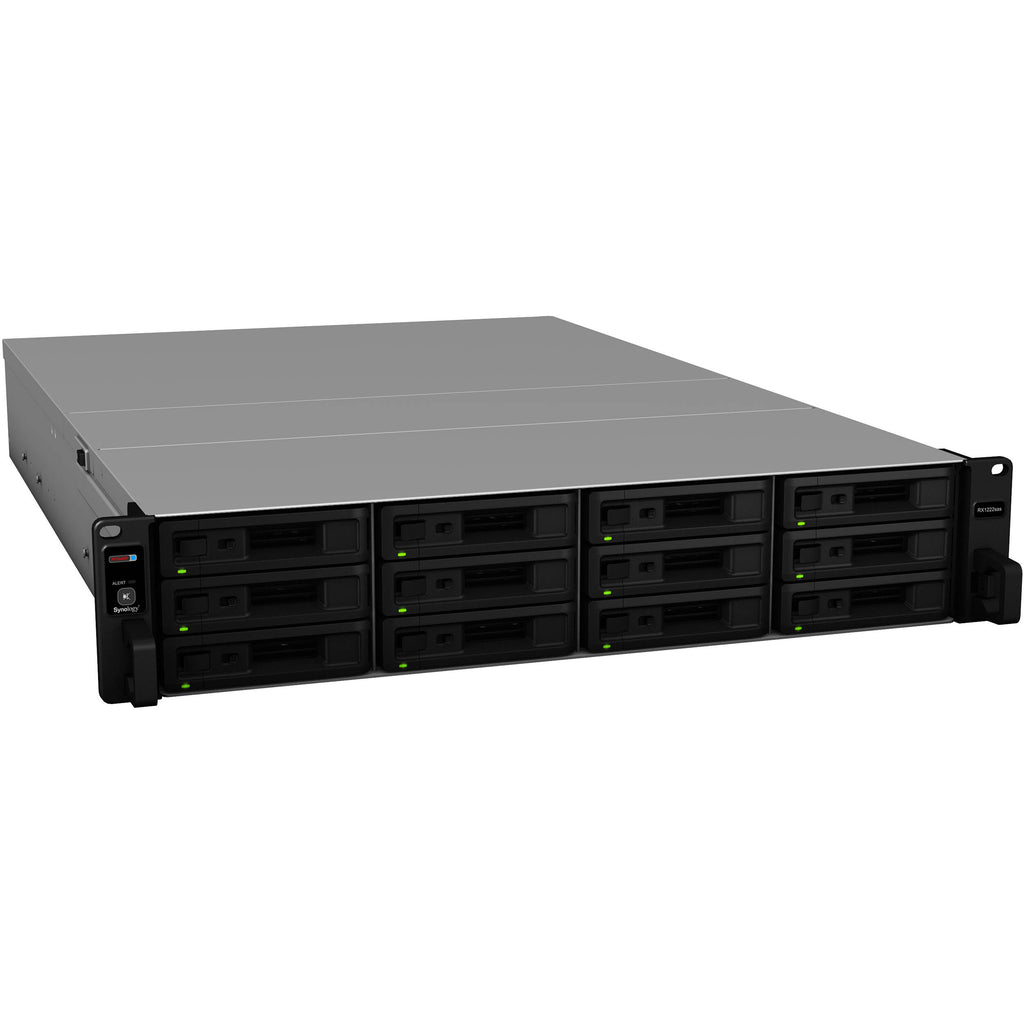

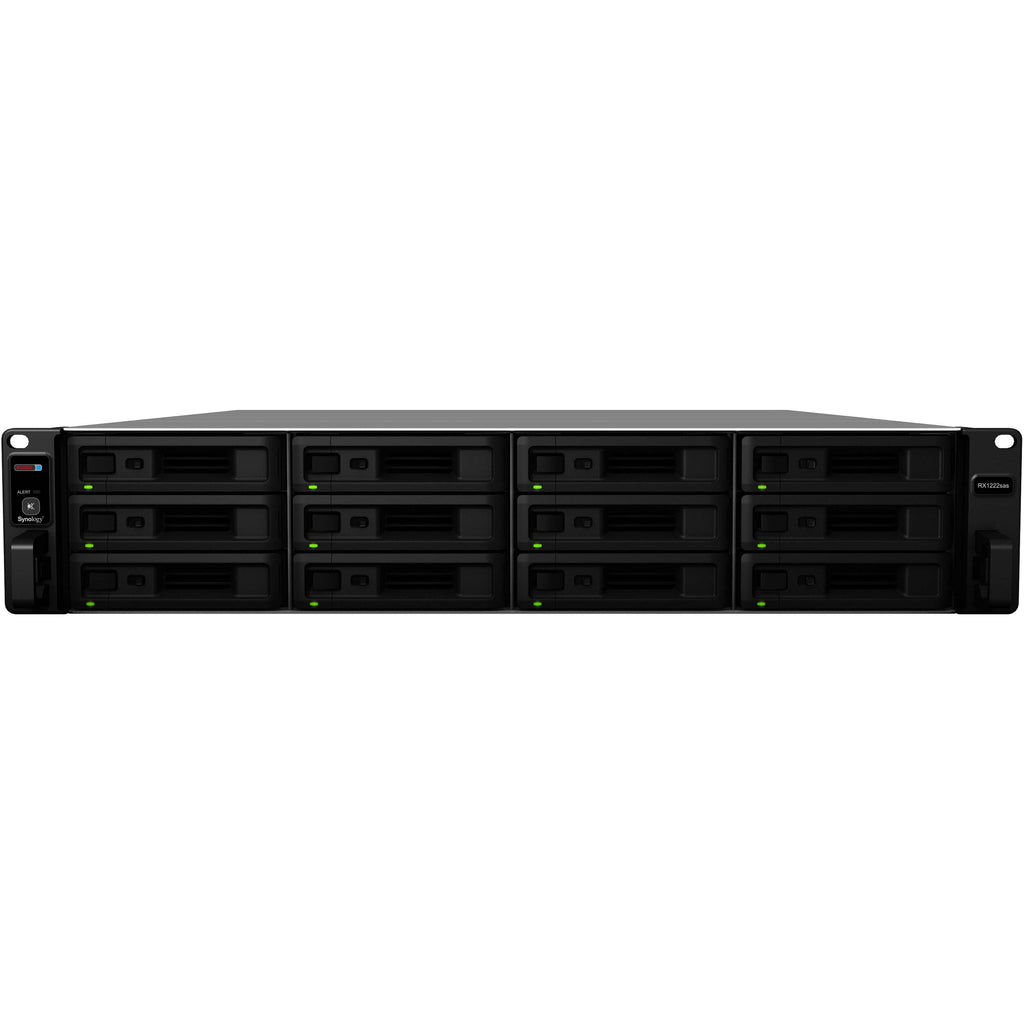

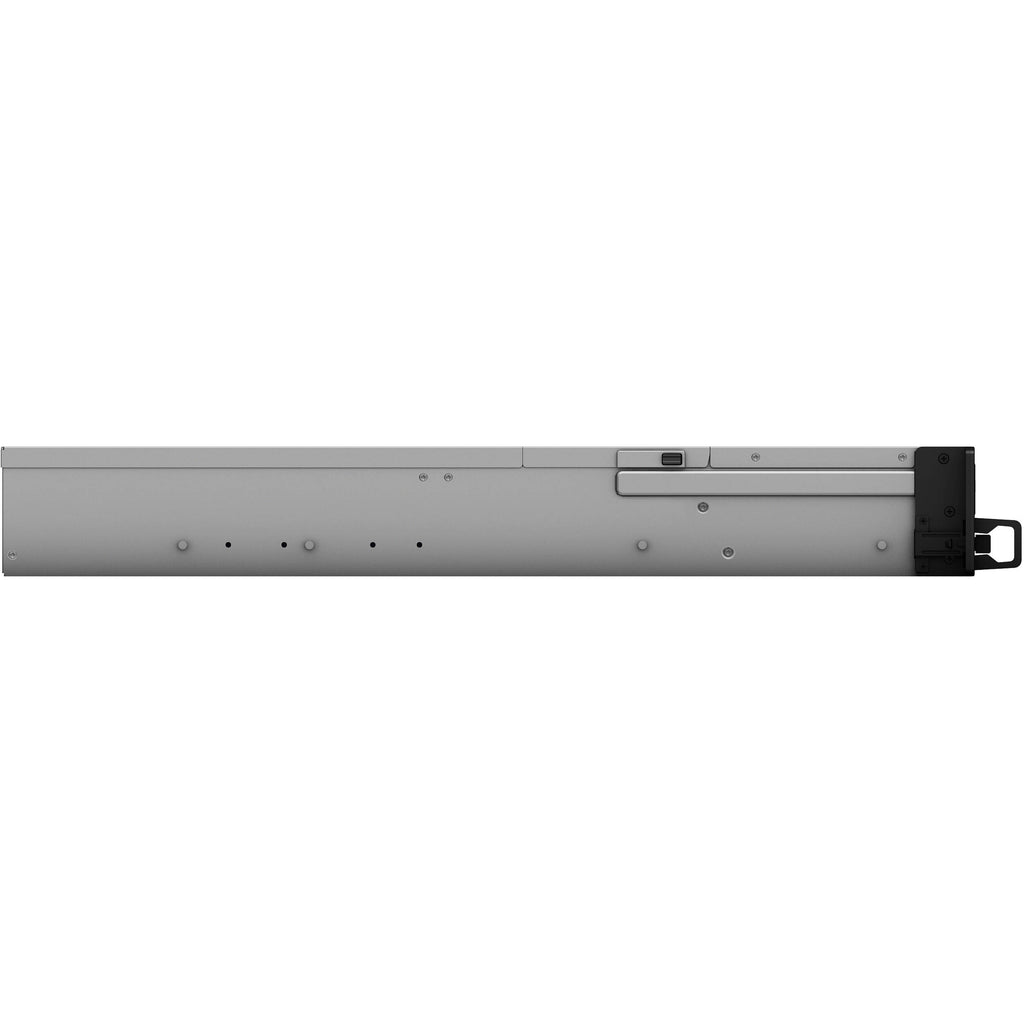

The RX1222sas 12-Bay Expansion Enclosure from Synology is designed to provide storage expansion for the SA3600 and SA3400 NAS enclosures. Up to seven RX1222sas can be used at once, for a total of 84 additional drives, so you'll be able to add volumes when and where they're needed, without interrupting services.

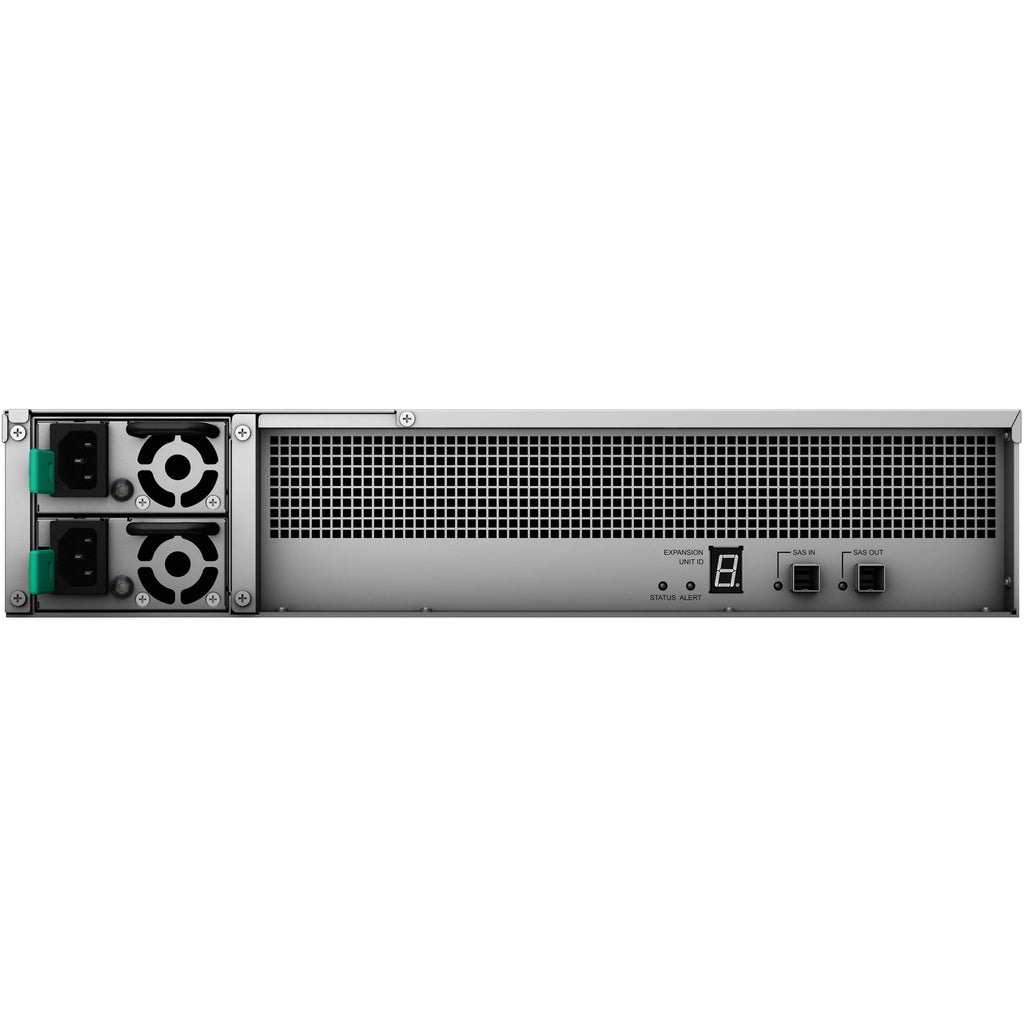

The 12 drive bays of the RX1222sas natively support 3.5" and 2.5" SAS and SATA hard drives and solid-state drives, including Synology's HAT5300, HAS5300, and SAT5200. The drives are hot-swappable and connectivity for the RX1222sas is established using one SAS input and one SAS output. Built with a 2 RU form factor, it operates using dual redundant 500W power supplies and includes two Mini-SAS HD cables, two AC power cords, 52 x 3.5" drive screws, and 52 x 2.5" drive screws.
Easy Setup and Management
Connect the RX1222sas through the included expansion cable and start managing the additional storage in minutes with Storage Manager and other intuitive tools in Synology DSM. Online volume expansion enables you to add a new volume or expand RAID volumes without reformatting drives.
Fast and Stable with Synology Drives
Achieve higher levels of reliability with Synology's SAS and SATA enterprise drives. Backed by hundreds of thousands of hours of rigorous testing, they ensure maximum integration and optimal performance when paired with your Synology deployment.
Built with Service Uptime in Mind
The RX1222sas's hot-swappable drive trays, fans, and power supplies reduce the impact of maintenance on service availability, while the redundant power supply units keep your system online, even in case one power source fails.
Synology guarantees a robust and reliable data management experience with a limited 5-year warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.
In the Box
- Synology RX1222sas 12-Bay Expansion Enclosure
- 2 x Mini-SAS HD Expansion Cables
- 2 x AC Power Cords
- 52 x Screws for 3.5" Drives
- 52 x Screws for 2.5" Drives
Table of Contents
- Description
- Easy Setup and Management
- Fast and Stable with Synology Drives
- Built with Service Uptime in Mind
- Limited 5-Year Warranty
Synology RX1222SAS External HDD/SSD Specs
General
| Number of Bays |
12 x 2.5"/3.5" |
| I/O |
2 x Mini SAS (Unspecified) |
| Compatible Drive Interface |
SAS (Unspecified Version), SATA (Unspecified Version) |
| Hot-Swap Support |
Yes |
| Carrier-Less Drive Bays |
No |
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Source |
Internal Power Supply |
| Power Consumption |
194.4 W (Typical)
82.56 W (Standby) |
| PSU Wattage |
2 x 500 W (Supports Redundancy) |
Environmental
| Operating Temperature |
32 to 95°F / 0 to 35°C |
| Operating Humidity |
8 to 80% |
| Operating Altitude |
0.0 to 16,404' / 0 to 5000 m |
| Storage Temperature |
-5 to 140°F / -20 to 60°C |
| Storage Humidity |
5 to 95% |
| Certifications |
BSMI, CE, EAC, FCC, Kcc, RCM, RoHS, VCCI
*as per Manufacturer |
Physical
| Cooling |
4 x 80 mm Fans |
| Noise Level |
54.5 dBA |
| Dimensions |
27.2 x 16.9 x 3.5" / 692 x 430.5 x 88 mm |
| Weight |
29.8 lb / 13.5 kg |
Packaging Info
| Package Weight |
41.7 lb |
| Box Dimensions (LxWxH) |
33.5 x 24.3 x 8.7" |
