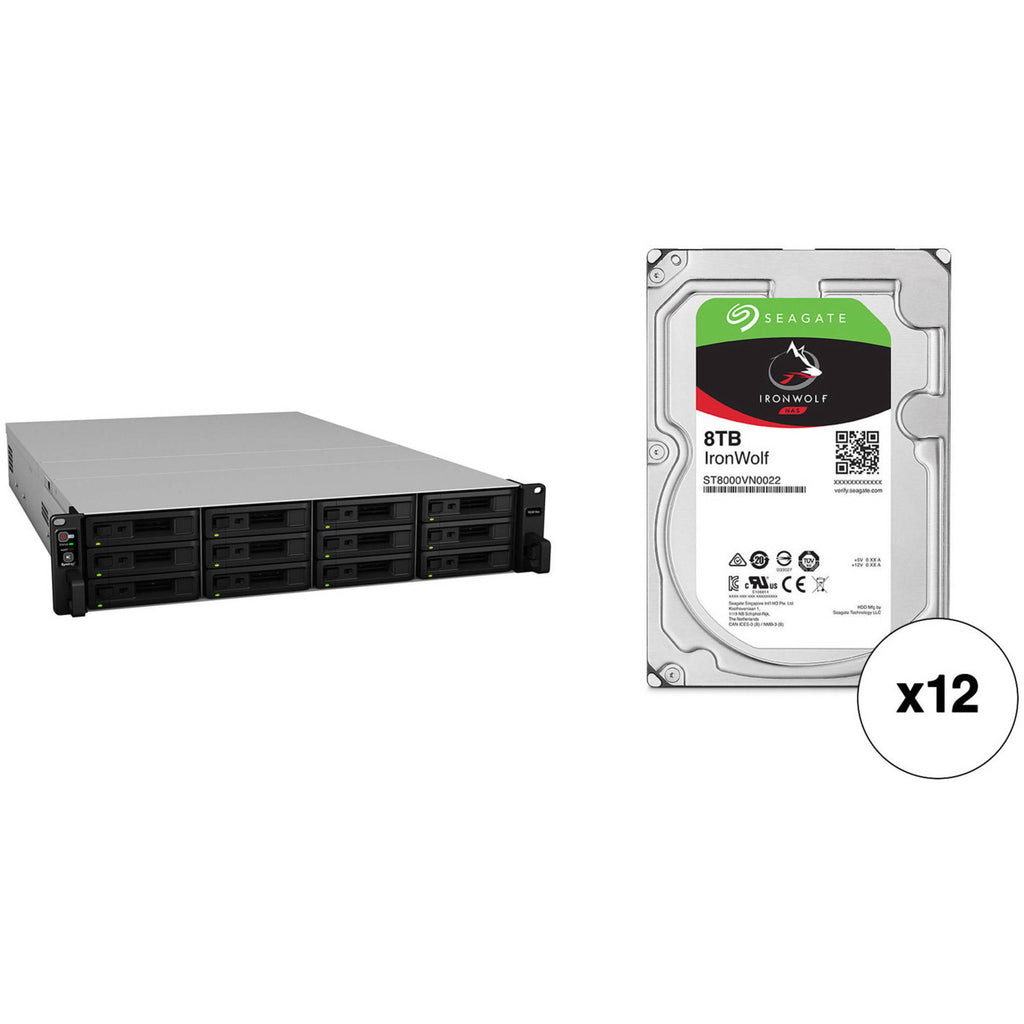

Synology RS3618XS 12-BA NAS RCKSTN/SG 96TB IW

Well-suited for large-scale enterprises with demanding business applications, the RackStation RS3618xs 12-Bay NAS Server from Synology helps simplify data management, optimizes virtualization environments, and rapidly expands storage capacities. This unit has 12 drive bays, each of which natively supports 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Should users need to expand the overall capacity of their RS3618xs, the optional RX1217/RX1217RP expansion units offer an additional 12 drive bays, and two of these units are supported via an integrated expansion ports.

The RackStation RS3618xs is powered by a 2.4 GHz Intel Xeon D-1521 Quad-Core processor, which will allow you to run multiple functions simultaneously. The built-in 8GB of DDR4 ECC RAM will allow quick access to frequently used files and programs and may also be upgraded to a total of 64GB by installing four 16GB modules into the available memory slots. Also featured are two USB 3.0 Type-A ports, which allow it to be connected to your Windows or Mac system. Network connectivity is achieved via the four Gigabit Ethernet ports with failover support, which help to provide redundancy in the case that a LAN connection malfunction occurs on one port. In addition, link aggregation, powered by four LAN ports, helps to increase connection speeds beyond the limits of a single network port or cable. If you're looking to expand this NAS, there are two PCIe Gen 3.0 x8/x8 slots that support a 10GBE NIC and more.

The RackStation RS3618xs runs on the DiskStation Manager (DSM) operating system, which helps simplify managing your NAS, as well as accessing and sharing data. A variety of RAID modes are supported, which help provide users with data redundancy, speed, or a combination of both. Supported RAID modes include RAID 0, 1, 5, 6, 10, Basic, and Synology Hybrid RAID. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

Synology has engineered the RackStation RS3618xs to be energy efficient. Not only does it offer four 80 x 80mm fans to help keep the system running cool, the server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses. The RackStation RS3618xs operates on 100-240 VAC at 50/60 Hz and includes an accessory pack and an AC power cords. Protection is provided by a limited 5-year hardware warranty.

General Features

Ready for 10GbE and Beyond

Dual PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, the RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.

Backup Solution

The RS3618xs integrates various backup applications to help safeguard your important data on devices with an intuitive user interface and durable storage technologies.

Active Backup for Server
An agentless backup solution helps protect data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.

Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.

Desktop Backup
Help safeguard your system with Cloud Station Backup and back up data stored on macOS to your Synology NAS with Time Machine.

Active Backup for Office 365/G Suite
On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Fully Certified Storage Virtualization Solutions

Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Next-Generation File System for Improved Data Protection

The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

Flexible Shared Folder and User Quota System
Provides comprehensive quota control on all user accounts and shared folders.

Snapshot Replication
Provides schedulable and storage capacity-saving data protection with 1024 shared folder backups and 65,000 system-wide snapshots.

File- or Folder-Level Data Restoration Helps make data recovery user-friendly and flexible.

Automatic File Self-Healing
Detects and recovers corrupted files without user intervention.

Limited 5-Year Warranty

Synology's limited 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises' return on investment.

Synology Replacement Service (SRS)

SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity.

Powered by Synology DSM

CMS
Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.

Snapshot Replication
Helps provide schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.

VMM
Run various operating systems in isolated sandboxes. Seamlessly clone, restore, and migrate virtual machines.

MailPlus
MailPlus is a secure, reliable, and private mail server solution with an intuitive and modern mail client.

Synology High Availability
Helps ensure smooth transitions between clustered servers in the event of server failures.

Drive
A versatile solution for file management and synchronization.

Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 8TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 10 ¹⁵ non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.

General Features

Optimized for NAS with AgileArray

AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management

Reduced Lag Times

Improved performance means reduced lag times or downtime for users during high traffic time for the NAS

IronWolf Health Management

IronWolf Health Management focuses on prevention, intervention, and recovery

Rotational Vibration (RV) Mitigation

IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures

Multi-User Environments

IronWolf provides a workload rate of 180TB per year

Cache Memory

IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster

1.0 Million Hours MTBF | Limited 3-Year Warranty

This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs

Designed for 24x7 Performance

Access your data on your NAS at virtually any time, whether remotely or on site

Best-Fit Applications

1-8 bay business network attached storage (NAS)

Desktop RAIDs and servers

Multimedia server storage

Private cloud
