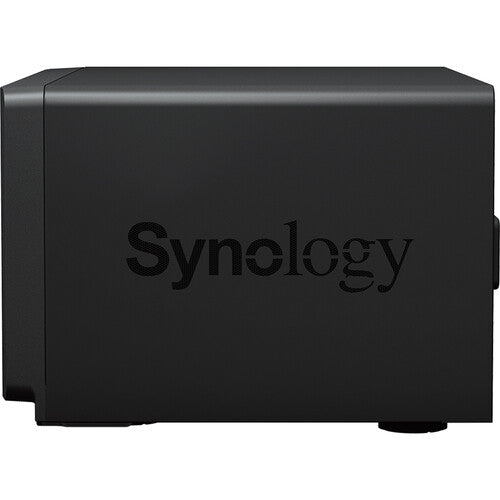

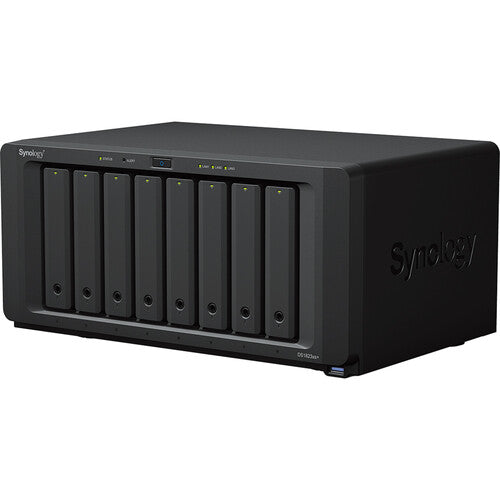

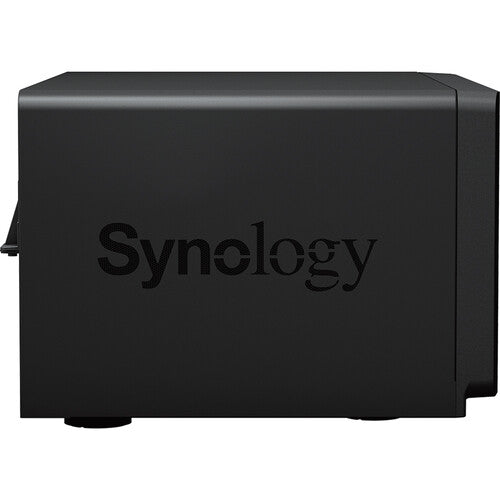

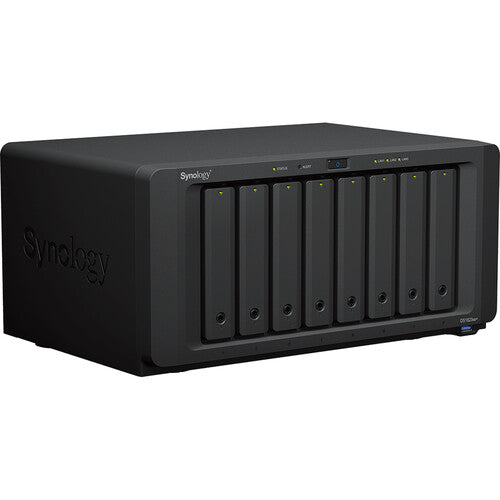

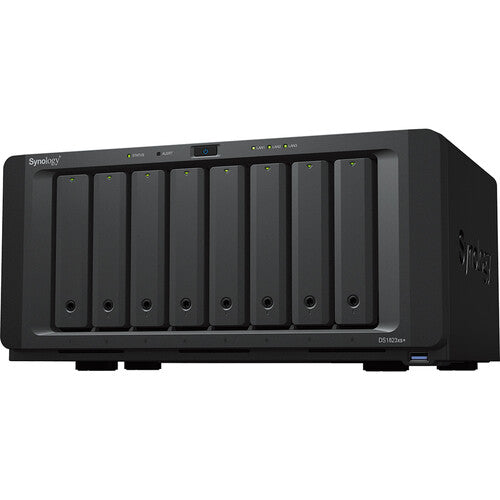

Designed for environments where no dedicated server rack or data center is available, the DiskStation DS1823xs+ 8-Bay NAS Enclosure from Synology can be deployed to provide central data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. Powered by Synology's DiskStation Manager (DSM), the DS1823xs+ can be expanded with 10 additional drive bays, or use the PCIe 3.0 x8/x4 slot to install a 1/10/25GbE networking card or Fiber Channel expansion card.

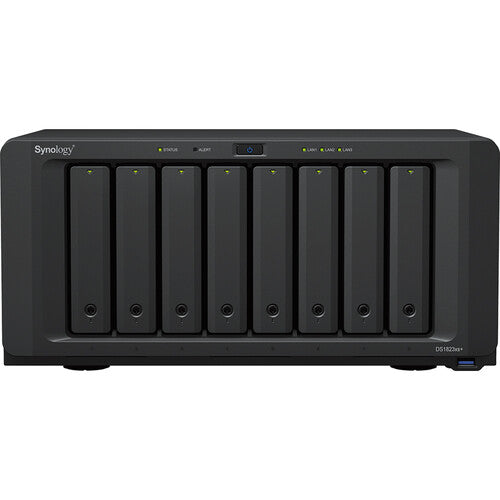

The DS1823xs+ is equipped with a 3.35 GHz AMD Ryzen V1780B Quad-Core processor and 8GB of DDR4 ECC memory that can be expanded up to 32GB, while also delivering read speeds of 3100 MB/s and write speeds of 2600 MB/s. This NAS is equipped with 8 drive bays that natively support 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs for data storage.
The DS1823xs+ runs on the Synology DiskStation Manager (DSM) OS, which is a browser-based operating system that helps to simplify managing your Synology NAS. Also featured are three USB-A 3.2 Gen 1 ports for peripherals and accessories, plus two eSATA expansion ports for two DX517 expansion units. Network connectivity is achieved via the one 10 Gigabit Ethernet port or three Gigabit Ethernet ports. For those who require RAID support, the DS1823xs+ supports RAID 0, 1, 5, 6, and 10, as well Synology F1 and Basic, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

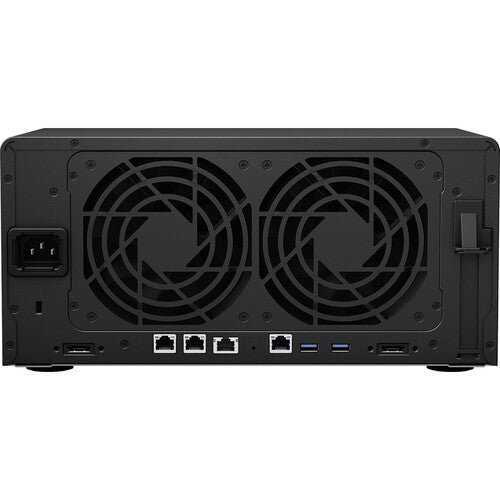

The DS1823xs+ is engineered to be energy efficient. Not only does it offer two 120 x 120 x 25mm fans to help keep the system running cool, its noise-dampening design makes for quiet operation. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The Synology DiskStation DS1823xs+ 8-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, an AC power cord, and two RJ45 LAN cables. Protection is provided by a limited 5-year warranty.
- Sequential reads of over 3100 MB/s and sequential writes of over 2600 MB/s support large data transfer volumes and enable fast file sharing, syncing, and backup for multiple users
- Support for all-flash and hybrid storage arrays allows combining the I/O performance of SSDs and efficiency of HDDs, by designating M.2 NVMe and SATA SSDs as storage volumes or as read/write cache to speed up HDD volumes
- Built-in 10GbE connectivity is supplemented by a PCIe 3.0 expansion slot to boost bandwidth through optional 1/10/25GbE and Fiber Channel expansion cards
- Simple capacity expansion is available whenever needed with two Synology DX517 Expansion Units
- Hot-swappable drive trays ensure easy replacement in the event of drive malfunctions, while fanless CPU heat sinks with passive cooling technology reduce possible points of failure
- Comprehensive web-based storage management includes remote and automatic drive replacement through Synology DiskStation Manager, cloud-based system health and security monitoring with Active Insight, and a dedicated out-of-band (OOB) management port that allows remote reboot, reset, and troubleshooting, even when the system is turned off
- Synology High Availability minimizes service downtime in case of planned maintenance, updates, or unforeseen disaster by providing fast failover between two identical units configured in an active-passive cluster
- Active Backup Suite consolidates backup tasks and offers rapid restoration of Windows, Linux, and macOS endpoints, VMs, Synology systems, and SaaS applications
- Snapshot Replication creates point-in-time copies of shared folders and LUNs to protect them from accidental modifications or ransomware incidents
- Hyper Backup backs up your Synology system data to multiple destinations securely and efficiently with integrity checks and powerful deduplication, compression, and versioning options
- C2 Storage for Hyper Backup offers a dedicated secure public cloud destination for Synology NAS backup data
- Synology Drive supports file sharing, remote data access, cross-device and cross-site synchronization, on-demand file restoration, and backup
- The Synology Office extension lets users collaborate on documents, spreadsheets, and presentation slides in real time, supported by convenient options such as file versioning for easy restoration and password protection
- Synology Chat brings teams together with one-on-one chats, group chats, and encrypted private channels over multiple platforms
- Synology MailPlus provides a secure, reliable, and private email server
- Synology Calendar helps teams keep track of priorities with convenient calendar sharing and scheduling
- Synology Hybrid Share combines reliable on-premises storage and efficient syncing of shared folders in the cloud to enable seamless cross-site synchronization and local file access at LAN speeds
- Synology Storage Console for VMware or Windows platforms lets you manage VM storage components directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfers
- Host lightweight containers and VMs for testing, sandboxing, and emergency recovery purposes with Docker and Synology Virtual Machine Manager, a native hypervisor that supports Windows, Linux, and virtual versions of DSM
