Description
SwitchMasterPro SMP-M Overview

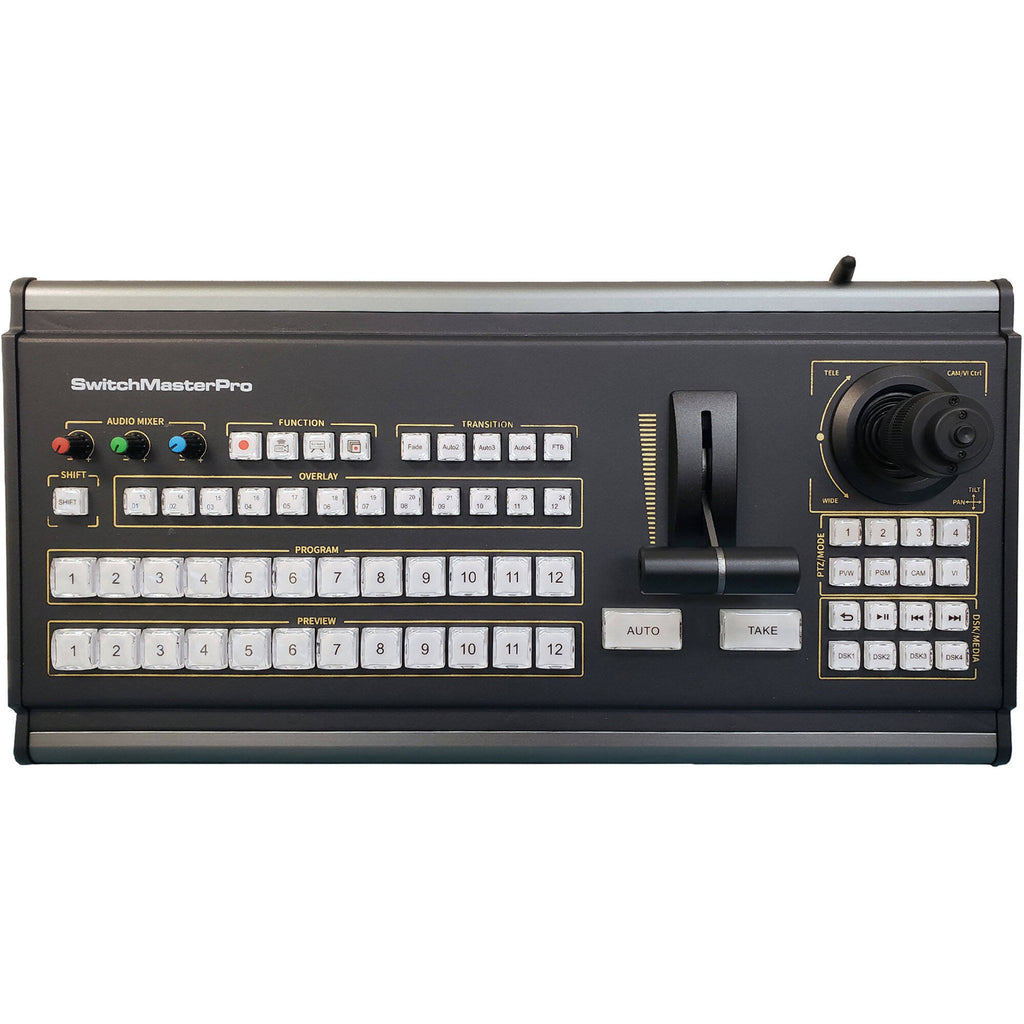

Add a hardware control surface to your vMix, Blackmagic, or TriCaster system with this Medium 12-Channel Control Surface from SwitchMasterPro. This compact control surface features 12 total inputs with Program and Preview rows for each input. The control surface is plug-and-play when using with vMix, and it is also compatible with Blackmagic, TriCaster, and Central Control Elite software. It includes a configuration application for a quick setup.
There are multiple transition buttons as well as auto, cut, and live/screen buttons. A T-bar controls the transition rate, there is a volume control for the main Program and headphone output, and there is a joystick for remote camera control. You can store configurations on internal flash memory, and it features USB-A and USB-B Windows system connections, a COM port for PTZ control, and a DB-15 serial connector.
- Plug-and-play with vMix
- 12 total inputs (24 with shift for overlay)
- Direct control of master record/iso, record, and streaming
- Output control of Live, Screen, Ext
- Virtual set presets direct from panel
- Media and GT designer ticker transport controls
- Multiple auto buttons for mix out
- Audio control for main out and B bus with adjustable headphone level
- T-bar to control transitions
- Joystick to control cameras
- Internal memory storage for configuration files
In the Box
- SwitchMasterPro Medium 12-Channel Control Surface
- Limited 1-Year Manufacturer Warranty
SwitchMasterPro SMP-M Specs
| Effect Types |
Transition
|
| Switching Type |
Pushbutton, Software
|
| Number of Video Input Sources |
12
|
| Video Output Channels |
1
|
| Other I/O |
1x USB-A
1x USB-B 1x DE-9/DB-9 Control 1x DE-15/DB-15 |
| OS Compatibility |
Windows
|
| Processor |
Not Specified by Manufacturer
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Power I/O |
1x USB-A (5 VDC at 0.1 A) Input
|
| Dimensions |
17.9 x 9.6 x 2.1" / 45.5 x 24.4 x 5.3 cm
|
| Weight |
5.1 lb / 2.3 kg
|
