Description
SwitchMasterPro SMP-L Overview

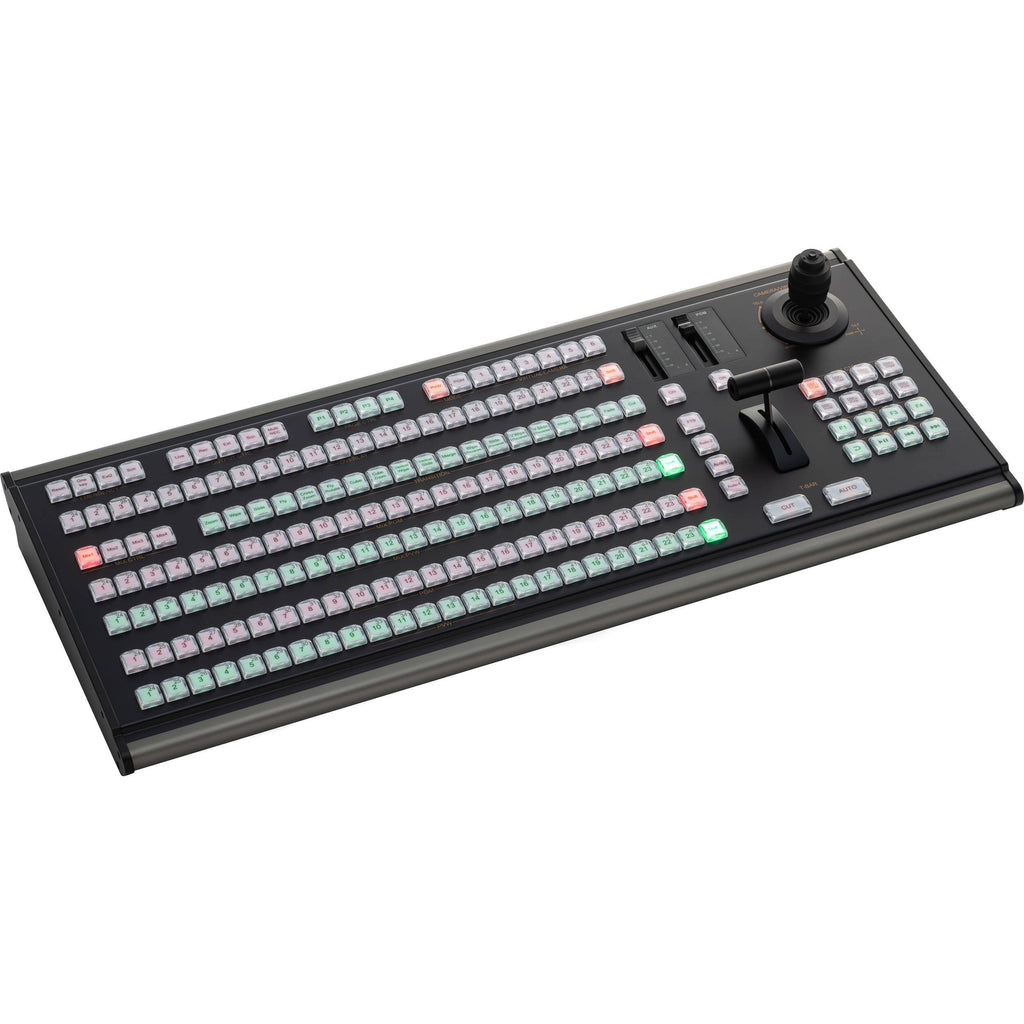

Add a hardware control surface to your vMix, Blackmagic, or TriCaster system with this Large 46-Channel Control Surface with Travel Case from SwitchMasterPro. This compact control surface features 46 total inputs with Program and Preview rows for each input. The control surface is plug-and-play when using with vMix, and it is also compatible with Blackmagic, TriCaster, and Central Control Elite software. It includes a configuration application for a quick setup.
There are multiple transition buttons as well as select, trigger, auto, cut, overlay, and M/E mix buttons. In addition to its 188 curved, backlit buttons, it features a T-bar for transitions and and a joystick for remote camera control. You can store configurations on internal flash memory, and it features USB-A and USB-B Windows system connections, a COM port for PTZ control, and a DB-15 serial connector. A hard-shell travel case is included for storage and transport.
- Plug-and-play with vMix
- 46 total inputs (23 with shift)
- Overlay Prev/Prog buttons
- Live set preview and program scene buttons
- Compatible with BlackMagic Design ATEM & Tricaster (via central control)
- 188 high-quality curved buttons with backlight
- M/E Mix control, overlays, custom triggers
- PTZ camera control via joystick
- Macro control buttons
- Media & GT designer ticker transport controls
In the Box
- SwitchMasterPro Large 46-Channel Control Surface with Travel Case
- Hard-Shell Travel Case
- Limited 1-Year Manufacturer Warranty
SwitchMasterPro SMP-L Specs
| Effect Types |
Transition
|
| Switching Type |
Pushbutton, Software
|
| Number of Video Input Sources |
46
|
| Video Output Channels |
1
|
| Other I/O |
1x USB-A
1x USB-B 1x DE-9/DB-9 Control 1x DE-15/DB-15 |
| OS Compatibility |
Windows
|
| Processor |
Not Specified by Manufacturer
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Power I/O |
1x USB-A (5 VDC at 0.1 A) Input
|
| Dimensions |
29.5 x 13.3 x 3.9" / 74.9 x 33.8 x 9.9 cm
|
| Weight |
13.6 lb / 6.2 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
