Description

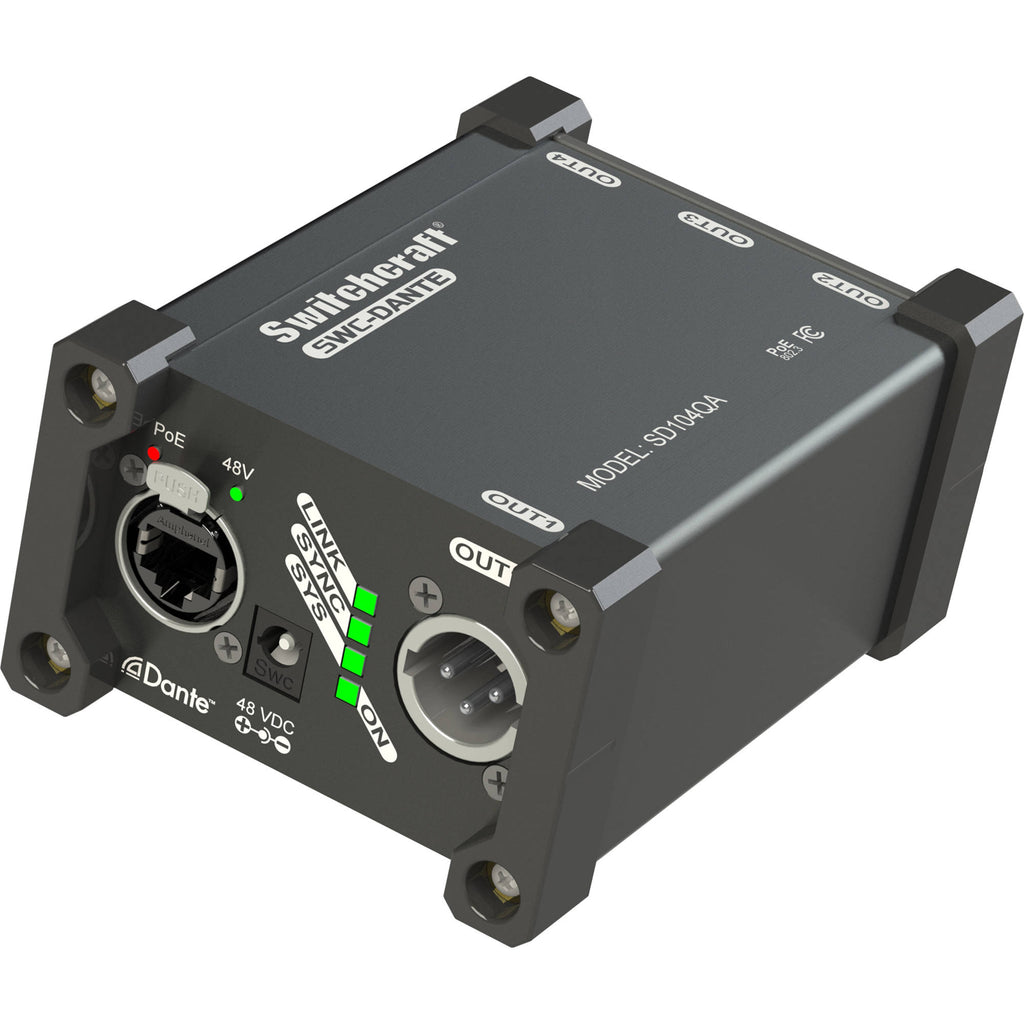

Switchcraft SD104QA Overview
The Switchcraft SD104QA is a 4-channel Dante output box designed to convert up to four Dante/AES67 digital audio network channels to individual analog line-level outputs for A/V technicians, system installers, and audio engineers in live stage applications and educational facilities. The locking RJ45 input accepts digital signal at up to 24-bit / 96 kHz resolution to an integrated D/A converter, which feeds the four XLR 3-pin male analog outputs.
All outputs utilize ESD protection to guard the SD104QA against damage from electrostatic discharge. Thanks to its durable anodized aluminum housing and shock-absorbing rubber corners, the SD104QA can handle the stress of touring and repeated setup and strike cycles. It supports powering via PoE or from a 48 VDC external power supply (available separately), and it features LED status indicators for power, link, sync, and more.
In the Box
- Switchcraft SD104QA 4-Channel Dante Output Box
- Limited Lifetime Warranty
Switchcraft SD104QA Specs
| Inputs | 1 x RJ45 Female (Locking) |
| Outputs | 4 x XLR 3-Pin Male (Balanced/Unbalanced) |
| Output Impedance | 100 Ohms |
| Output Level | 7 dBu at 0 dBFS Input (Balanced/Unbalanced) |
| Frequency Response | 10 Hz to 12 kHz (±0.25 dB, 100-Kilohm Load) 12 kHz to 20 kHz (±0.5 dB, 100-Kilohm Load) |
| SNR | 95 dBA (22 kHz Filter) |
| THD | <0.005% at 0 dBFS (10 Hz to 20 kHz) |
| Crosstalk | < -90 dB |
| Network Capabilities | Dante and AES67 |
| Bit Depth | 16-Bit or 24-Bit |
| Sample Rate | 44.1, 48, 88.2, or 96 kHz |
| Power Requirements | PoE (Class 1 IEEE 802.3af) or 48 VDC via Center-Positive External Power Supply |
| Power Supply | Output Voltage: 48 VDC Plug ID: 2.0 to 2.1 mm Minimum Current Output: 0.310 mA |
| Power Consumption | <2 W |
| Construction Material | Housing: Anodized Aluminum Corners: Rubber |
| Standards | RoHS |
| Dimensions (W x H x D) | 3.6 x 2.3 x 4.8" / 9.0 x 5.8 x 12.2 cm |
| Weight | 1.1 lb / 0.5 kg |
| Package Weight | 1.275 lb |
| Box Dimensions (LxWxH) | 7.2 x 4 x 2.9" |
