Description

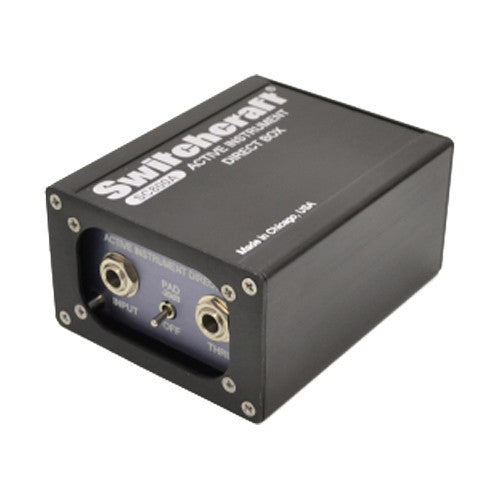

Switchcraft SC800A Overview
The Switchcraft SC800A is a precision engineered active direct box, which provides extended reach and high-quality audio fidelity for professional audio engineers and musicians. the SC800A derives its power from 48V phantom power and is designed to quietly preserve the tone of the world finest musical instruments. The unit is ideal for converting the unbalanced outputs of a passive musical instrument, such as an acoustic guitar and bass, to mic level signals that can be connected to a professional audio console and mic preamp.
In the Box
- Switchcraft SC800A Active Instrument Direct Box
- Limited Lifetime Manufacturer Warranty
Switchcraft SC800A Specs
| Connectors |
Input: 1/4" / 6.35 mm mono (TS)
Thruput: 1/4" / 6.35 mm mono (TS) Output: XLR 3-pin |
| Controls |
Pad: 20 dB input pad
Ground Lift: XLR Pin-1 lift |
| Frequency Response |
30 Hz to 30 kHz ±0.3 dB, ref 1 kHz
|
| THD + N |
<0.008% at 1 kHz, +4 dBu input, 22 kHz bandwidth
<0.04% at 20 Hz, +4 dBu input, 22 kHz bandwidth |
| Maximum Input Level |
+12 dBu at 20 Hz with 1% THD+N
+32 dBu with 20 dB pad engaged |
| Input Impedance |
>1 MOhms at 1 kHz
|
| Output Impedance |
<600 Ohms at 1 kHz
|
| CMRR |
Input: >86 dB at 60 Hz
Output: >65 dB at 60 Hz |
| Deviation from Linear Phase |
<16° at 20 Hz
<1° at 1 kHz <-12° at 20 kHz |
| Voltage Gain |
+3 dB ±1 dB
-17 dB ±1 dB with 20 dB pad engaged |
| Attenuation |
Pad Attenuation: 20 dB ±1 dB
|
| Dimensions |
3.4 x 4.2 x 2.1" / 85.1 x 105.7 x 53.3 mm
|
| Weight |
Not specified by manufacturer
|
Packaging Info
| Package Weight |
1.02 lb
|
| Box Dimensions (LxWxH) |
7.2 x 4 x 2.8"
|
