Description

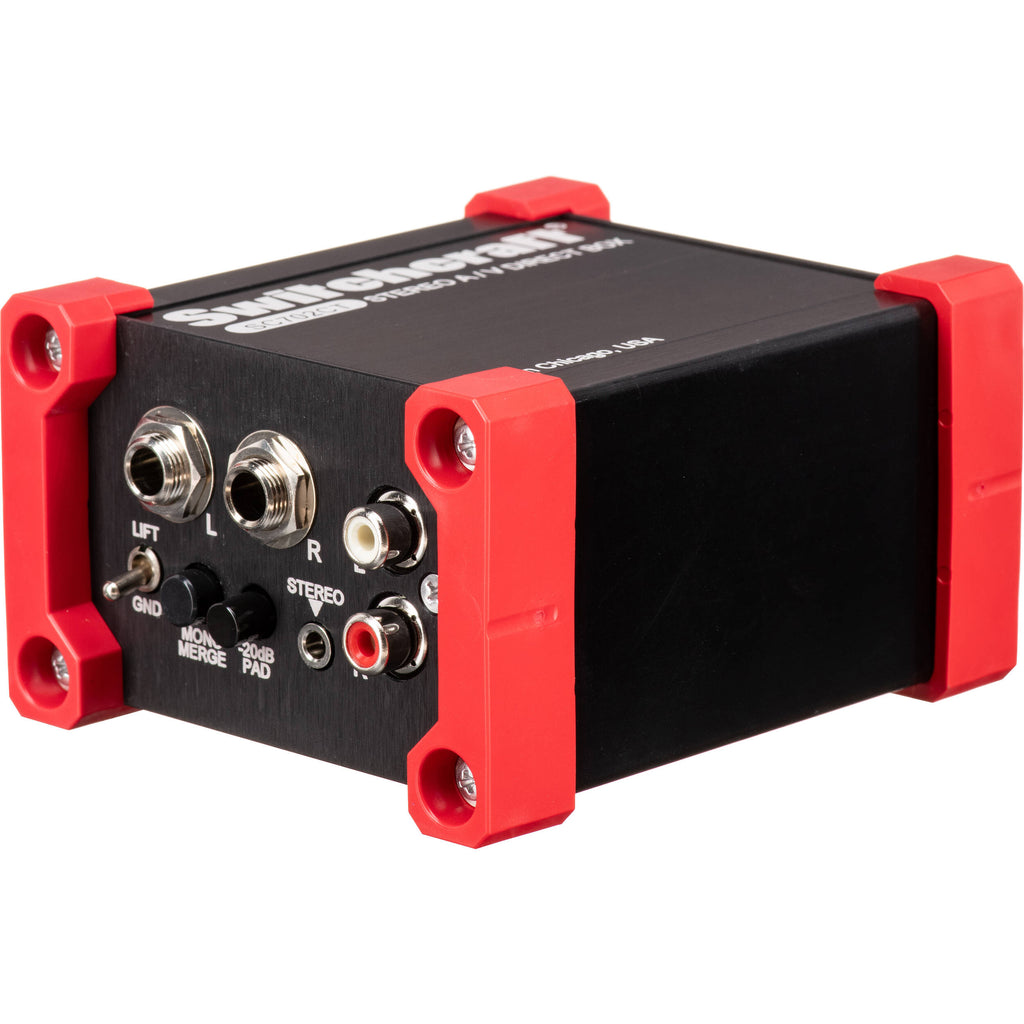

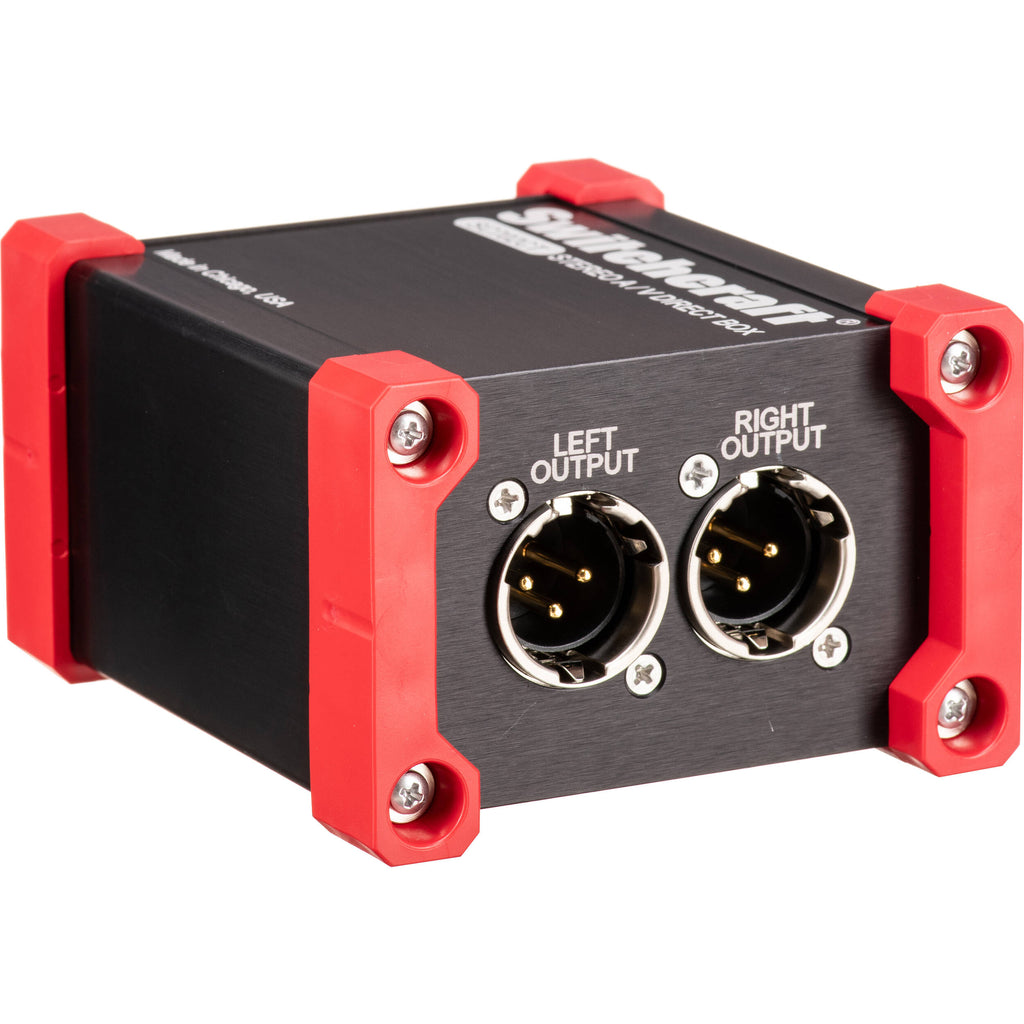

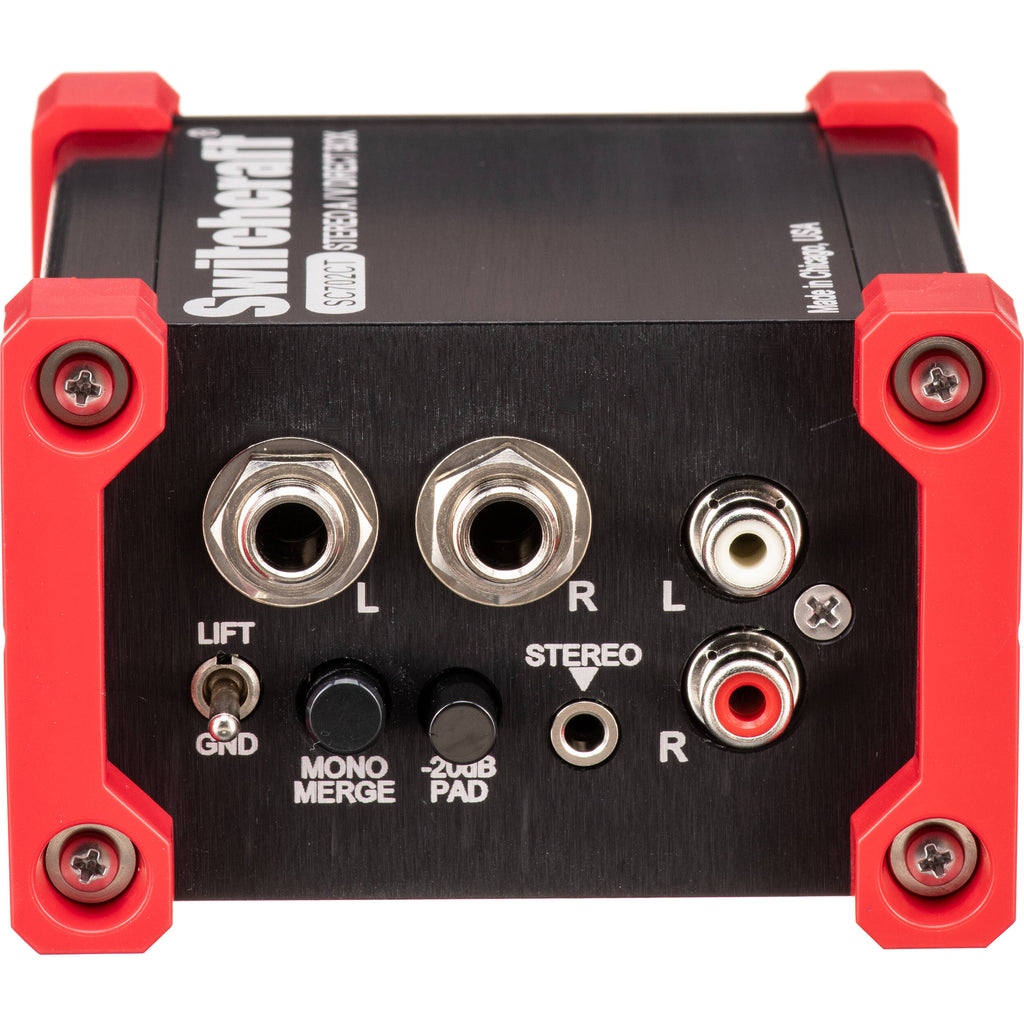

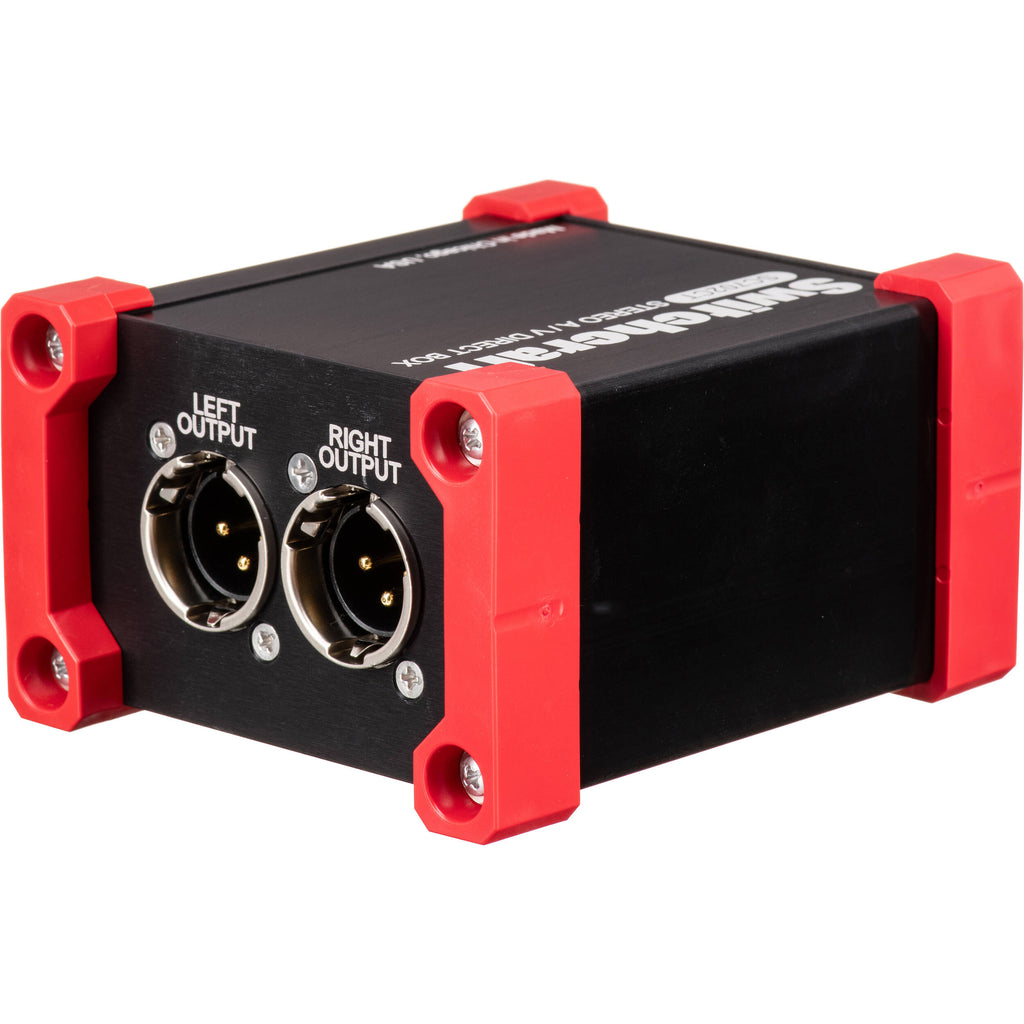

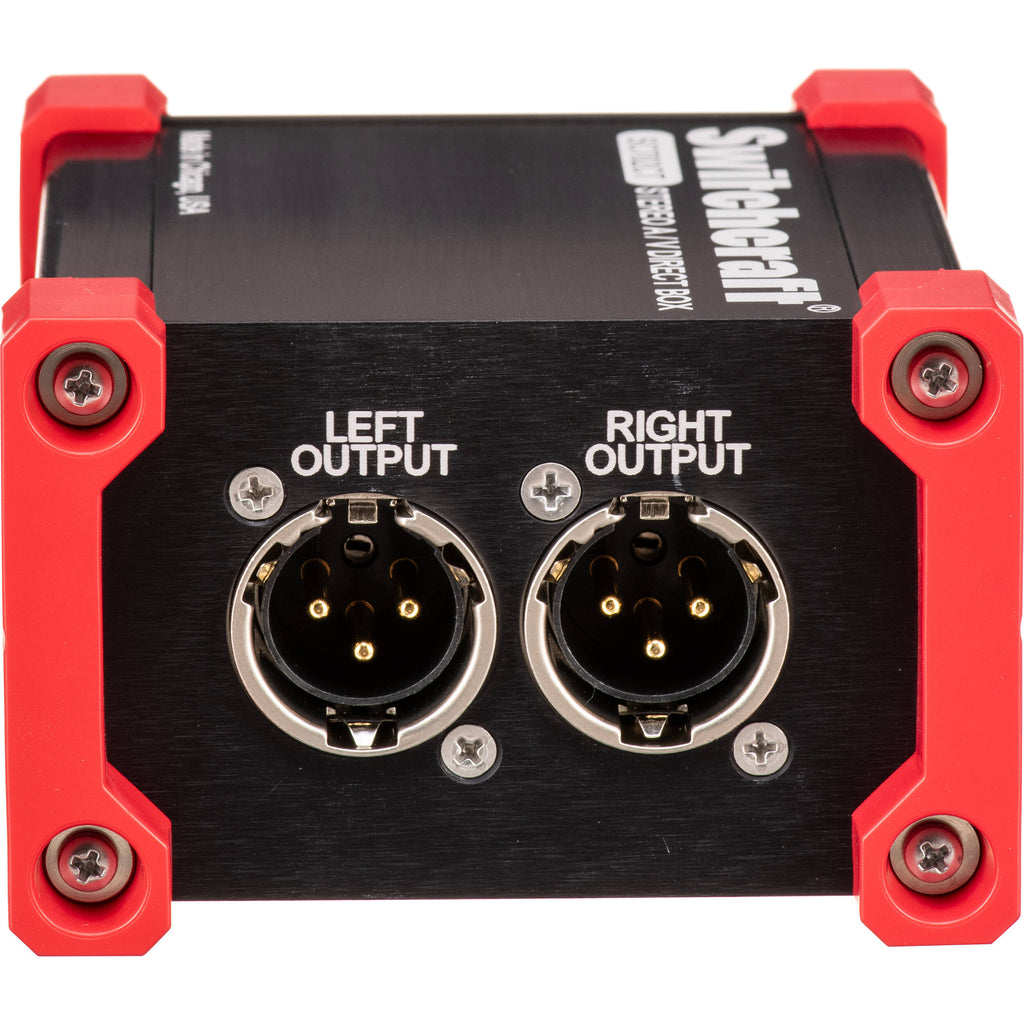

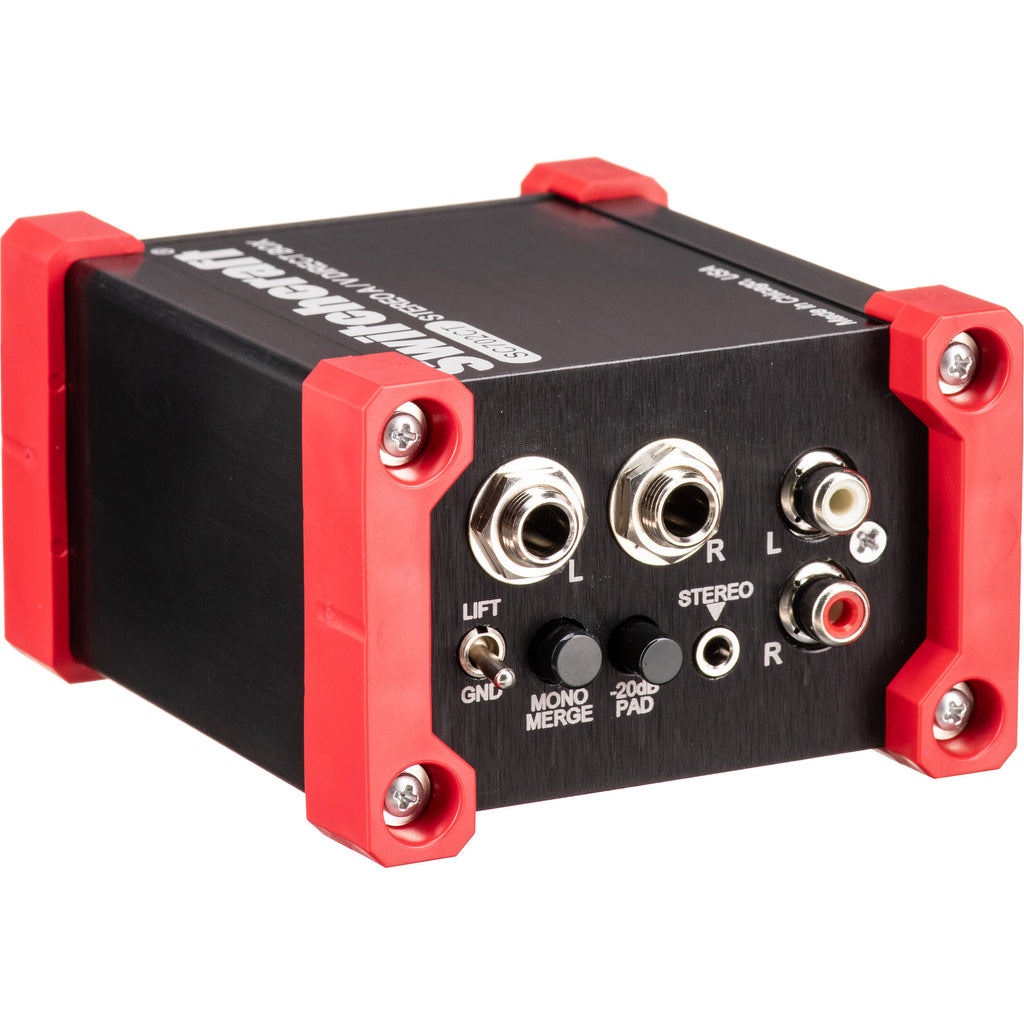

Switchcraft SC702CT Overview
The Switchcraft SC702CT Stereo A/V Direct Box with Custom Transformer is designed to convert the outputs of equipment such as MP3 players, laptops, and DJ mixers to balanced microphone level signals that can be connected to audio consoles, microphone preamps, and house sound systems. Two fully shielded isolation Custom transformers galvanically isolate the input and output connections to create a pair of clean audio signals that are immune from hum and buzz caused by ground loops and RF interference.
UPC: 853592007106
In the Box
- Switchcraft SC702CT Stereo A/V Direct Box with Custom Transformer
- Limited Lifetime Manufacturer Warranty
Switchcraft SC702CT Specs
General
| Item Type |
Standard DI
|
| Number of Channels |
2-Channel
|
| Active/Passive |
Active
|
| Circuitry |
Solid-State
|
| Pad |
-20 dB
|
| Ground Lift |
Yes
|
| Polarity Reverse |
No
|
| Gain/Trim Range |
-43 / -23 dB
|
| Low-Cut/High-Pass Filter |
No
|
Connectivity
| Audio I/O |
2x 1/4" TRS Balanced/Unbalanced Input
1x Stereo 2RCA Unbalanced Phono Input 1x 1/8" / 3.5 mm TRS Unbalanced Stereo Input 2x XLR 3-Pin Balanced Output |
| Merge/Summing |
Selectable Stereo or Summed-Mono Output
|
Performance
| Frequency Response |
20 Hz to 20 kHz
|
| Maximum Input Level |
+18 dBu
|
| Input Impedance |
120 Kilohms
|
| Output Impedance |
50 Ohms
|
| Total Harmonic Distortion |
0.007% at 1 kHz +4 dBu Input, 22 kHz Bandwidth
0.4% at 20 Hz +4 dBu Input, 22 kHz Bandwidth |
Physical
| Dimensions |
4.16 x 3.35 x 2.1" / 105.7 x 85.1 x 53.3 mm
|
Packaging Info
| Package Weight |
1.35 lb
|
| Box Dimensions (LxWxH) |
7.2 x 4 x 2.8"
|
