Description
Switchcraft DB25FXLRMXLRF Overview

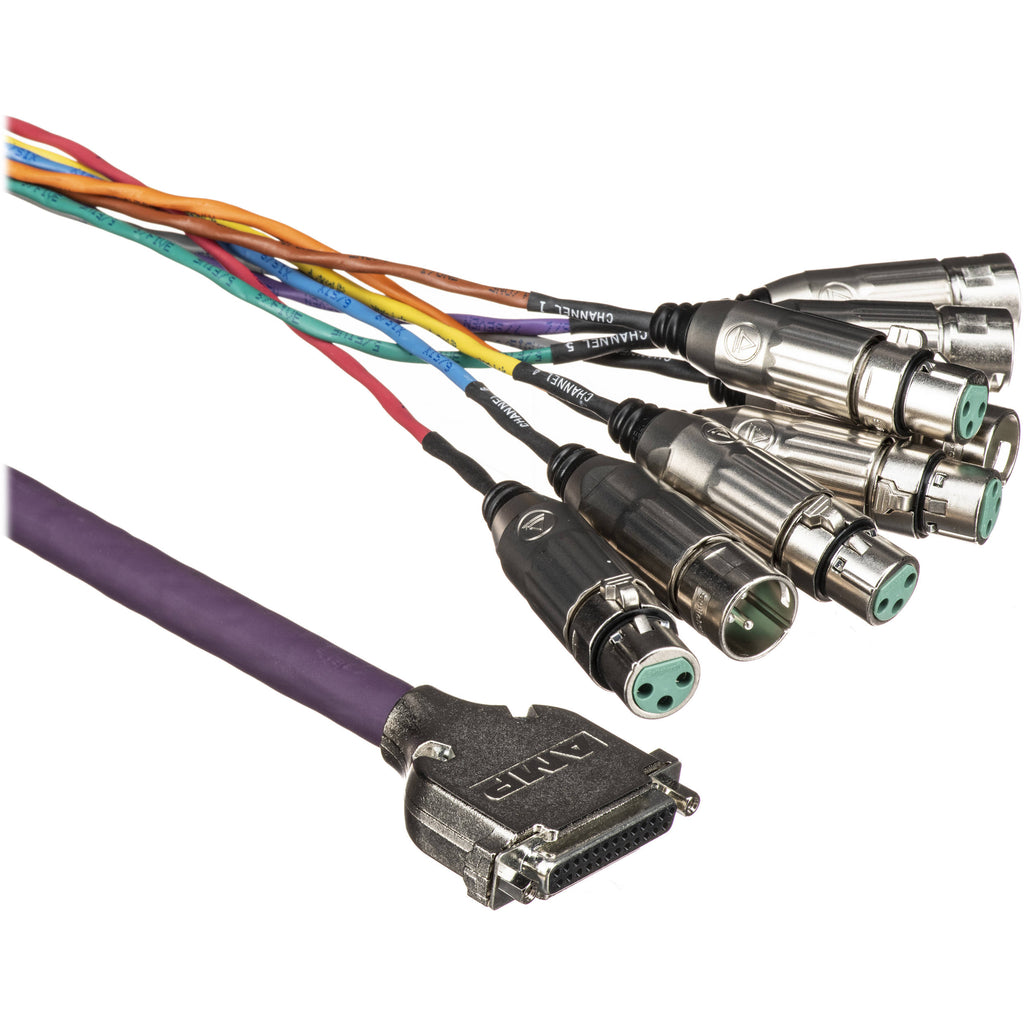

The DB25FXLRMXLRF StudioPatch Series Modular DB25 Breakout Cable End from Switchcraft allows you to configure your I/O connections easily, without having to replace core cable runs. You can connect the modular DB25 breakout cable end to any length of DB25 to DB25 cable.
In the Box
- Switchcraft DB25FXLRMXLRF StudioPatch Series Modular DB25 Breakout Cable End (DB25 Female to 4 XLR Male and 4 XLR Female)
- Limited Lifetime Manufacturer Warranty
Switchcraft DB25FXLRMXLRF Specs
| Connectors |
Side 1: DB25 female
Side 2: 4 XLR Male and 4 XLR Female |
| Type |
4 XLR Male and 4 XLR Female
|
| Materials |
XLR Female Connector:
Handle, Housing, and Latch: Zinc alloy, nickel-plated Insulator: Thermoplastic, green Socket Contacts: Special copper allow, silver-plated H.S Tubing - Thermoplastic DSUB: Cable Clamp: Copper, nickel-plated Shell: Steel, tin-plated Insulator: Thermoplastic Screw Locks: Brass, nickel-plated |
| Compliance |
RoHS
|
| Length |
Breakout Cable: 18" ±0.75" (45.7 cm ±1.9 cm)
DB25F to XLR: 6" ±0.5" (15.2 cm ±1.3 cm) (26 AWG) |
Packaging Info
| Package Weight |
1.215 lb
|
| Box Dimensions (LxWxH) |
9.9 x 7.4 x 2.35"
|
