Description

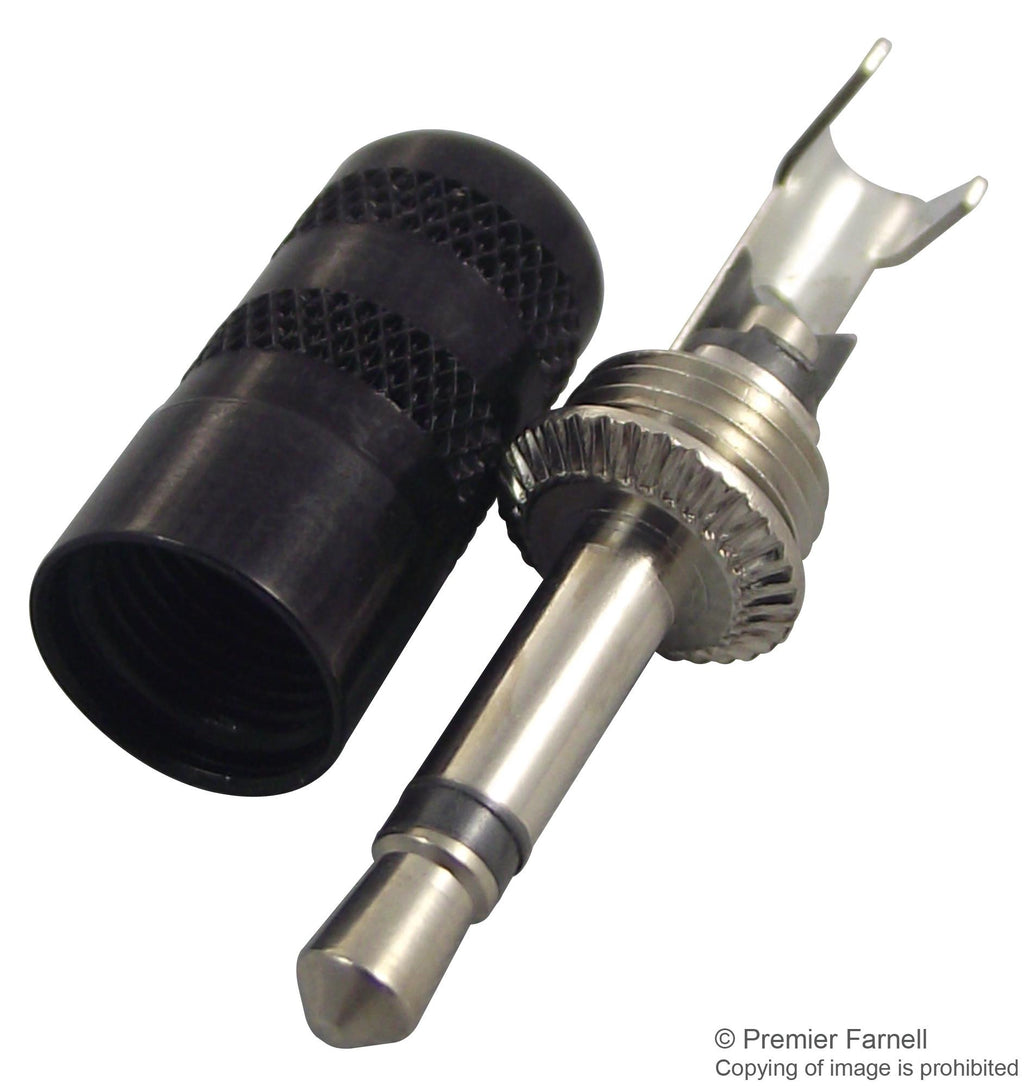

The 850X is a 2-conductor 0.101-inch Micro Plug with solder lug terminal and a black anodized aluminium handle. It has nickel-plated brass body, tin-plated brass clamp and moulded thermoplastic insulation. It mates with Micro-Jax� phone jack, which can be wired for open or closed circuit operation. Internally keyed insulators interlock all parts and jack tip springs grip mating plugs positively.
- 10000 Insertion/withdrawal cycles minimum life
- -20 to +65�C Operating temperature range
Applications
Audio
Product details
| No. of Contacts | 2Contacts |
| Contact Plating | Nickel Plated Contacts |
| Gender | Plug |
| Product Range | - |
| Pin Diameter | 2.5mm |
| Connector Body Material | Metal Body |
| Connector Mounting | Cable Mount |
Other details
| Brand | SWITCHCRAFT |
| Part Number | 850X |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
