Description
Switchcraft 35HDBAUPKG Overview

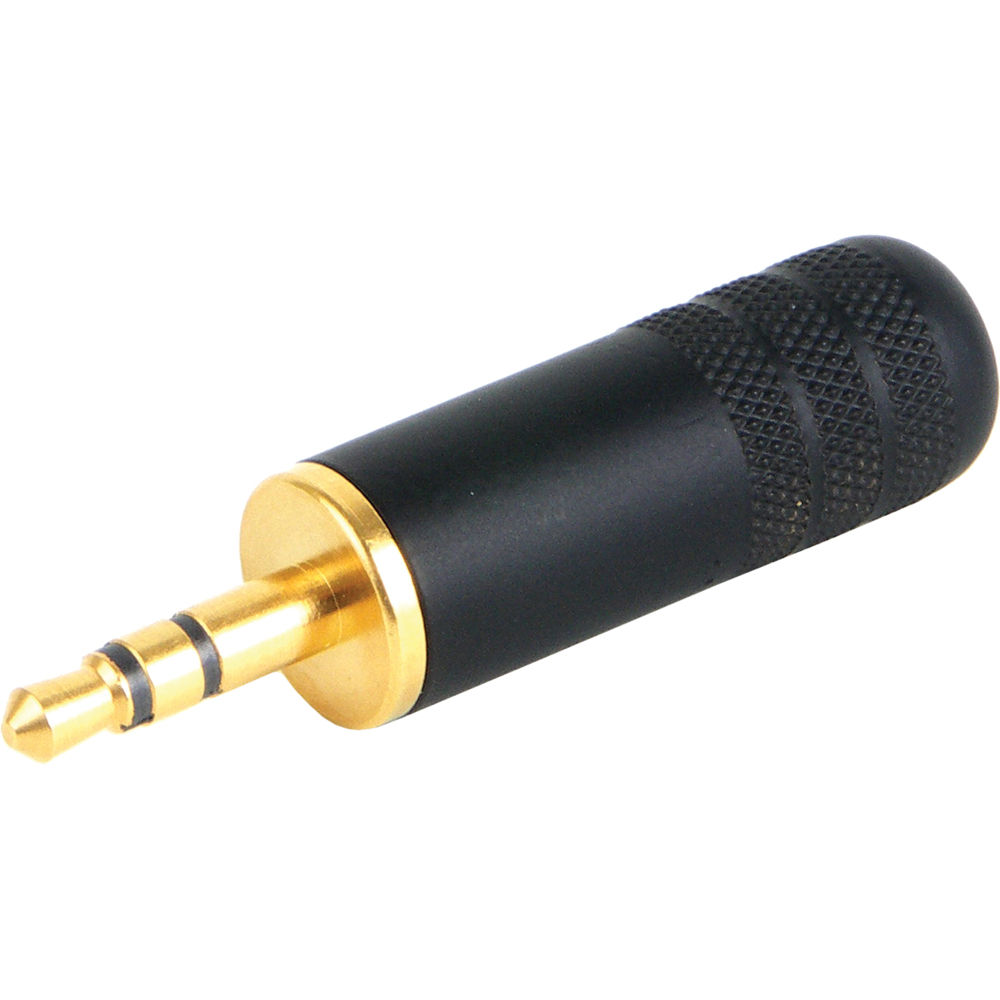

This Switchcraft 3.5mm TRS Male Cable Connector features a black epoxy handle and gold insert molded plug finger. It has a longer cable clamp and larger solder terminals for easier plug assembly and more room for solder connections. This plug will accommodate cables with a diameter of 0.290" and features a longer handle for an improved gripping surface and easier withdrawl from the jack.
Switchcraft 35HDBAUPKG Specs
| Contact Resistance | < 0.020 Ohms |
| Dielectric | Withstand Voltage: 250 VAC (Minimum) |
| Insulation Resistance | @ 500 VDC: 2000 Megohms (Minimum) |
| Working Voltage | 250 VAC, 140 VDC |
| Current Output | @ Working Voltage: 4 Amps |
| Insertion Force | Typical: 2.5 lb / 1.13 kg |
| Withdrawal Force | Typical: 2 lb / 0.9 kg |
| Temperature Range | 32 to 151°F / 0 to 66°C (Operating) Passed MIL-STD-202F Method 107G (Thermal Shock), and Method 201 (Vibration) |
| Life | 5000 Cycles |
| Cable Diameter | 0.290" / 7.37 mm |
| Construction | Finger: Gold Handle: Black Epoxy Cable Clamp: C.R.S., Tin-Plated Solder Lug: Brass, Tin-Plated Tubular Insulator: Translucent Mylar |
Packaging Info
| Package Weight | 0.025 lb |
| Box Dimensions (LxWxH) | 5 x 2.35 x 0.45" |
