Description
- Large Terminals for Easy Wiring
- Accepts up to 16 AWG Wiring
- Durable Metal Construction
- Low 1/2" Wide Profile for Crowded Wiring
- Knurled Handles
- Rugged Cable Clamp

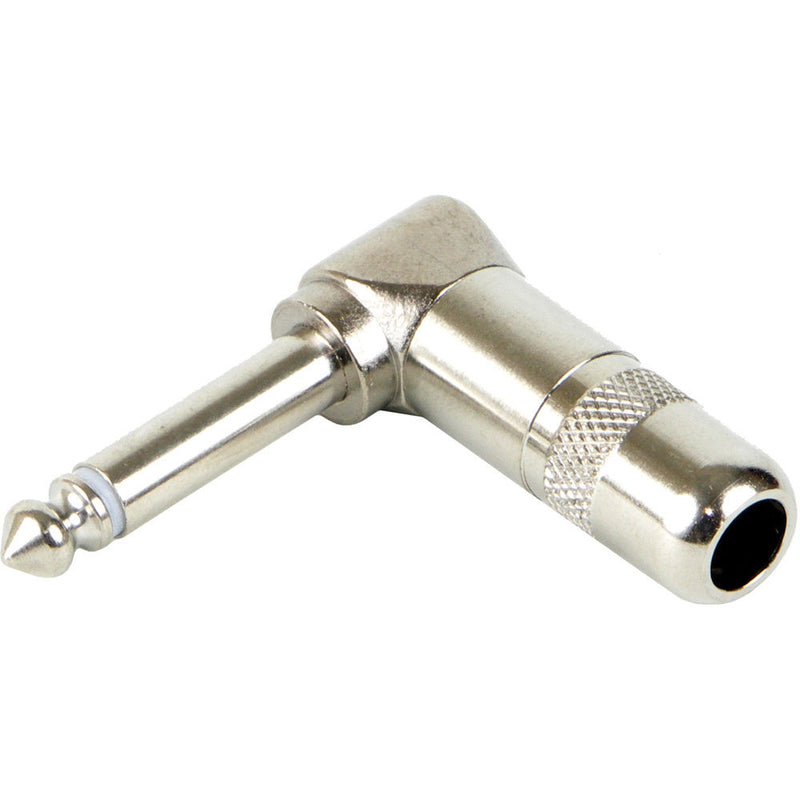

The Switchcraft 1/4" Mono Right Angle 2-Conductor Plug is designed for OEM development and users of commercial grade phone plugs. The plug is comprised of a handle, an insulator, and a finger/housing assembly. It features large terminals for easy 16 AWG wiring. For crowded wiring, the plug utilizes a 1/2" wide low-profile design. For secure connections, the plug features both knurled handles and a rugged cable clamp that prevents the wire strains from twisting or pulling out of the plug.
| Construction | Tip, Rod, and Handle: Nickel-plated copper alloy |
| Housing | Nickel-plated |
| Terminal | Tip: Tin-plated copper alloy Sleeve: Tin-plated steel |
| Insulation Material | Thermoplastic |
| Dielectric Strength | 500 VAC |
| Insulation Resistance | 50,000 M? |
| Operating Temperature | -20 to 65°C |
| Dimensions | Not specified by the manufacturer |
| Weight | Not specified by the manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 3.8 x 2.5 x 1.2" |
In the Box
Switchcraft 1/4" Mono Right Angle 2-Conductor Plug
- Limited Lifetime Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1215.2 |
| 3-5 | ₹ 1202.8 |
| 5-10 | ₹ 1178.0 |
| 10+ | ₹ 1153.2 |
Bulk discount will be automatically applied during checkout based on quantity.
