Switchblade Systems VMC12 Overview

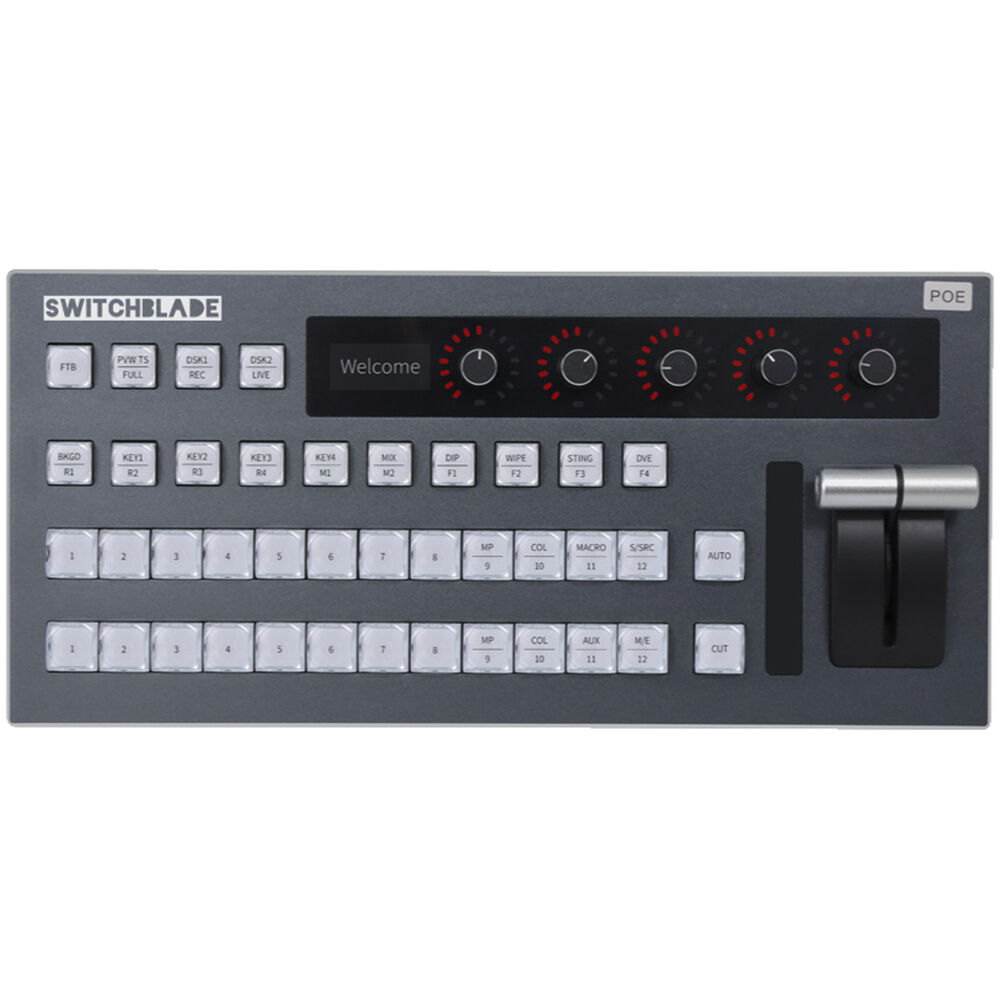

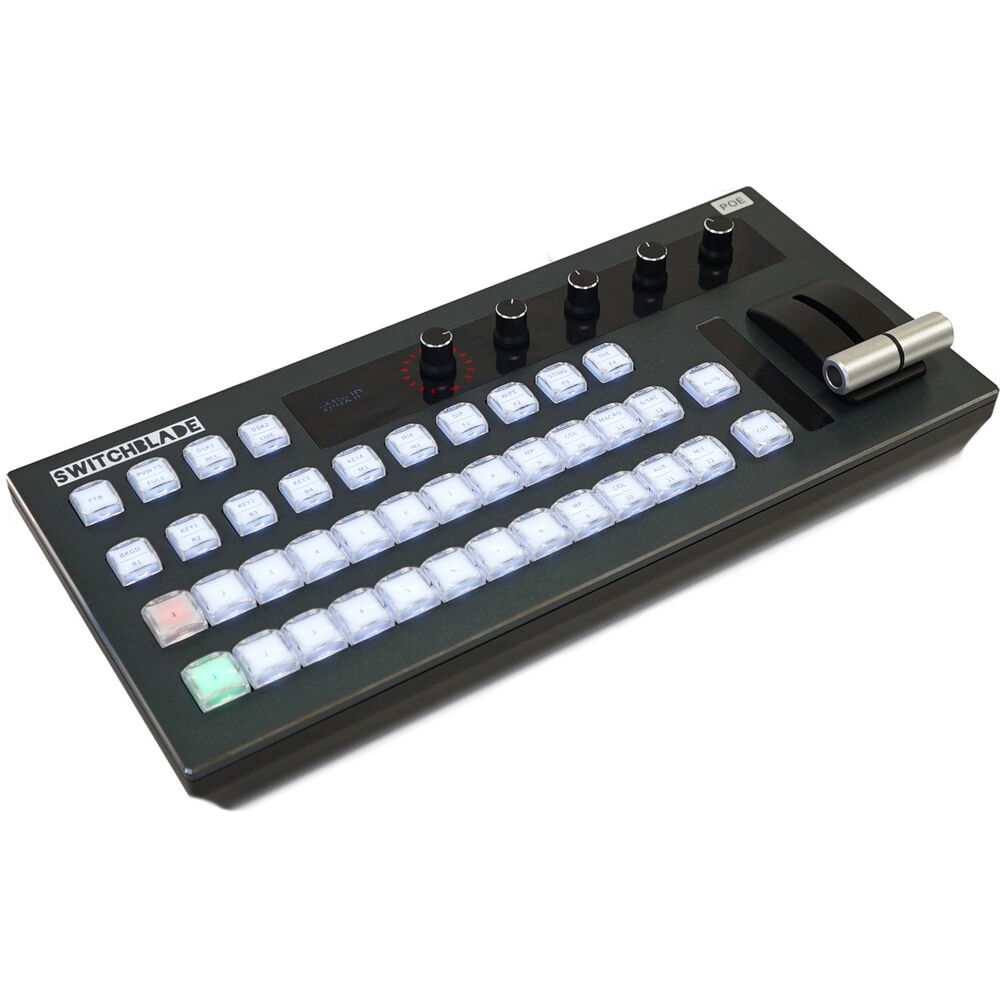

Control your vMix-based software switcher or Blackmagic Design ATEM with the VMC12 Control Panel for vMix and Blackmagic Design ATEM from Switchblade Systems. Designed with bright LED backlit buttons and a professional T-bar that facilitates common commands, including crossfades, wipes, digital video effects, and downstream keying, the VMC12 is an ideal companion to any Switchblade system and is suited for experienced and novice users alike. Connect an optional Ethernet cable to it from your computer and the VMC12 perfectly integrates with the functions of vMix software and Blackmagic Design ATEM systems, and that same cable can even provide power to the unit using PoE (Power over Ethernet) technology.
- Connection Methods: IP connection via RJ45 LAN (POE 802.3af supported) and USB 2.0 cable direct connection
- Input Control: 12 channel preview/program
- Transitions: 4 transitions mappable to buttons
- Overlays: 4 overlay channels (R1 / R2 / R3 / R4)
- Playback Control: 2 playback channels (M1 / M2)
- Other Controls: Record, Stream
- Connection method: IP connection via RJ45 LAN (POE 802.3af supported)
- Input control: 12 channels
- Transition effects: 5 transition buttons (mix / dip / wipe / sting / DVE)
- Upstream keyer control: 4 key buttons (background / key 1 / key 2 / key 3 / key 4)
- Downstream keyer control: 2 DSK buttons
- FTB: supported
- Preview transition: supported
- Macros: supported
- S/SRC: supported
- M/E: supported
- AUX: supported
In the Box
- Switchblade Systems VMC12 Control Panel for vMix and Blackmagic Design ATEM
- Power Adapter
- USB Cable
- Limited 1-Year Manufacturer Warranty
Switchblade Systems VMC12 Specs
General
| Compatibility |
Blackmagic Design ATEM
vMix |
Inputs / Outputs

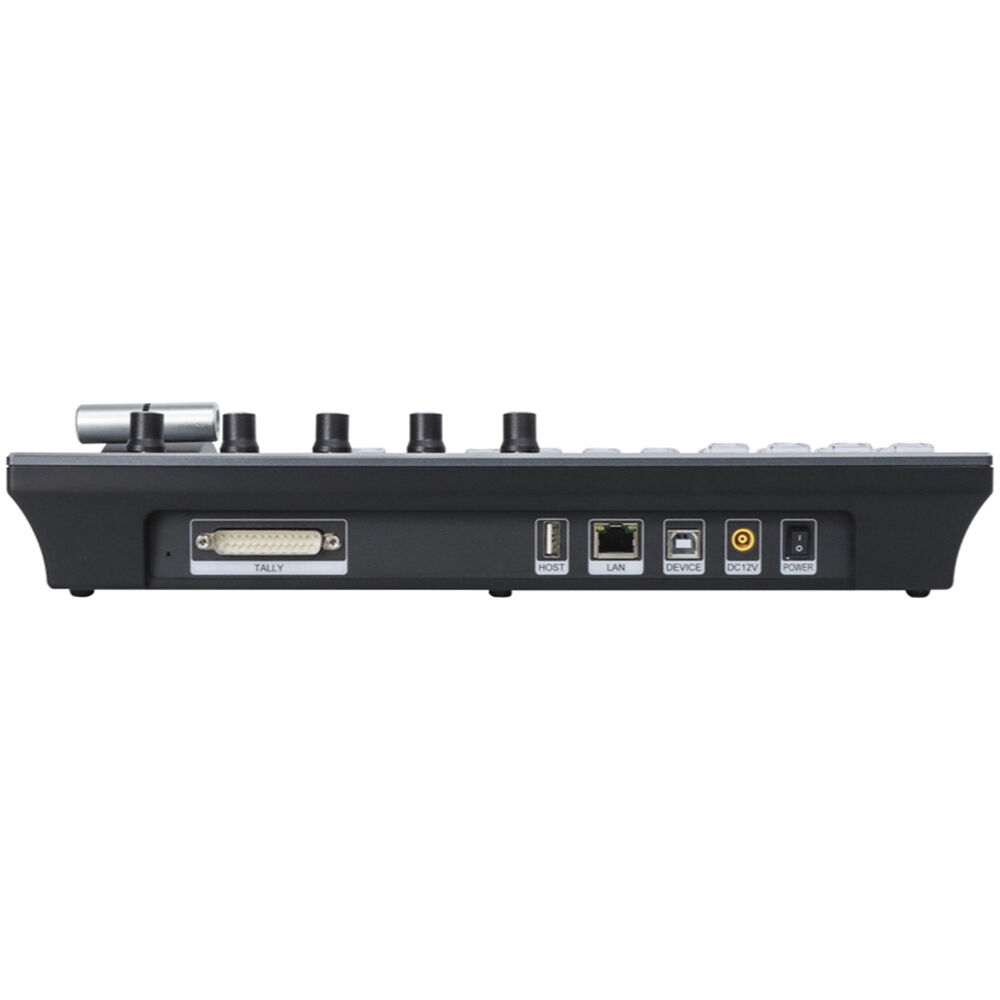

| USB I/O |
1 x USB-B Integrated Male Input/Output
1 x USB-A Female Input/Output |
Power
| Power Source |
AC Adapter with Power Brick (Included), PoE |
| DC Input Power |
12 VDC at 0.3 A |
| Power Consumption |
4 W |
| Operating Current |
0.3 A |
Environmental
| Operating Temperature |
14 to 104°F / -10 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
Physical
| Dimensions |
13.9 x 6.5 x 2.6" / 354 x 165 x 67 mm |
| Weight |
3.3 lb / 1.5 kg |
Packaging Info
| Package Weight |
5.025 lb |
| Box Dimensions (LxWxH) |
19.3 x 10 x 5.8" |
