Description
Switchblade Systems M9 vMix Overview
- 1Description
- 2Virtual Sets
- 3Titling Software
- 4Color Correction
- 5Playlist
- 6Video List
- 7Unlimited NDI and SRT Inputs
- 8Graphic Overlays
- 9Remote Callers
Elevate your production quality and versatility to the next level with this M9 vMix Desktop Live Production System with 2 PTZ Cameras from Switchblade Systems. Ideal for event production, houses of worship, and live concert footage acquisition, this bundled kit comes with the M9 vMix Desktop Live Production System and two NDI/3G-SDI/HDMI PTZ cameras with 20x optical zoom.
Virtual Sets
Built-in and customizable virtual sets with full-motion zoom and high-quality chroma keying
Titling Software
GT Designer Standard includes 100+ built-in animated titles, scoreboards, and tickers
Color Correction
Professional color correction on every input, including lift, gamma, gain, luminance, hue, and saturation with real-time vectorscope monitoring
Playlist
Switch between multiple live inputs or prerecorded videos without manual intervention
Video List
Create playlists of video files to play in sequence�a great way to stream prerecorded content when your event is offline
Unlimited NDI and SRT Inputs
Unlimited inputs, depending on video and project settings
Graphic Overlays
Up to four graphic overlays
Remote Callers
One caller using VMix Call
UPC: 653559999129
In the Box

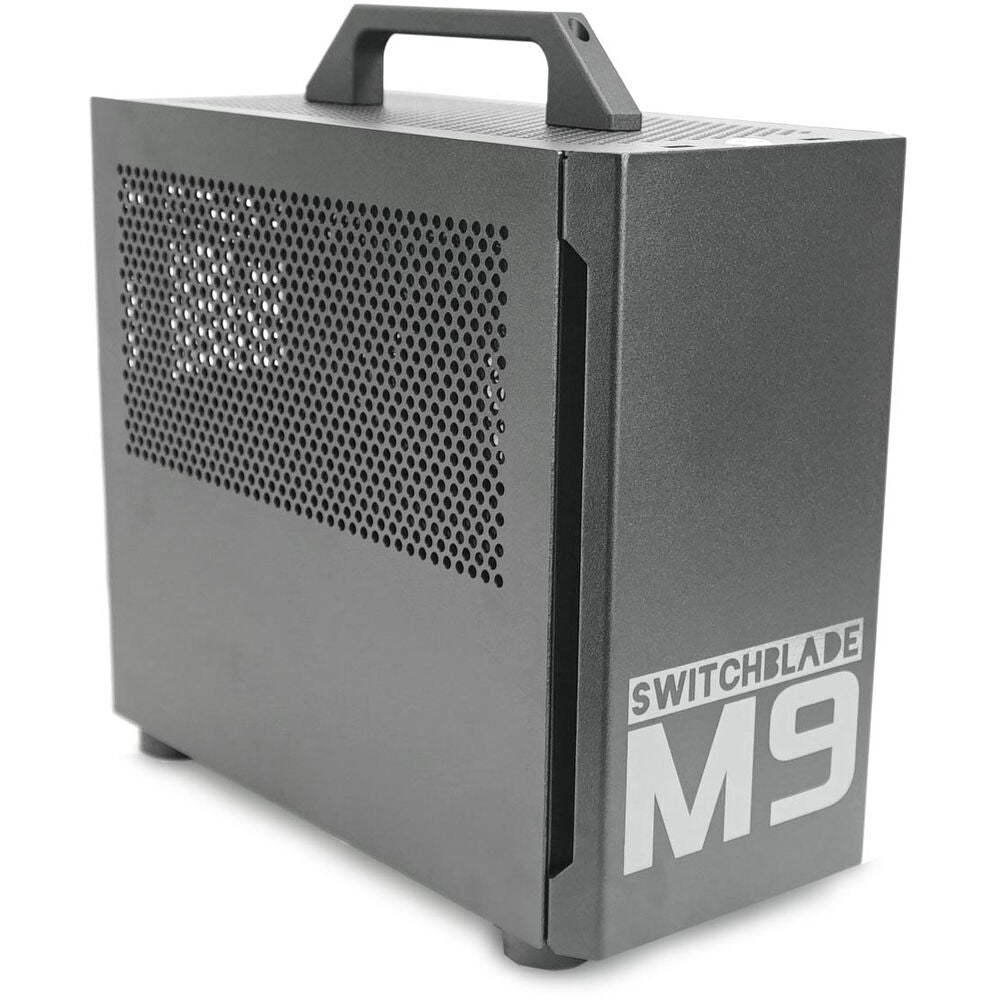

- Switchblade Systems M9 vMix Desktop Live Production System
- Switchblade Systems NDI/3G-SDI/HDMI PTZ Camera with 20x Optical Zoom
Table of Contents
- Description
- Virtual Sets
- Titling Software
- Color Correction
- Playlist
- Video List
- Unlimited NDI and SRT Inputs
- Graphic Overlays
- Remote Callers
Switchblade Systems M9 vMix Desktop Live Production System Specs
Processing
| Switching Type | Software |
| Processing Resolution | 1080p at 60 |
Input
| Video Inputs | 4 x BNC (3G-SDI) Female |
| Input Video Format | SDI 1080p at 60 fps |
| Audio Inputs | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
Output
| Audio Outputs | 3 x 1/8" / 3.5 mm TRS Analog Female 1 x TOSLINK Stereo S/PDIF Female |
| Multiview Output | Yes |
| Monitor Output | 1 x HDMI 2 x DisplayPort 1.4a |
Connectivity
| Other I/O | 1 x RJ45 LAN 8 x USB-A Input/Output 1 x USB-C Input/Output |
| IP Video | 1920 x 1080 at 60p Encoding |
| IP Audio | Encoding |
| Transport Protocols | RTMP, RTSP, NDI/HX, Dante, SRT |
| Simultaneous Streams | 5 Streams |
| Compatible Services | Facebook Live, Twitch, YouTube Live |
| Recording Media | 1 x 2.5" SSD |
| Internal Storage | 1 TB |
| Recording Modes | 1920 x 1080p up to 60 fps (AVI/MP4) |
Hardware
| Processor | Intel Core i5 |
| CPU | 6-Core |
| GPU | NVIDIA GeForce RTX with 8 GB GDDR6 VRAM |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Bluetooth | 5.0 |
Environmental
| Operating Temperature | 32 to 67°F / 0 to 35°C |
| Storage Temperature | 14 to 212°F / -10 to 100°C |
General
| Dimensions | 14.09 x 12.57 x 6.78" / 35.79 x 31.93 x 17.22 cm |
| Weight | 19 lb / 8.6 kg |
Switchblade Systems NDI/3G-SDI/HDMI PTZ Camera with 20x Optical Zoom Specs
Imaging
| Sensor Type | 1/2.8"-Type CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel (1920 x 1080) |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 3000 to 7000K Presets: AWB, Auto, Manual, One Push |
Lens
| Focal Length | 5.5 to 110mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 10x |
| Field of View | 55.8 to 3.2° |
| Maximum Aperture | f/1.6 to 3.5 |
Video Capture
| External Recording Modes | SDI/BNC / HDMI 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps |
| Embedded Audio | LAN (RJ45) |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264, H.265, NDI|HX, RTMP, RTSP, SRT 1920 x 1080 1280 x 720 |
Control
| Presets | 255 10 via IR |
| Move Speed | Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | Pelco-D Pelco-P VISCA |
Interface
| Video I/O | 1 x HDMI Output 1 x BNC (3G-SDI) Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
Power
| Power I/O | 1 x Barrel (12VDC at 1 A) Input |
| Power Consumption | Device: 12 W |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
General
| Mobile App Compatible | No *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Dimensions (W x H x D) | 5.9 x 6.6 x 5.9" / 150 x 167.5 x 150 mm |
| Weight | 3.1 lb / 1.4 kg |
