Switchblade Systems SWBS-M9 Overview
-
1Description
-
2Virtual Sets
-
3Titling Software
-
4Color Correction
-
5Playlist
-
6Video List
-
7Unlimited NDI and SRT Inputs
-
8Graphic Overlays
-
9Remote Callers

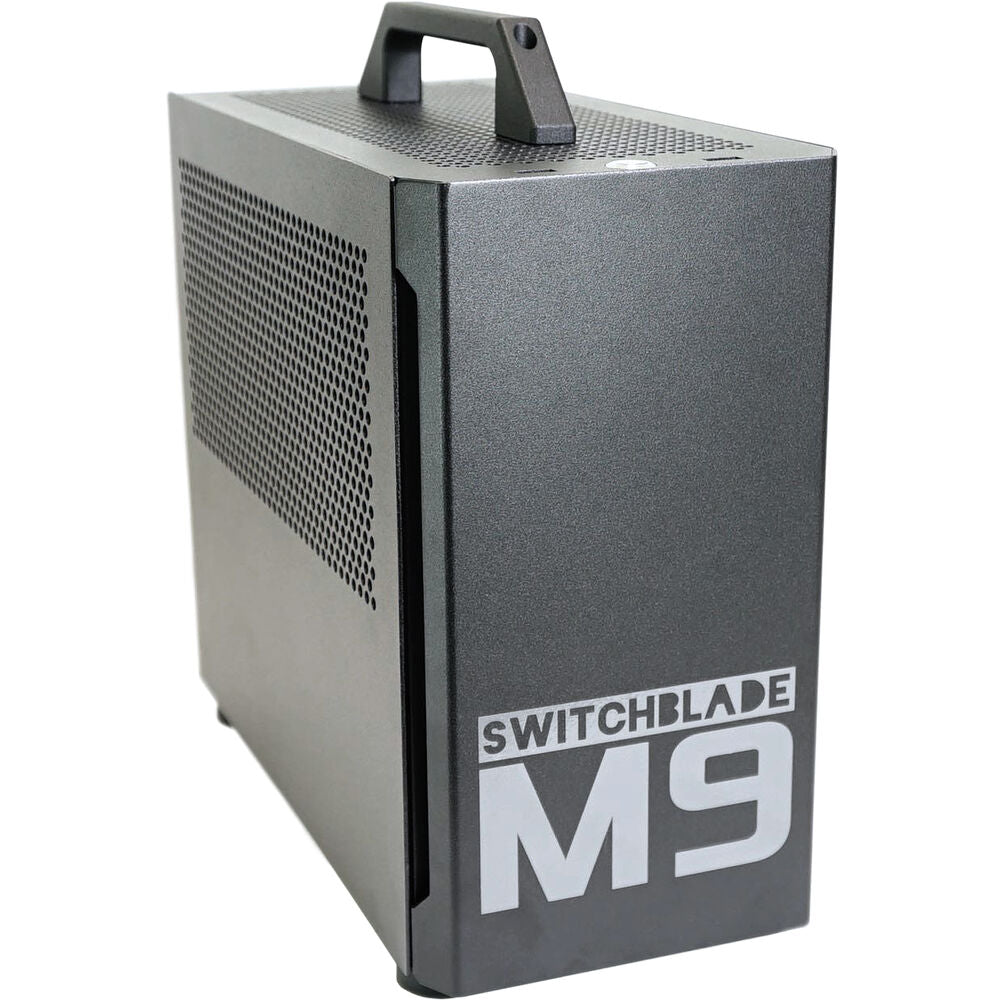

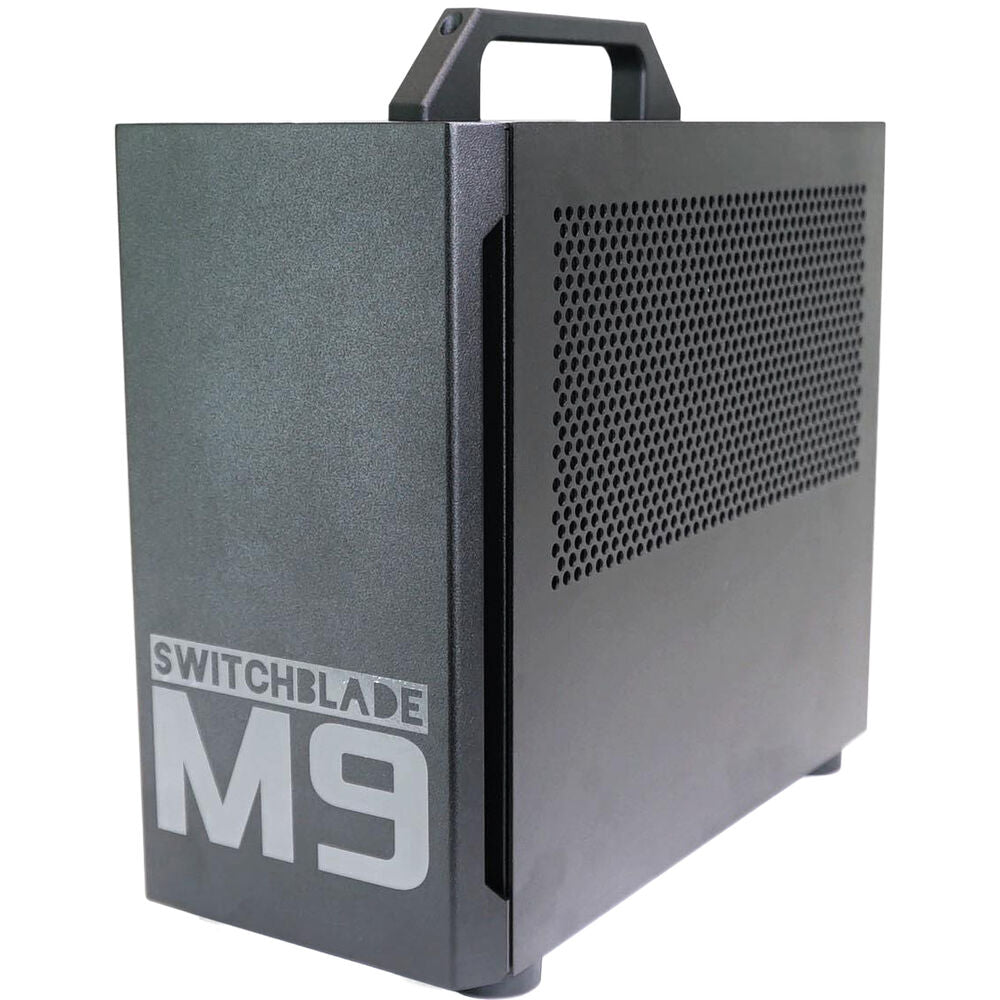

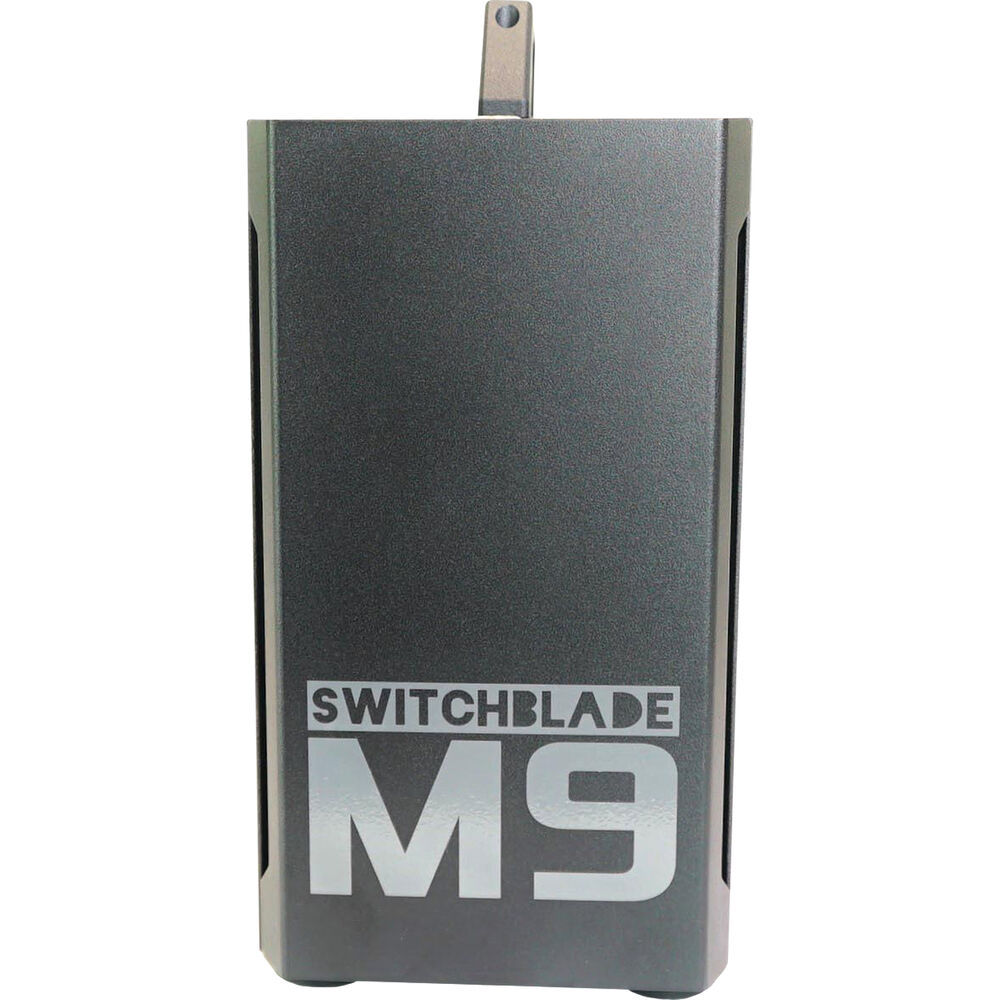

Live switching and streaming church services, sporting events, concerts, virtual conferences, and other multi-angle acquisition applications are handled with ease and portability using the M9 vMix Desktop Live Production System with HDMI inputs from Switchblade Systems. With vMix live switching and streaming software licensing included, this compact and portable production chassis combines the power of a 6-Core Intel Core i5 CPU and the visual flair of an integrated Nvidia GeForce GPU graphics card to allow you to mix and stream your content in Full HD.

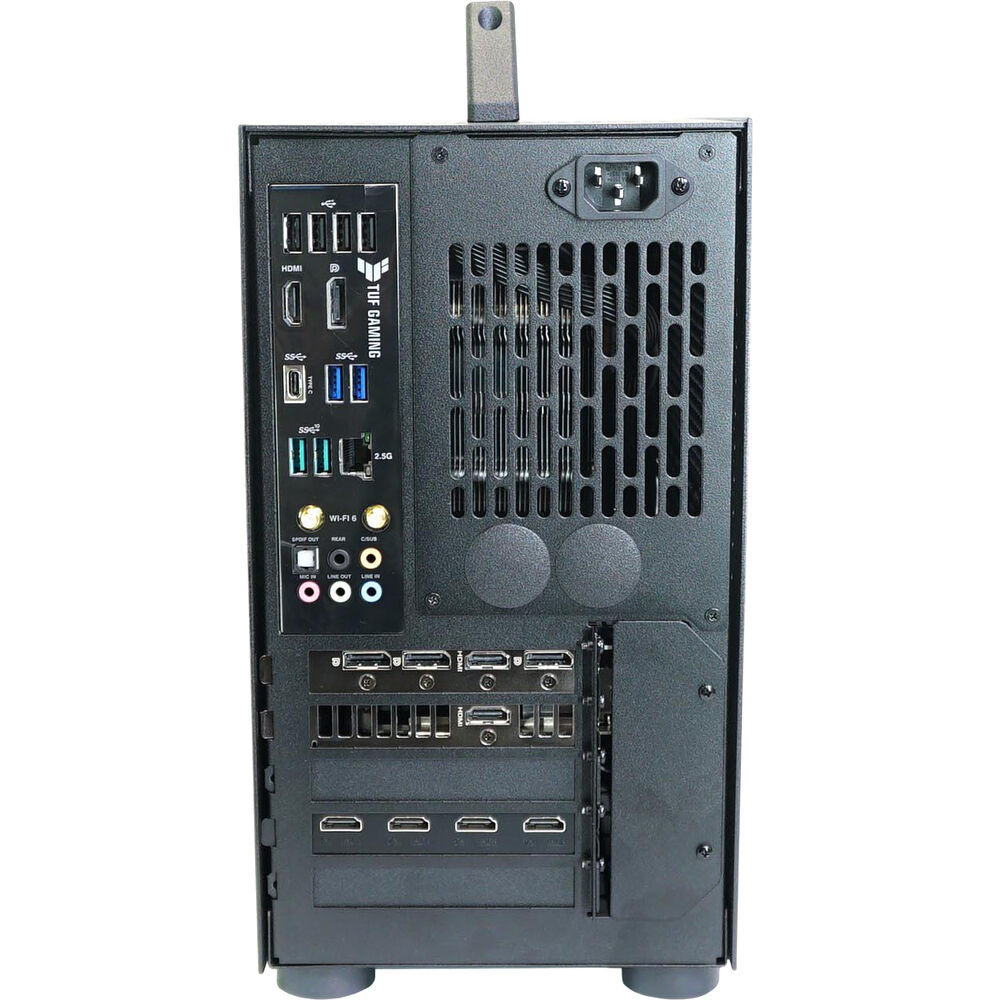

The M9 is equipped with four HDMI inputs and unlimited NDI and SRT inputs that can all be individually color-corrected in real time, plus single NDI, SRT, and full-screen external outputs. It also comes with a 1TB NVMe solid-state drive for storage.
Built-in and customizable virtual sets with full-motion zoom and high-quality chroma keying
GT Designer Standard includes 100+ built-in animated titles, scoreboards, and tickers
Professional color correction on every input, including lift, gamma, gain, luminance, hue, and saturation with real-time vectorscope monitoring
Switch between multiple live inputs or prerecorded videos without manual intervention
Create playlists of video files to play in sequence�a great way to stream prerecorded content when your event is offline
Unlimited NDI and SRT Inputs
Unlimited inputs, depending on video and project settings
Up to four graphic overlays
One caller using VMix Call
Table of Contents
- Description
- Virtual Sets
- Titling Software
- Color Correction
- Playlist
- Video List
- Unlimited NDI and SRT Inputs
- Graphic Overlays
- Remote Callers
Switchblade Systems SWBS-M9 Specs
Processing
| Switching Type |
Software |
| Processing Resolution |
1080p at 60 |
Input
| Video Inputs |
4 x HDMI (HDMI 1.4) Female |
| Input Video Format |
HDMI
1080p at 60 fps |
| Audio Inputs |
2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format |
Analog |
Output
| Audio Outputs |
3 x 1/8" / 3.5 mm TRS Analog Female
1 x TOSLINK Stereo S/PDIF Female |
Connectivity
| Other I/O |
1 x RJ45 LAN
8 x USB-A Input/Output
1 x USB-C Input/Output |
Hardware
| Processor |
Intel Core i5 |
| CPU |
6-Core |
| GPU |
NVIDIA GeForce RTX with 8 GB GDDR6 VRAM |
| Wi-Fi |
Wi-Fi 6 (802.11ax) |
| Bluetooth |
5.0 |
Environmental
| Operating Temperature |
32 to 67°F / 0 to 35°C |
| Storage Temperature |
14 to 212°F / -10 to 100°C |
General
| Dimensions |
14.09 x 12.57 x 6.78" / 35.79 x 31.93 x 17.22 cm |
| Weight |
19 lb / 8.6 kg |
