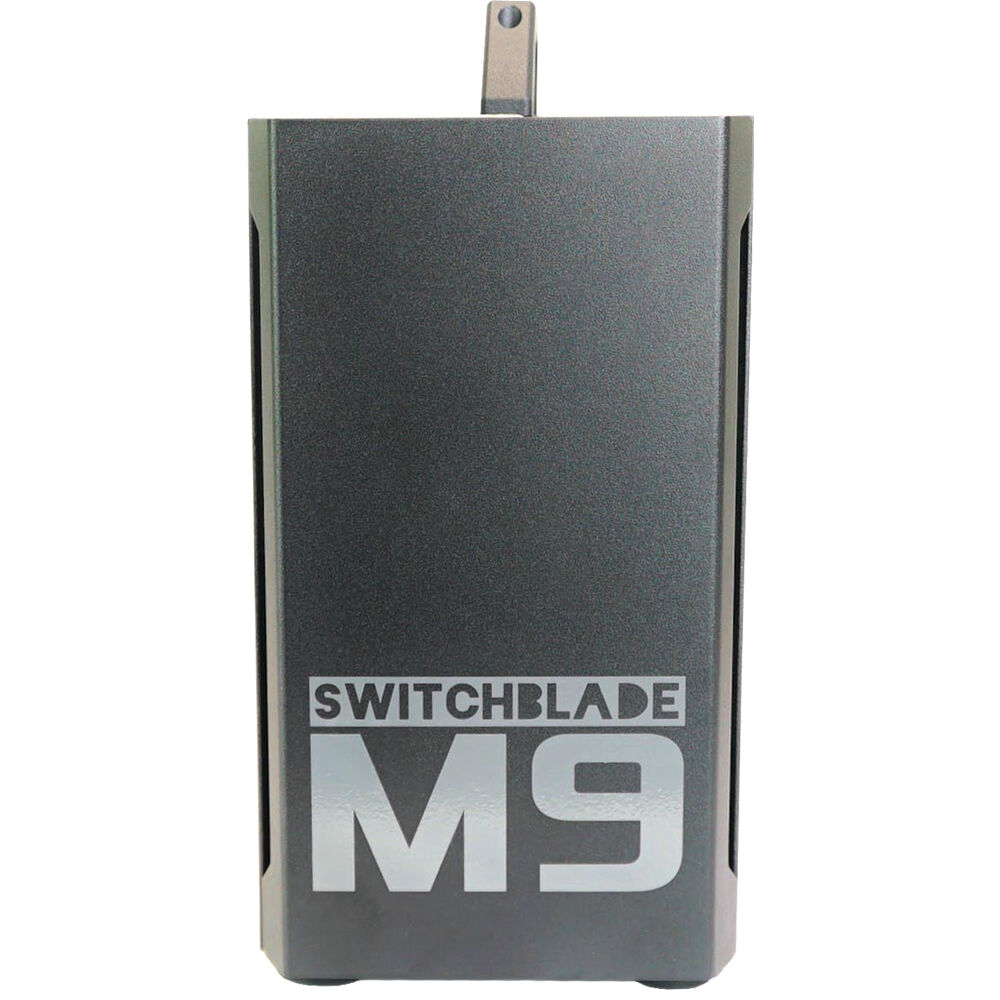

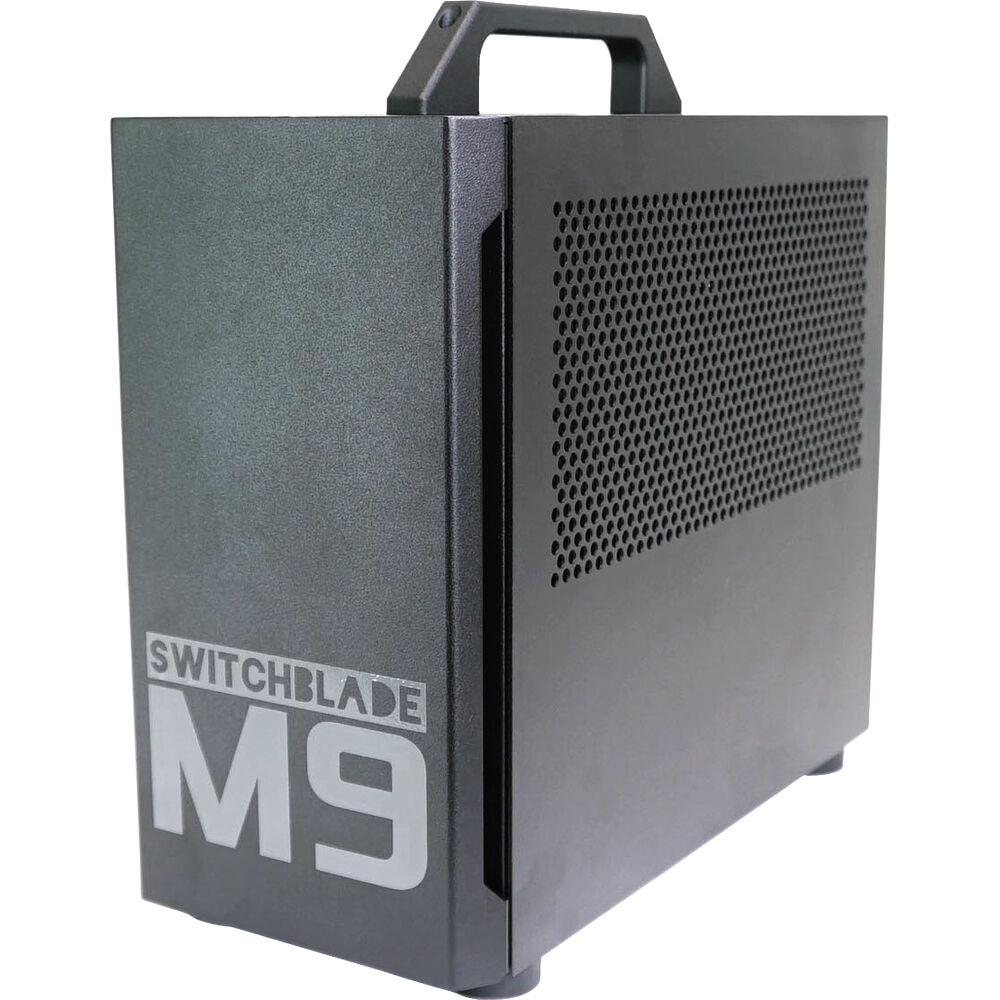

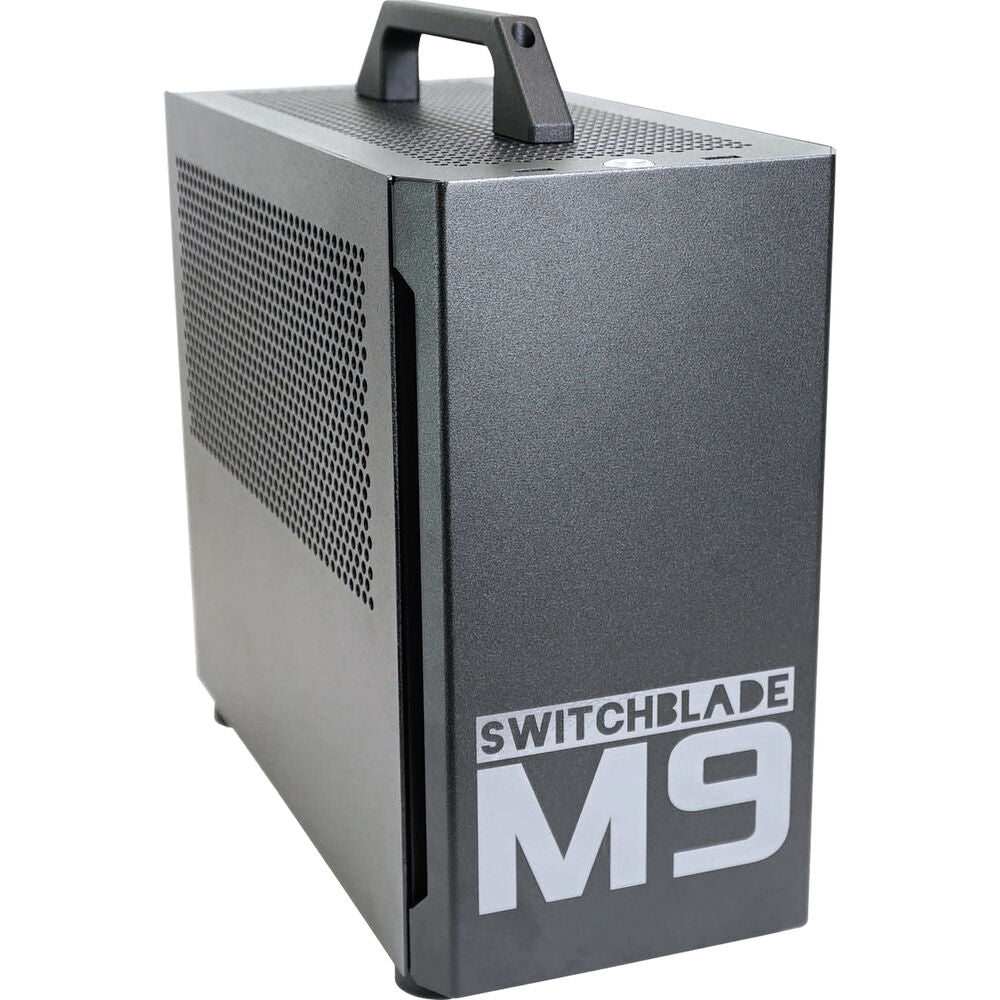

Church services, sporting events, concerts, and other multi-angle acquisition applications that employ live switching and/or streaming are handled with ease and portability using the M9 Pro vMix Desktop Live Production System from Switchblade Systems. The M9 Pro with 3G-SDI inputs includes a vMix 4K perpetual license and combines the power of an 8-Core Intel Core i7 CPU with an integrated Nvidia GeForce GPU graphics card to allow you to mix and stream your content in up to DCI 4K resolution.
The system is equipped with four 3G-SDI inputs, expandable to eight, and unlimited NDI and SRT inputs that can all be individually color corrected in real time, plus four NDI, four SRT, and two full-screen external outputs. It also comes with a 1TB NVMe solid-state drive for storage.
Built-in and customizable virtual sets with full-motion zoom and high-quality chroma keying
Standard and Advanced Titling Software
- GT Designer Standard includes 100+ built-in animated titles, scoreboards, and tickers
- GT Designer Advanced allows you to build custom animated titles, including using layered Adobe PSD files
Professional color correction on every input, including lift, gamma, gain, luminance, hue, and saturation with real-time vectorscope monitoring
Switch between multiple live inputs or prerecorded videos without manual intervention
Create playlists of video files to play in sequence�a great way to stream prerecorded content when your event is offline
Unlimited NDI and SRT Inputs
Unlimited inputs, depending on video and project settings
Up to four graphic overlays
Four callers using VMix Call
Table of Contents
- Description
- Virtual Sets
- Standard and Advanced Titling Software
- Color Correction
- Playlist
- Video List
- Unlimited NDI and SRT Inputs
- Graphic Overlays
- Remote Callers
Switchblade Systems M9-4SDI Specs
Processing
| Switching Type |
Software |
| Processing Resolution |
DCI 4K at 60 |
Input
| Video Inputs |
4 x BNC (3G-SDI) Female |
| Input Video Format |
SDI
DCI 4K at 60 fps |
| Audio Inputs |
4 x 1/4" TRS Analog Female |
| Input Audio Format |
Analog |
| Embedded Audio Input |
SDI: 2-Channel (per Input) |
Output
| Audio Outputs |
4 x 1/4" TRS Analog Female |
| Multiview Output |
Yes |

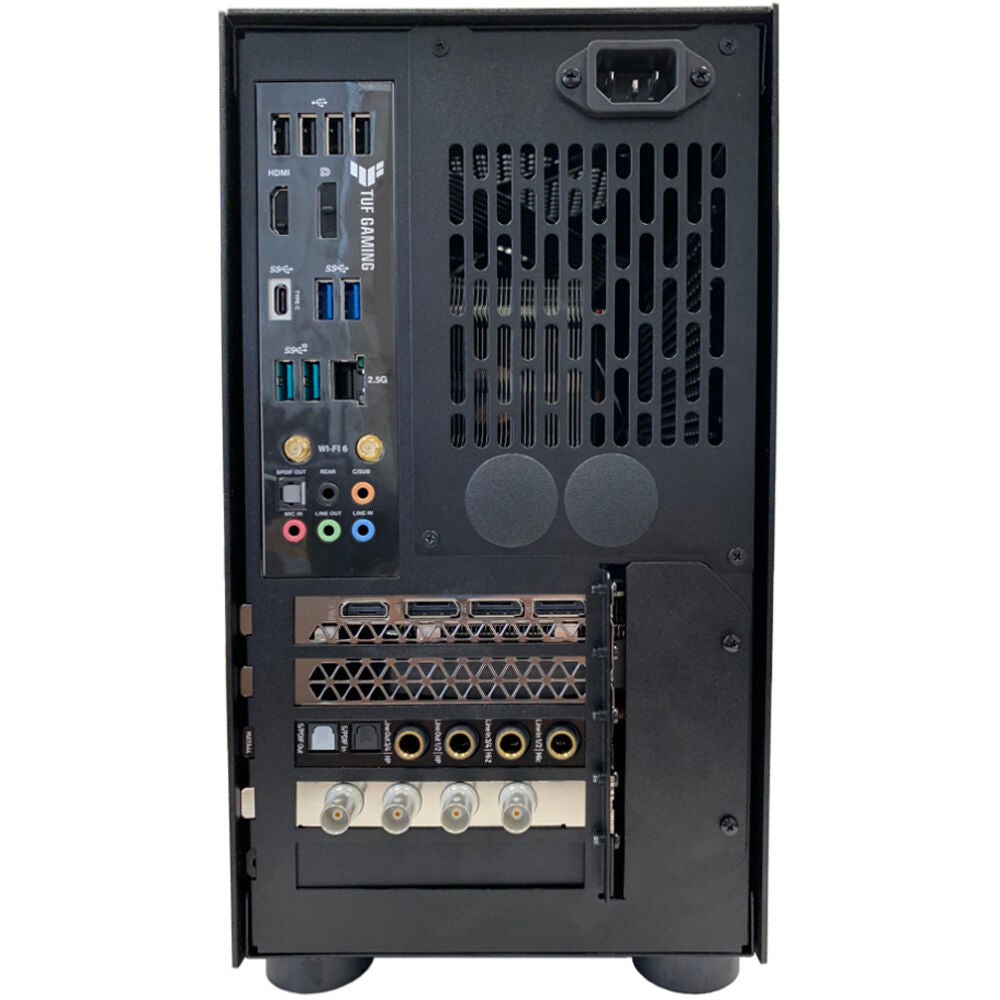

Connectivity
| Other I/O |
1 x RJ45 LAN
8 x USB-A Input/Output
1 x USB-C Input/Output |
| IP Video |
4096 x 2160 at 60p Encoding |
| IP Audio |
Encoding |
| Transport Protocols |
RTMP, RTSP, NDI/HX, Dante, SRT |
| Simultaneous Streams |
11 Streams |
| Compatible Services |
Facebook Live, Twitch, YouTube Live |
| Recording Media |
1 x 2.5" SSD |
| Internal Storage |
1 TB |
| Recording Modes |
4096 x 2160p up to 60 fps (AVI/MP4) |
Hardware
| Processor |
Intel Core i7 |
| CPU |
8-Core |
| GPU |
NVIDIA GeForce RTX 3060 with 16 GB DDR4 VRAM |
| Wi-Fi |
Wi-Fi 6 (802.11ax) |
| Bluetooth |
5.0 |
| Power I/O |
1 x IEC C14 Input |
Environmental
| Operating Temperature |
32 to 67°F / 0 to 35°C |
| Storage Temperature |
14 to 212°F / -10 to 100°C |
General
| Dimensions |
14.09 x 12.57 x 6.78" / 35.79 x 31.93 x 17.22 cm |
| Weight |
17 lb / 7.7 kg |
