Description
SWIT S-4611 Overview

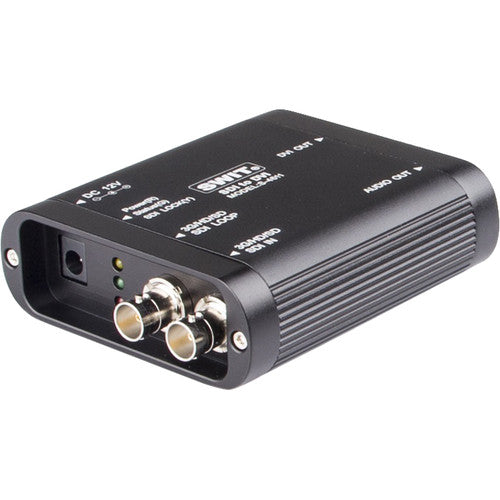

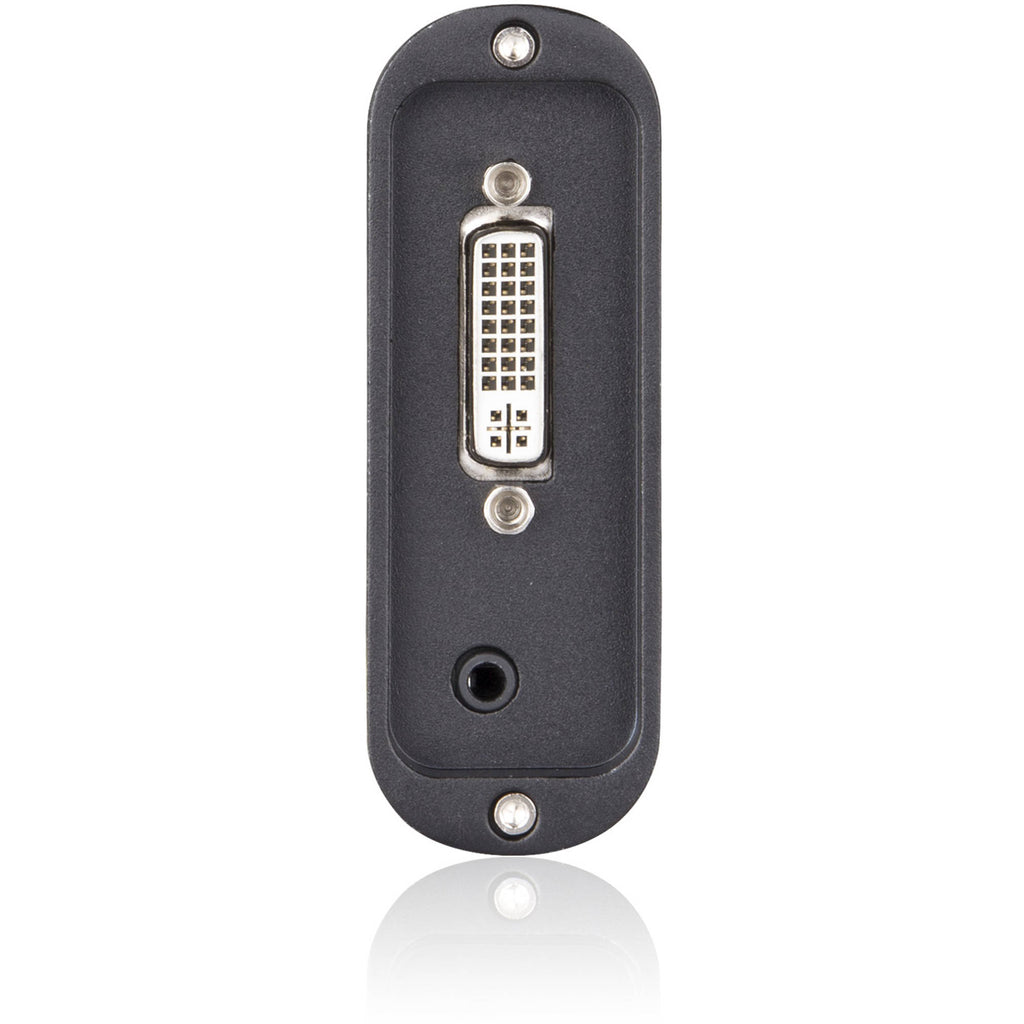

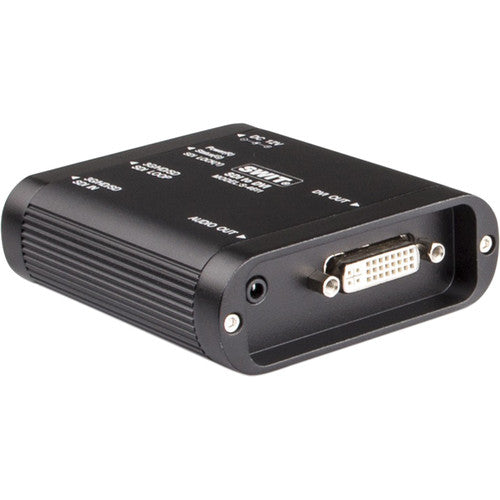

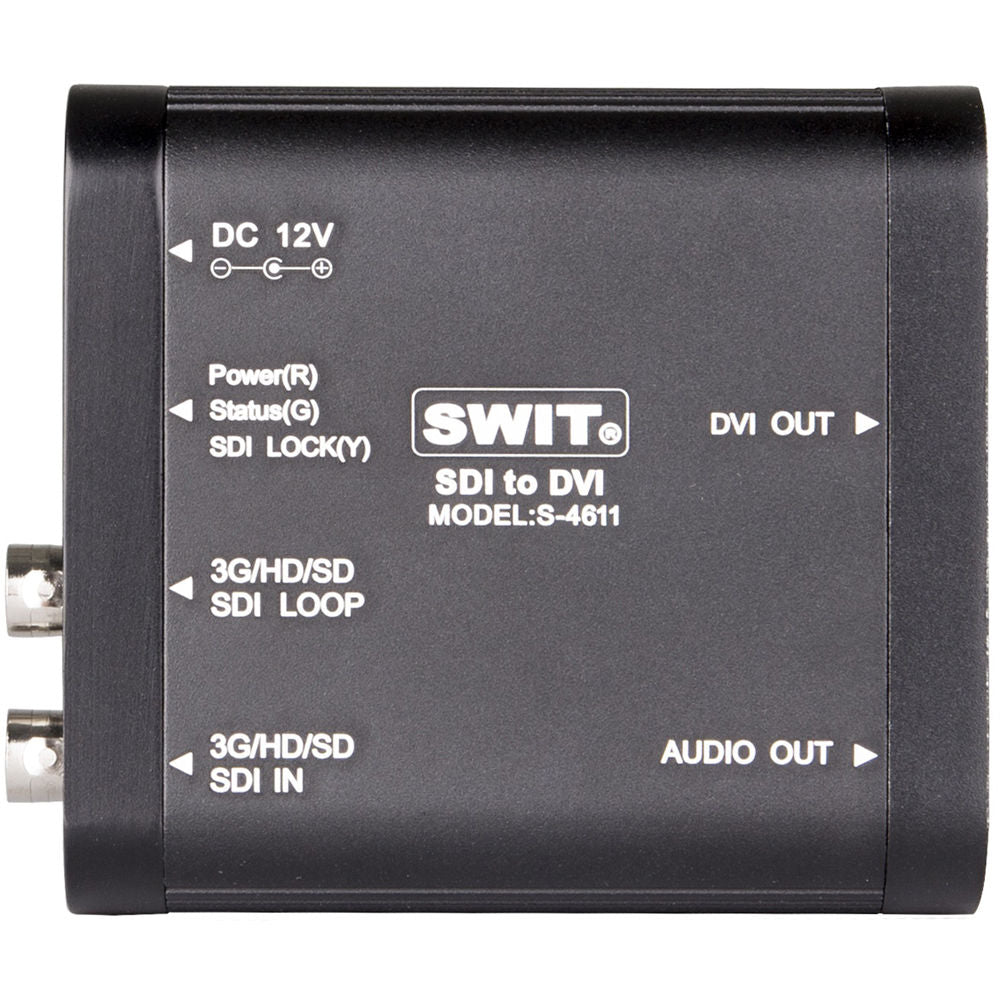

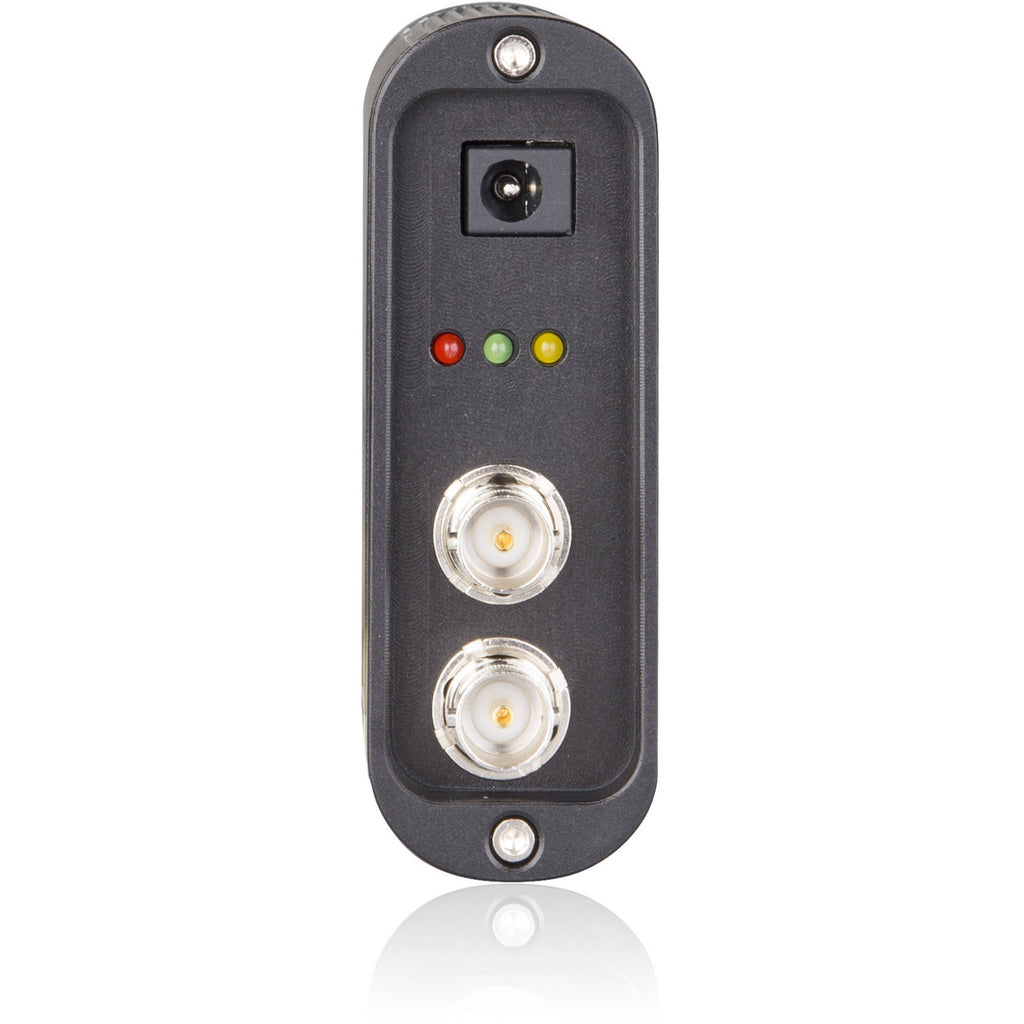

The S-4611 SDI to DVI Converter from SWIT allows you to display up to 3 Gb/s broadcast SDI video on DVI monitors, televisions, LED boards, or projectors. The mini converter supports 48 kHz audio sampling rate and converts the two audio channels embedded in the SDI signal and outputs them via the 3.5mm connector. Three LED indicators allow you to check if the power is connected, and if the input/output signal is delivered. The mini converter is powered by pole-tap DC socket.

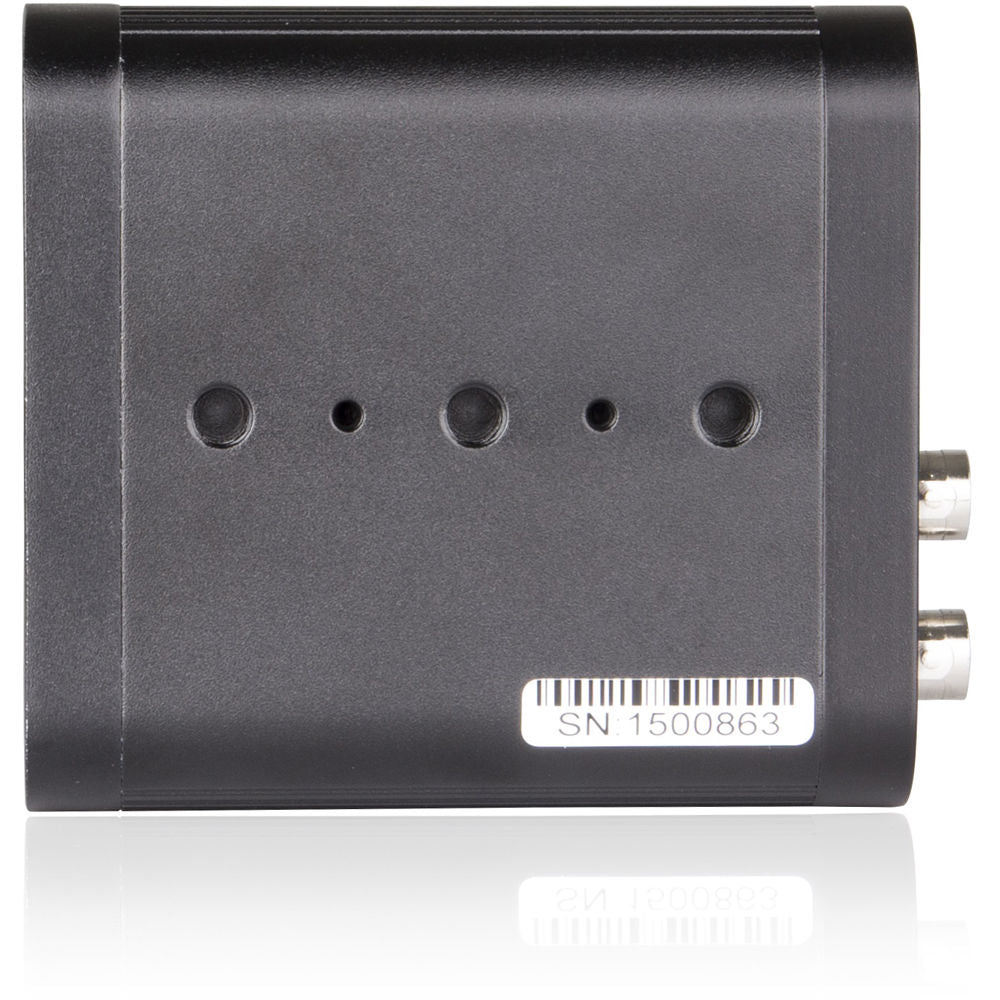

The mini converter features a unibody aluminum alloy housing for durability and protection of the BNC connectors. With 1/4" screw threads in the bottom, the converter can be mounted on cameras, and the included A-IP00 Plate allows it to be mounted on walls and bind the BNC/DVI cables for a clean installation.
In the Box
- SWIT S-4611 SDI to DVI Converter
- A-PA03 AC-DC Power Adapter
- A-IP00 Install Plate
- Limited 2-Year Warranty
SWIT S-4611 Specs
| Input | 1 x BNC 3G/HD/SD-SDI input |
| Output | 1 x BNC 3G/HD/SD-SDI loop through output 1 x DVI-I converted DVI 1 x 3.5 mm SDI audio out |
| Video Format | SDI: SMPTE-425M: 1080p (60 / 59.94 / 50) SMPTE-274M: 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080i (60 / 59.94 / 50) SMPTE-RP211: 1080psF (30 / 29.97 / 25 / 24 / 23.98) SMPTE-296M: 720p (60 / 59.94 / 50) SMPTE-125M: 480i (59.94) ITU-R BT.656: 576i (50) DVI: |
| Audio | 48 kHz sync |
| Power | ? 3 W |
| Operating Voltage | 6 to 18 VDC (AC-DC Power Adapter included) |
| Operating Temperature | 32 to 158°F (0 to 70°C) |
| Humidity | 10 to 90% |
| Dimensions | 3.8 x 3.3 x 1.1" (9.8 x 8.4 x 2.9 cm) |
| Weight | 7.4 oz (207.0 g) |
| Package Weight | 1.115 lb |
| Box Dimensions (LxWxH) | 6.5 x 4.8 x 3.1" |
