Description

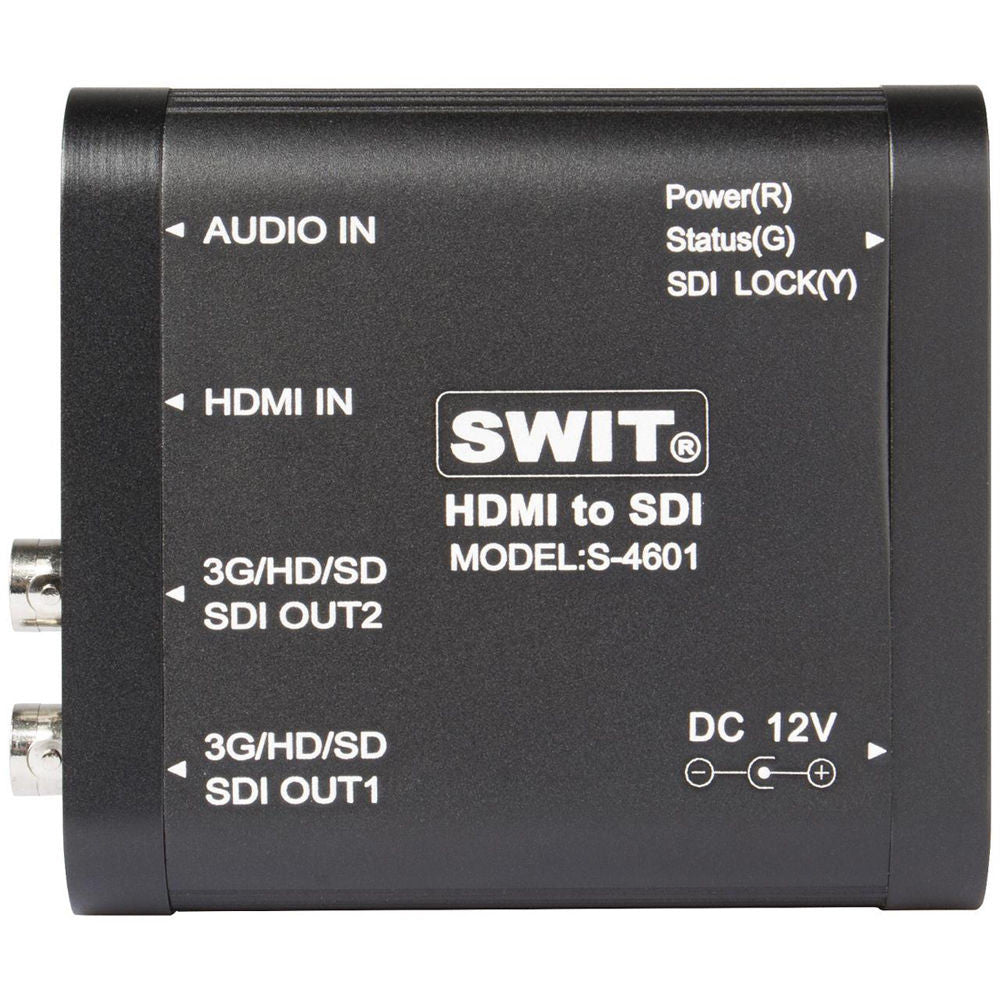

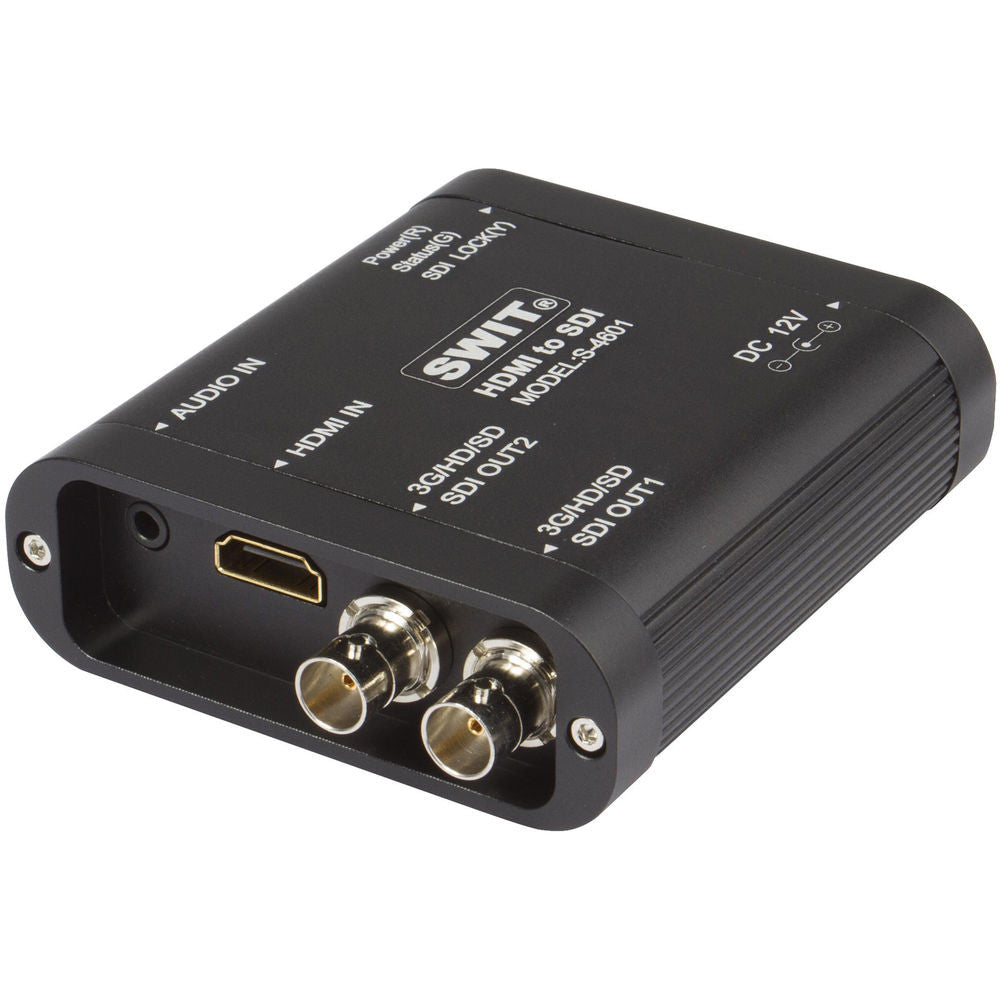

The S-4601 Converter from SWIT is an HDMI to 3G/HD/SD-SDI converter. It supports HDMI audio embedded into SDI output and analog audio (3.5mm socket) input, embedded into SDI output. Protecting the BNC connectors, the S-4601 is housed in a heavy-duty housing. It features various screw threads at the bottom for convenient installation. The unit ships with a power supply.
Note: Does not support HDCP.
- Portable HDMI to 3G/HD/SD-SDI converter
- One HDMI input and two SDI outputs
- One analog audio input via 3.5mm earphone socket
- Embed HDMI audio to SDI output
- Embed analog audio (3.5mm) to SDI output
- Power/input/output status indicator
- Heavy-duty housing

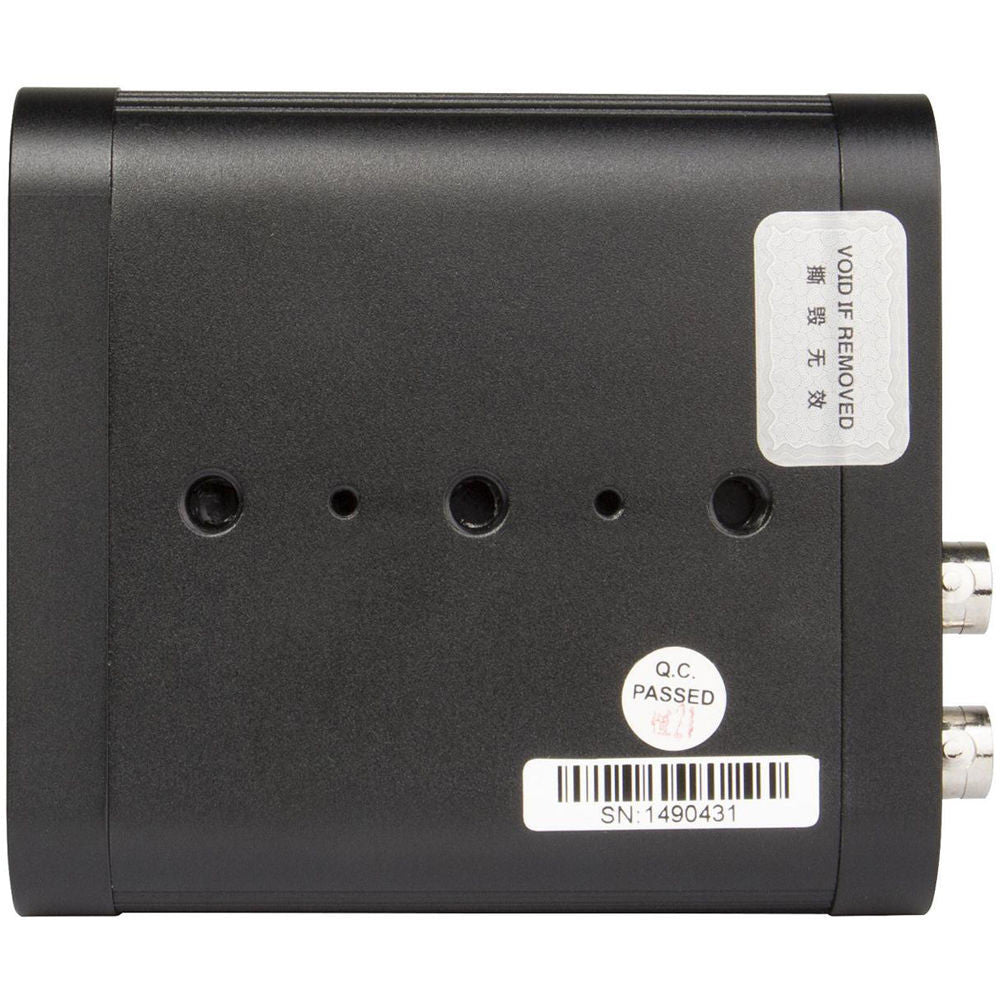

- Bottom screw threads for convinient installation

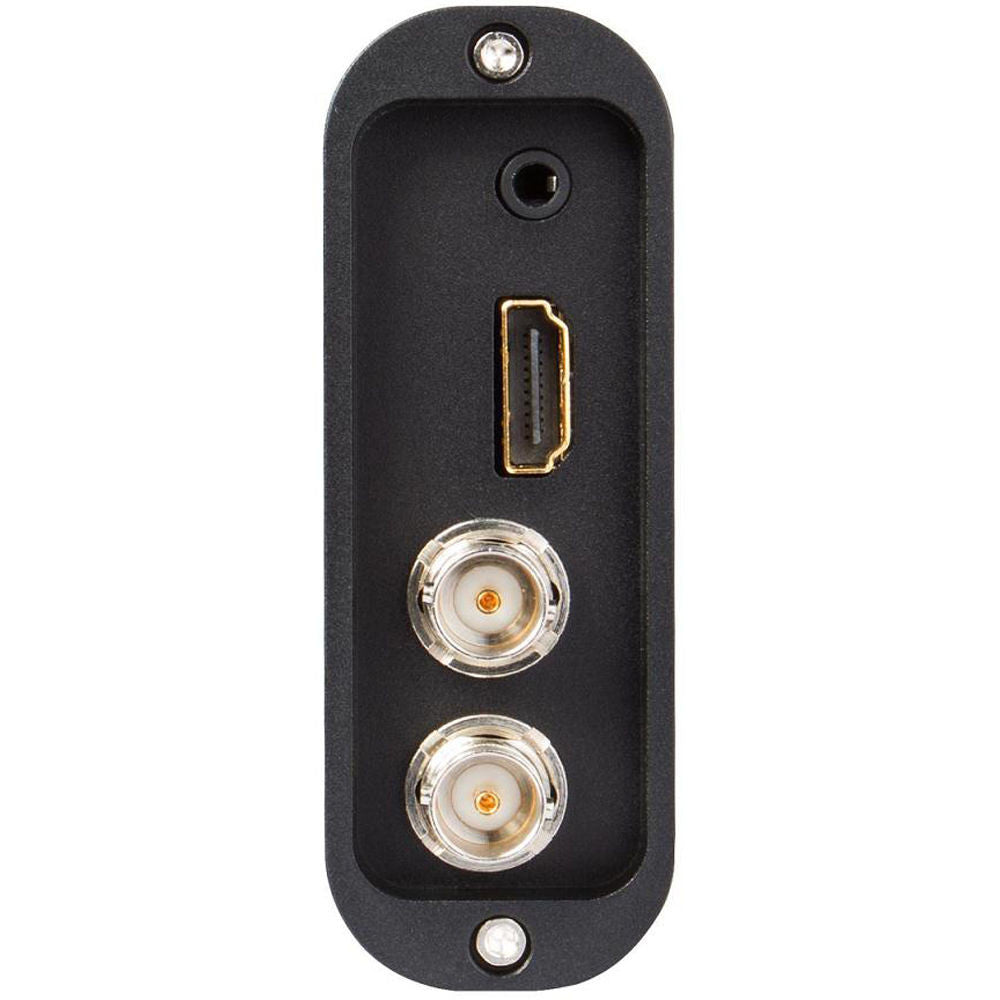

| Input / Output | |
|---|---|
| Input | 1 x HDMI (1.3) 1 x analog audio via 3.5 mm connector |
| Output | 2 x 3G/HD/SD-SDI via BNC |
| Format Support | |
|---|---|
| SDI | SMPTE-425M: 1080p (60 / 59.94 / 50) SMPTE-274M: 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) SMPTE-RP211: 1080PSF (30 / 29.97 / 25 / 24 / 23.98) SMPTE-296M: 720p (60 / 59.94 / 50) SMPTE-125M: 480i (59.94) ITU-R BT.656: 576i (50) |
| HDMI | 480i 576i 720p (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| HDCP | No |
| General | |
|---|---|
| LED Indicators | Power: Red HDMI Input Status: Green SDI Output Lock: Yellow |
| Operating Voltage | 6 to 18 VDC |
| Power Adapter (Included) | 12 VDC; 5.5 mm barrel connector; center-pin positive |
| Power Consumption | ?3 W |
| Operating Temperature | 32 to 158°F (0 to 70°C) |
| Operating Humidity | 10 to 90% |
| Dimensions | 2.9 x 2.9 x 1.1 cm (7.3 x 7.4 x 2.9 cm) |
| Weight | 4.9 oz (138.5 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 6.5 x 4.7 x 3.2" |
In the Box
SWIT S-4601 HDMI to SDI Converter
- Power Adapter (A-PA03)
- Install Plate (A-IP00)
- Limited 2-Year Warranty
