Description

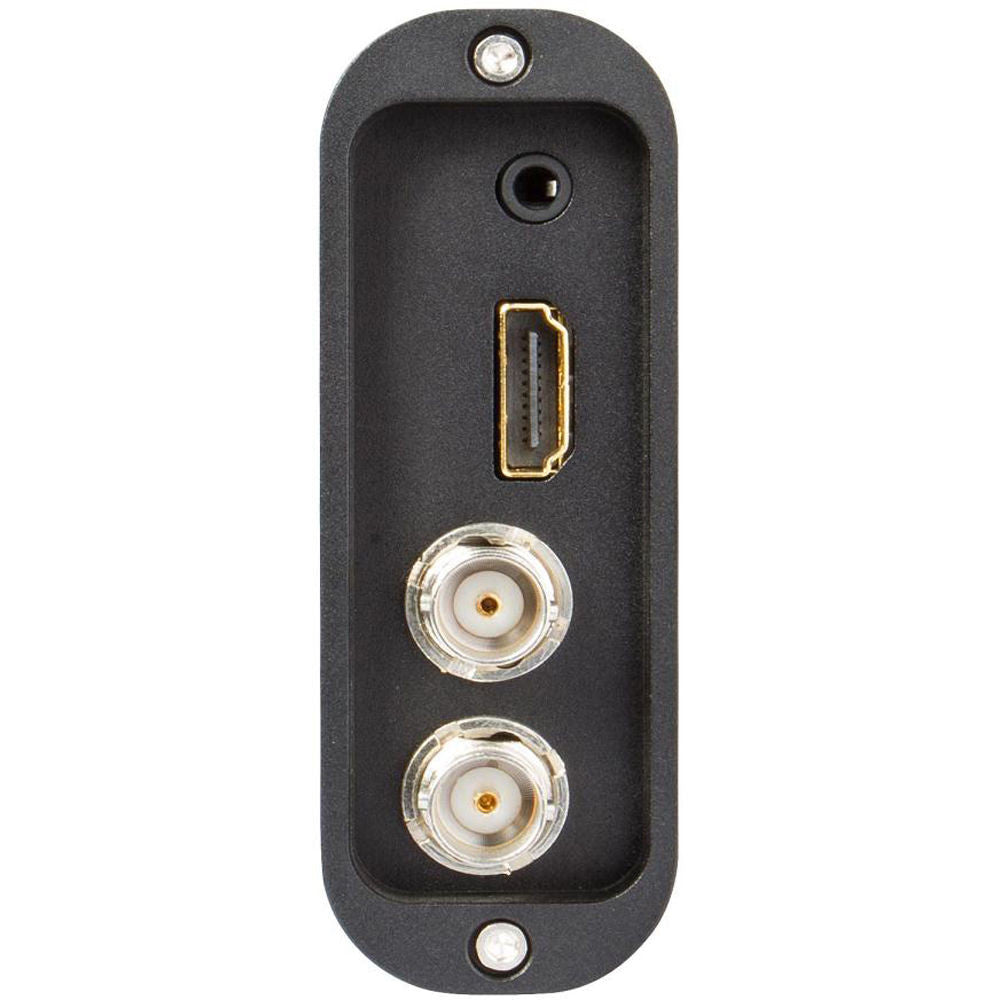

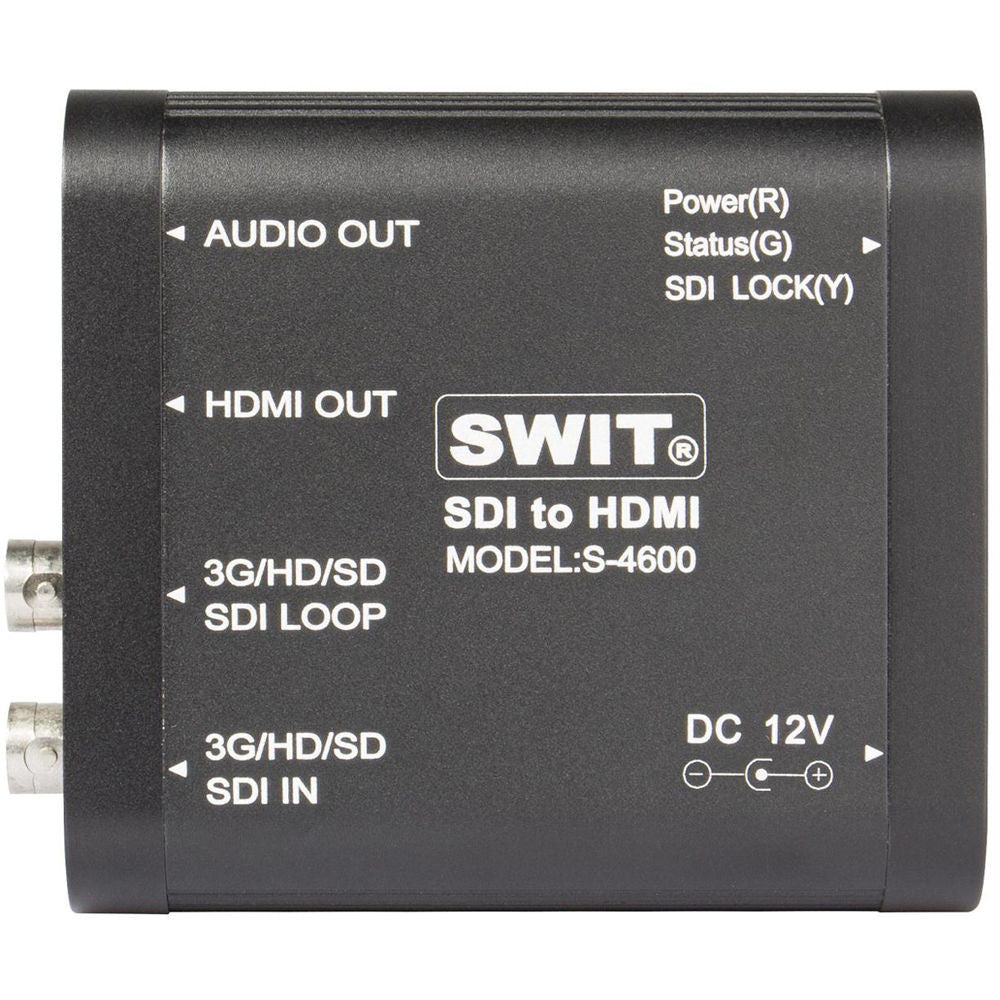

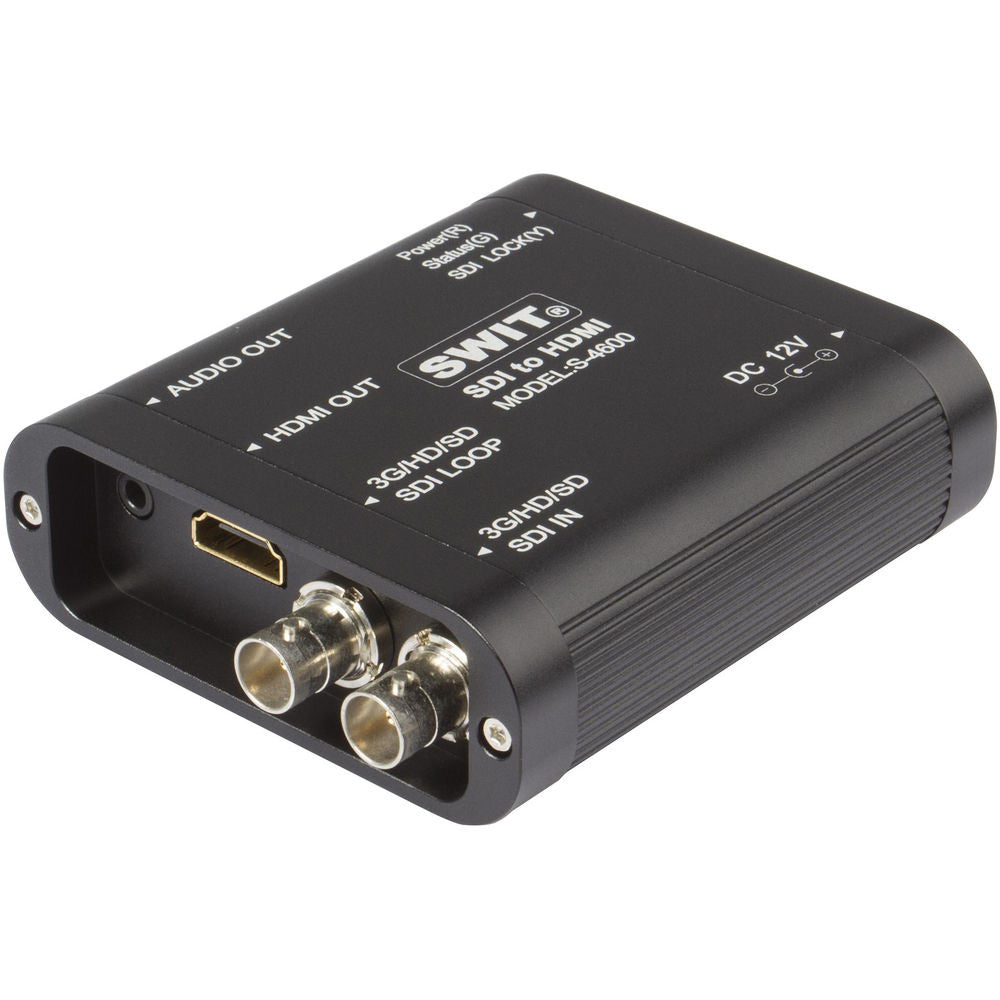

The S-4600 Converter from SWIT is a portable 3G-SDI to HDMI converter. It converts the 3G-SDI signal, with its embedded audio, to HDMI output. The S-4600 supports 3G-SDI loop through output and SDI embedded audio via a 3.5mm analog audio output. The BNC connectors are protected by the S-4600's heavy-duty housing. It features various screw threads at the bottom for convenient installation. The unit ships with a power supply.
- Portable 3G/HD/SD-SDI to HDMI converter
- Embed SDI audio to HDMI output
- One 3G-SDI input, one HDMI output, and one 3G-SDI loop through output
- One analog audio output via 3.5mm socket

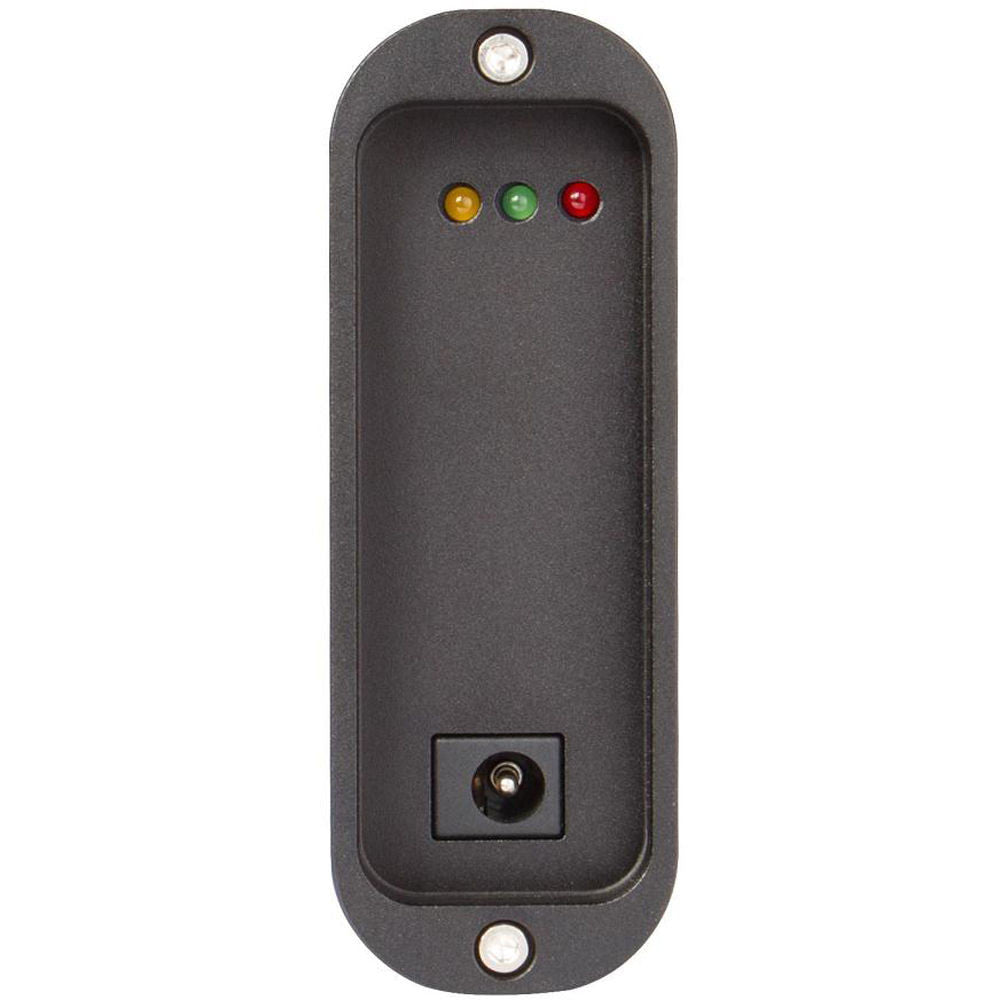

- Power/input/output status indicators
- Heavy-duty housing

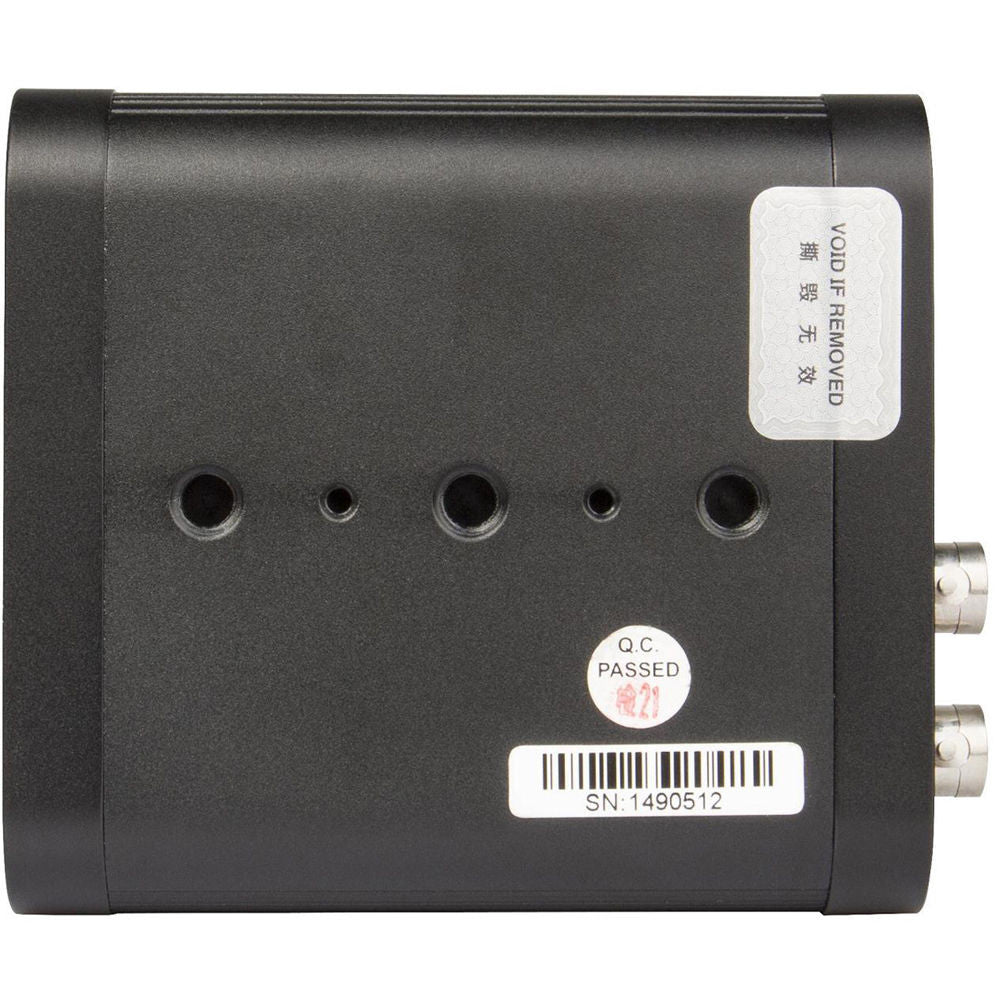

- Bottom screw threads for convenient installation
In the Box
SWIT S-4600 SDI to HDMI Converter
- Power Adapter (A-PA03)
- Install Plate (A-IP00)
- Limited 2-Year Warranty
Input / Output | |
---|---|
Input | 1 x 3G/HD/SD-SDI via BNC |
Output | 1 x 3G/HD/SD-SDI via BNC 1 x HDMI 1 x analog audio via 3.5 mm connector |
Format Support | |
---|---|
SDI | SMPTE-425M: 1080p (60 / 59.94 / 50) SMPTE-274M: 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) SMPTE-RP211: 1080PSF (30 / 29.97 / 25 / 24 / 23.98) SMPTE-296M: 720p (60 / 59.94 / 50) SMPTE-125M: 480i (59.94) ITU-R BT.656: 576i (50) |
HDMI | 480i 576i 720p (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
Audio | 48 kHz sync |
General | |
---|---|
LED Indicators | Power: Red HDMI Output Status: Green SDI Input Lock: Yellow |
Power Consumption | ?3 W |
Operating Voltage | 6 to 18 VDC |
Operating Temperature | 32 to 158�F (0 to 70�C) |
Operating Humidity | 10 to 90% |
Dimensions | 2.9 x 2.9 x 1.1" (7.3 x 7.4 x 2.9 cm) |
Weight | 4.9 oz (138.5 g) |
Packaging Info | |
---|---|
Package Weight | 1.05 lb |
Box Dimensions (LxWxH) | 6.5 x 4.8 x 3.1" |
