SWIT S-2330 Bi-Color Studio LED Focusing Spot Light (300W)

Adjustable Beam Angle: 20-70°

Variable Color Temperature: 3000-8000K

Touchscreen or DMX Control Capability

COB LED with High CRI/TLCI: 95/95

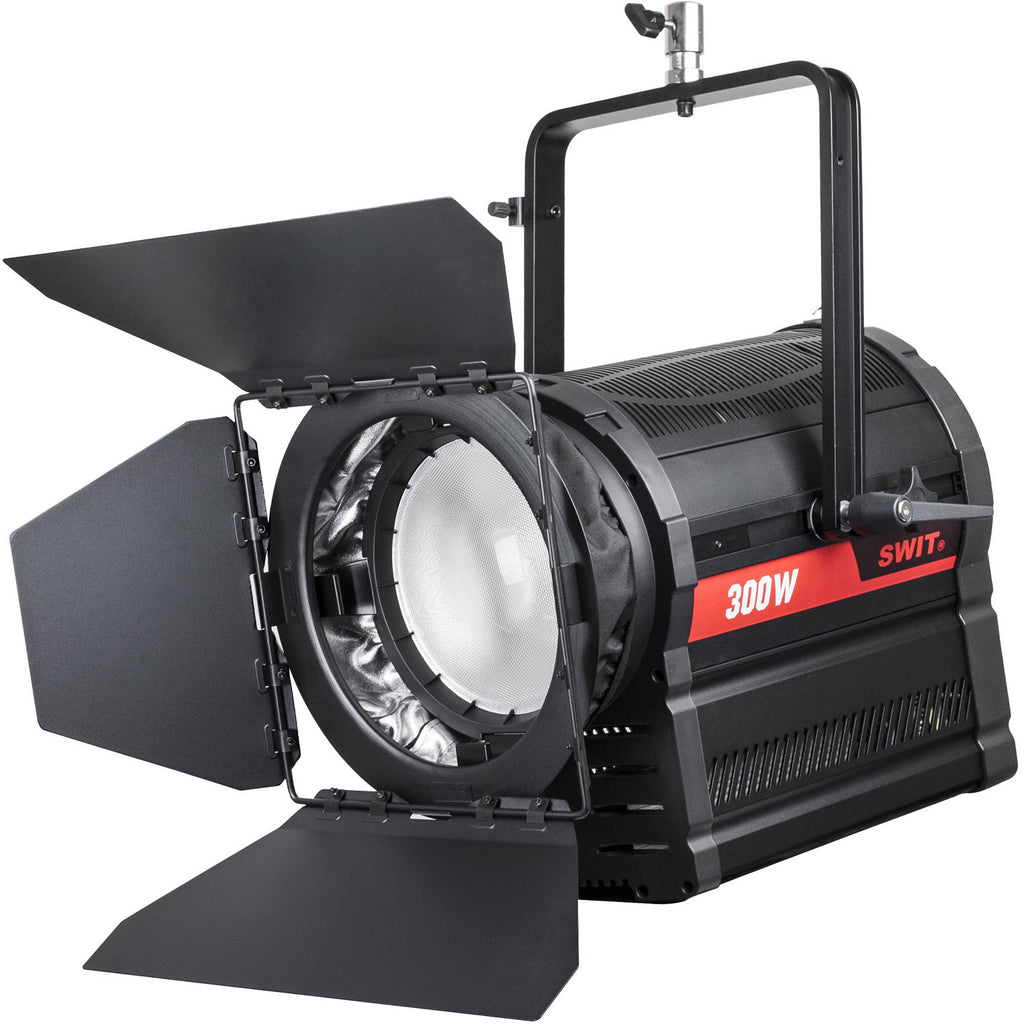

The S-2330 Bi-Color Studio LED Focusing Spot Light from SWIT  is a 300-watt focusing spotlight, built around a highly efficient bi-color COB-type LED chip. This efficient LED provides a high CRI/TLCI rating of 95 and an extended color temperature range of a warm 3000K tungsten to a cool 8000K daylight. With a focusable zoom range from spot to flood and included 4-leaf barndoors for even finer control of light spread, it is a suitable choice for studio and light grid applications. The color temperature and brightness are both flicker-free through their full ranges, and both can be controlled locally or through DMX networking.

Touchscreen Local Control The LCD touchscreen can display the current dimmer percentage and color temperature value, and it allows for a precise, repeatable setup. DMX Compatibility The standard 5-pin XLR DMX-In and DMX-Out connectors allow the brightness and color temperature to be remotely controlled, and also networked with separately available DMX connectors or wireless DMX remotes. Sleep Mode The power-saving Sleep mode can be activated by pressing the dimmer knob to put the lamp to sleep. Pressing the knob again wakes it back up to its previous brightness setting. Dual Fan Modes with Overheat Protection The whisper-quiet fan should be quiet enough for most environments when audio recording is required. Additionally, the fans may be temporarily turned off for fully silent operation when the light output is 50% or below. The integrated LED overheat and protection feature protects the lamp form any possible damage.

Beam Angle	20 to 70°
Color Temperature	3000 to 8000K
Color Accuracy Standard	CRI 95 TLCI 95
Cooling System	Fan/Passive Combo
Dimming	Yes, 0 to 100% (Continuous)
Display	LCD
Housing Material	Metal
Photometrics	20°: 551.8 fc / 5940 lux at 9.84' / 3 m 198.7 fc / 2139 lux at 16.4' / 5 m 101.3 fc / 1090 lux at 22.97' / 7 m 70°: 84.8 fc / 913 lux at 9.84' / 3 m 33.8 fc / 364 lux at 16.4' / 5 m 17.9 fc / 193 lux at 22.97' / 7 m
Number of LEDs	1
Expected Lamp Life	50000 Hours
Fixture Dimensions	19.3 x 19.7 x 15.7" / 49.0 x 50.0 x 40.0 cm
Fixture Weight	24.47 lb / 11.1 kg

Power Input Connector	IEC
DMX Connector	5-Pin XLR

Fixture Mount

5/8" Receiver

Yoke Type

Yoke/Bracket

Remote Control Type

DMX

AC Input Power	100 to 240 VAC, 50 / 60 Hz
Max Power Consumption	300 W
Power Pass-Thru	No

Cable Length

13.12' / 4 m
