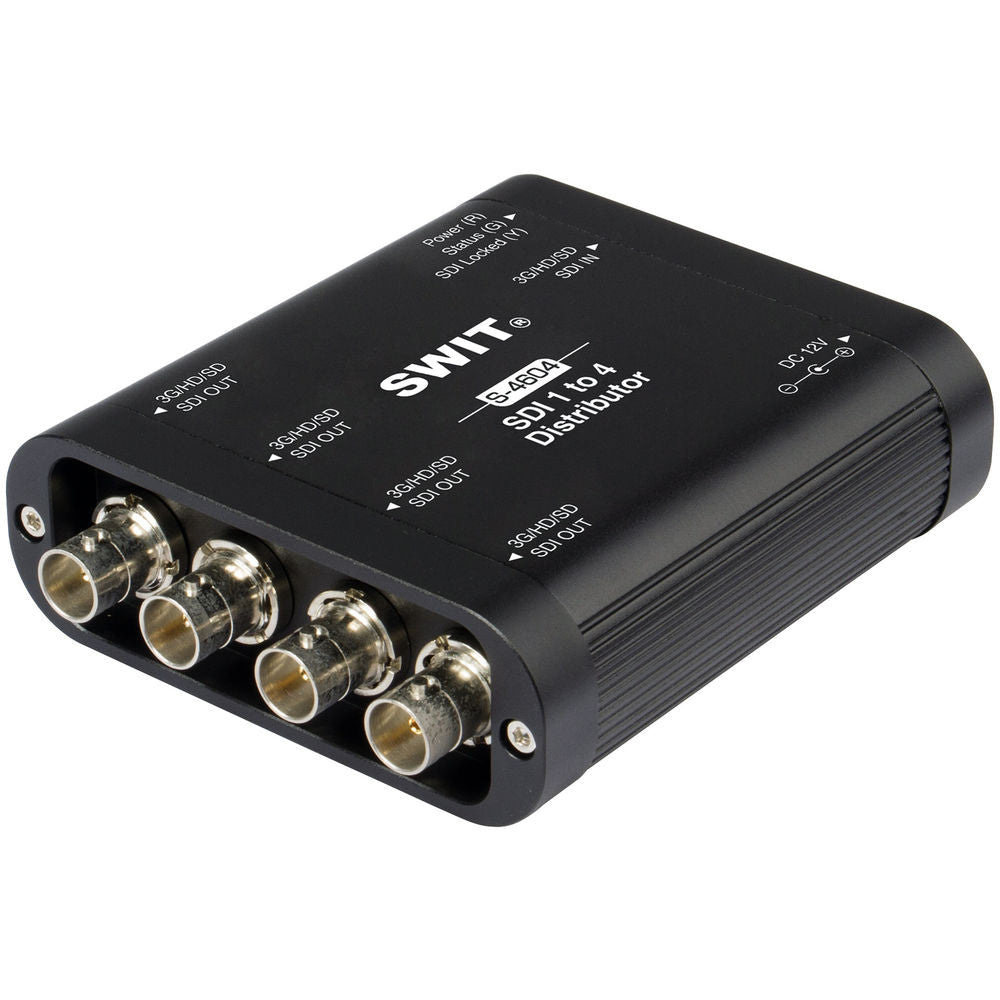

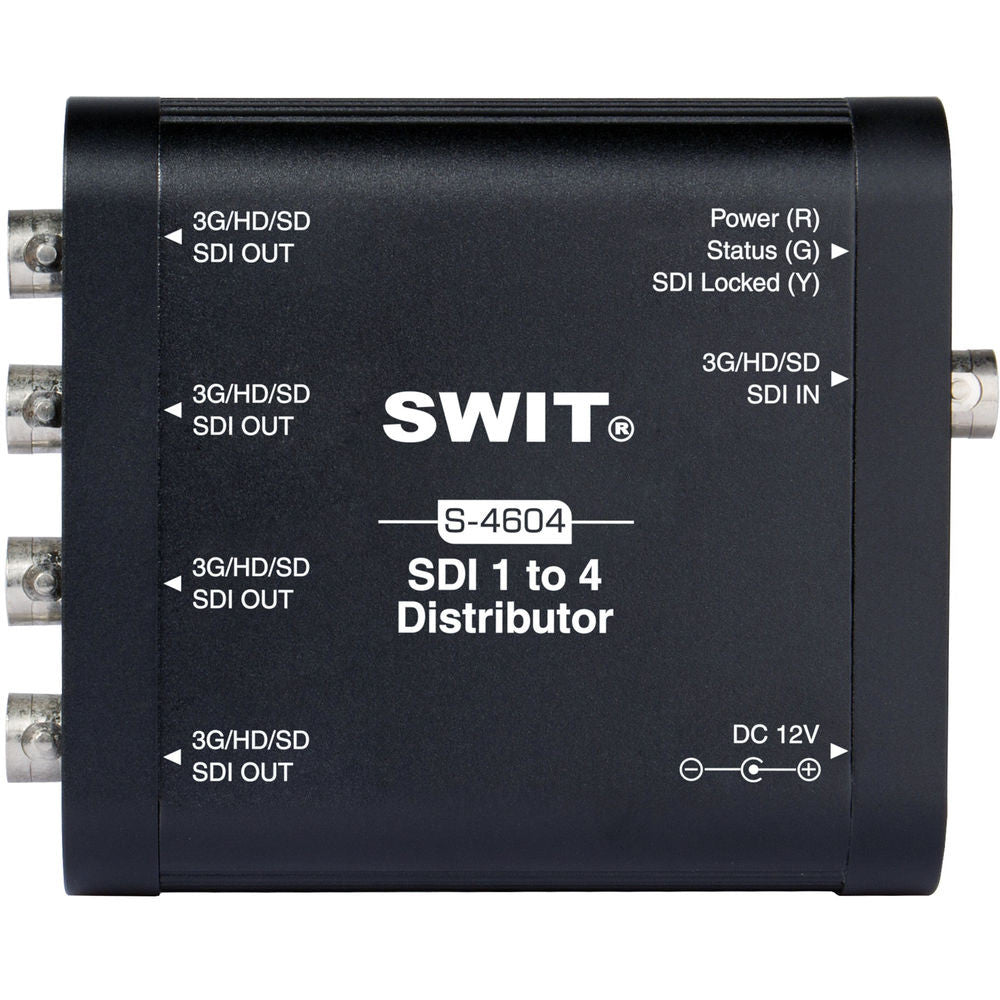

Provided by third party: S-4604 is a portable mini converter for distributing 1 SDI input to 4 SDI outputs, with embedded information, widely used on broadcast projects.
- Key Features
-
- Portable 3G/HD/SD-SDI 1 to 4 distributor

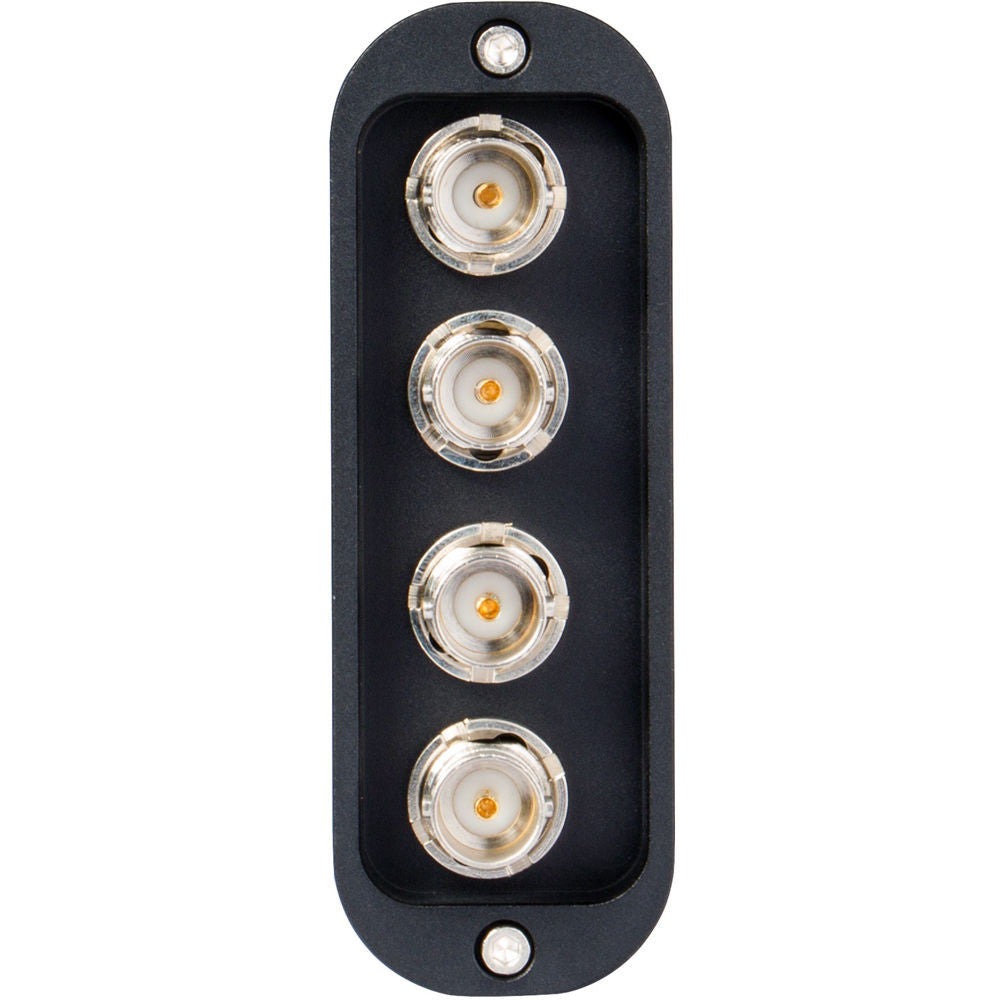

- 1 SDI input, 4 SDI outputs
- SDI re-clocking and amplifier

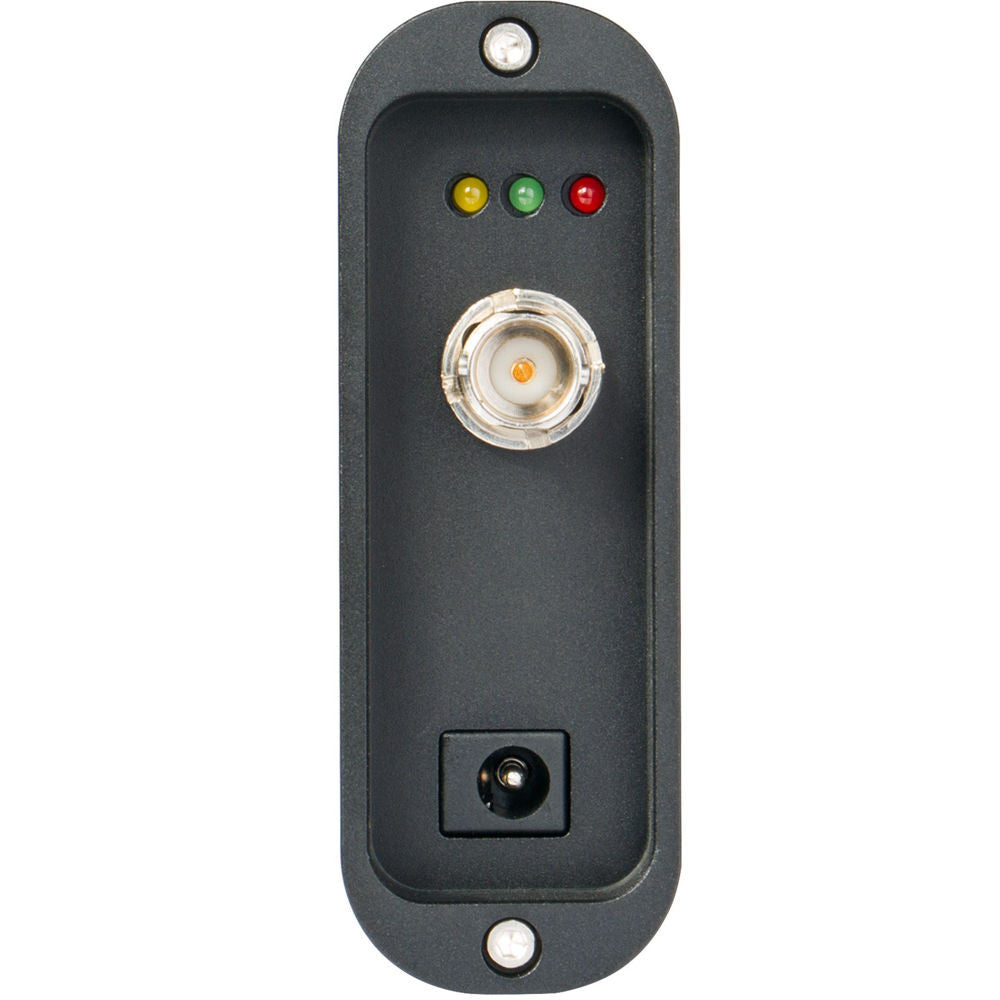

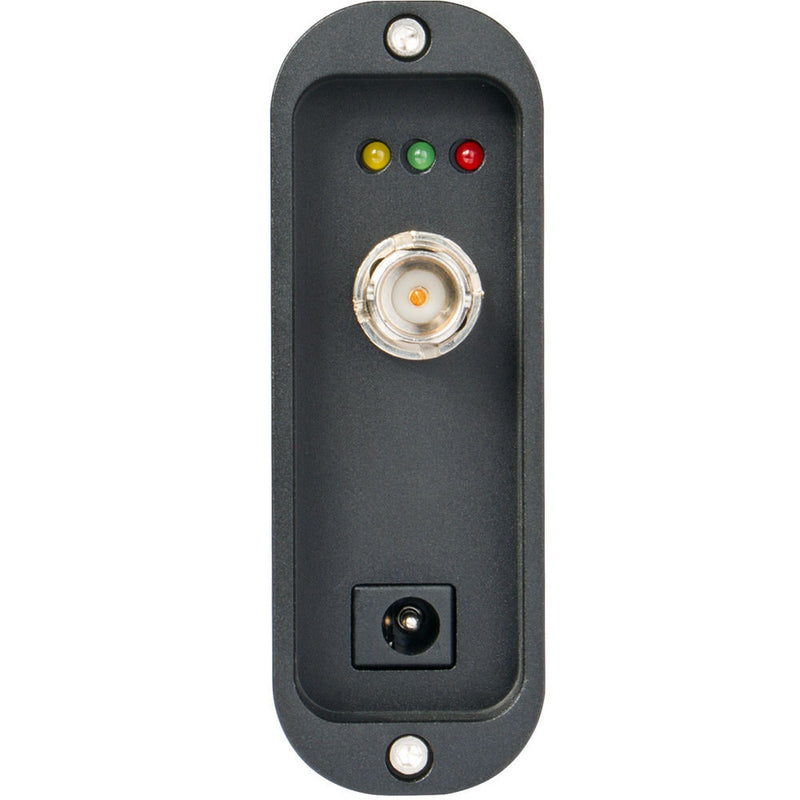

- Power/input/output status indicators
- Heavy duty aluminum housing

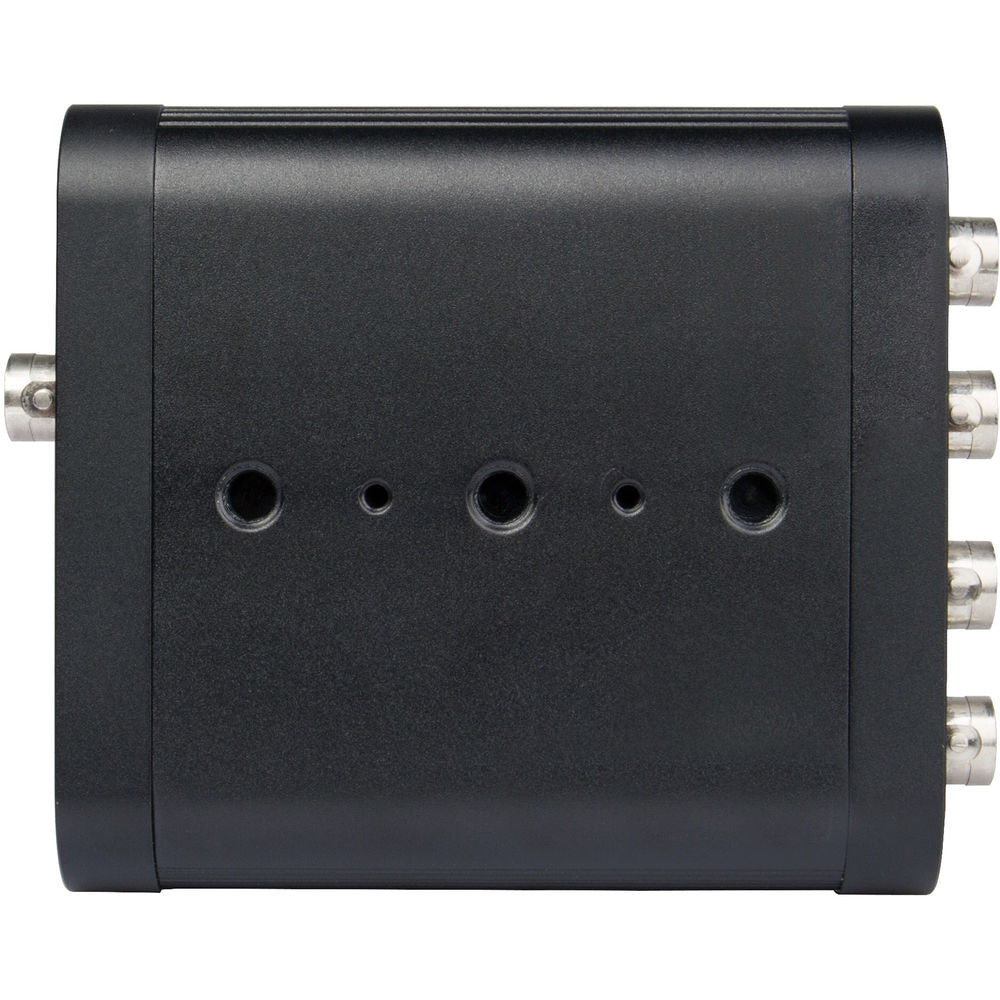

- Bottom screw threads for installing
| General |
| Type | Distribution amplifier |
| Power |
| Low Voltage Power | DC 6 - 18 V |
| Terminals |
| Terminals | (1) x 3G HD-SDI input - BNC
(4) x 3G HD-SDI output - BNC
(1) x DC power input |
| Environmental Parameters |
| Min Operating Temperature | 32 �F |
| Max Operating Temperature | 158 �F |
| Humidity Range Operating | 10 - 90% |
| Packaging Info |
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 6.5 x 4.8 x 3.0" |
