Description

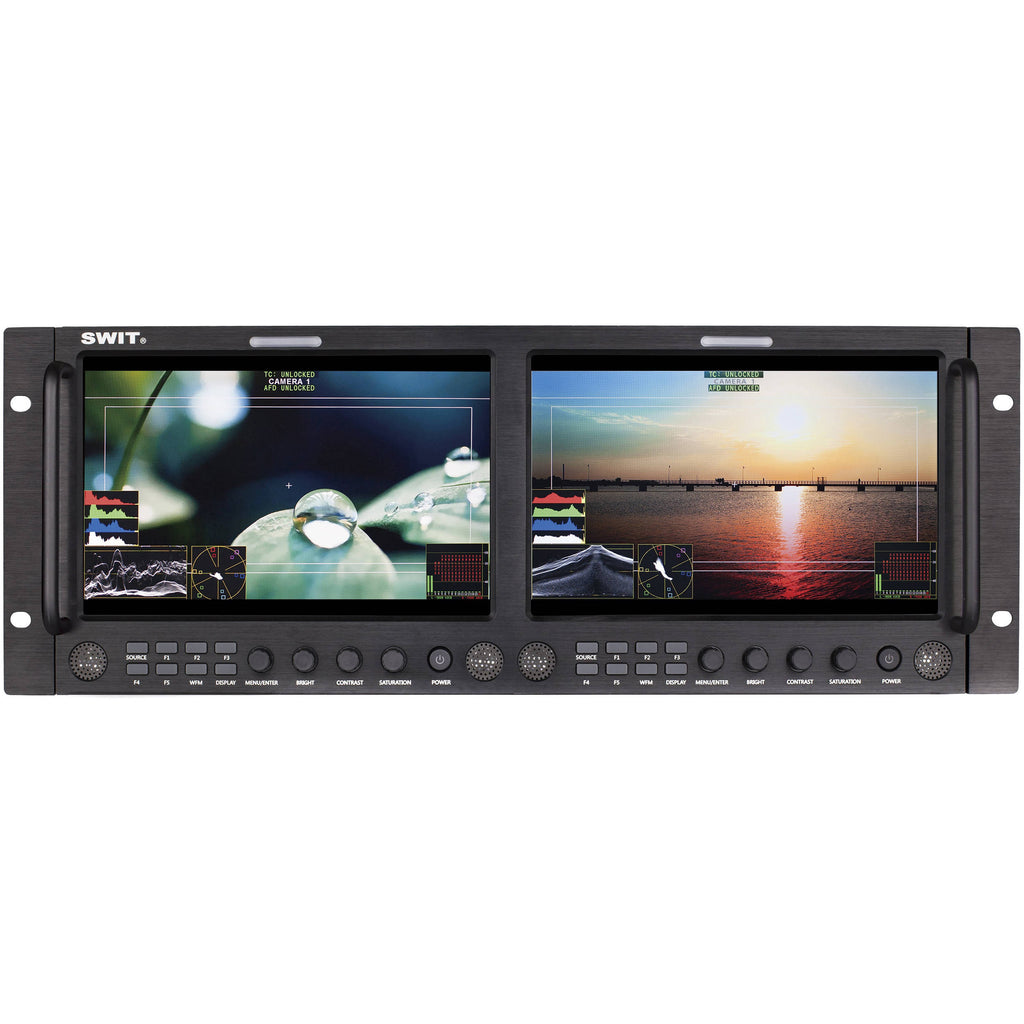

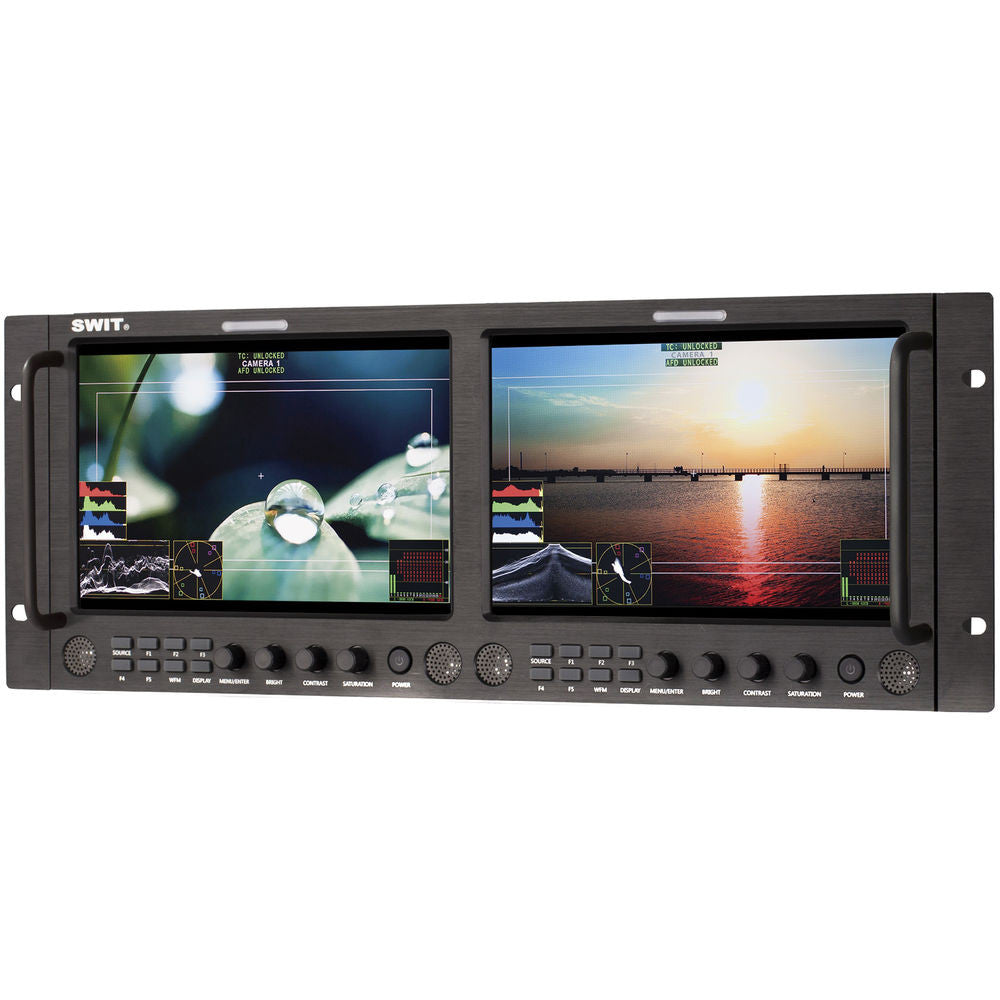

The M-1093F Dual 9" FHD Waveform Rack LCD Monitor from SWIT features two 9" IPS (In-Plane Switching) LCD panels, with Full HD 1920 x 1200 resolution, LED backlight, 800:1 contrast, and the viewing angle is 170°/170°. The monitor supports built-in HDMI to SDI conversion and also features an SDI loop output port. It supports 6.5 to 24 VDC input.
- Dual 9" IPS LCD panel
- 1920 x 1200 resolution, 800:1 contrast
- 19" 4U rack mounting, ±30° rotatable
- 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
- 16-channel embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vectorscope, histogram R/G/B/Y
- AFD, H/V delay, R/G/B/Mono, false color
- TSL UMD and text Tally display
- Zebra stripes and peaking focus assist
- SDI timecode display
- Marker 4:3, 13:9, 15:9, 1.85:1, 2.35:1
- Tally light and GPI control
- USB firmware upgrade
SWIT M-1093F specs
| Size | 2 x 9" / 22.9 cm |
| Display Area | 191.52 x 119.70 mm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:9 (4:3 adjustable) |
| Brightness | 450 cd/m 2 |
| Contrast | 800:1 |
| Color | 16.77 million colors |
| Viewing Angle | Horizontal: 170° Vertical: 170° |

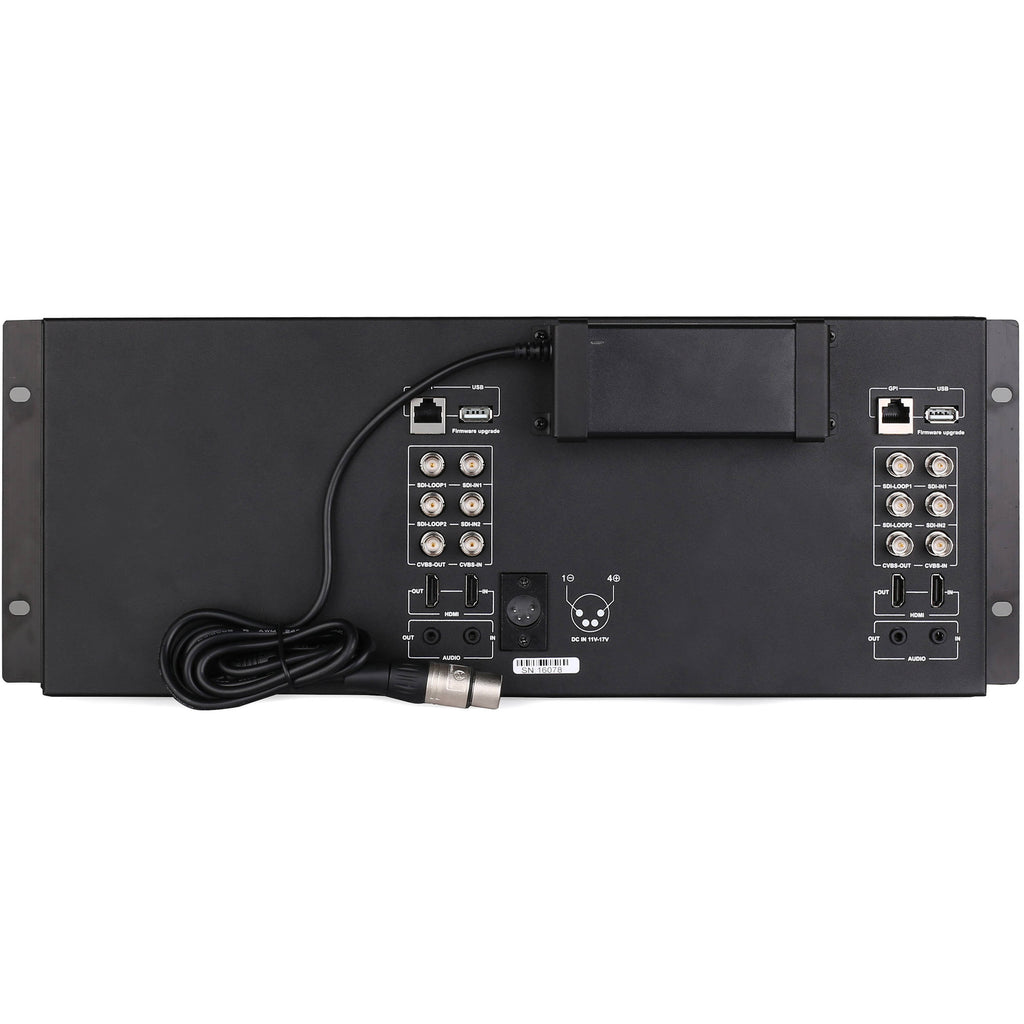

| Input | 2 x BNC: 2K/3G/HD/SD-SDI input BNC: Composite input HDMI: HDMI input 1 x 3.5 mm: Analog audio input |
| Output | 2 x BNC: 2K/3G/HD/SD-SDI loop output 1 x BNC: Composite loop output 1 x HDMI: HDMI loop output 1 x 3.5 mm: SDI, HDMI, Analog audio output |
| Video Format | CVBS: Converted NTSC/PAL SDI: SMPTE 2048-2: 2048 x 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60, 2048 x 1080i: 50 / 59.94 / 60 SMPTE-425M: 1080p: 60 / 59.94 / 50 SMPTE-274M: 1080i: 60 / 59.94 / 50, 1080p: 30 / 29.97 / 25 / 24 / 23.98 SMPTE-RP211: 1080psf: 30 / 29.97 / 25 / 24 / 23.98 SMPTE-296M: 720p: 60 / 59.94 / 50 SMPTE-125M: 480i59.94 ITU-R BT.656: 576i50 HDMI: 1080p: 60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 1080psf: (30 / 29.97 / 25 / 24 / 23.98 1080i: 60 / 59.94 / 50 720p: 60 / 59.94 / 50 480i / 576i / 480p / 576p |
| Power Consumption | ?36 W |
| Working Voltage | DC/Battery 6.5 to 24 V |
| Working Environment | Temperature: 32 to 104°F(0 to 40°C) Humidity: 10 to 90% |
| Dimensions | 19.1 x 6.9 x 4.4" / 484 x 177 x 113 mm |
| Weight | 4.4 lb / 2.8 kg |
| Packaging Info | |
|---|---|
| Package Weight | 8.05 lb |
| Box Dimensions (LxWxH) | 22.2 x 9.4 x 5.7" |
In the Box
SWIT M-1093F Dual 9" FHD Waveform Rack LCD Monitor
- LCD Protective Film
- Power Cable
- Limited 2-Year Warranty
