Description

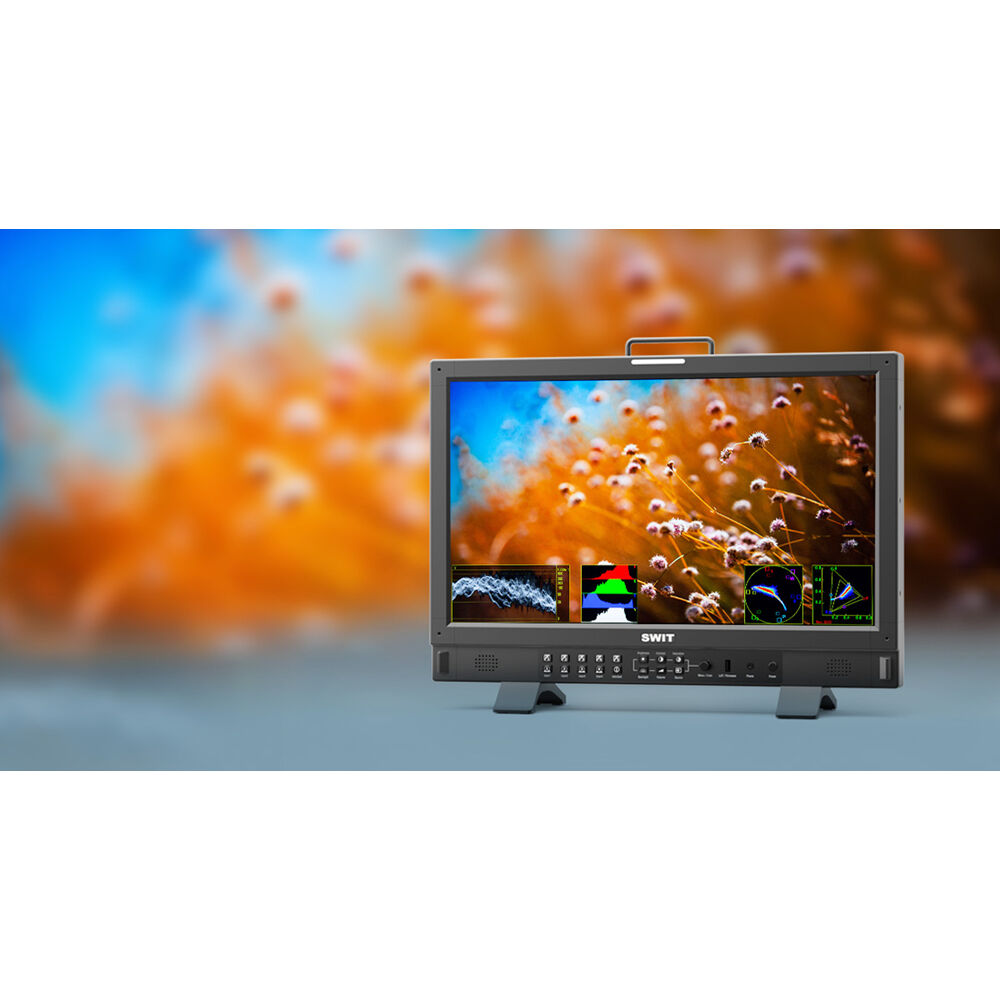

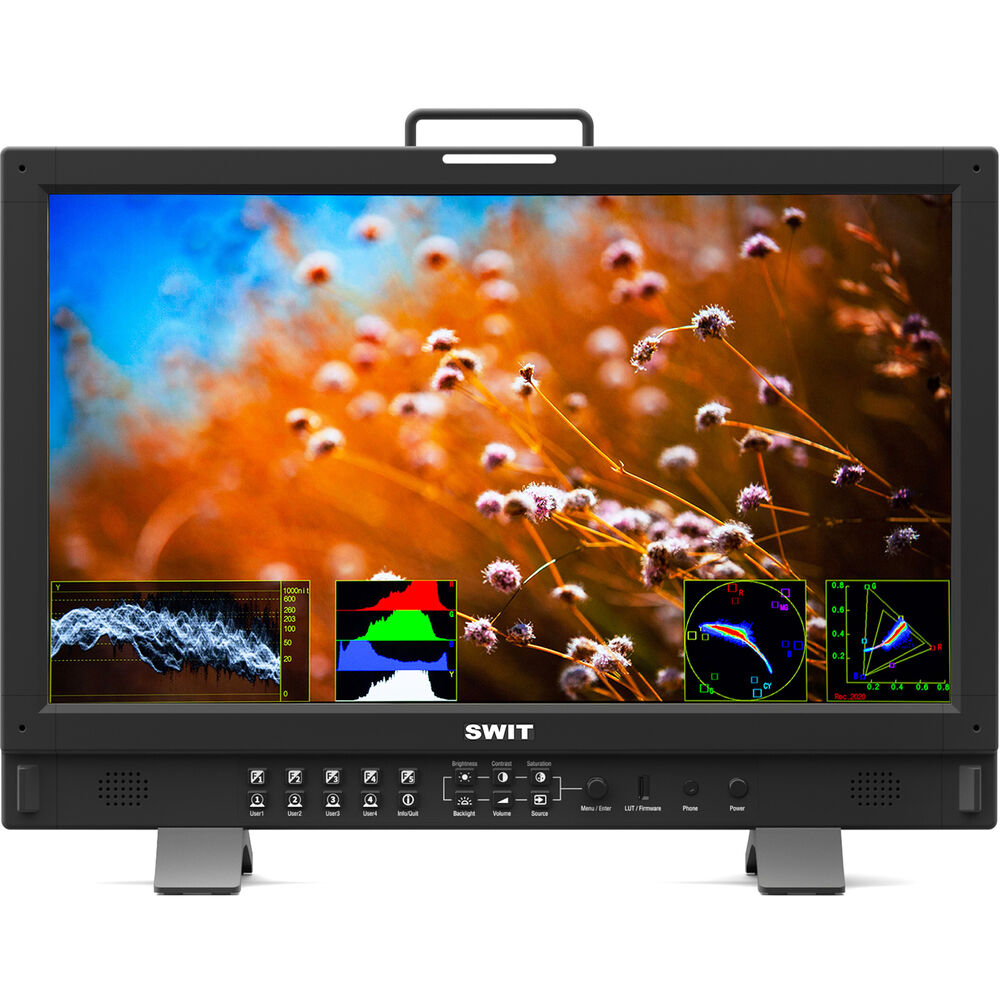

SWIT BM-H215HDR Overview
Monitor broadcast-ready 4K video with the
21.5" 4K Input-Ready Monitor from
SWIT. The QLED panel features a 1920 x 1080 resolution and supports 100% DCI-P3 color gamut, 1000 cd/m? brightness, HDR support, 1000:1 contrast, and a 178? viewing angle. It features up to 4K60 SDI and HDMI input support, SDI loop-through output, and Ethernet and serial control.
Multi-Window HDR Viewing
The monitor can input a single HDR video signal and split it into four copies with different SDR/HDR color gamuts simultaneously so you can correct for different applications.
Automatic Self-Calibration
The monitor can be calibrated without a computer using the built-in 3D LUT calibration software. You can utilize calibration tools such as X-rite i1 and Jeti Specbos using the monitor's USB port to import the monitor calibration data, and the monitor does the rest.

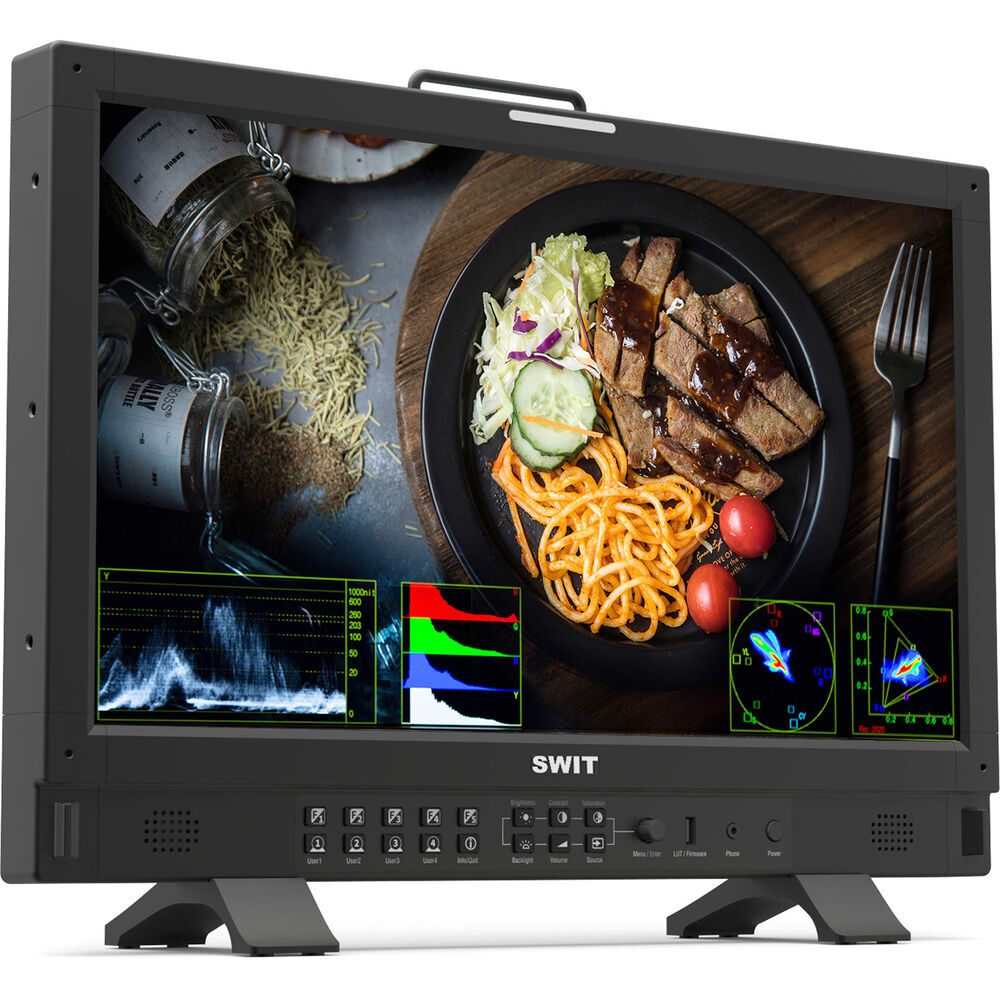

Image/Audio Analysis Tools
The monitor features numerous built-in image analysis tools, including waveform, vectorscopes, histogram, eye pattern, focus assist, false color, zebra, 16-channel audio meters, Lissajous pattern, 5.1 and 7.1 surround sound phase pattern, and more.
Remote Control
The monitor can be controlled remotely via a web browser using its built-in web server. It features a control panel that allows you to set input sources and image settings, assign function keys, and more.
You can also configure the monitor via RS-485 in/out, and there is also a GPI input for text and tally.
Multiple Interfaces

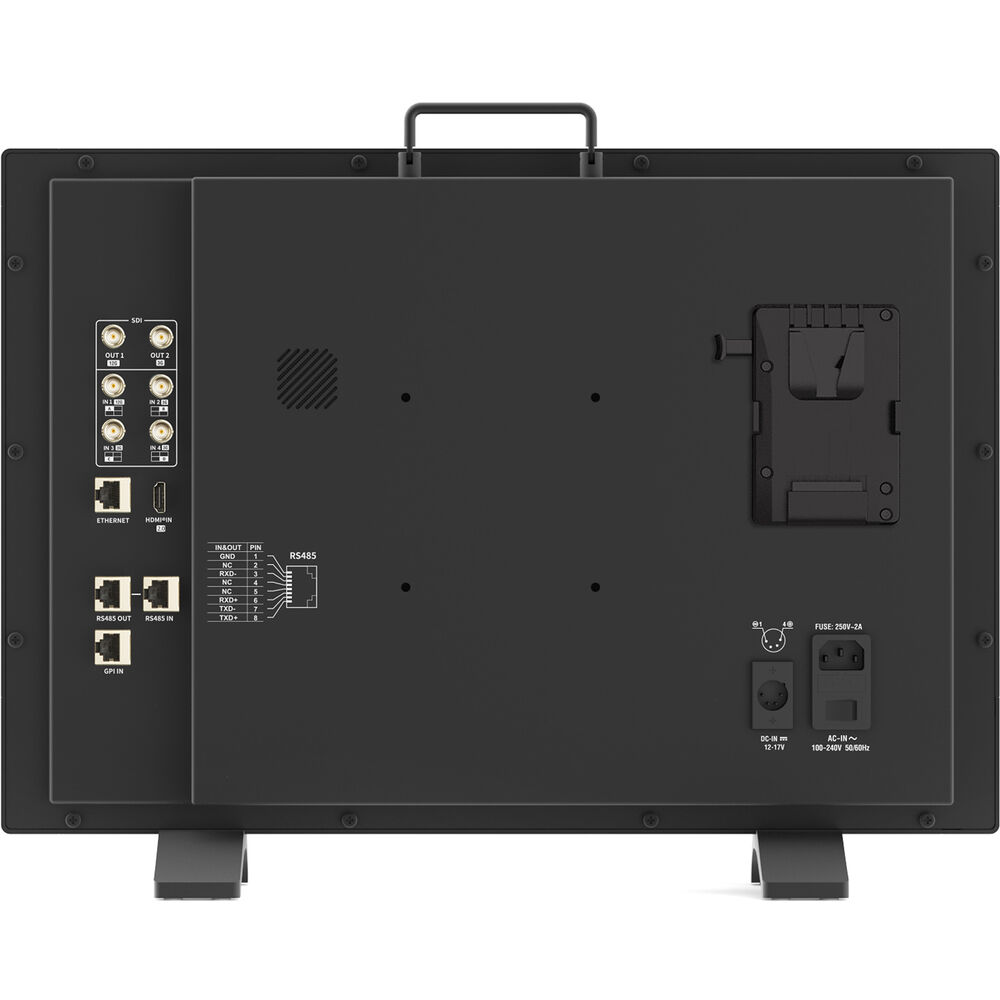

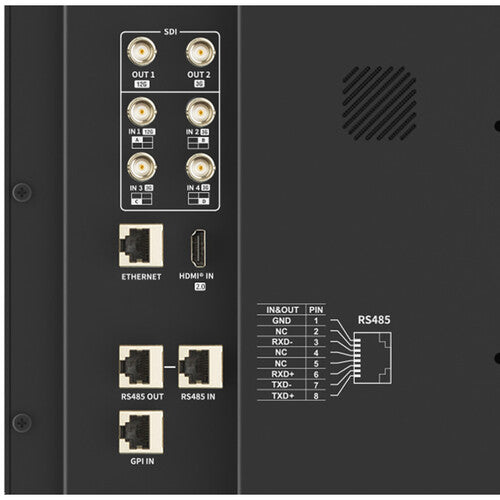

There are quad 3G-SDI inputs, one 12G-SDI input, and one HDMI 2.0 input on the back of the monitor.

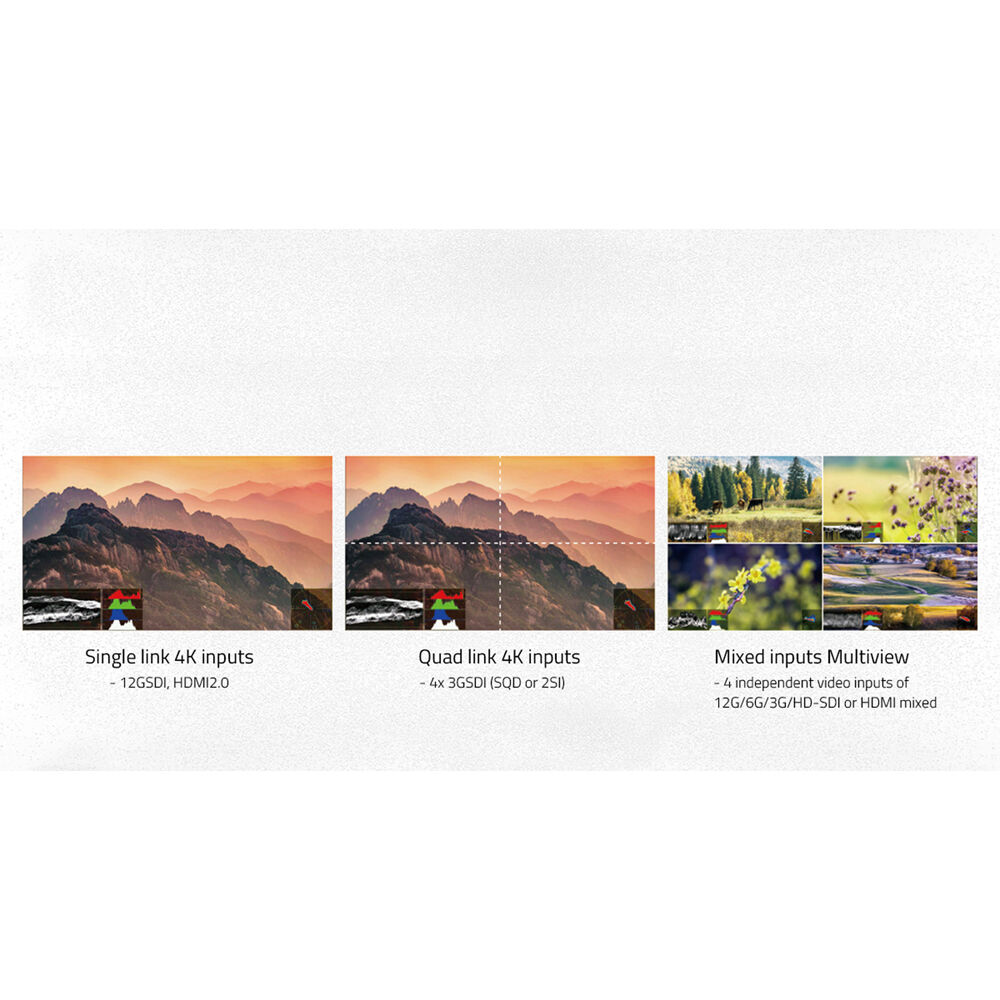

One 3G-SDI and one 12G-SDI output provide signals to a switcher or additional display. The monitor supports PbP or PiP views using the multiple interfaces.
Items Included
- SWIT 21.5" 4K 12G-SDI/HDMI HDR Monitor
- V-Mount Battery Plate
- 2 x Monitor Stand Foot
- Power Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
SWIT BM-H215HDR Specs
Key Specs
| Display Size |
21.5" / 54.6 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
No
|
| HDR Support |
Yes
|
| Video I/O |
1x BNC (12G-SDI) Input
3x BNC (3G-SDI) Input 2x BNC (3G-SDI) Output 1x HDMI 2.0 Input |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI/SDI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/48/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Battery |
No
|
| Power Consumption |
60 W
|
Display
| Panel Type |
IPS-Type LCD
|
| Display Size |
21.5" / 54.6 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178?
Vertical: 178? |
| Touchscreen |
No
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
16.7 Million Colors
|
| HDR Support |
Yes
|
| Color Gamut |
100% DCI-P3
|
| LUT Support |
Yes
|
| Image Controls |
Blue Only, False Color, Focus Assist, Histogram, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra
|
Inputs/Outputs
| Video I/O |
1x BNC (12G-SDI) Input
3x BNC (3G-SDI) Input 2x BNC (3G-SDI) Output 1x HDMI 2.0 Input |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Stereo
|
| Power I/O |
1x XLR 4-Pin Input
1x IEC Input |
| Other I/O |
1x RJ45 (10/100 Mb/s Ethernet)
1x RJ45 (GPI) 1x RJ45 (RS-485) Input 1x RJ45 (RS-485) Output 1x USB-A (Firmware/LUT Upload) |
| Media/Memory Card Slot |
No
|
Wireless
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI/SDI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/48/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
Power
| Input Power |
12 to 17 VDC
100 to 240 VAC, 50 / 60 Hz |
| Battery |
No
|
| Power Consumption |
60 W
|
Mounting
| VESA Mounting-Hole Pattern |
100 x 100 mm
|
| Tripod/Accessory Mounting |
1/4"-20 Female
|
General
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 10 to 90% Humidity
|
| Storage Conditions |
5 to 140?F / -15 to 60?C at 10 to 90% Humidity
|
| Dimensions |
20.8 x 14.3 x 2.9" / 529 x 363 x 73 mm
|
| Weight |
16.05 lb / 7.28 kg
|
Packaging Info
| Package Weight |
21.045 lb
|
| Box Dimensions (LxWxH) |
24.6 x 20.1 x 6.8"
|
