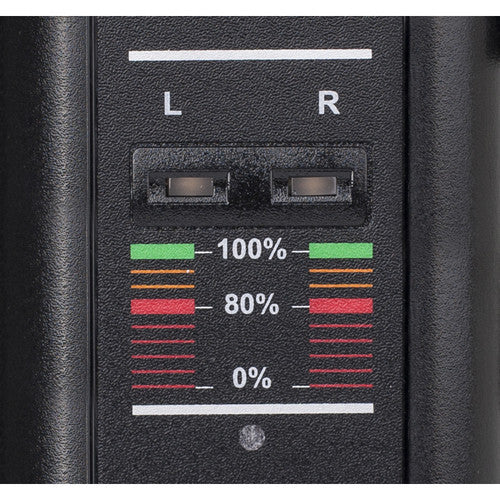

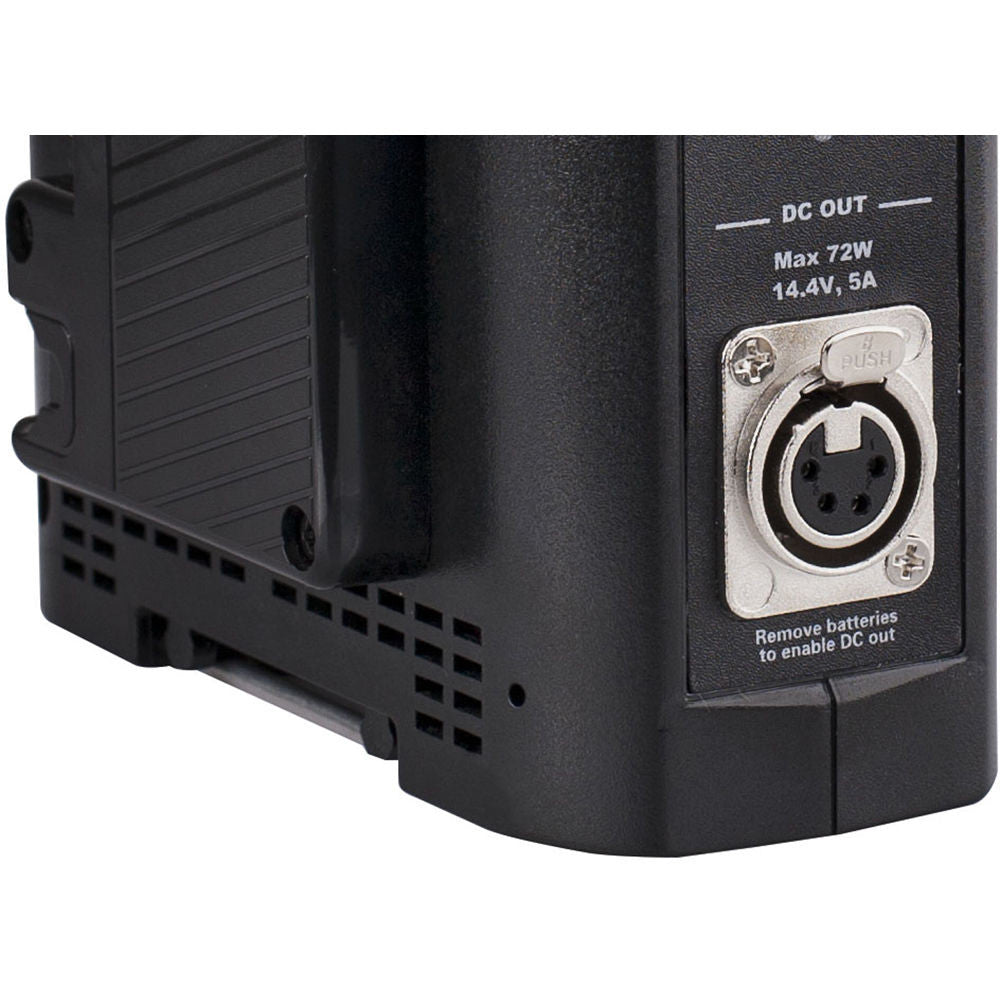

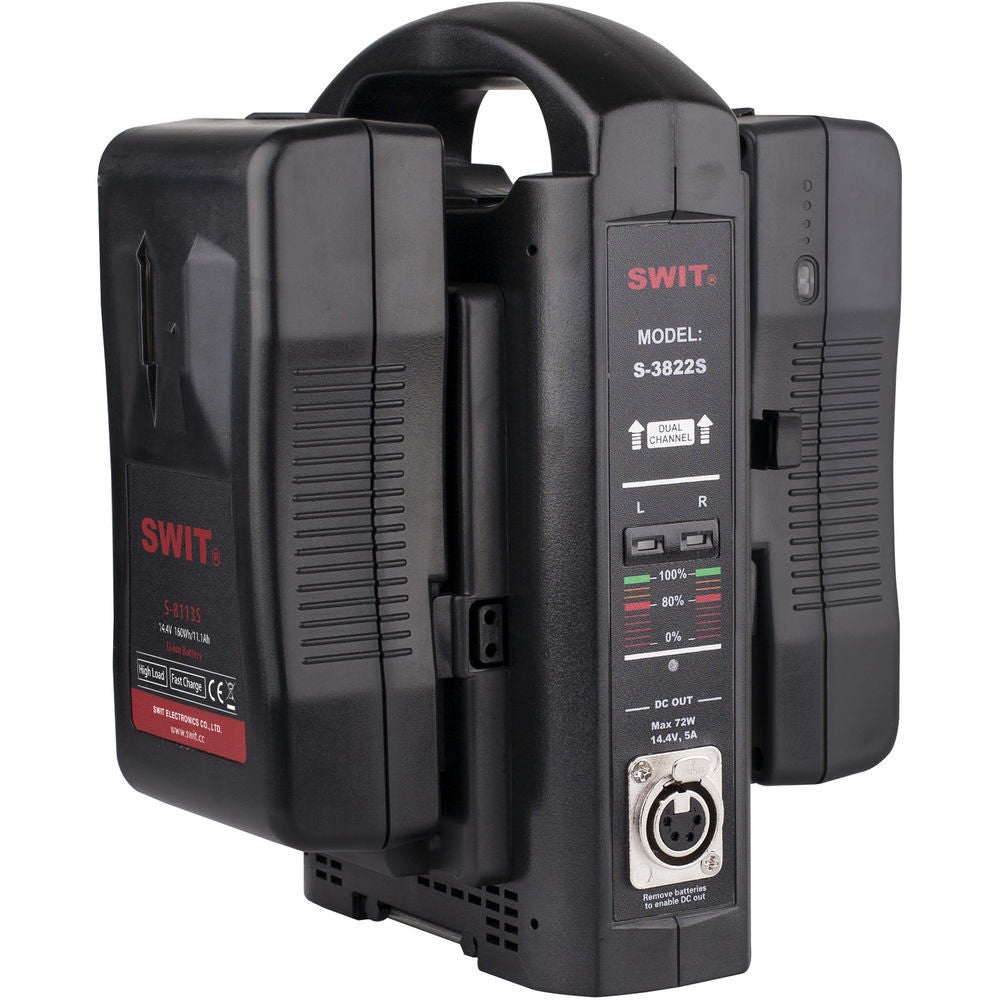

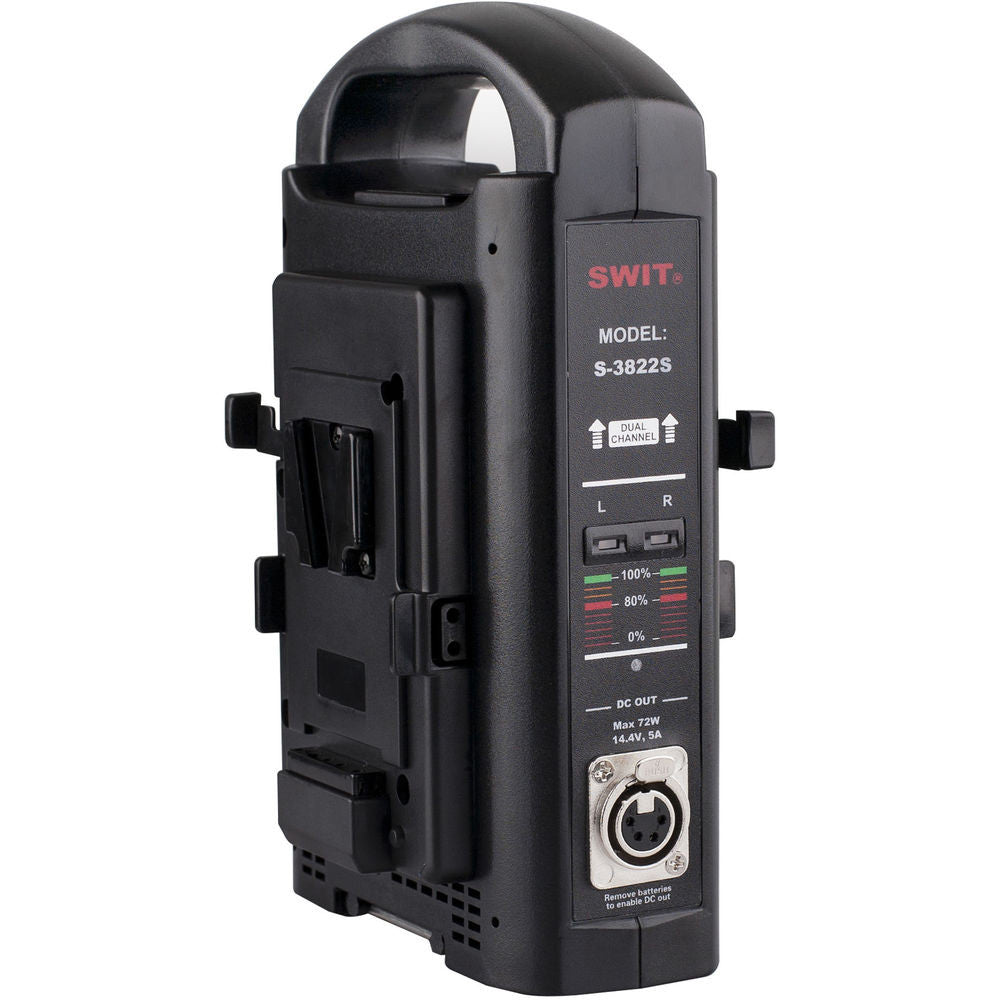

Provided by third party: The portable charger S-3822S can charge 2 V-mount batteries simultaneously. S-3822S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors. S-3822S has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable, the S-3822S can be used as AC-DC adaptor of DC 14.4V, 5A, 72W output.
- Key Features
-
- Charging V-mount batteries
- 2-ch simultaneous charging
- 3A charging current per channel
- LED charging indicators
- Support AC to 4-pin XLR output
- Light weight and portable
| General |
| Product Type | Battery charger / power adapter |
| Width | 5.5 in |
| Depth | 4.7 in |
| Height | 9 in |
| Weight | 2.2 lbs |
| Power Device |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Voltage Provided | 14.4 / 16.8 V |
| Output Connectors | 4 pin XLR |
| Max Electric Current | 6 A |
| Features | V-Mount, independent charging channels, LED indicator, temperature protection, overcharging protection, over-current protection |
| Packaging Info |
| Package Weight | 3.25 lb |
| Box Dimensions (LxWxH) | 9.9 x 6.2 x 4.8" |
