SURGEX SX-DC-8-24-120 Overview

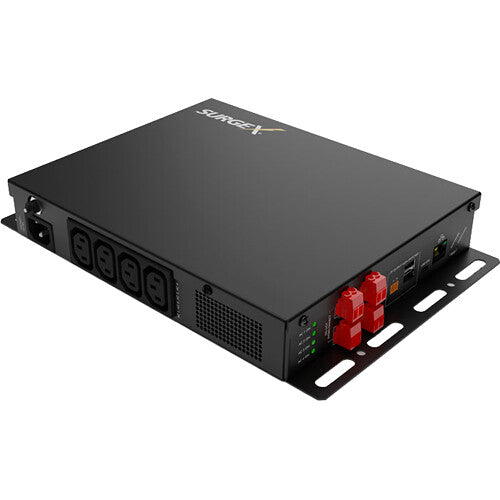

The Squid Power Management System from SURGEX is an AC and DC power distribution unit with power conditioning, control, and monitoring. Thanks to its small form factor, you can mount it to a wall, a table, or against the face of an equipment rack. It features an internal web server that provides configuration, output control, monitoring, and the retrieval of data logs. Multiple security and communication interface options are also supported.
This PDU has one IEC320 C14 AC inlet, four IEC320 C13 AC outlets, two 5V USB-A ports, an RJ45 network port, a micro-USB port, and two recessed push buttons for hardware and software reset. There are also five DC terminal blocks with a 5V output, plus two output banks, each with two ports. DC Output 1 delivers 2.5A at 24V, while DC Output 2 delivers 5A at 12V. Also featured is under-voltage auto shutdown that is adjustable from 0 to 300V, overvoltage auto shutdown that is adjustable from 125 to 300V, and overcurrent auto shutdown that is adjustable from 0.1 to 20A. All three of these may also be disabled.
The Squid's software offers a single solution for management, mitigation and control of a system's power. Its competencies include sequencing, scheduling, auto-ping, IP control and monitoring plus reduced service calls through proactive management. Its 360° of power protection helps ensure equipment remains up and running without disruption.
- Universal 120V-240V AC input with IEC connectors
- 4 controlled and monitored AC receptacles
- 3 DC banks, 2 controllable
- Measures electrical parameters including voltage, current, power, frequency, power factor, and crest factor
- Time-stamped power quality events
- Internal storage with 30 days of max/min/avg electrical parameters
- Wired ethernet for web server (HTTP/HTTPS), 802.1x authentication
- TLS, SSL, SNMP V3, single sign-on
- Two 5V USB ports for charging
- Compact size fits along, behind, or near equipment
In the Box
- SURGEX Squid Power Management System
- Limited 5-Year Manufacturer Warranty
SURGEX SX-DC-8-24-120 Specs
| Metering |
Yes
|
| Battery Backup |
No
|
| Outlets |
4 x IEC-320 C13
|
| USB Ports |
2 x USB-A
1 x Micro-USB |
| Ethernet |
1
|
| Coaxial |
No
|
| RJ11 |
No
|
| Type |
Conditioner
|
| Rated Current |
12 A
|
| Number of Circuits |
Not Specified by Manufacturer
|
| Metering |
Yes
|
| Battery Backup |
No
|
| Integrated Lamps |
None
|
| Outlets |
4 x IEC-320 C13
|
| Wall Plug Type |
IEC-320 C14
|
| USB Ports |
2 x USB-A
1 x Micro-USB |
| Ethernet |
1
|
| Coaxial |
No
|
| RJ11 |
No
|
| Remote |
No
|
| Lamp I/O |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| AC Input Power |
Factory Set:
120 VAC, 50 / 60 Hz User Selectable: 120 to 240 VAC, 50 / 60 Hz |
| DC Output Power |
24 VDC
|
| Output Current |
2.5 A (per Circuit, Maximum)
|
| Load Capacity |
Not Specified by Manufacturer
|
| Sequencing Delay |
No
|
| USB Output |
5 V, 1 A
5 V, 3 A |
| Protection Types & Modes |
Overvoltage, Undervoltage, EMI Filter, Manual Reset, Auto-Reset
|
| Circuit Breaker |
Yes
|
| Undervoltage Protection |
? 300 V
|
| EMI/RFI Noise Filtration |
30 dB (80 kHz to 50 MHz)
Common-Mode: 20 dB (160 kHz to 27 MHz) 30 dB (310 kHz to 17 MHz) |
| Certifications |
UL, cUL, CB 62368
|
| Operating Temperature |
37 to 79°F / 5 to 47°C
|
| Operating Humidity |
0 to 95% (Non-Condensing)
|
| Dimensions |
10 x 8.25 x 1.75" / 25.4 x 20.96 x 4.45 cm
|
| Weight |
5 lb / 2.3 kg
|
| Package Weight |
8.195 lb
|
| Box Dimensions (LxWxH) |
14.7 x 11.8 x 6.4"
|
