| ₹ 50.0 includes GST and import duties. | |
| B2B customers can avail ₹ 7.63 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

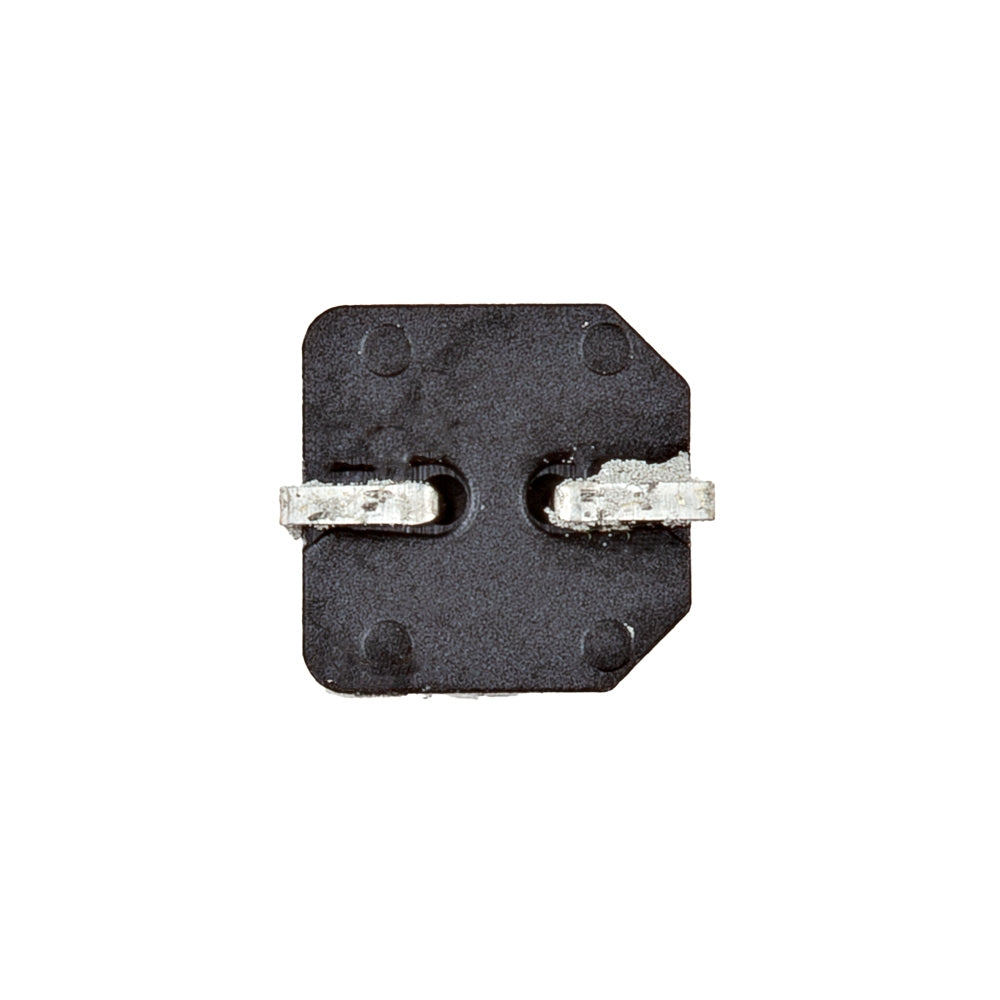

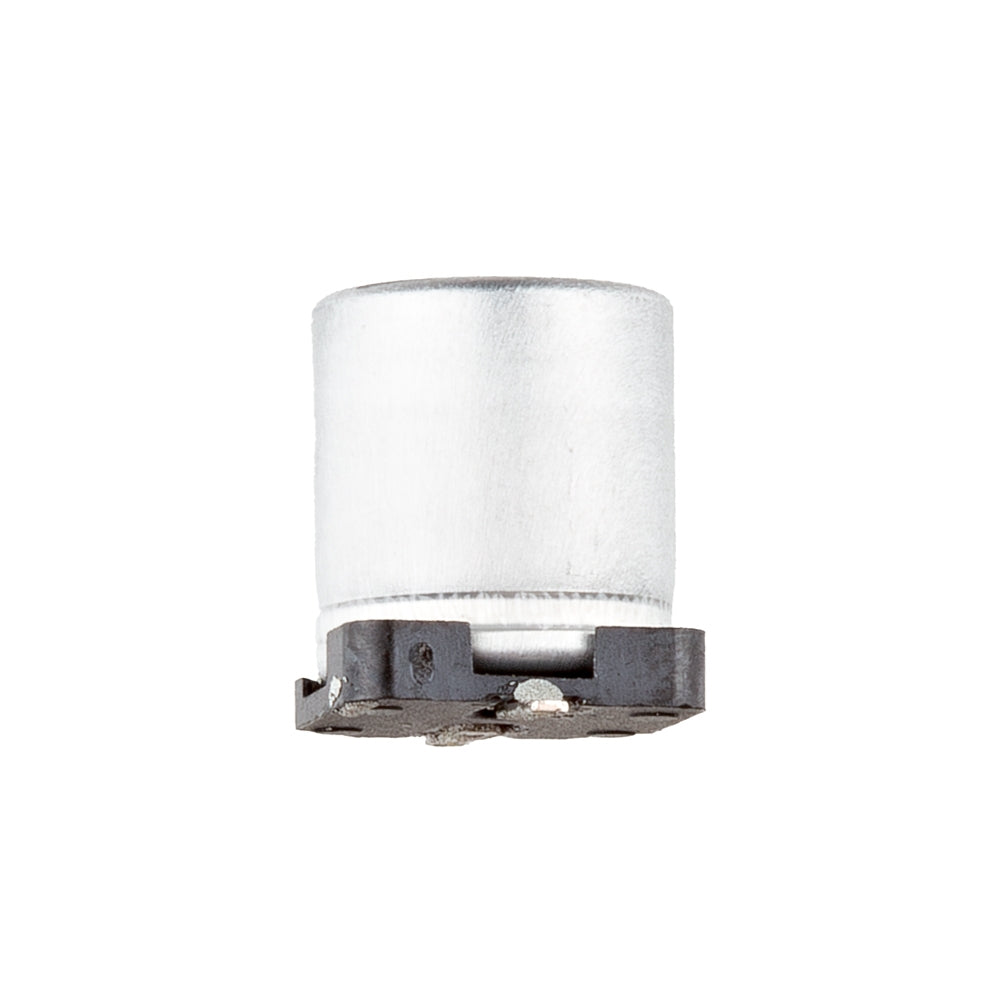

This is a surface mount aluminum electrolytic capacitor.
Features & Specs
- Capacitance: 22µF
- Tolerance: ±20%
- Voltage - Rated: 35V
- Lifetime @ Temp.: 2000 Hrs @ 85°C
- Operating Temperature: -40°C ~ 85°C
- Polarization: Polar
- Ripple Current @ Low Frequency: 41 mA @ 120 Hz
- Ripple Current @ High Frequency: 44.28 mA @ 100 kHz
- Size / Dimension: 0.197" Dia (5.00mm)
- Height - Seated (Max): 0.205" (5.20mm)
- Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type: Surface Mount
Features & Specs
- Capacitance: 22µF
- Tolerance: ±20%
- Voltage - Rated: 35V
- Lifetime @ Temp.: 2000 Hrs @ 85°C
- Operating Temperature: -40°C ~ 85°C
- Polarization: Polar
- Ripple Current @ Low Frequency: 41 mA @ 120 Hz
- Ripple Current @ High Frequency: 44.28 mA @ 100 kHz
- Size / Dimension: 0.197" Dia (5.00mm)
- Height - Seated (Max): 0.205" (5.20mm)
- Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type: Surface Mount
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 49.0 |
| 3-5 | ₹ 48.5 |
| 5-10 | ₹ 47.5 |
| 10+ | ₹ 46.5 |
Bulk discount will be automatically applied during checkout based on quantity.
