Sunwayfoto Gx35 Overview

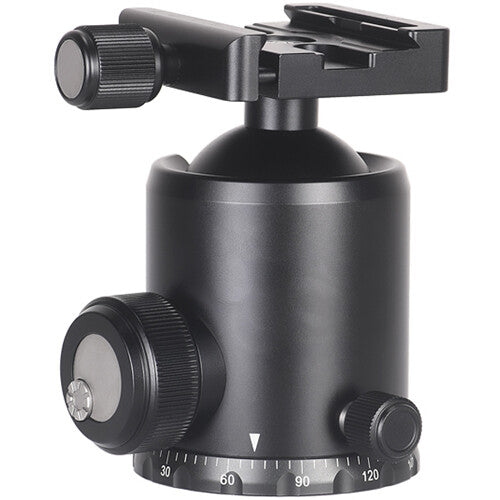

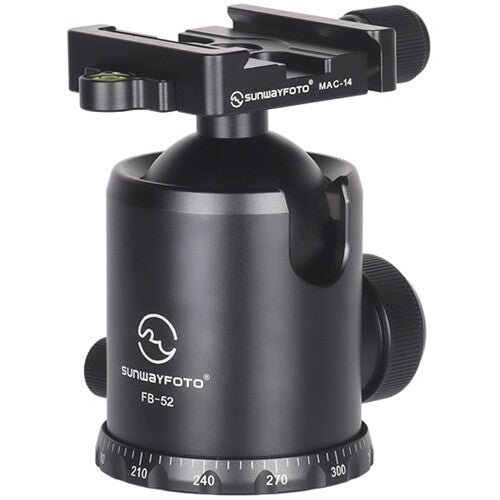

The FB-52MAC-14 Ball Head with MAC-14 + DP-60G Quick Release from Sunwayfoto is an Arca-type compatible head with a load capacity of 44.1 lb, making it capable of supporting mirrorless to large format cameras. It features an adjustable friction control dial located on the side of the ball head's main control knob, so more drag may be applied to the ball when repositioning a heavier camera on the head and helps prevent the camera from flopping over when loosened.

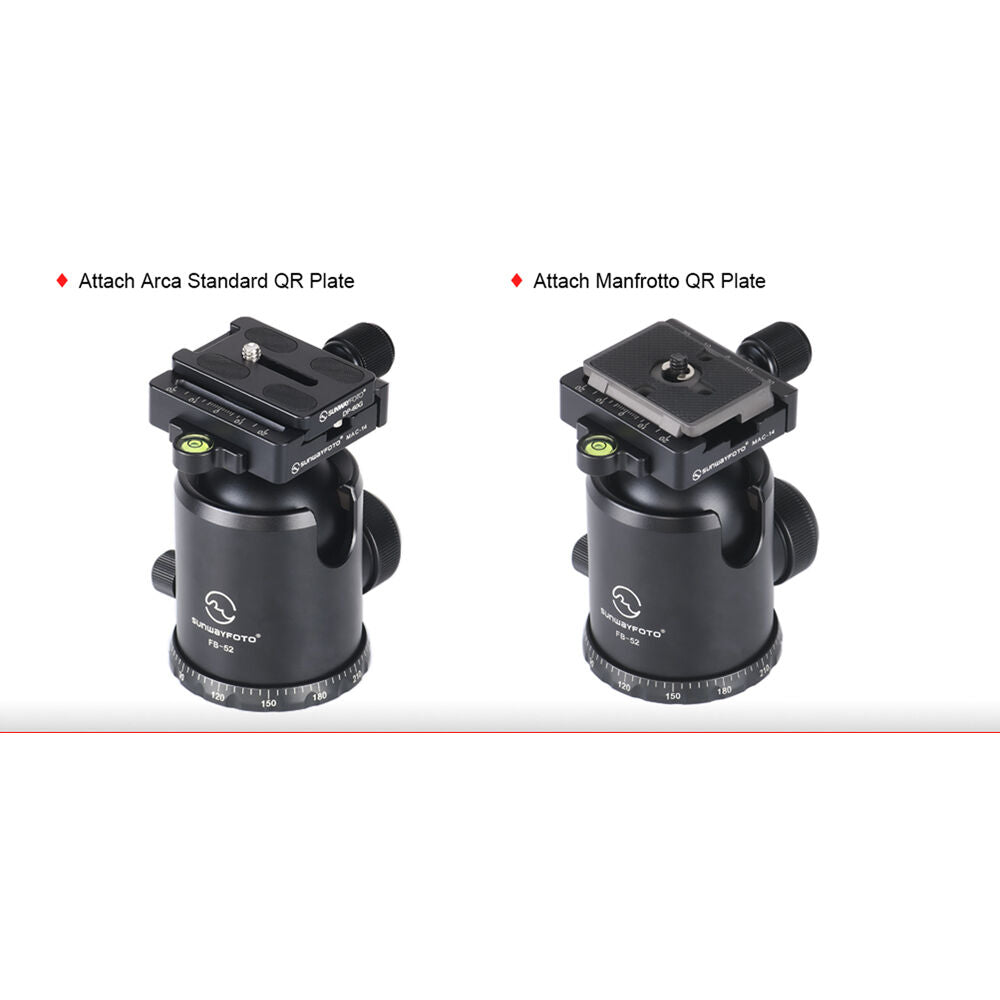

The quick release receiver clamp is compatible with both Manfrotto 200PL-type quick release plates plus Arca-type plates and brackets and features a clamp locking knob.

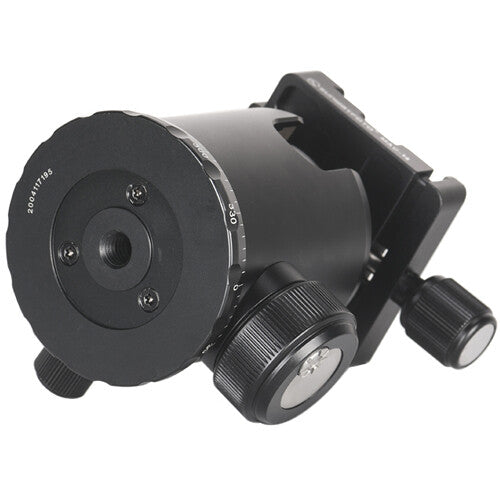

The 1.5 lb aluminum head has a cut notch on the side, which allows the ball to vertically tilt 90°, and it pans a full 360° by unlocking the separate independent panning lock. The panning base and the quick release receiver both feature an engraved scale for precise and repeatable positioning. Additionally, the FB-52MAC-14 Ball Head can mount onto a tripod via the 3/8"-16 female thread, but an adapter bushing can also be utilized to accommodate a 1/4"-20 size. The bubble level, located on the side of the clamp, ensures that your horizon is level every time.

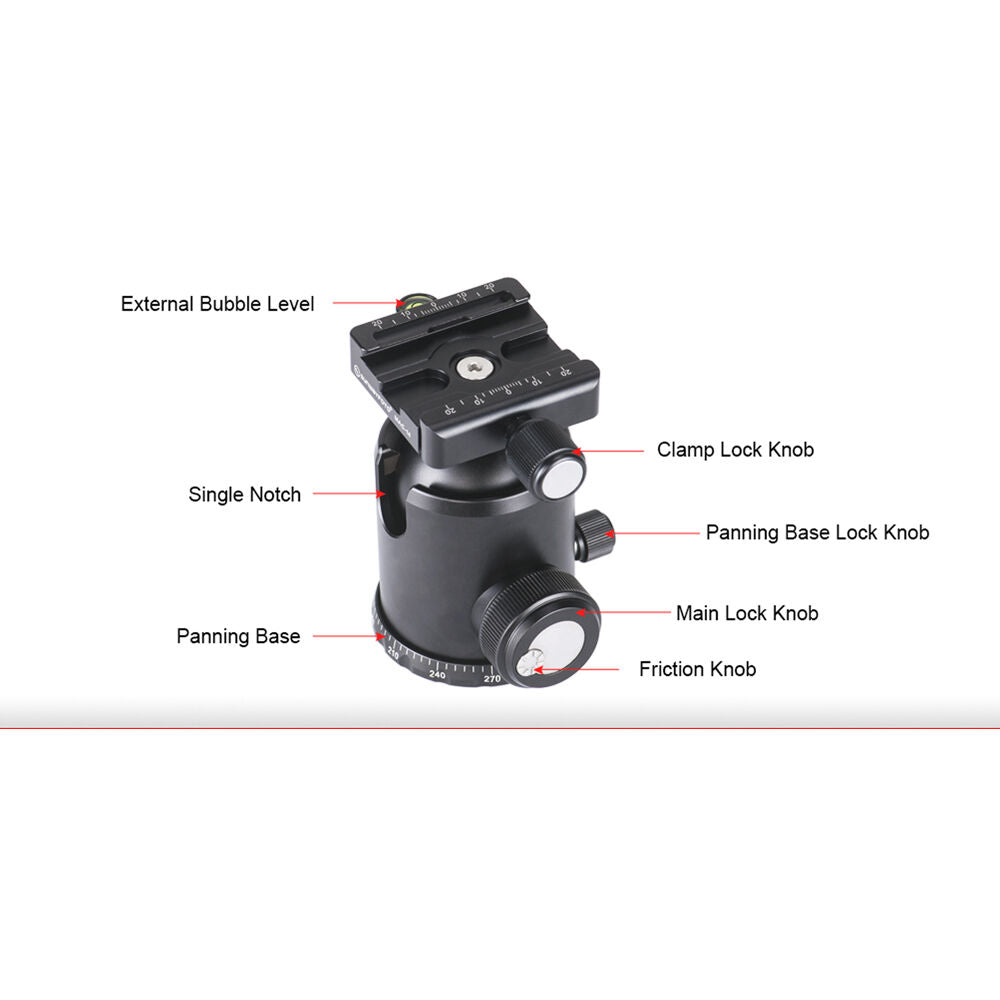

- Friction control
- Independent pan lock knob
- Bubble level

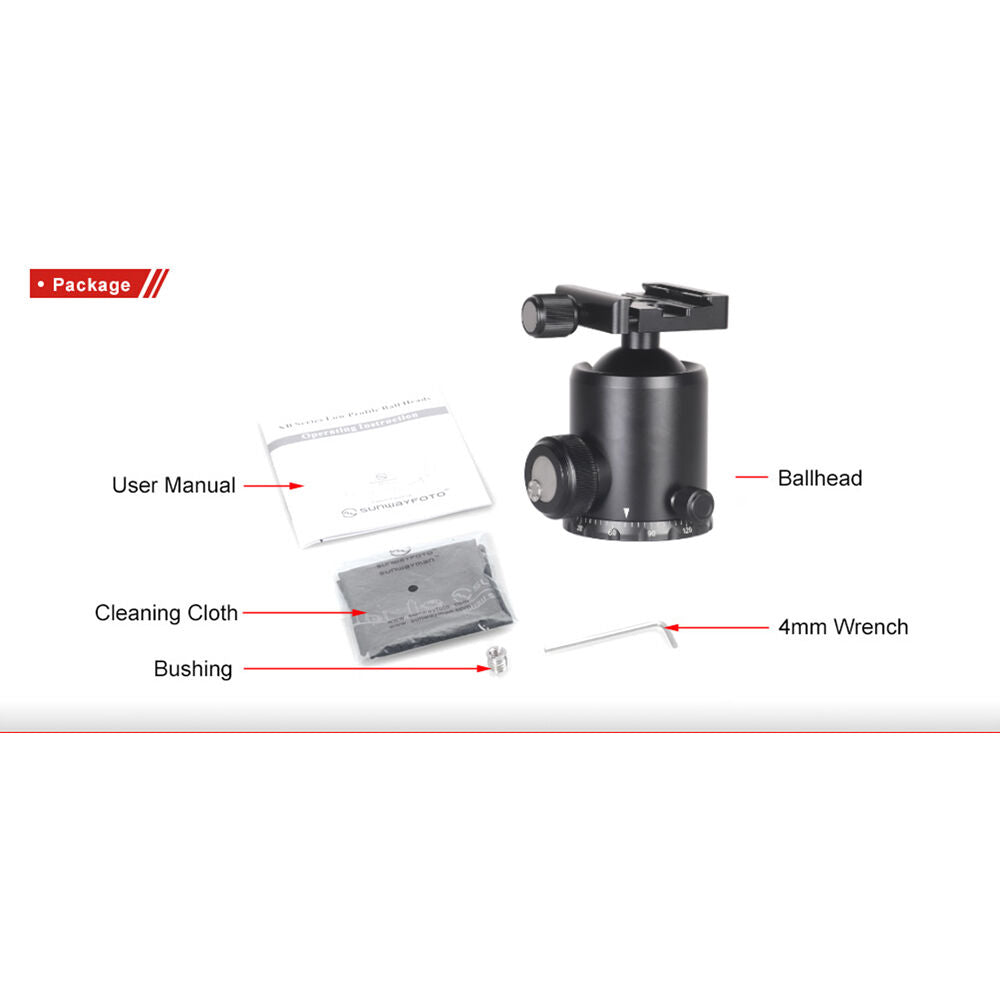

In the Box
- Sunwayfoto FB-52MAC-14 Ball Head with MAC-14 + DP-60G Quick Release
- Limited 6-Year Warranty
Sunwayfoto Gx35 Specs
General
| Head Type |
Ball Head |
| Base Mount |
3/8"-16 Female |
| Camera Mounting Screw |
1/4"-20 Male |
| Quick Release Plate Type |
200PL, Arca-Type |
| Load Capacity |
44.1 lb / 20 kg |
| Number of Bubble Levels |
1 |
| Friction Control |
Yes |
| Independent Pan Lock |
Yes |
| Material |
Aluminum |
Pan & Tilt Range
| Vertical Tilt |
90° |
| Panning Range |
360° |
Physical
| Ball Sphere Diameter |
2.0" / 52 mm |
| Base Diameter |
2.8" / 70 mm |

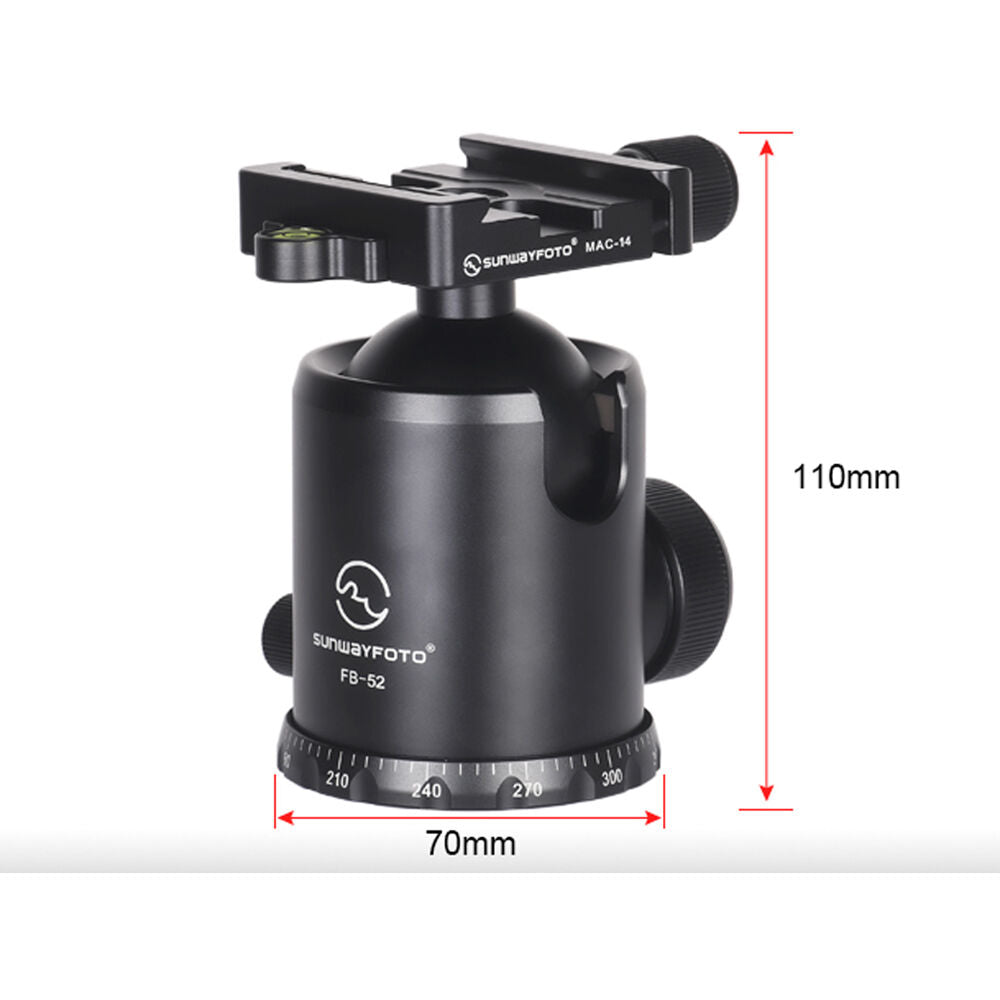

| Dimensions |
H: 4.3 x W: 2.8" / H: 110.0 x W: 70.0 mm |
| Weight |
1.5 lb / 692 g |
Packaging Info
| Package Weight |
2.02 lb |
| Box Dimensions (LxWxH) |
6.1 x 5.2 x 3.7" |
