- Load Capacity: 44.1 lb
- Maximum Height: 4.3"
- Weight: 1.5 lb
- Arca-Type Compatible
- 360° Pan with Independent Pan Lock
- Screw-Knob Locking Clamp
- 90° Vertical Tilt
- Friction Control on the Main Knob
- Single External Bubble Level
- 3/8"-16 Female Tripod Mount

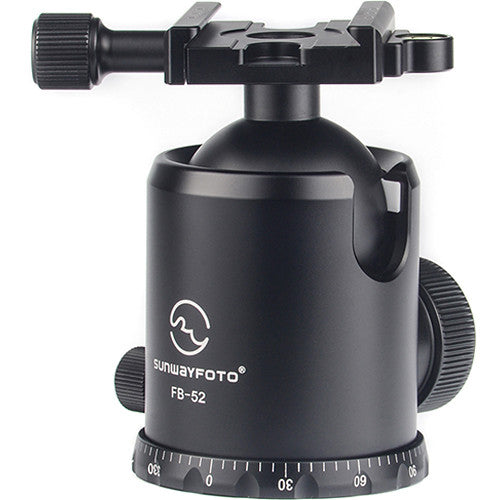

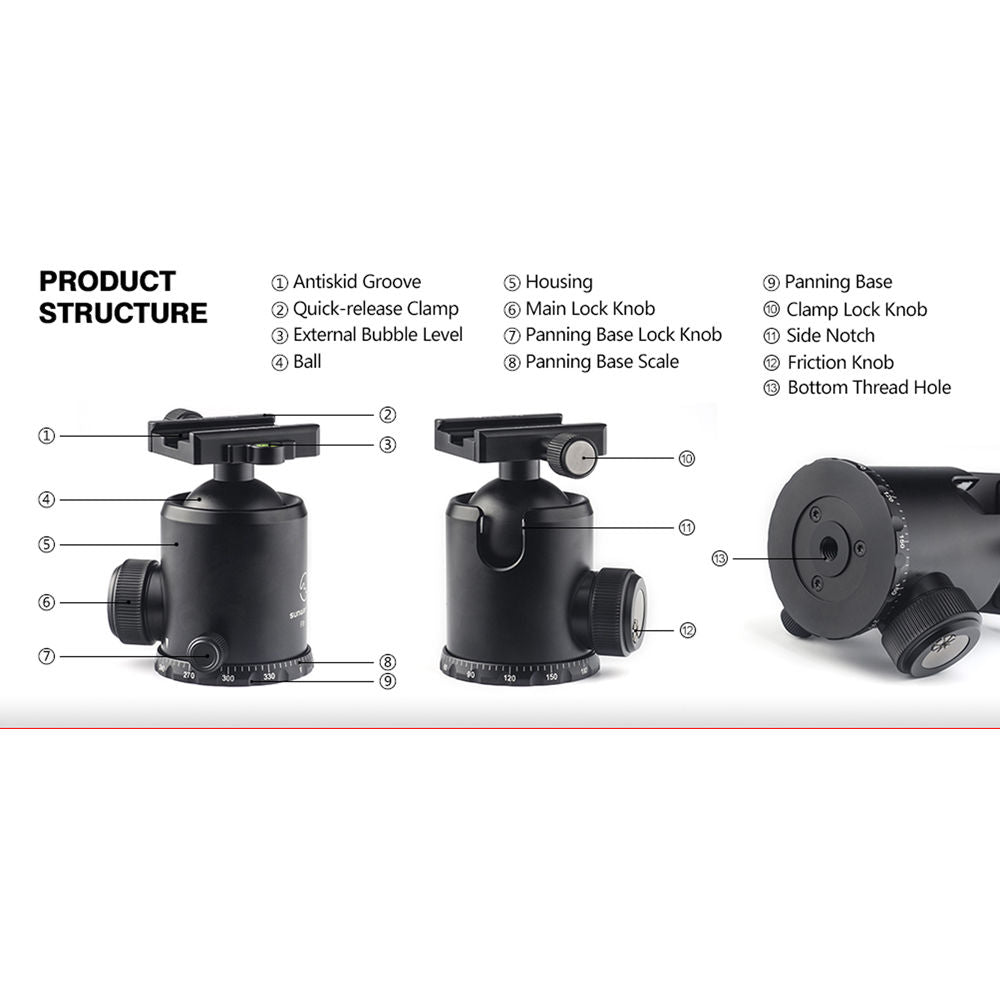

The Sunwayfoto FB-52 Ball Head is an Arca-type compatible head with screw-knob locking clamp that has a weight capacity of 44.1 lb, making it capable of supporting mirrorless to large format cameras. Furthermore, friction control is located on the side of the ball head's main knob, so you can apply more drag to the ball, which is very useful especially when you're repositioning a heavier camera on the head.

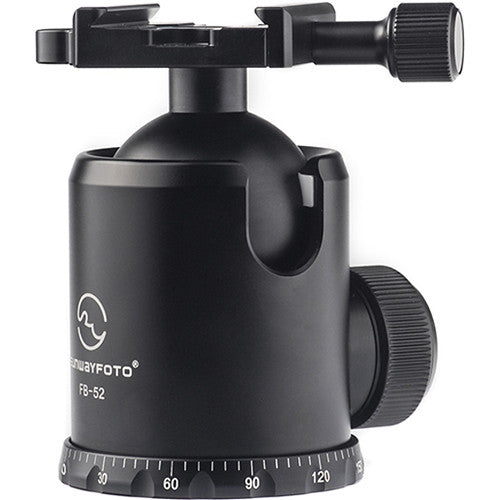

The 1.5 lb aluminum head has a cut notch on the side, which allows the ball to vertically tilt 90°, and it pans a full 360° by unlocking the separate independent panning lock. Additionally, the FB-52 Ball Head can mount onto a tripod via the 3/8"-16 female thread, but an adapter bushing can also be utilized to accommodate a 1/4"-20 size. The bubble level, located on the side of the clamp, ensures that your horizon is level every time.
- The 4.3"-tall ball head, which weighs 1.5 lb, is Arca-type compatible and has a load capacity of 44.1 lb

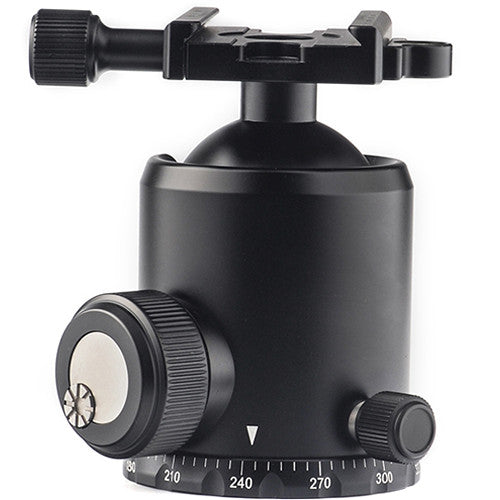

- The friction control is located on the side of the main knob, so drag can be added for heavier cameras

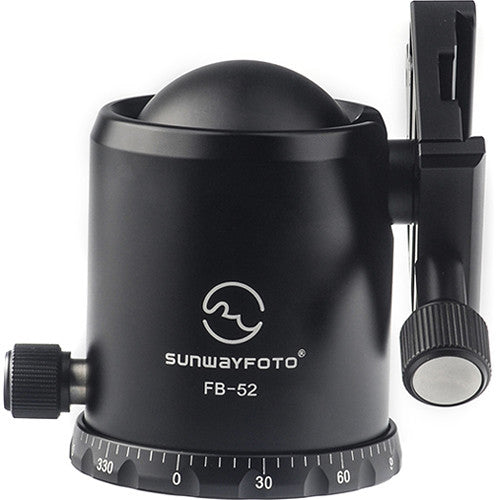

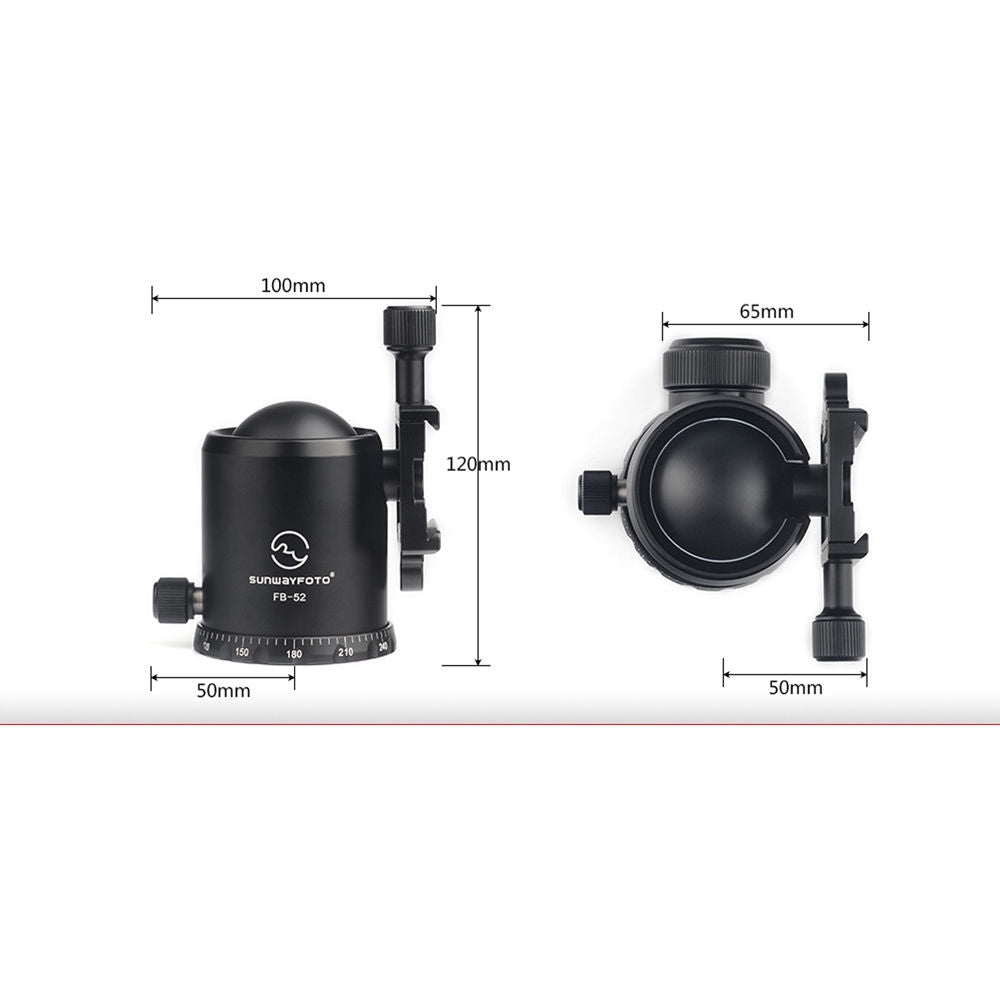

- The head allows the ball to vertically tilt 90° because of the cut notch located on the side, and it pans a full 360° by unlocking the separate independent panning lock

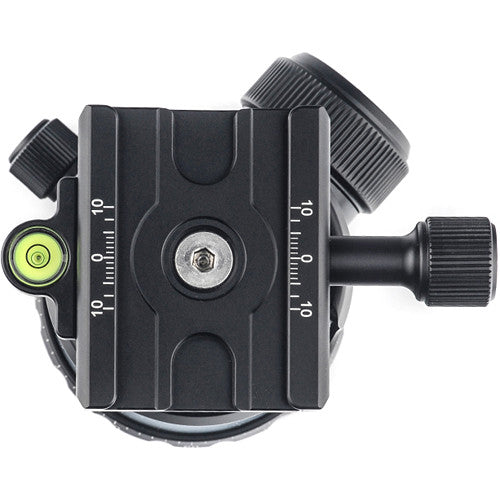

- The screw-knob locking clamp has a bubble level located on its side, which ensures the horizon and camera are level

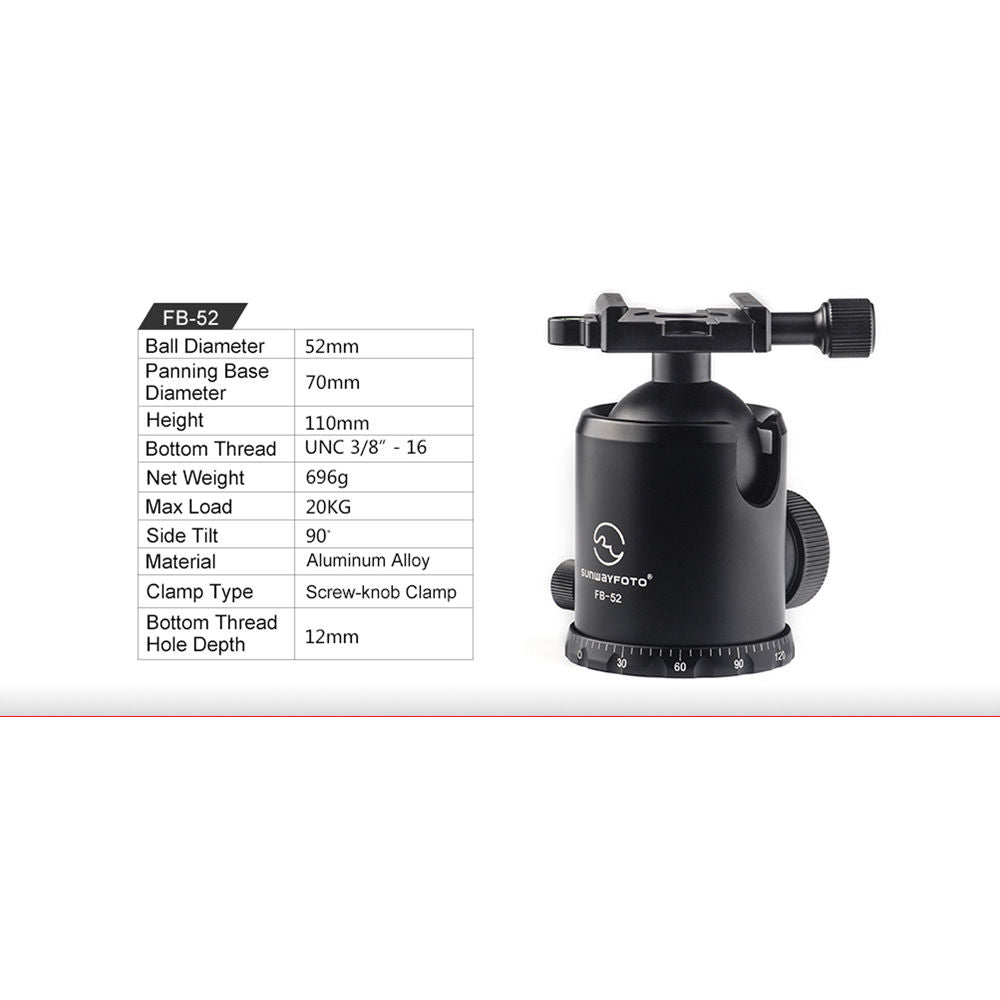

Sunwayfoto FB-52 specs
| General |
| Head Type | Ball Head |
| Base Mount | 3/8"-16 Thread |
| Camera Mounting Thread | Not Specified by Manufacturer |
| Quick Release Plate Type | Arca-Type |
| Load Capacity | 44.1 lb / 20.00 kg |
| Number of Bubble Level(s) | 1 |
| Friction Control | Yes |
| Independent Pan Lock | Yes |
| Material | Aluminum |
| Pan & Tilt Range |
| Lateral Tilt | Not Specified by Manufacturer |
| Vertical Tilt | 0° to +90° |
| Panning Range | 360° |
| Physical |
| Ball Sphere Diameter | 2.05" / 52 mm |
| Base Diameter | 2.76" / 70 mm |

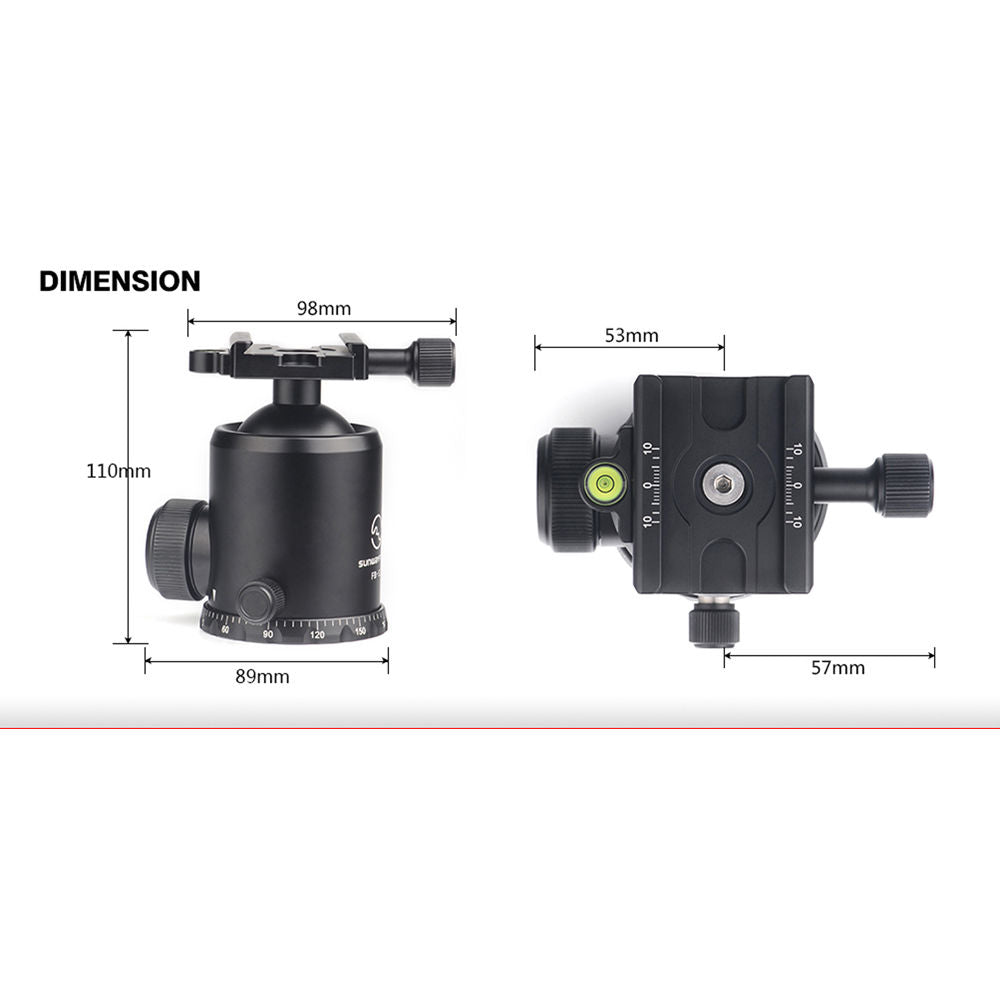

| Dimensions | H: 4.3 x W: 4.3" / H: 10.9 x W: 10.9 cm |
| Weight | 1.53 lb / 696 g |
| Packaging Info |
| Package Weight | 1.95 lb |
| Box Dimensions (LxWxH) | 6.0 x 5.0 x 4.0" |
In the Box
Sunwayfoto FB-52 Ball Head
