Description

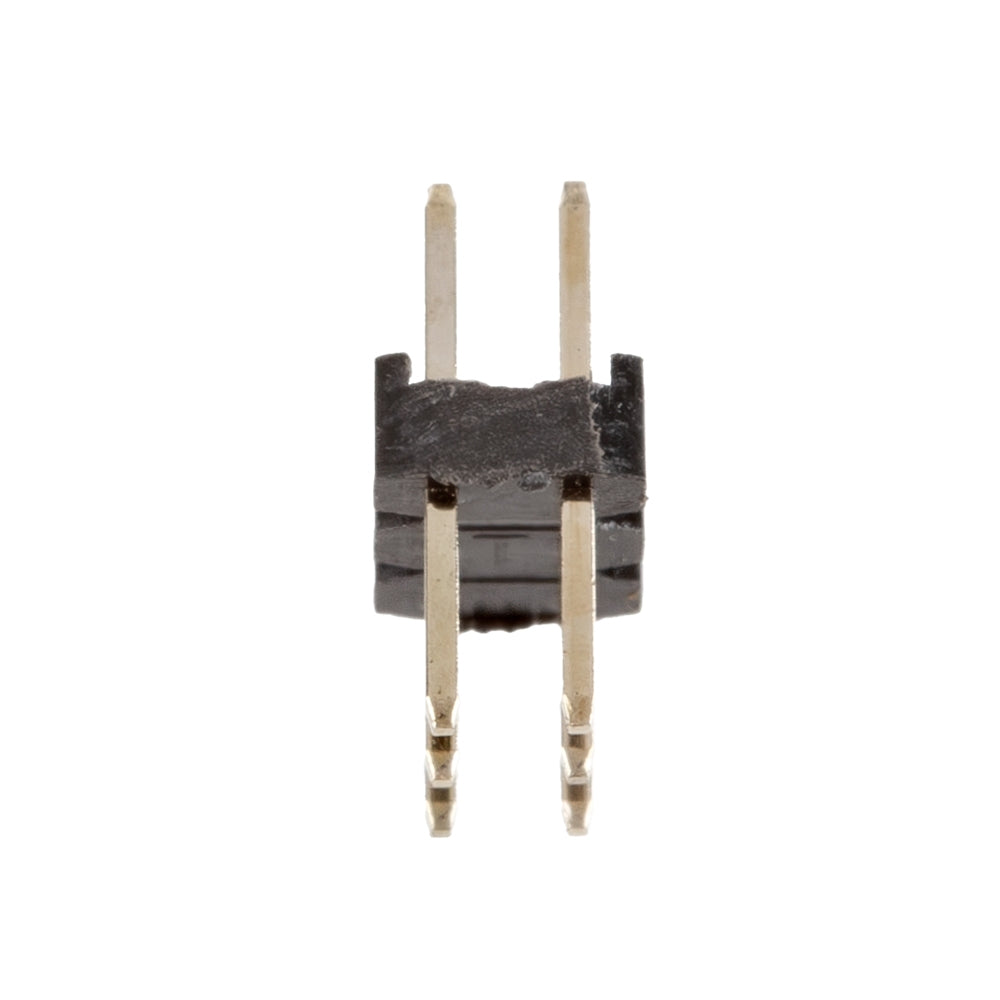

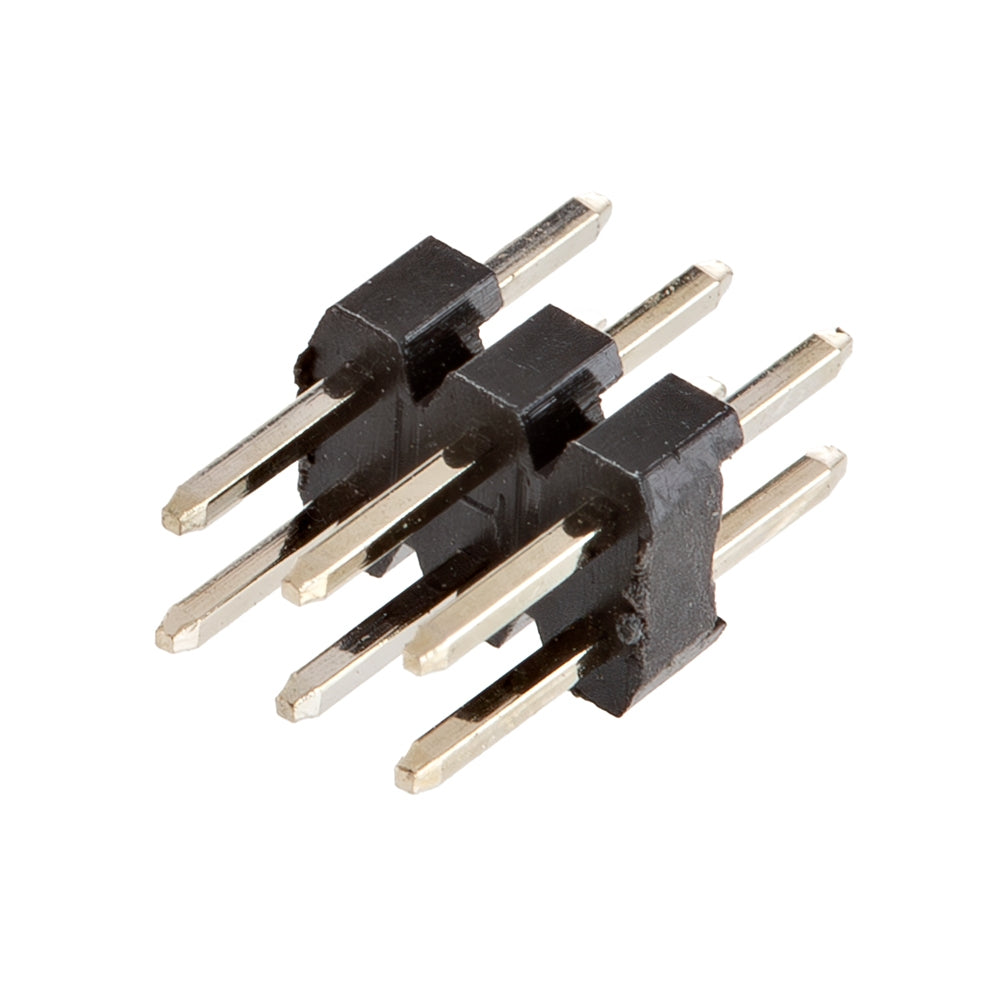

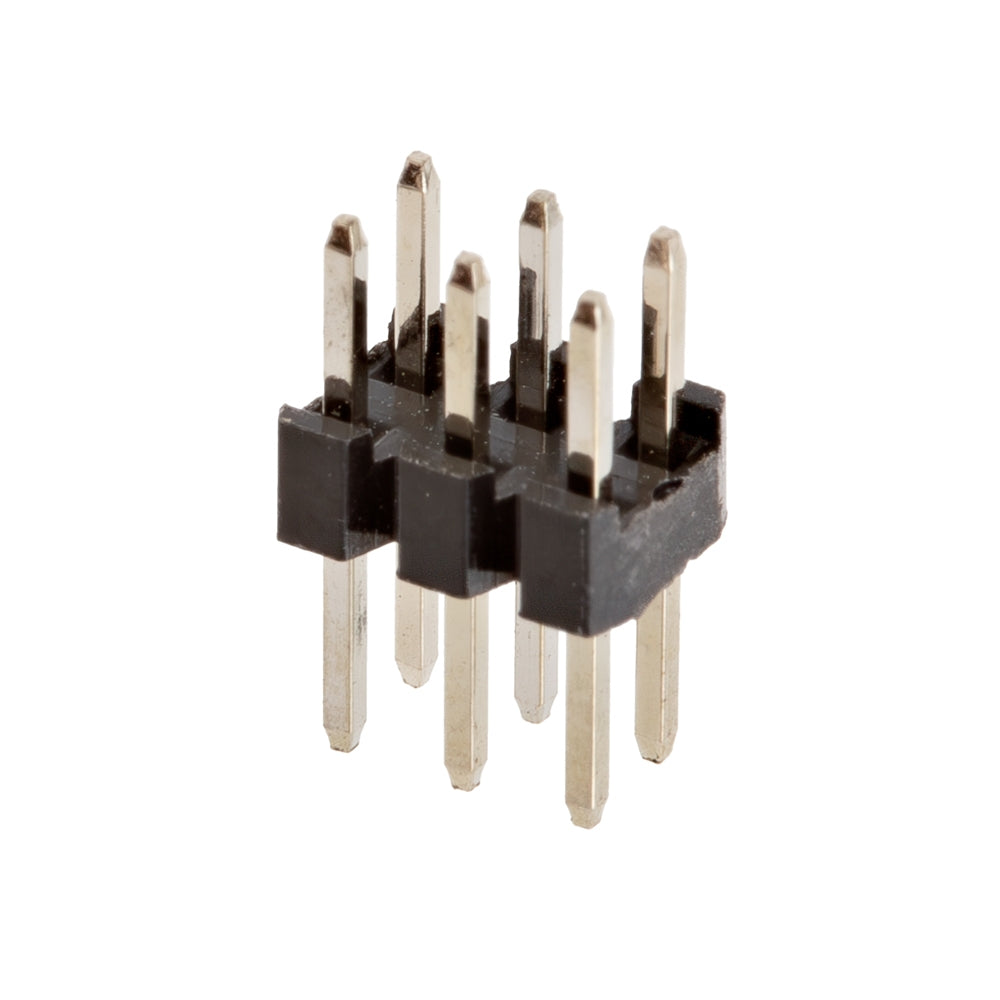

This is a simple 2x3 male PTH header.
Features & Specs
- Contact Type: Male Pin
- Pitch - Mating: 2mm (0.079")
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 2mm (0.079")
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 3.91mm (0.154")
- Contact Length - Post: 2.79mm (0.110")
- Overall Contact Length: 8.70mm (0.343")
- Insulation Height: 2mm (0.079")
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 250VAC
Features & Specs
- Contact Type: Male Pin
- Pitch - Mating: 2mm (0.079")
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 2mm (0.079")
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 3.91mm (0.154")
- Contact Length - Post: 2.79mm (0.110")
- Overall Contact Length: 8.70mm (0.343")
- Insulation Height: 2mm (0.079")
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 250VAC
