Description

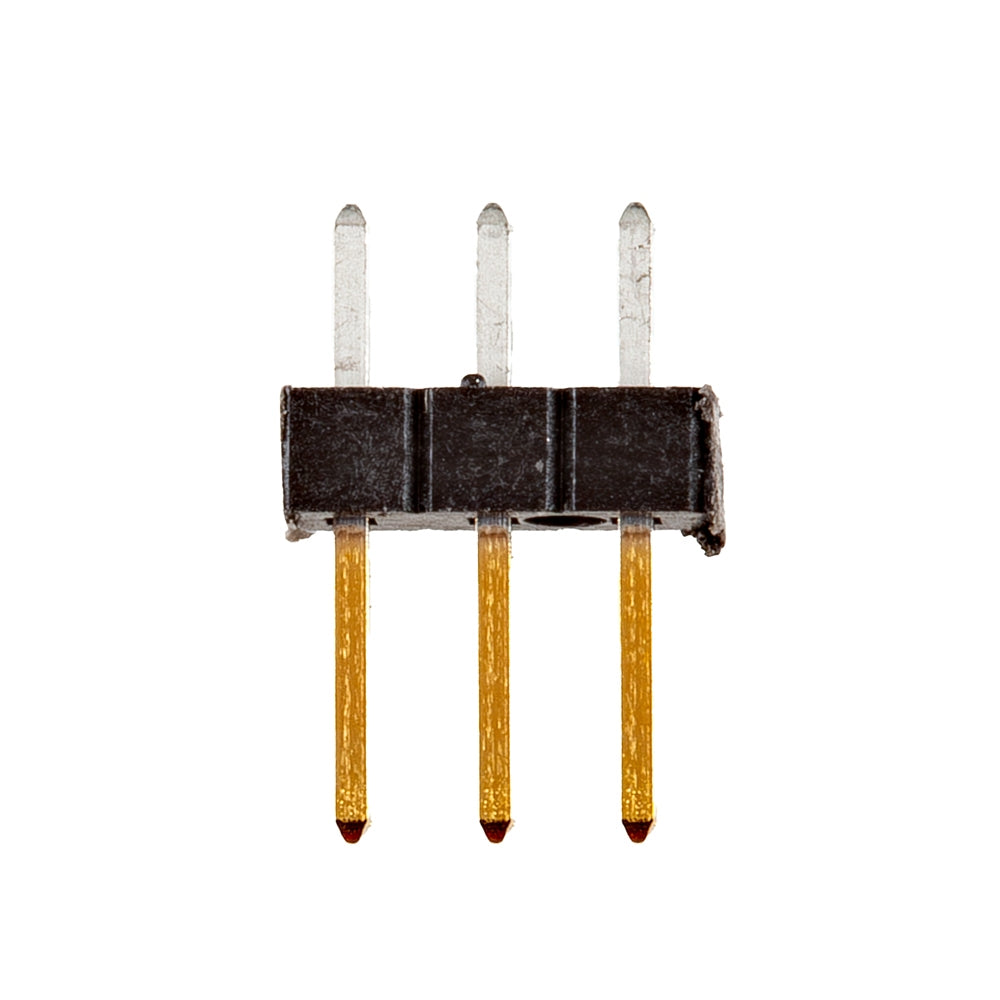

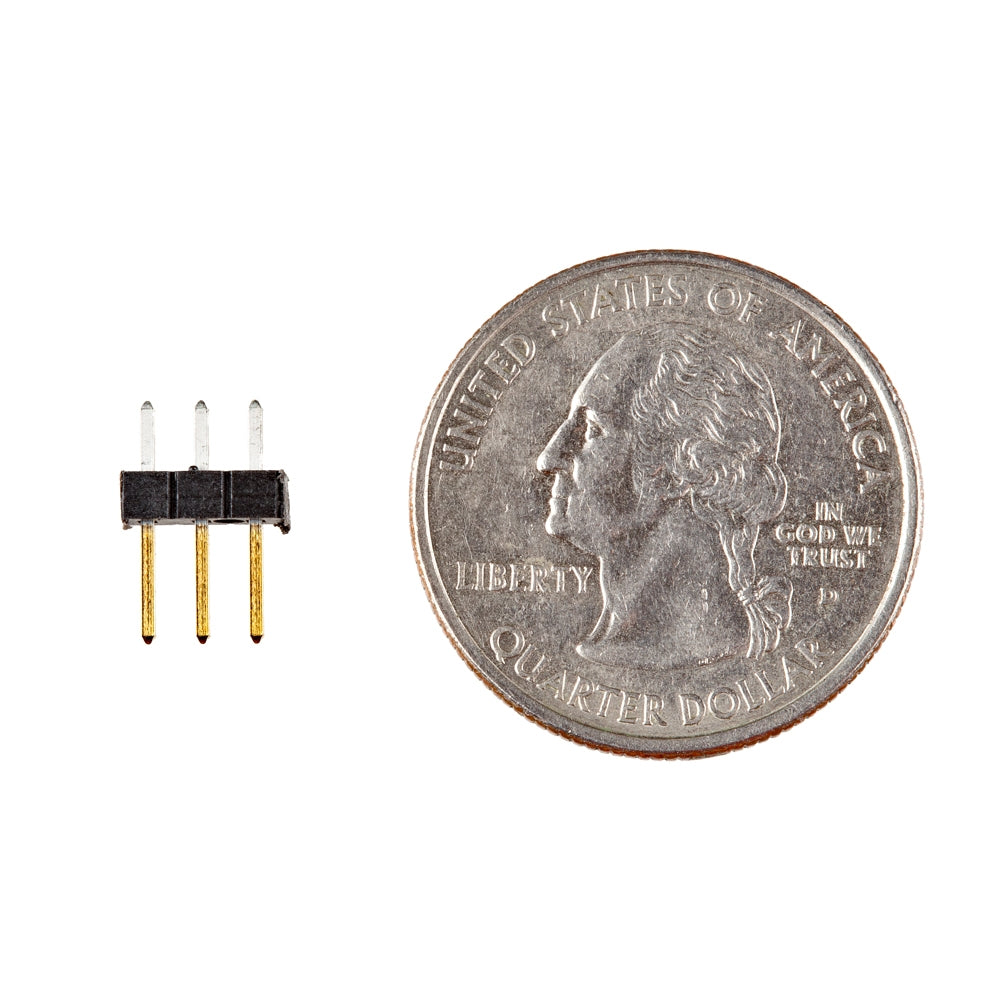

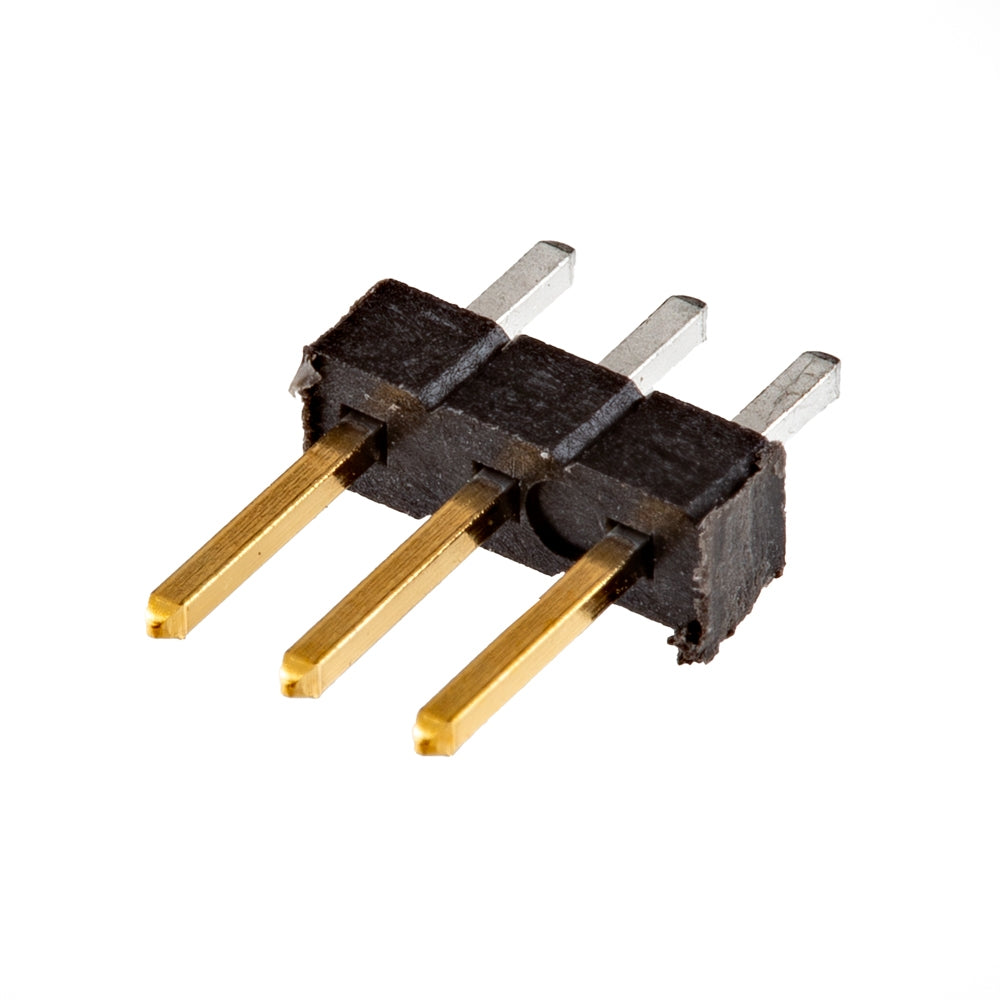

This is a simple 3-pin male PTH straight header.
Features & Specs
- Contact Type: Male
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.450" (11.43mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Operating Temperature: -65°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Current Rating: 3A
- Contact Finish Thickness - Post: 100.0µin (2.54µm)
- Mfg Part #: PBC03SAAN
Features & Specs
- Contact Type: Male
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.450" (11.43mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Operating Temperature: -65°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Current Rating: 3A
- Contact Finish Thickness - Post: 100.0µin (2.54µm)
- Mfg Part #: PBC03SAAN
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 44.1 |
| 3-5 | ₹ 43.65 |
| 5-10 | ₹ 42.75 |
| 10+ | ₹ 41.85 |
Bulk discount will be automatically applied during checkout based on quantity.
