Description

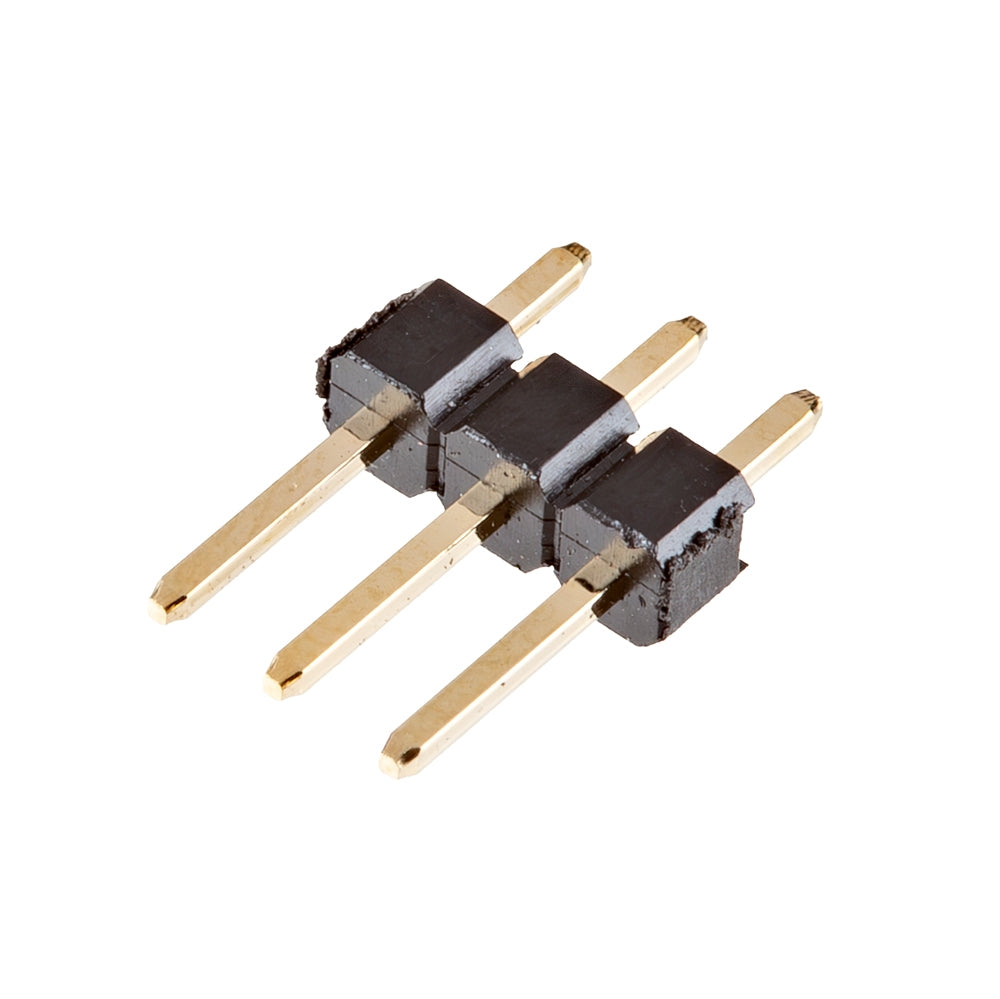

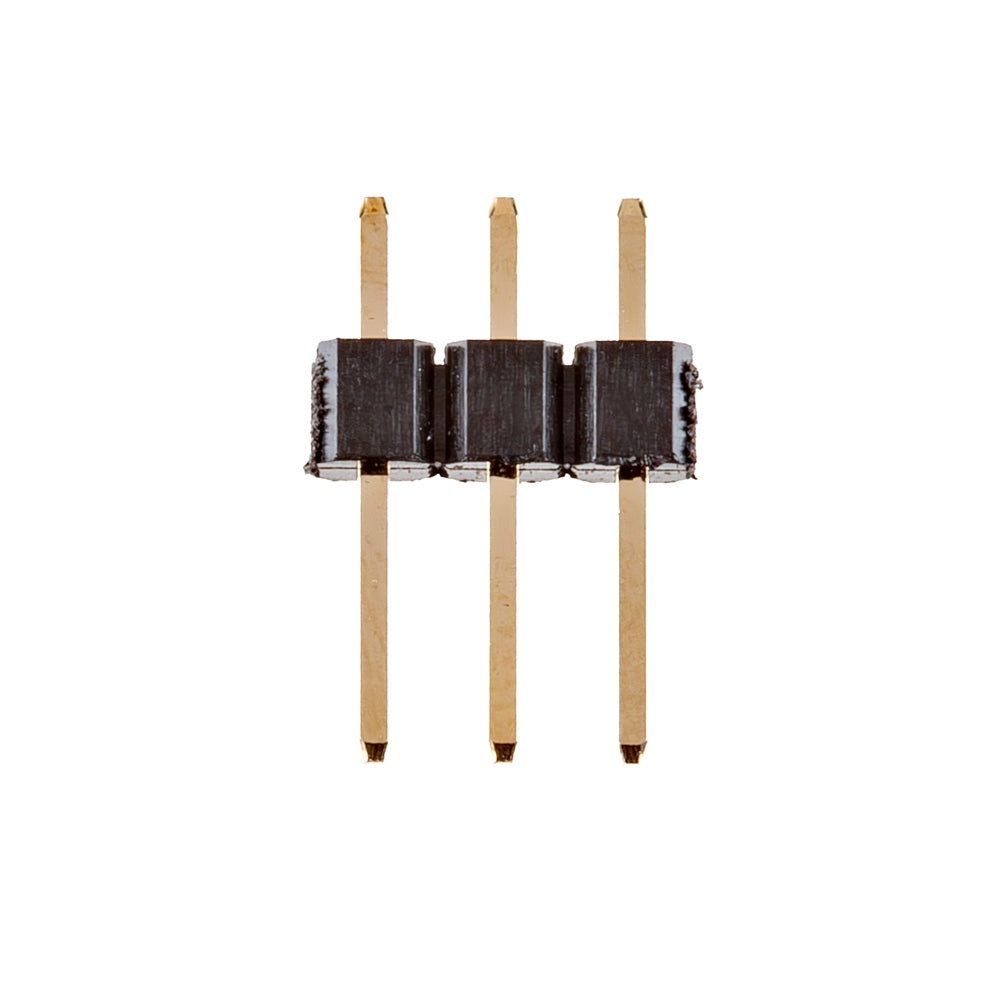

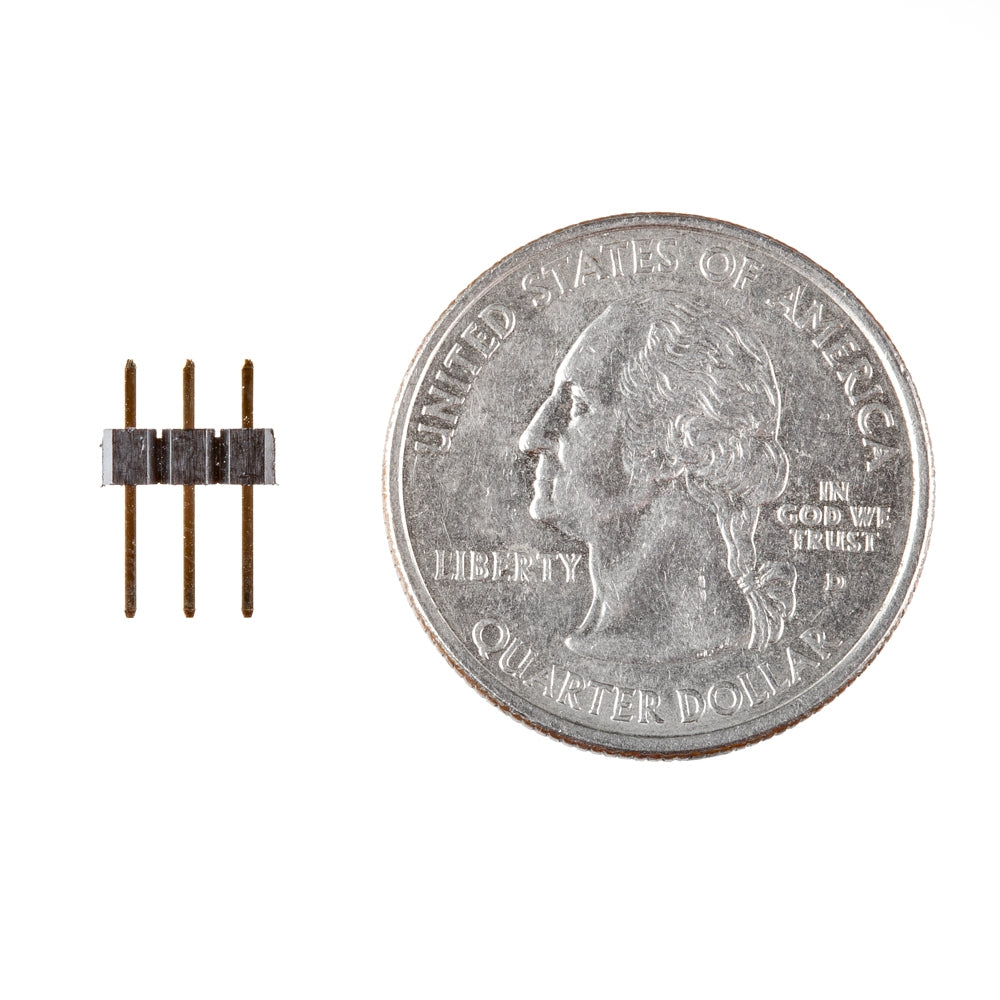

This is a simple 3-pin male PTH straight header.
Features & Specs
- Contact Type: Male
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.448" (11.39mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per contact
- Mfg Part #: PRPC003SAAN-RC
Features & Specs
- Contact Type: Male
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.448" (11.39mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per contact
- Mfg Part #: PRPC003SAAN-RC
