Description

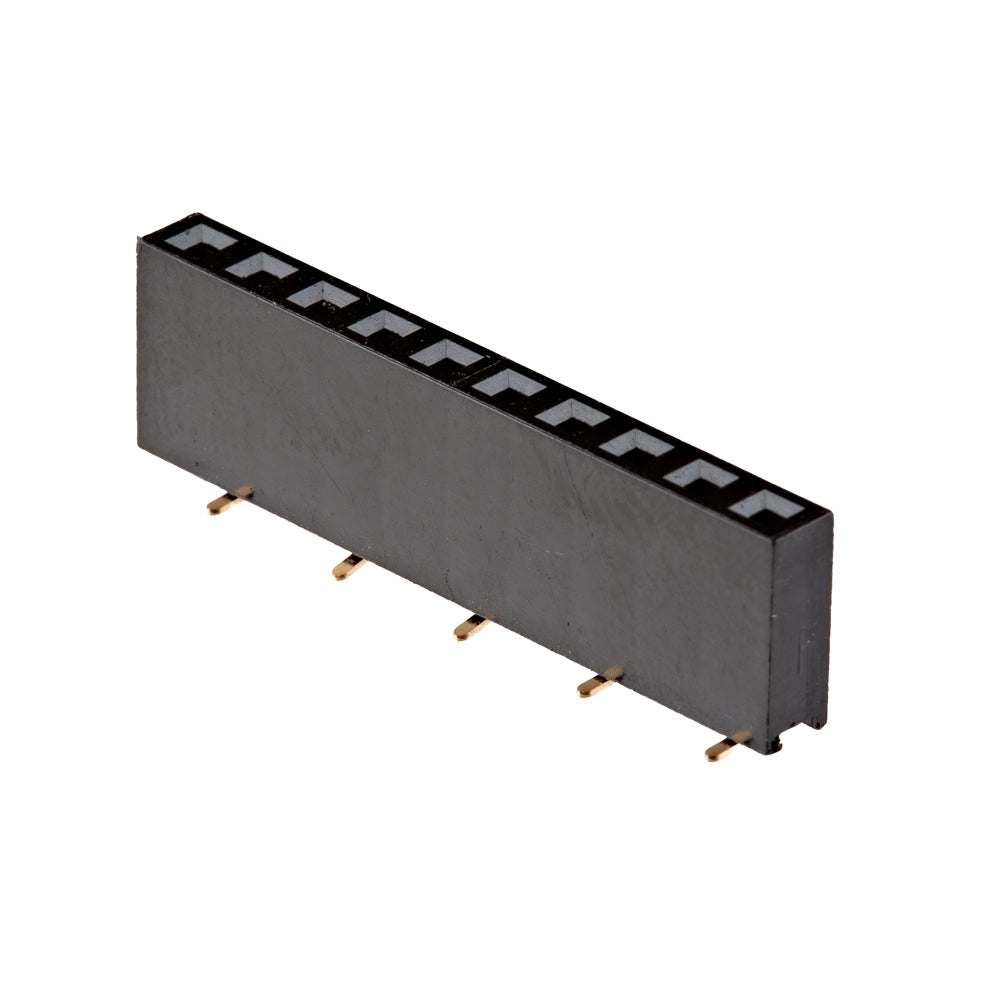

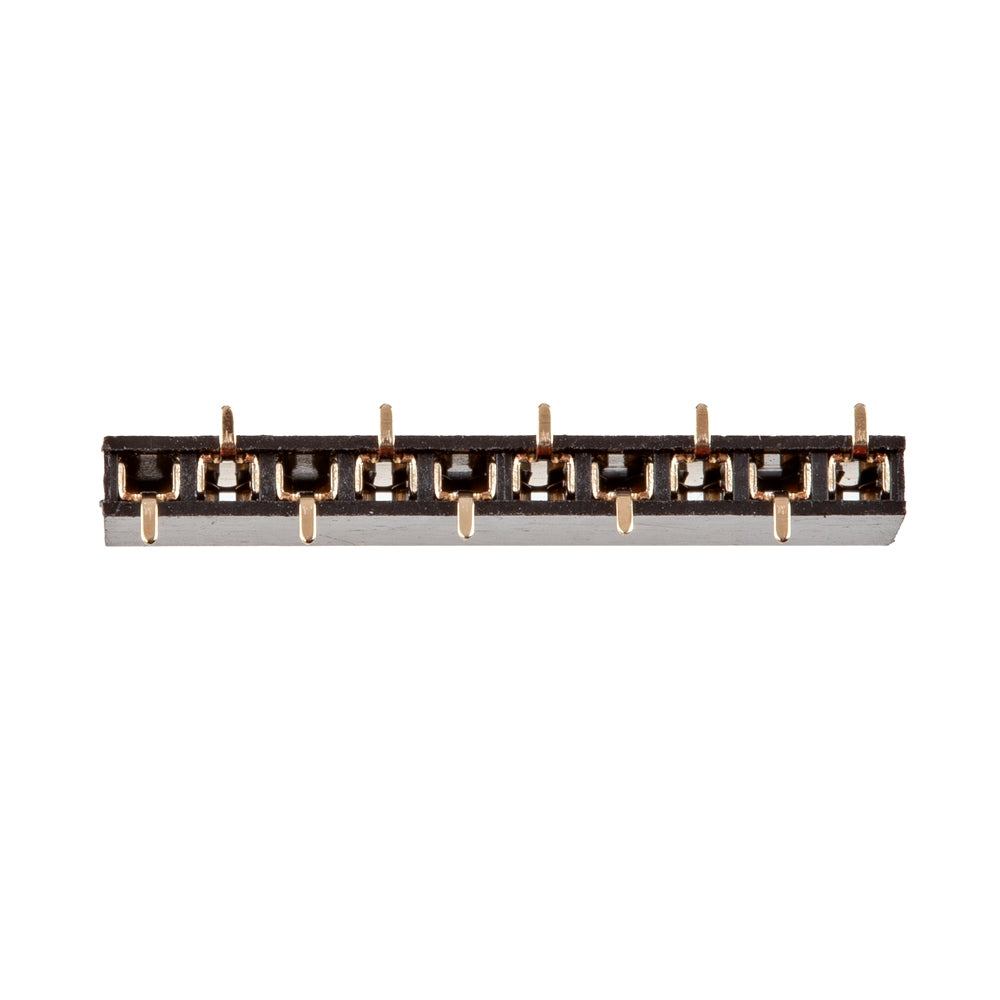

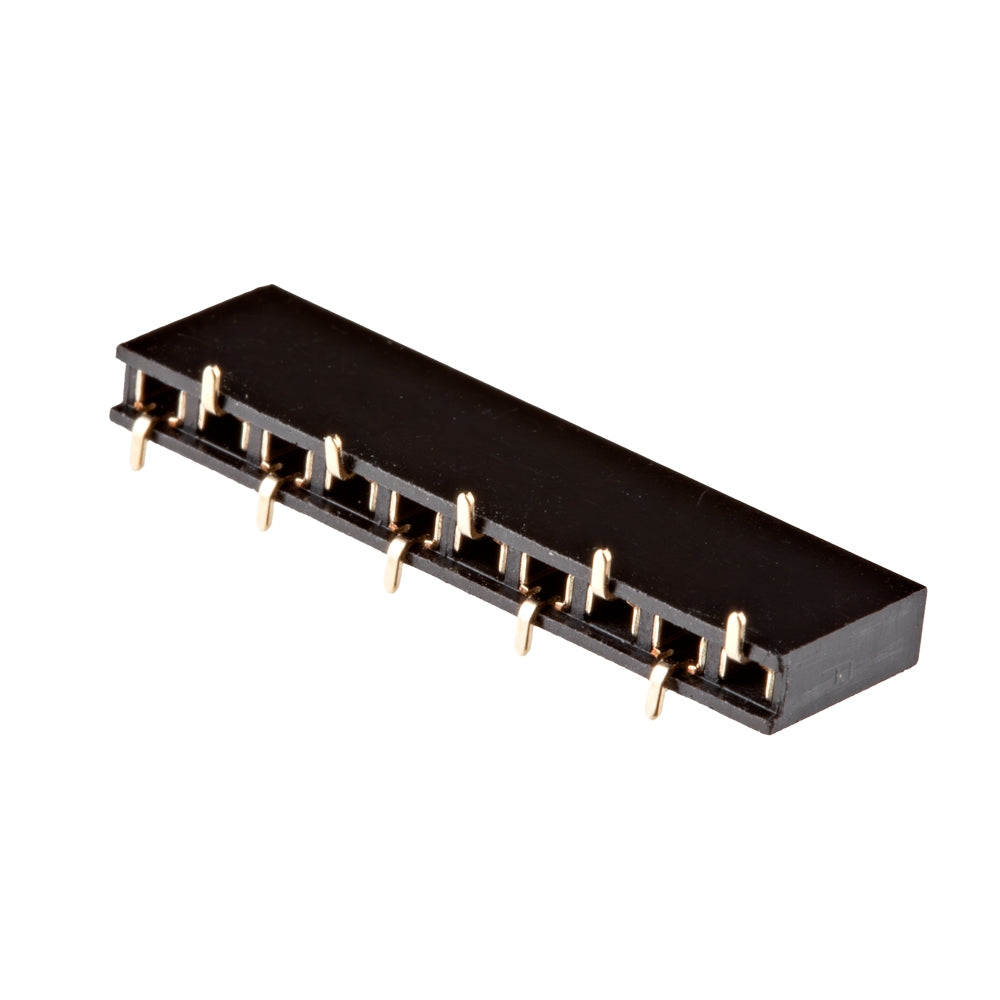

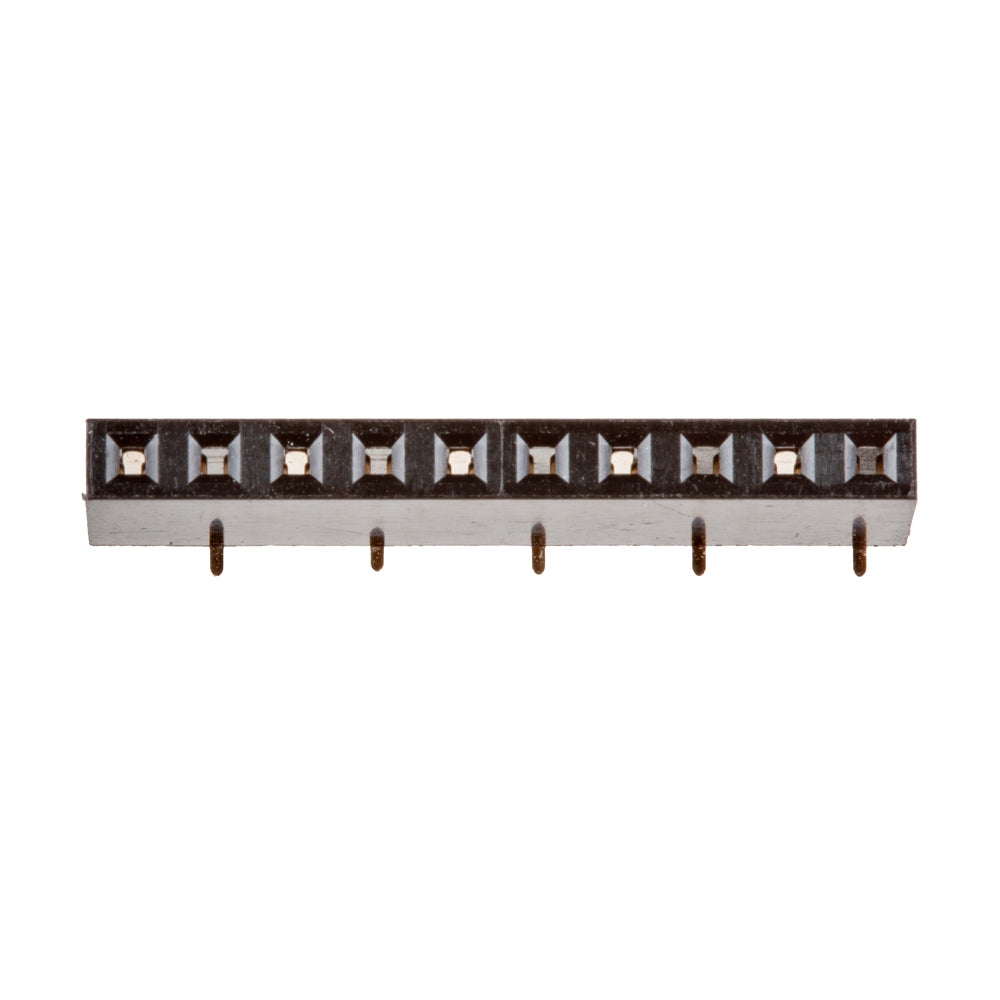

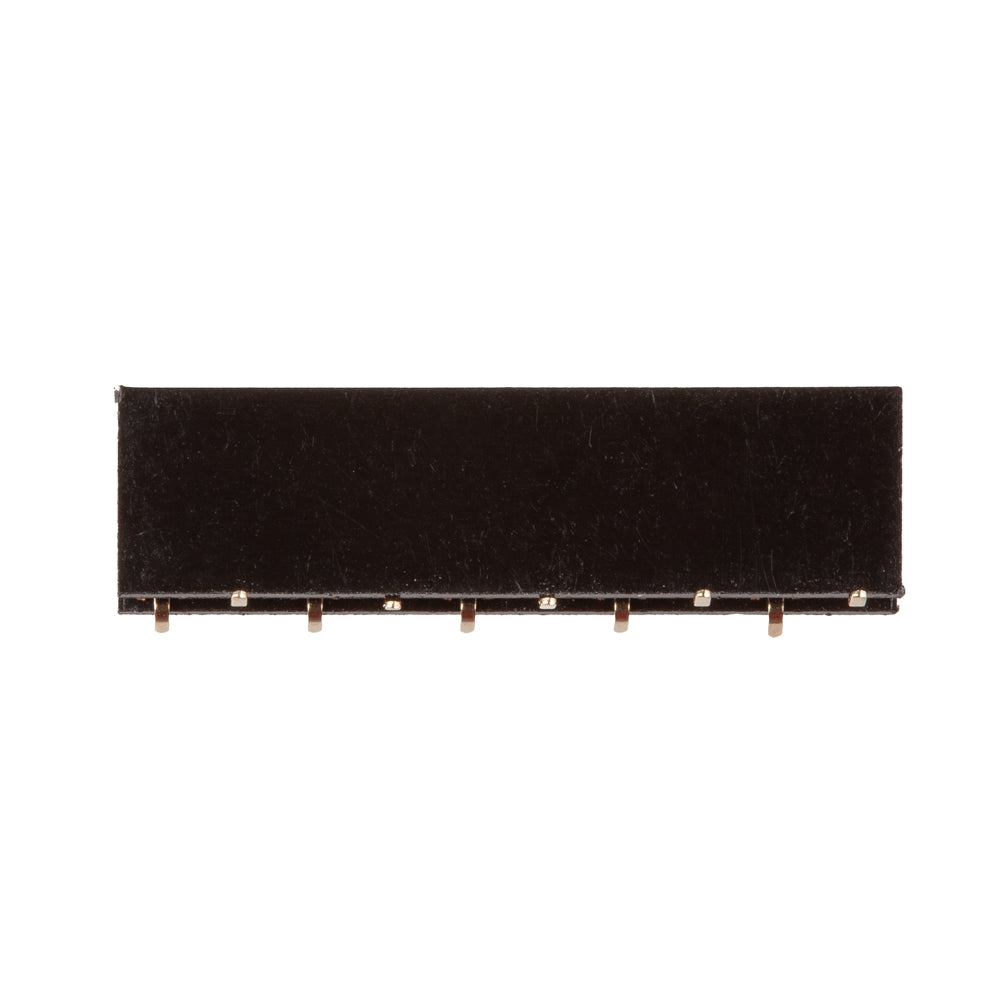

These are standard 0.1" spaced header pins that can be surface mounted for applications where through-hole pins won't work.
Features & Specs
- Contact Type: Female
- Number of Positions: 10
- Pitch - Mating: 0.100" (2.54mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Features & Specs
- Contact Type: Female
- Number of Positions: 10
- Pitch - Mating: 0.100" (2.54mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Current Rating (Amps): 3A
- Voltage Rating: 250V
