| ₹ 10007.19 includes GST and import duties. | |
| B2B customers can avail ₹ 1526.1 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

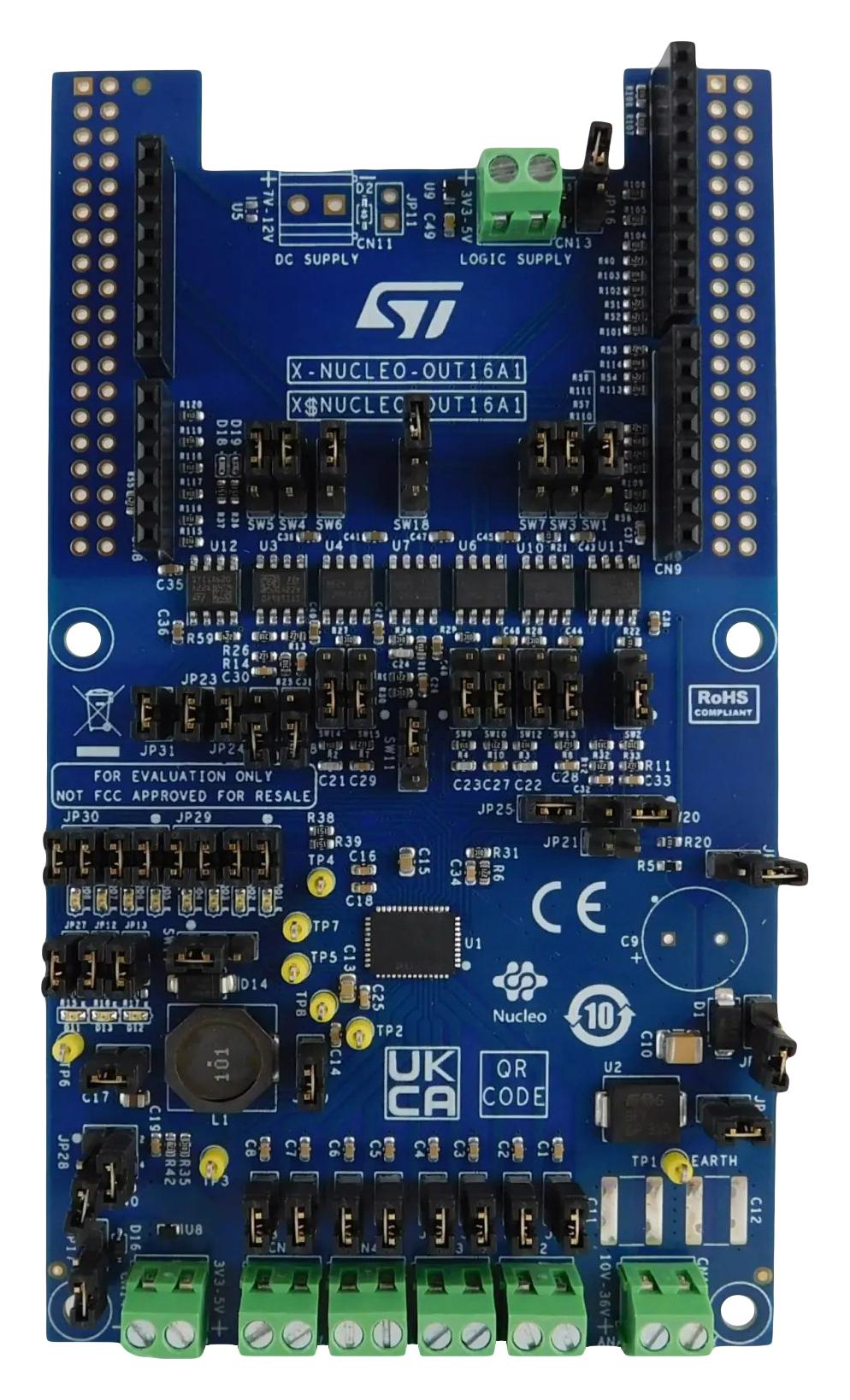

X-NUCLEO-OUT16A1 is an industrial digital output expansion board based on IPS8200HQ for STM32 Nucleo. It provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS8200HQ octal high-side smart power solid state relay, in a digital output module connected to 0.7A industrial loads. The X-NUCLEO-OUT16A1 interfaces with the microcontroller on the STM32 Nucleo via STISO620 and STISO621 and Arduino® R3 connectors.
- Application board voltage operating range: 12 to 33V
- Extended voltage operating range (J9 open) up to 36V
- Operating current: up to 0.7A per channel
- Blue LED showing SPI mode selection, yellow LED showing SPI mode 16-bits selection
- 4kVPK galvanic isolation guaranteed by STISO620 and STISO621
- Supply rail reverse polarity protection
- Compatible with STM32 Nucleo development boards
- Equipped with Arduino® UNO R3 connectors
Product details
Other details
| Brand | STMICROELECTRONICS |
| Part Number | X-NUCLEO-OUT16A1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9807.05 |
| 3-5 | ₹ 9706.97 |
| 5-10 | ₹ 9506.83 |
| 10+ | ₹ 9306.69 |
Bulk discount will be automatically applied during checkout based on quantity.
