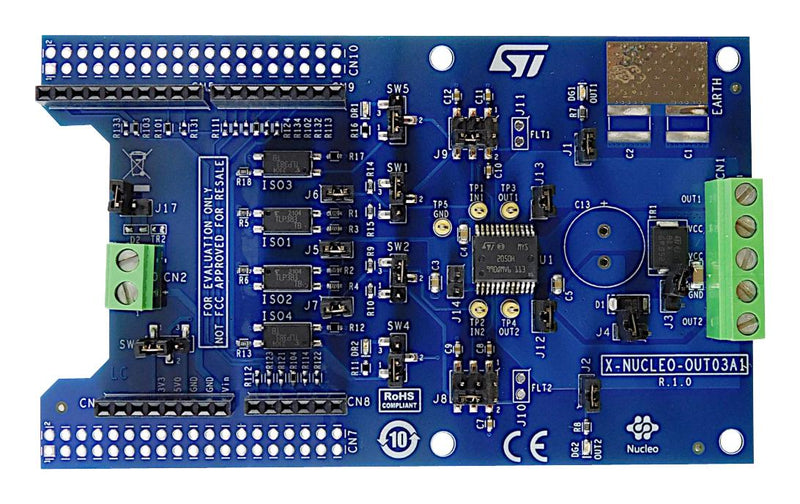

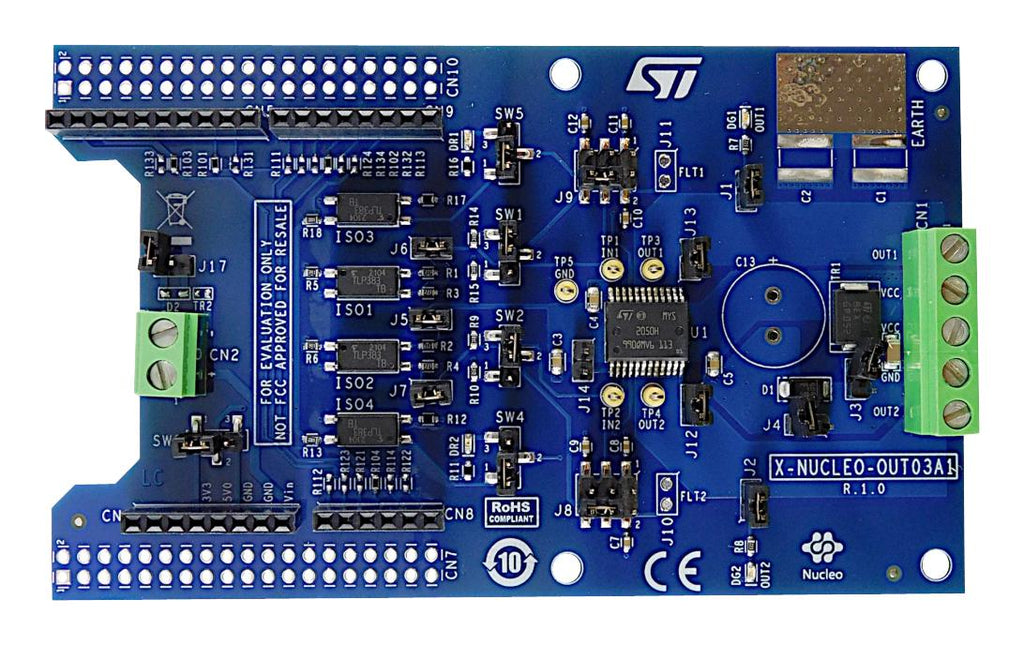

Industrial digital output expansion board based on IPS2050H for STM32 Nucleo provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS2050H (dual high-side smart power solid state relay) in a digital output module connected to 2.5A (max.) industrial loads. It interfaces with the microcontroller on the STM32 Nucleo via 5KV optocouplers driven by GPIO pins, Arduino UNO R3 (default configuration) and ST morpho (optional not mounted) connectors.
- Based on IPS2050H dual high-side switch: under-voltage lock-out, smart driving of capacitive load
- Application board operating range: 8 to 33V/0 to 2.5A
- Extended voltage operating range (J3 open) up to 60V
- Green LEDs for output on/off status
- Red LEDs for per-channel diagnostic (overload and overheating)
- 5KV galvanic isolation
- Supply rail reverse polarity protection
- EMC compliance with IEC61000-4-2, IEC61000-4-3, IEC61000-4-5
- Equipped with Arduino UNO R3 connectors and CE certified
- Compatible with STM32 Nucleo development boards
Product details
Silicon Manufacturer |
STMicroelectronics |
Core Architecture |
ARM |
Core Sub-Architecture |
Cortex-M |
Silicon Core Number |
IPS2050H |
Silicon Family Name |
- |
For Use With |
STMicroelectronics STM32 Nucleo Board |
Kit Contents |
Expansion Board IPS2050H |
Product Range |
- |
Other details
Brand |
STMICROELECTRONICS |
Part Number |
X-NUCLEO-OUT03A1 |
Quantity |
Each |
Technical Data Sheet EN |
|
