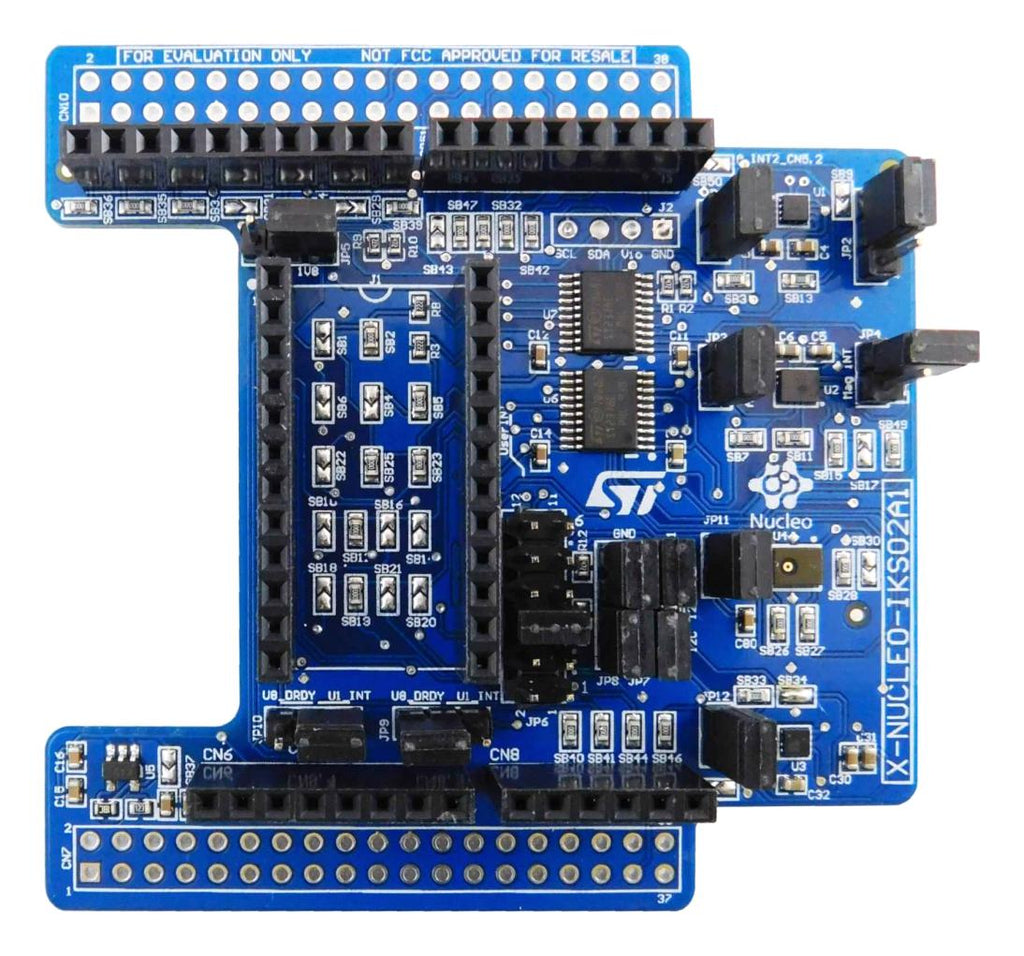

- Motion MEMS and microphone MEMS expansion board for STM32 Nucleo
- ISM330DHCX MEMS 3D accelerometer (±2/±4/±8/±16g) plus 3D gyroscope (±125/±250/±500/±1000/±2000dps)
- IIS2MDC MEMS 3D magnetometer (±50gauss)
- IIS2DLPC MEMS 3D accelerometer low power (±2/±4/±8/±16g)
- IMP34DT05 MEMS digital omnidirectional microphone (-26dBFS, ±3dB sensitivity)
- DIL 24-pin socket available for additional MEMS adapters and other sensors
- Free comprehensive development firmware library/samples for all sensors compatible with STM32Cube
- Available I2C sensor hub features on ISM330DHCX
- Compatible with STM32 Nucleo boards
- Equipped withArduino UNO R3 connector
Product details
| Silicon Manufacturer |
STMicroelectronics |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
ISM330DHCX, IIS2MDC, IIS2DLPC, IMP34DT05 |
| Silicon Family Name |
- |
| For Use With |
STM32 Nucleo Development Boards |
| Kit Contents |
Motion & Microphone MEMS Expansion Board ISM330DHCX/IIS2MDC/IIS2DLPC/IMP34DT05 |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
X-NUCLEO-IKS02A1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
