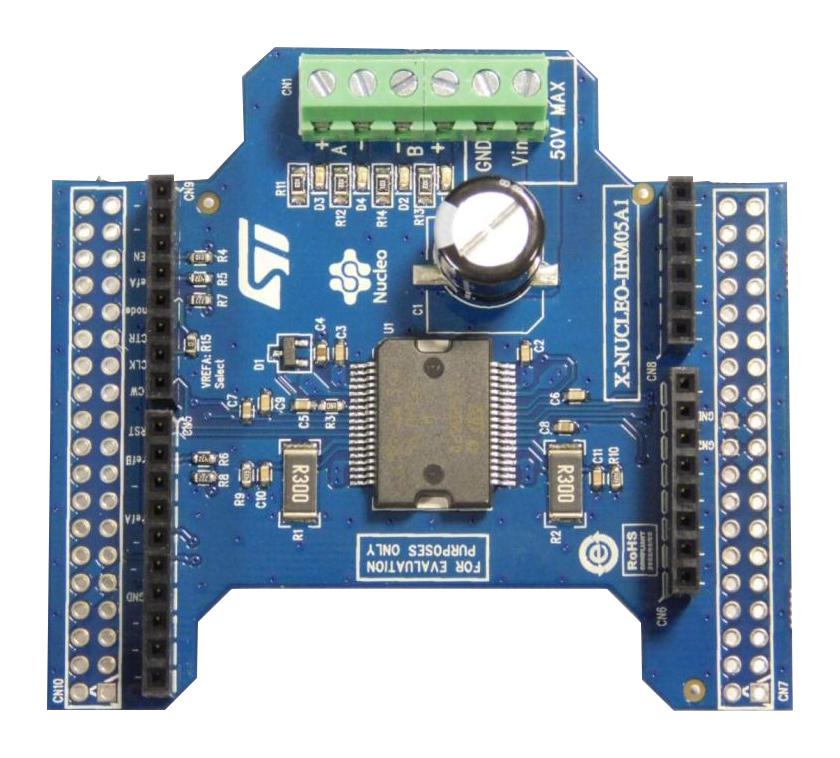

Bipolar stepper motor driver expansion board based on the L6208 driver for bipolar stepper motors. It provides an affordable and easy-to-use solution for driving bipolar stepper motors in STM32 Nucleo projects. The X-NUCLEO-IHM05A1 is compatible with theArduino UNO R3 connector and supports the addition of other STM32 expansion boards with a single STM32 Nucleo board. The user can also mount the ST Morpho connector.
- Voltage range from 8V to 50V
- Phase current up to 2.8A
- Dual independent PWM current controllers
- Fast and slow decay mode selection
- Decoding logic for stepper motors, full and half step drives
- Overcurrent protection, thermal protection shutdown
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer |
STMicroelectronics |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
L6208 |
| Silicon Family Name |
- |
| For Use With |
STMicroelectronics STM32 Nucleo Development Boards |
| Kit Contents |
Bipolar Stepper Motor Driver Expansion Board L6208 |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
X-NUCLEO-IHM05A1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
